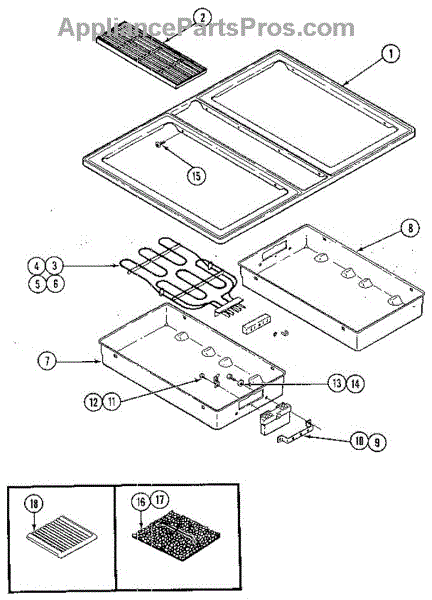

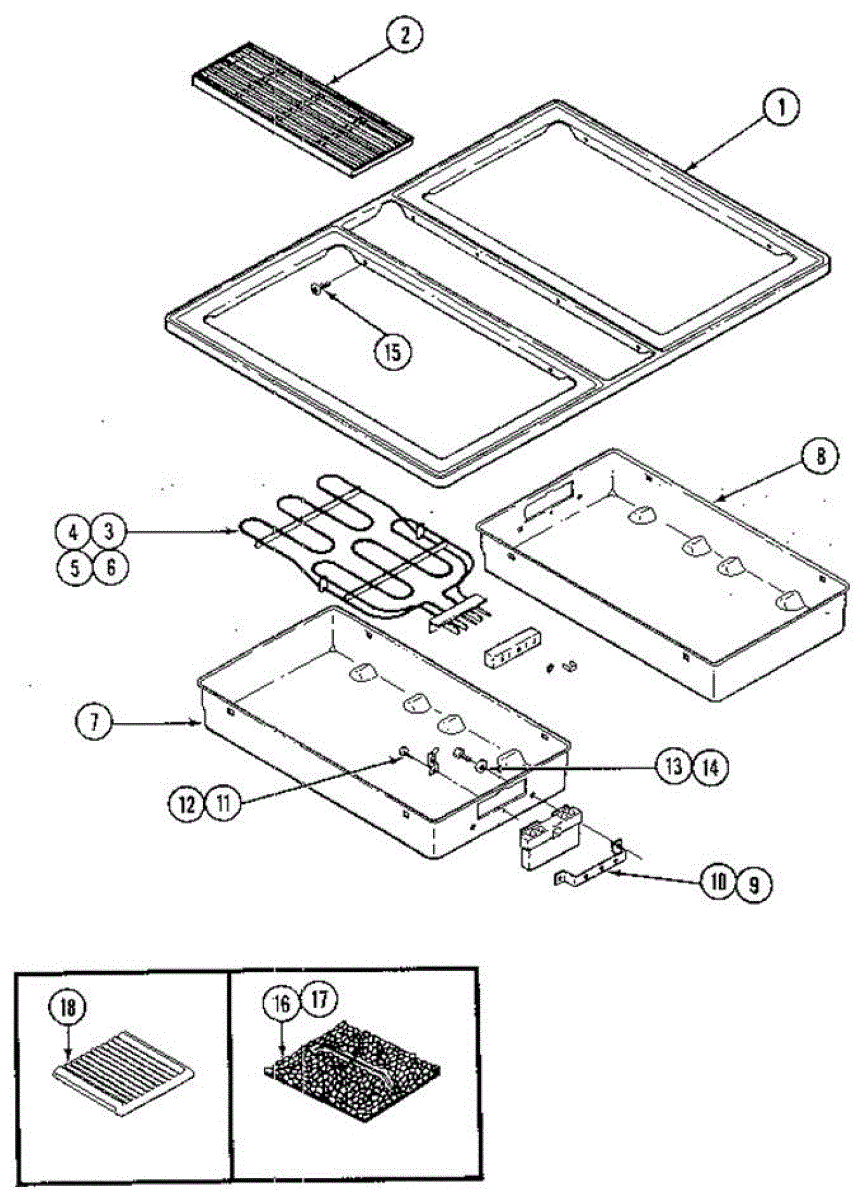

Parts for Jenn-Air W238: Top Assembly Parts

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

Stamped metal retaining clip that secures screws to panels and trim. Replace if clip is bent, broken, or missing to properly fasten covers and components.

Wire harness for cooktops and ranges. Connects electrical components for proper operation. Replace if wires are damaged, frayed, or connectors are broken.

Wire harness assembly for cooktops. Connects electrical components and controls. Replace if wires are frayed, connectors damaged, or harness is broken.

Fix intermittent or failed burner operation caused by burnt or loose wiring. This wire harness restores reliable connections. 5-minute repair once disassembled.

This ceramic receptacle provides the electrical connection point for a plug-in heating element on a range or cooktop. It mounts inside the cooktop surface and receives the element's terminal prongs to deliver power. Replace this part if the element fails to heat, heats intermittently, or if the receptacle shows signs of burning, arcing, or melting.

This small metal grounding clip attaches to internal components of the range to ensure a proper electrical ground connection. It helps maintain safe operation by preventing static buildup and electrical faults. Replace this clip if it is bent, broken, or missing, which could lead to intermittent electrical issues or safety concerns.

Screw: 8-16 x 3/8 inch.

Sheet metal pan head screw secures panels, brackets, and components to appliance cabinets. Replace missing, stripped, or corroded screws to restore fit.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Includes one rock plate. 2 used per unit. For the support order 700819.

This rock plate support is used on many of the Jenn-air grill cartridge rock plates.

Color: Black. Includes two grates.

Energy saver grill assembly.

Color: White. For black order A341. Size: 21 inches x 11 1/2 inches. This one piece Jenn-Air Designer Line electric grill cover adds that clean look to your cooktop when not in use. It also provides the extra work space when cooking. Handles are attached on each end for easy removal.

Size: 19 5/16 inches x 10 3/4 inches. This Jenn-air Designer Line non-stick aluminum electric griddle accessory fits over the electric grill elements and has two drain holes on the one end to make ease of separating the grease from the food. For the gas griddle order JGA8200ADX.

This Jenn-Air flat bottom wok will work on any electric element or gas burner. Includes the lid, steaming rack, two rice paddles and instruction manual.

Color: Black. For white order A341W. Size: 21 inches x 11 1/2 inches. This one piece Jenn-Air Designer Line electric grill cover adds that clean look to your cooktop when not in use. It also provides the extra work space when cooking. Handles are attached on each end for easy removal. For gas order AG341B.

Radiant element cartridge for modular electric cooktops. Replaces cracked, broken, or worn plug-in cooking modules. Restores smooth heating surface.

Black plug-in coil cartridge for modular cooktops. Replace worn, damaged, or discolored modules to restore a clean, uniform appearance across your cooktop.

Black plug-in coil cartridge for modular cooktops. Replace worn, damaged, or discolored modules to restore a clean, uniform appearance across your cooktop.

This radiant cartridge is the plug-in cooking surface used on Designer Line modular cooktops. It restores a smooth black surface and consistent, even heat when the original cartridge is damaged or no longer heating properly.

• Provides radiant heat beneath a smooth glass surface for everyday cooking tasks
• Self-contained plug-in module that seats in the cooktop bay and delivers heat to cookware
• Common symptoms prompting replacement: no heat, uneven or intermittent heat, or visible cracks/discoloration on the surface
• Restores normal heating performance when matched to a compatible modular cooktop

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Lift out and unplug the old cartridge straight up; avoid prying on the glass surface
• Inspect and clean the receptacle; align and firmly seat the new cartridge until fully engaged
• Restore power and test heating at low and high settings using appropriate cookware

This radiant cartridge is the plug-in cooking surface used on Designer Line modular cooktops. It restores a smooth black surface and consistent, even heat when the original cartridge is damaged or no longer heating properly.

• Provides radiant heat beneath a smooth glass surface for everyday cooking tasks
• Self-contained plug-in module that seats in the cooktop bay and delivers heat to cookware
• Common symptoms prompting replacement: no heat, uneven or intermittent heat, or visible cracks/discoloration on the surface
• Restores normal heating performance when matched to a compatible modular cooktop

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Lift out and unplug the old cartridge straight up; avoid prying on the glass surface
• Inspect and clean the receptacle; align and firmly seat the new cartridge until fully engaged
• Restore power and test heating at low and high settings using appropriate cookware

This is a complete plug-in cooking module for compatible Jenn-Air/Whirlpool modular cooktops. It drops into the cooktop bay and provides a pair of electric coil burners so you can swap configurations as needed.

• Provides two electric coil surface elements within a self-contained module
• Restores heating performance when a cartridge is damaged or not heating
• Symptoms can include no heat, uneven heating, or visible damage to the module
• Designed to plug into the cooktop's cartridge receptacle for quick changeovers

• Disconnect power before servicing
• Allow the cookware and module to cool completely before removal
• Lift out the old cartridge straight up; align and seat the new module fully into the receptacle
• Test each burner on low and high to ensure proper operation
