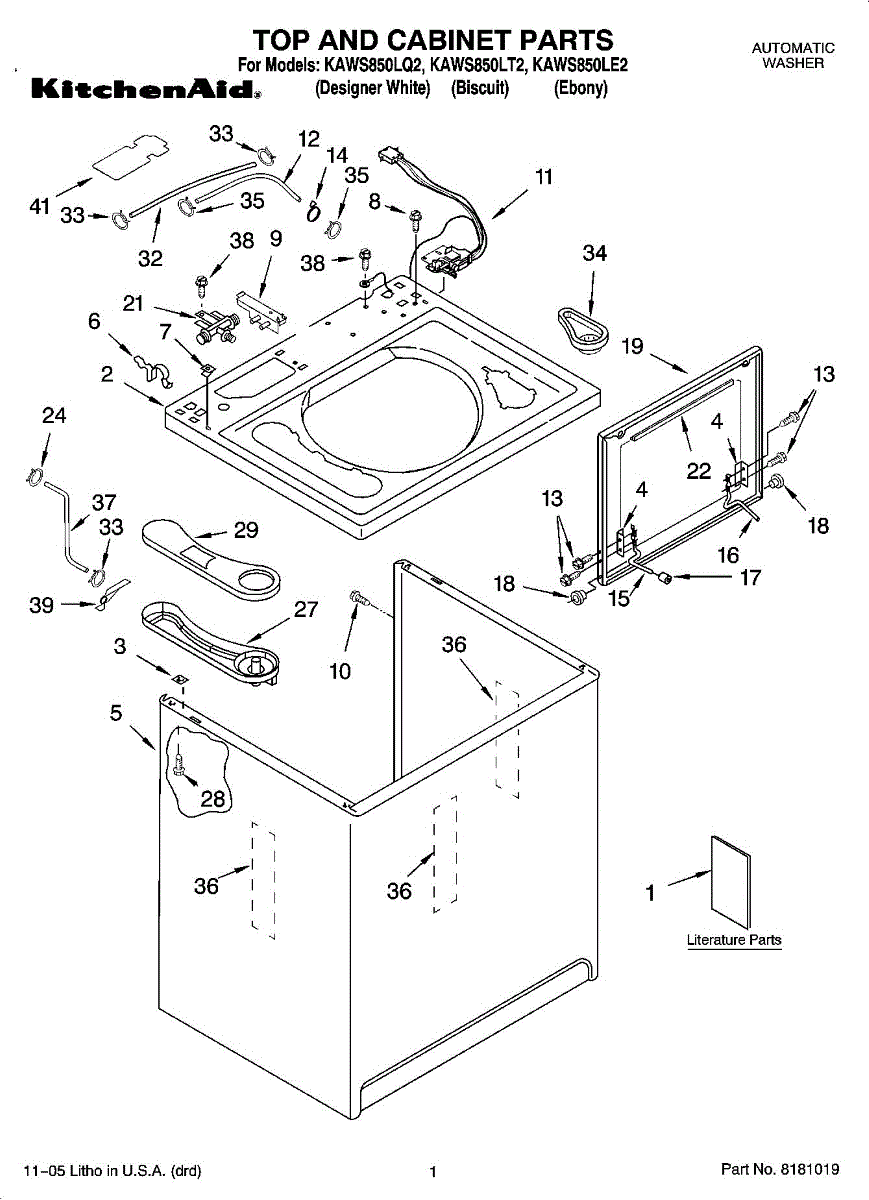

Parts for Kitchenaid KAWS850LE2: 01 - Top And Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Whirlpool spacer is an OEM replacement part responsible for maintaining the proper spacing and alignment between the washer cabinet and the top panel. The spacer provides stability and support to the appliance. It ensures that the top panel is securely attached and evenly distributed, preventing any misalignment or instability during operation.

Causes of a bad spacer can include wear and tear over time, physical damage due to accidental impacts, or deformation from prolonged use under stress. These issues can lead to misalignment and operational inefficiencies in the appliance.

Symptoms of a bad spacer include:

• Misalignment of components
• Unusual noises during operation
• Difficulty in assembling or disassembling parts
• Reduced efficiency of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, four are needed to replace all parts. Screw part number WP3390631.

This lid hinge pad fits between the washer lid hinge and the cabinet. It cushions the joint to reduce squeaks and metal wear, helping keep the lid aligned and operating smoothly.

• Provides a protective wear surface between the hinge and cabinet/lid
• Reduces squeaks, creaks, and rattling when opening or closing the lid
• Helps maintain proper lid alignment and smooth movement
• Common signs it's worn or missing: squeaking lid, rubbing/scuff marks at the hinge, loose or wobbly lid

• Disconnect power to the washer before servicing
• Support the lid to relieve hinge tension and access the hinge area per your model
• Remove the worn pad and press the new pad fully into the hinge location
• Test lid operation; inspect the opposite hinge and replace its pad as needed if your model uses two

Color: White

Used to lock washer cabinet to rear wall of washer.

Push-in.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

This lid switch is the washer's safety interlock. It detects when the lid is closed so the machine can agitate and spin, and cuts power when the lid is opened to stop operation and enhance user safety.

• Monitors lid position and allows agitation/spin only when the lid is closed
• Interrupts motor operation if the lid opens during a cycle
• Common failure symptoms: washer won't start or spin, fills but stalls, stops intermittently, or displays "lid open" alerts
• Restores proper cycle progression and safety shutoff when replaced

• Disconnect power and water supply before servicing
• Access the switch from under the top panel/console per your model's procedure
• Release the old switch, move the harness to the new switch, and secure wiring away from moving parts
• Ensure the lid closes and actuates the switch before reassembly and test run

The Washer Lid Screw is an OEM part for Whirlpool washing machines. This 6-32 x .340 screw secures the washer lid to the hinge assembly, ensuring the lid opens and closes smoothly and stays securely in place during operation.

Causes of a bad washer lid screw can include wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or mishandling. A compromised screw can lead to issues with the lid's stability and functionality.

Symptoms of a bad washer lid screw include:

• The washer lid feeling loose or wobbling
• Difficulty in opening or closing the lid
• Visible rust or corrosion on the screw
• The lid not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Left side lid hinge. For right side use 8055256.

Right side lid hinge. For left side use 8055257.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Color: Black.

The Washer Lid Seal is an OEM part for Whirlpool washing machines. It provides a tight seal between the washer lid and the tub, preventing water from leaking out during the wash cycle.

Causes of a bad washer lid seal can include wear and tear from regular use, exposure to harsh detergents, or damage due to improper closing of the lid.

Symptoms of a bad washer lid seal include:

• Water leaking from around the washer lid during cycles
• Visible cracks or tears in the seal
• Excessive moisture or dampness around the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This dispenser assembly delivers bleach and fabric softener to the washer drum at the correct time during the wash cycle, helping maintain fabric care and cleaning performance. Fits top-load washer dispenser housings that accept this assembly. What it does:

• Directs liquid bleach into the wash tub during the appropriate cycle to aid stain removal
• Releases fabric softener into the rinse cycle for softer, fresher-feeling laundry
• Replaces cracked, clogged, or non-dispensing dispenser behavior
• Helps stop leaks or overflows when the original dispenser housing is damaged

• One dispenser assembly

• Remove power to the washer before beginning any repair to avoid shock or injury
• Typical access requires opening the washer cabinet or console; refer to your service manual for model-specific steps
• Inspect dispenser housing and hoses for damage and replace if necessary to ensure a proper seal

10 - 16 x 1/2

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This washer hose connects the bleach dispenser to the tub, directing bleach into the wash at the proper time. Replacing a cracked or clogged hose restores proper dispensing and helps prevent leaks inside or under the machine. What it does

• Routes diluted bleach from the dispenser outlet to the washer tub
• Maintains a sealed path to help prevent drips inside the cabinet
• Supports correct timed dispensing during the fill cycle
• Common symptoms: leaks near the dispenser/cabinet, bleach left in the cup, visible cracks or kinks

• Includes: 1 bleach dispenser hose

• Disconnect power and turn off water supply before servicing
• Access the dispenser and tub connections; note the original hose routing to avoid kinks
• Remove the old hose and securely fasten the new hose to both fittings with clamps
• Run a test fill and check all connections for leaks

Size: 10-24 x 3/8 inch.
