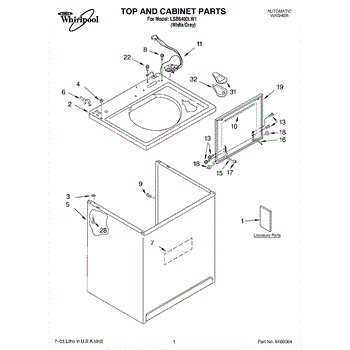

Parts for Whirlpool LSB6400LW1: 01 - Top And Cabinet Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Repair manual for top loading automatic direct drive washing machines made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

The Whirlpool spacer is an OEM replacement part responsible for maintaining the proper spacing and alignment between the washer cabinet and the top panel. The spacer provides stability and support to the appliance. It ensures that the top panel is securely attached and evenly distributed, preventing any misalignment or instability during operation.

Causes of a bad spacer can include wear and tear over time, physical damage due to accidental impacts, or deformation from prolonged use under stress. These issues can lead to misalignment and operational inefficiencies in the appliance.

Symptoms of a bad spacer include:

• Misalignment of components
• Unusual noises during operation
• Difficulty in assembling or disassembling parts
• Reduced efficiency of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, four are needed to replace all parts. Screw part number WP3390631.

Push-in.

Color: White

Used to lock washer cabinet to rear wall of washer.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

The Washer Lid Seal is an OEM part for Whirlpool washing machines. It provides a tight seal between the washer lid and the tub, preventing water from leaking out during the wash cycle.

Causes of a bad washer lid seal can include wear and tear from regular use, exposure to harsh detergents, or damage due to improper closing of the lid.

Symptoms of a bad washer lid seal include:

• Water leaking from around the washer lid during cycles
• Visible cracks or tears in the seal
• Excessive moisture or dampness around the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This lid switch is the washer's safety interlock. It detects when the lid is closed so the machine can agitate and spin, and cuts power when the lid is opened to stop operation and enhance user safety.

• Monitors lid position and allows agitation/spin only when the lid is closed
• Interrupts motor operation if the lid opens during a cycle
• Common failure symptoms: washer won't start or spin, fills but stalls, stops intermittently, or displays "lid open" alerts
• Restores proper cycle progression and safety shutoff when replaced

• Disconnect power and water supply before servicing
• Access the switch from under the top panel/console per your model's procedure
• Release the old switch, move the harness to the new switch, and secure wiring away from moving parts
• Ensure the lid closes and actuates the switch before reassembly and test run

The Washer Lid Screw is an OEM part for Whirlpool washing machines. This 6-32 x .340 screw secures the washer lid to the hinge assembly, ensuring the lid opens and closes smoothly and stays securely in place during operation.

Causes of a bad washer lid screw can include wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or mishandling. A compromised screw can lead to issues with the lid's stability and functionality.

Symptoms of a bad washer lid screw include:

• The washer lid feeling loose or wobbling
• Difficulty in opening or closing the lid
• Visible rust or corrosion on the screw
• The lid not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Left side lid hinge. For right side use 8055256.

Right side lid hinge. For left side use 8055257.

Size: 10-24 x 3/8 inch.

10 - 16 x 1/2
