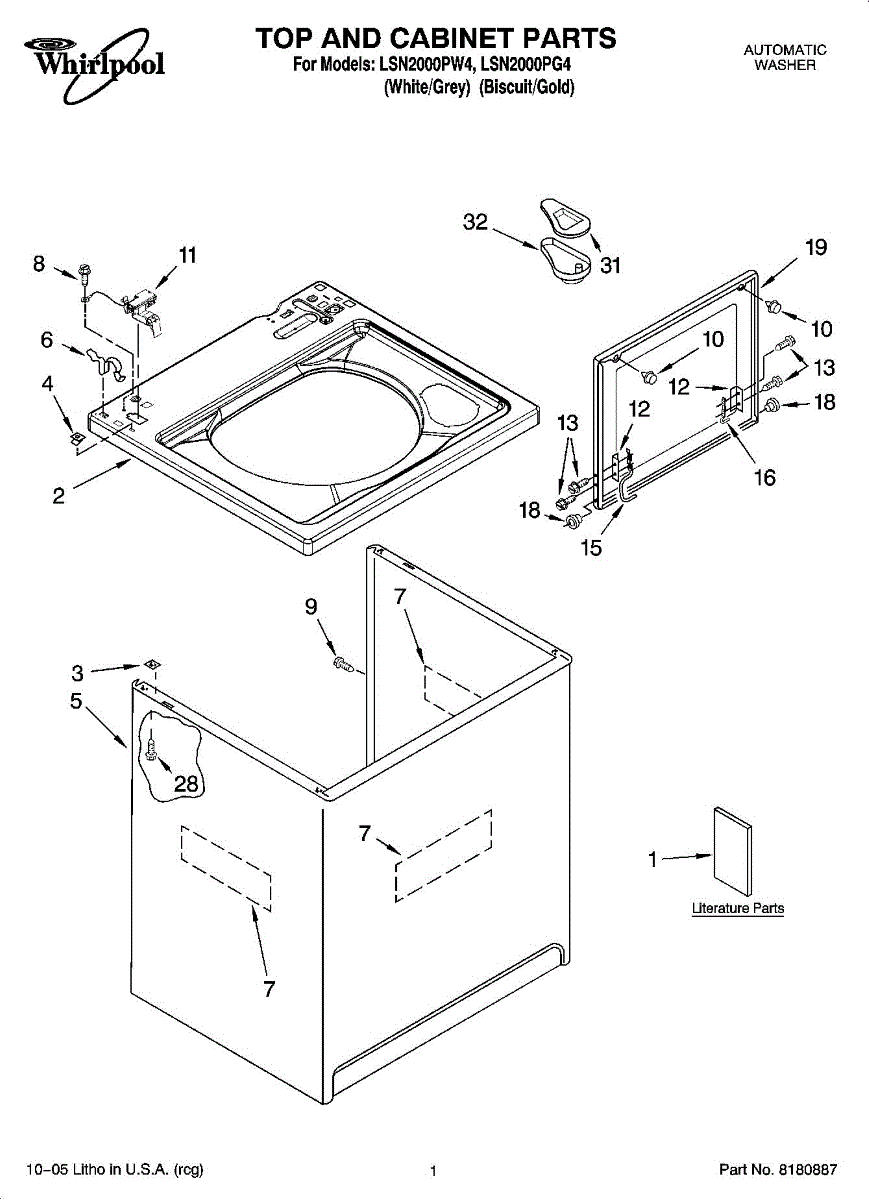

Parts for Whirlpool LSN2000PG4: 01 - Top And Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Repair manual for top loading automatic direct drive washing machines made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

The Whirlpool spacer is an OEM replacement part responsible for maintaining the proper spacing and alignment between the washer cabinet and the top panel. The spacer provides stability and support to the appliance. It ensures that the top panel is securely attached and evenly distributed, preventing any misalignment or instability during operation.

Causes of a bad spacer can include wear and tear over time, physical damage due to accidental impacts, or deformation from prolonged use under stress. These issues can lead to misalignment and operational inefficiencies in the appliance.

Symptoms of a bad spacer include:

• Misalignment of components
• Unusual noises during operation
• Difficulty in assembling or disassembling parts
• Reduced efficiency of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, four are needed to replace all parts. Screw part number WP3390631.

Push-in.

Color: White

Used to lock washer cabinet to rear wall of washer.

Size: 10-24 x 3/8 inch.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

These lid bumpers are sold individually.

The Lid Switch is an OEM part for Whirlpool washing machines that is responsible for detecting whether the washing machine lid is closed before allowing the machine to start or continue a cycle. By preventing the washer from operating with an open lid, this switch helps to avoid potential spills or accidents, making it an essential safety feature. The lid switch is activated by the closing of the machine's lid, engaging the washing cycle only when secure closure is detected.

Symptoms of a failing Lid Switch include:

• The washing machine not starting or completing a cycle
• The washer not spinning or draining
• The appliance operating only when the lid is pressed down manually

Causes of a bad Lid Switch can range from mechanical wear and tear to accidental damage, such as slamming the lid too hard or frequently, which can misalign or damage the switch mechanism. Additionally, corrosion caused by moisture or detergent residue can also impair the switch's function.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This lid hinge pad fits between the washer lid hinge and the cabinet. It cushions the joint to reduce squeaks and metal wear, helping keep the lid aligned and operating smoothly.

• Provides a protective wear surface between the hinge and cabinet/lid
• Reduces squeaks, creaks, and rattling when opening or closing the lid
• Helps maintain proper lid alignment and smooth movement
• Common signs it's worn or missing: squeaking lid, rubbing/scuff marks at the hinge, loose or wobbly lid

• Disconnect power to the washer before servicing
• Support the lid to relieve hinge tension and access the hinge area per your model
• Remove the worn pad and press the new pad fully into the hinge location
• Test lid operation; inspect the opposite hinge and replace its pad as needed if your model uses two

The Washer Lid Screw is an OEM part for Whirlpool washing machines. This 6-32 x .340 screw secures the washer lid to the hinge assembly, ensuring the lid opens and closes smoothly and stays securely in place during operation.

Causes of a bad washer lid screw can include wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or mishandling. A compromised screw can lead to issues with the lid's stability and functionality.

Symptoms of a bad washer lid screw include:

• The washer lid feeling loose or wobbling
• Difficulty in opening or closing the lid
• Visible rust or corrosion on the screw
• The lid not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Right hand side

This washer lid is black in color on the underside. The writing pictured in the picture of the underside of the lid is no longer included as a part of the lid.

10 - 16 x 1/2

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
