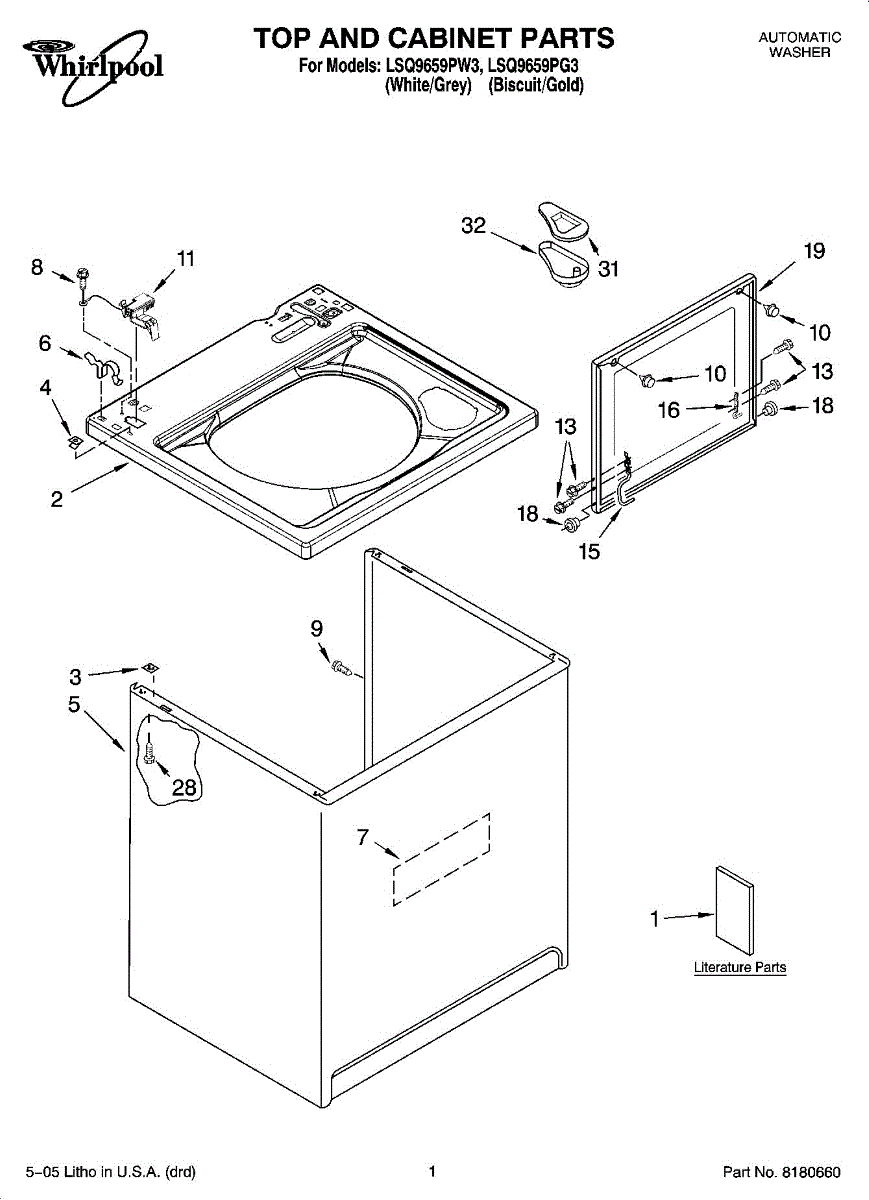

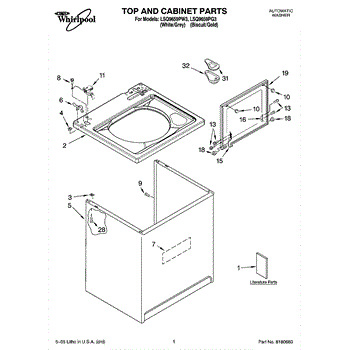

Parts for Whirlpool LSQ9659PG3: 01 - Top And Cabinet Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Repair manual for top loading automatic direct drive washing machines made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

The Whirlpool spacer is an OEM replacement part responsible for maintaining the proper spacing and alignment between the washer cabinet and the top panel. The spacer provides stability and support to the appliance. It ensures that the top panel is securely attached and evenly distributed, preventing any misalignment or instability during operation.

Causes of a bad spacer can include wear and tear over time, physical damage due to accidental impacts, or deformation from prolonged use under stress. These issues can lead to misalignment and operational inefficiencies in the appliance.

Symptoms of a bad spacer include:

• Misalignment of components
• Unusual noises during operation
• Difficulty in assembling or disassembling parts
• Reduced efficiency of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, four are needed to replace all parts. Screw part number WP3390631.

Push-in.

Color: White

Used to lock washer cabinet to rear wall of washer.

Size: 10-24 x 3/8 inch.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

These lid bumpers are sold individually.

Washer won't start, agitate, or spin? A faulty lid switch is the likely cause. This safety switch is easy to replace in under 5 minutes with basic tools.

The Washer Lid Screw is an OEM part for Whirlpool washing machines. This 6-32 x .340 screw secures the washer lid to the hinge assembly, ensuring the lid opens and closes smoothly and stays securely in place during operation.

Causes of a bad washer lid screw can include wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or mishandling. A compromised screw can lead to issues with the lid's stability and functionality.

Symptoms of a bad washer lid screw include:

• The washer lid feeling loose or wobbling
• Difficulty in opening or closing the lid
• Visible rust or corrosion on the screw
• The lid not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Right hand side

This washer lid is black in color on the underside. The writing pictured in the picture of the underside of the lid is no longer included as a part of the lid.

10 - 16 x 1/2
