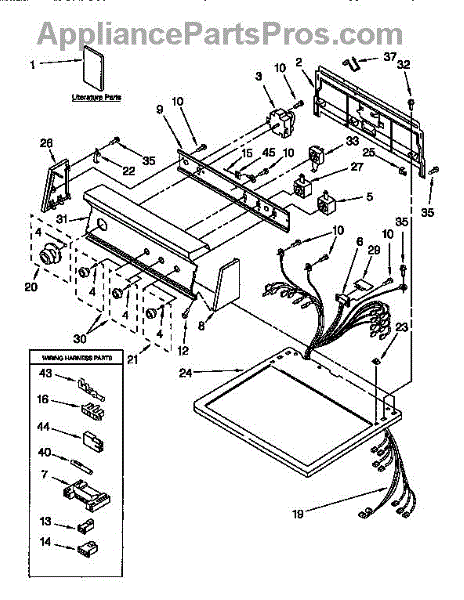

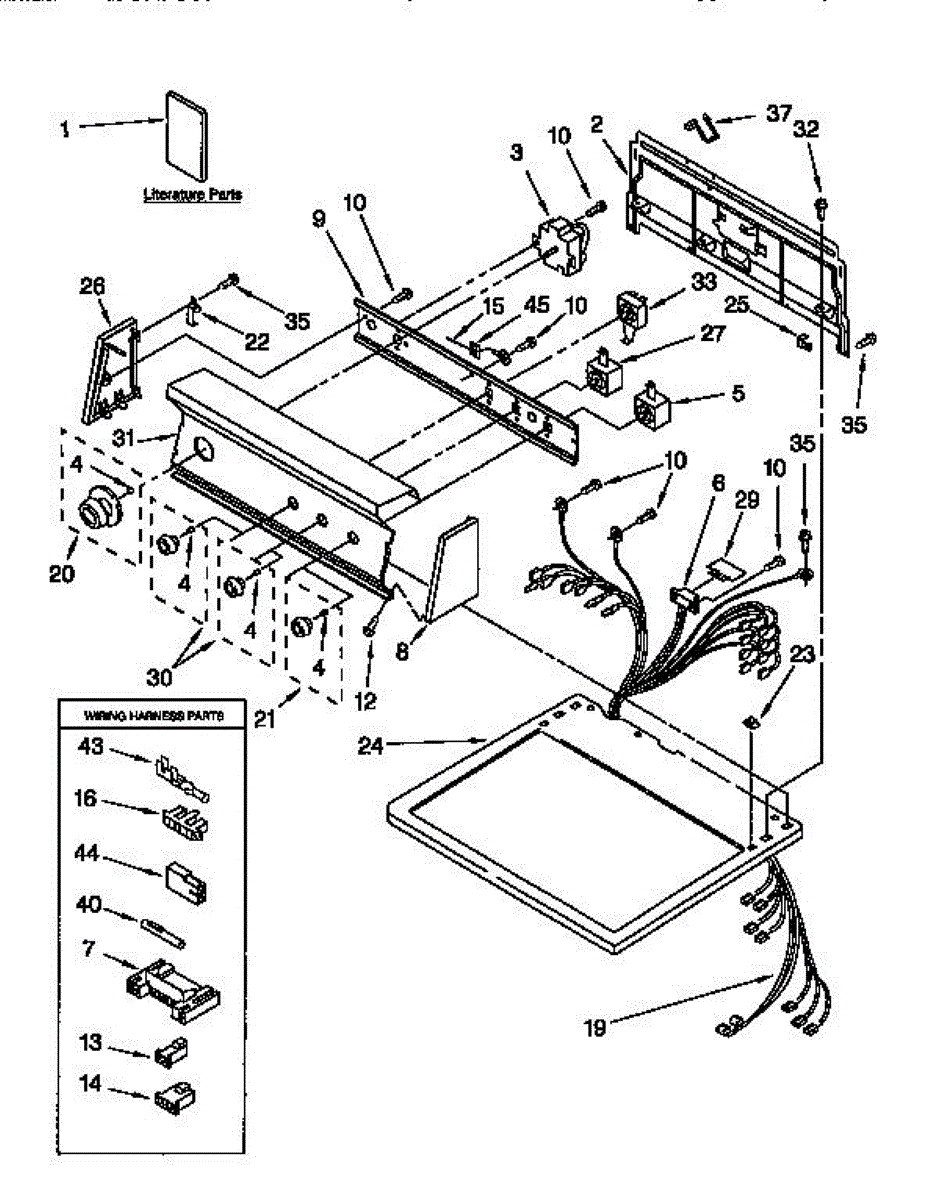

Parts for Kenmore 110.97590130 (11097590130, 110 97590130): Top & Console Parts

Dryer won't advance through cycles or stops mid-cycle? This 3-cycle timer controls cycle progression and timing. Moderate DIY repair, 30-45 minutes.

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Dryer won't start when you press the button? The start switch sends the signal to begin the cycle. Simple 5-10 minute fix with basic tools.

Fix a dryer that won't start or has no power with this terminal block connector assembly. Common repair for electrical connection issues. Moderate DIY.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

Gas valve connector for dryers. Connects gas supply lines to the valve assembly. Replace if cracked, damaged, or leaking to restore safe gas connections.

Black push-to-start knob for washers and laundry centers. Replaces cracked, broken, or missing control knobs. Installs on the control panel.

Used for control panel.

Push-in.

This signal switch controls the appliance's buzzer/alert level, letting the unit sound or change beeper volume so you can hear end-of-cycle or error alerts. It replaces a failed or intermittent buzzer control for reliable audible notifications. What it does

• Sends the control board a signal to enable or adjust the buzzer/alert tones
• Restores audible end-of-cycle and error notifications when the original switch is worn or unresponsive
• Commonly replaces switches that feel loose, don't click, or fail to change the buzzer setting
• Works as the user-accessible control for enabling/disabling or adjusting buzzer functions

• One signal switch

• Disconnect power before servicing to avoid shock or damage
• Handle wiring and connectors gently; verify and match terminals before reconnecting
• Reassemble panels and test buzzer function before full reinstallation

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Dryer won't heat or overheats on low settings? A faulty temperature selector switch prevents proper heat control. Easy DIY fix in 10-15 minutes.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

For mating terminal use WP94614.

Secures hoses and prevents leaks in dryers, washers, and laundry centers. Replace when connections loosen or drips appear. Verify fit by model.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
