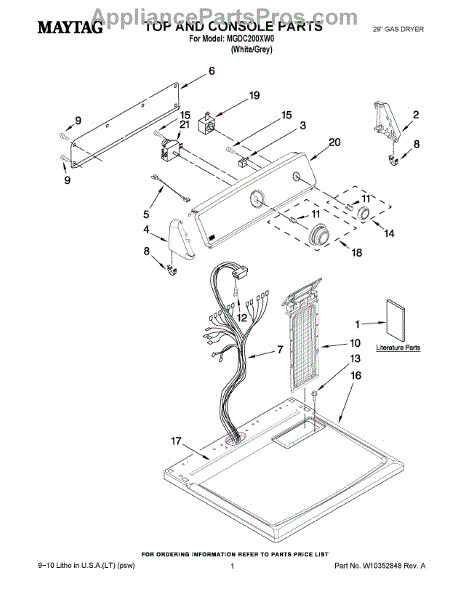

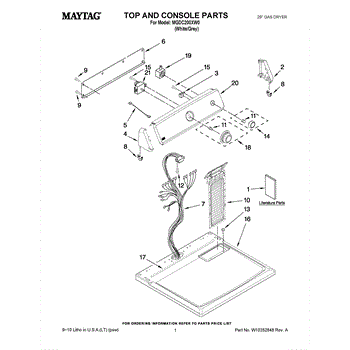

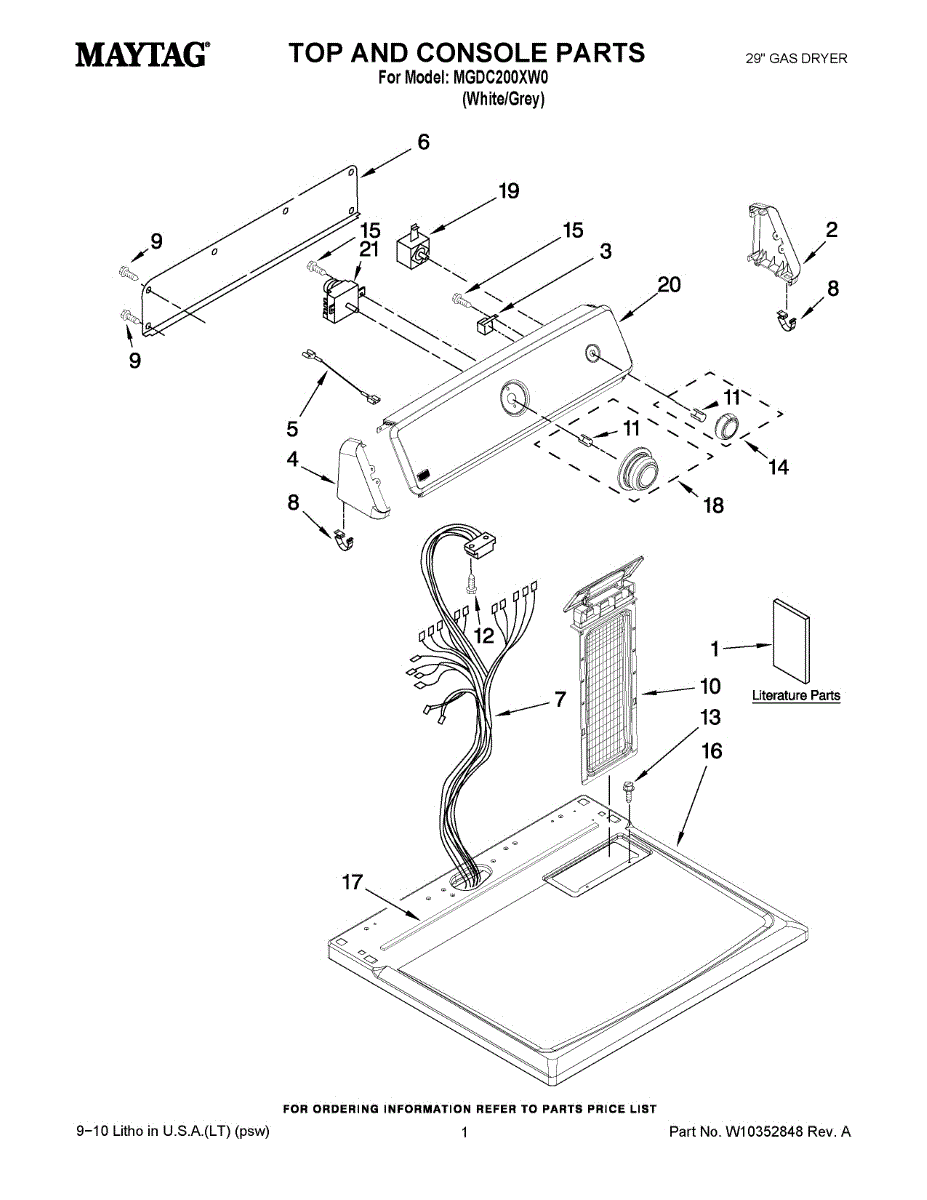

Parts for Maytag MGDC200XW0: 01 - Top And Console Parts

This right-side endcap assembly replaces a damaged or missing trim piece to restore a clean finished edge and secure adjacent panels. It helps keep the appliance sealed at the outer edge and prevents rubbing or gaps. What it does:

• Replaces the right-side exterior endcap/trim on the appliance
• Holds adjoining panels in proper alignment and reduces edge movement
• Helps prevent debris and moisture from entering the seam at the appliance edge
• Stops rattling or scraping caused by a broken or loose endcap

• Disconnect power to the appliance before starting any work.
• Access may require removing the cooktop, control panel, or adjacent trim—refer to the model service manual.
• Handle edges and painted surfaces carefully to avoid scratches; use gloves if needed.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This left-hand end cap assembly restores a secure, finished mounting point on the appliance cabinet and helps keep internal components aligned and protected from friction or debris. Ideal when the original end cap is cracked, warped, or missing. What it does:

• Replaces a damaged or worn left-hand end cap to maintain proper alignment of adjacent components
• Provides a protective cover to prevent contact, rubbing, or debris entry at the cabinet edge
• Helps reduce vibration-related noise caused by loose or misaligned parts
• Fits into the original mounting location and matches OEM fit where specified

• Disconnect power to the appliance before starting any repair
• Verify left/right orientation by comparing to the removed part prior to installation
• Typical install requires removal of the adjacent trim or panel; handle parts gently to avoid damaging clips
• If mounting hardware is missing or damaged, replace with OEM-specified fasteners

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This replacement screen fits into the appliance's filtration path. It captures debris to protect internal components and helps restore proper airflow or water flow when the original screen is torn, warped, clogged, or missing.

• Filters debris to prevent it from entering sensitive components such as pumps, blowers, or valves
• Helps maintain proper airflow or water circulation for consistent performance
• Common failure signs: torn mesh, cracked or warped frame, debris bypassing the screen
• Can contribute to longer cycles, reduced performance, or recurring clogs when damaged or missing

• Disconnect power to the appliance; turn off water supply if applicable
• Access the screen location per your model's instructions; remove the old screen and clean the housing
• Seat the new screen fully, ensuring correct orientation and that any tabs/locks engage
• Reassemble and test for proper operation; check for leaks or airflow restrictions

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This replacement refrigerator door gasket seals the door to help keep cold air in and improve temperature stability. It restores the sealing surface so the appliance can cool more efficiently and reduce moisture buildup. What it does

• Replaces a worn, torn, or warped door seal to restore an airtight fit
• Helps prevent warm air leaks that can cause temperature fluctuations
• Reduces frost and condensation buildup around the door opening
• Can improve energy efficiency when the door closes properly

• Disconnect power to the appliance or unplug the refrigerator before beginning work
• Remove the old gasket by loosening retainer screws or pulling out the retainer track as applicable; compare new gasket to ensure correct orientation
• Seat the new gasket evenly into the retainer channel, starting at the top corners and working around; tighten retainers if used
• Allow the gasket to form to the door edge; avoid sharp bends or creases during installation

Replacement knob-dial assembly that restores reliable manual control of your appliance's settings. Use this direct-fit knob to replace cracked, stripped or missing dials so you can accurately select cycles, heat levels or timer positions. What it does:

• Rotates to engage the control shaft and select the appliance setting.
• Provides a clear indicator for position alignment to improve user accuracy.
• Replaces worn, cracked or loose knobs that slip or spin on the shaft.
• Helps restore normal operation when the original knob is missing or broken.

• Disconnect power to the appliance before starting any repair.
• Most models use a push-on fit; align splines and press straight onto the control shaft. Some models may use a retaining screw—refer to the appliance's service instructions.
• After installing, restore power and test the knob through its range of motion; do not operate the appliance if controls are loose or binding.

The Start Switch is an OEM part for Whirlpool dryers. This switch is essential for initiating the drying cycle, allowing the user to start the dryer by pressing the button. It ensures the dryer begins operation and runs through the selected cycle properly.

Causes of a bad start switch can include electrical issues such as short circuits, mechanical wear from frequent use, or damage due to moisture or impact.

Symptoms of a bad start switch include:

• The dryer not starting when the button is pressed
• Intermittent operation or the need to press the button multiple times to start the dryer
• No response or sound when the start button is engaged
• The start button feeling loose or not clicking properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 4-cycle dryer timer controls cycle selection and timing, advancing through the program and shutting the dryer off at the end. Replacing a worn timer restores accurate cycle control and dependable start/stop operation.

• Controls and advances the selected drying cycle on 4-cycle models
• Routes power to the motor and heater circuits in the proper sequence for the chosen cycle
• Ends the cycle and turns the dryer off at the correct time
• Common symptoms of failure: cycle won't advance or runs too long; timer knob doesn't move; dryer won't start or won't shut off; intermittent operation

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the control console; remove the rear cover to reach the timer
• Photograph or label wiring; transfer wires to the new timer one at a time
• Secure the timer, reassemble panels/knob, and run a test cycle to verify proper advancement
