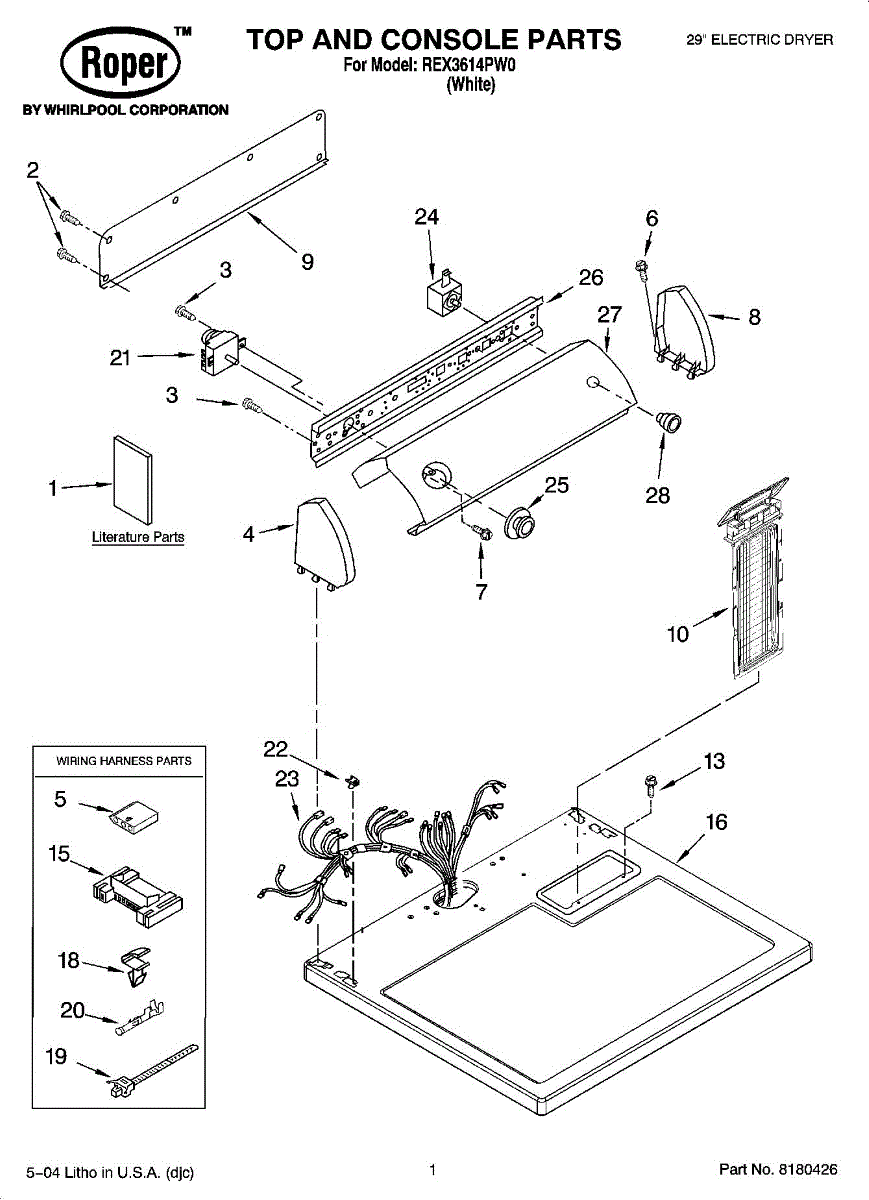

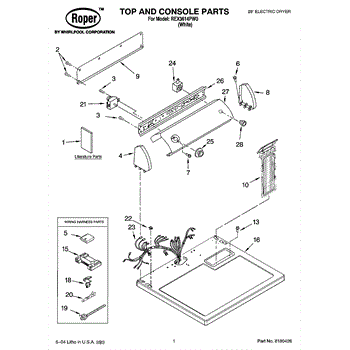

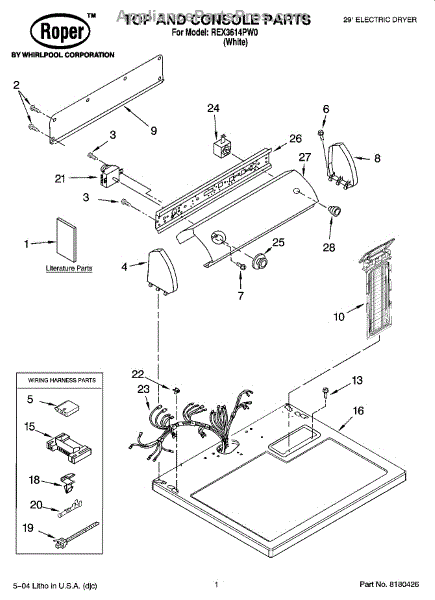

Parts for Roper REX3614PW0: 01 - Top And Console Parts Optional Parts (Not Included) Parts

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces, brackets or small components to prevent movement
• Helps stop rattling, vibration noise, or loose-fitting parts
• Replaces missing or damaged screws to restore proper alignment of panels or controls
• Used wherever an 8-18 x 7/32 machine screw is specified by the manufacturer

• Unplug the appliance or turn off power before servicing.
• Use the correct screwdriver or bit to avoid stripping the head; tighten snugly but do not over-torque.
• Replace any stripped inserts or mating hardware if threads are damaged.

The Dryer Screen is an OEM replacement part specific to Whirlpool dryers. Located inside the dryer cabinet behind the drum, the screen serves as a barrier protecting the blower system and ducting from lint and debris. The screen measures approximately 21"L and 7" W

Causes of a bad Dryer Screen can include physical damage from improper handling, accumulation of lint that isn't fully removed during cleaning, or wear and tear over time. A compromised lint screen can allow debris to bypass it, potentially leading to clogs and reduced drying efficiency.

Symptoms of a bad Dryer Screen include:

• Lint buildup on clothes after drying
• Longer drying times
• The dryer overheating
• Visible tears or holes in the screen mesh

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

For mating terminal use [AP31136300].

This mechanical timer replaces the oven's timed-control mechanism to restore accurate cook cycles and end-of-cycle signaling. It gives reliable manual timing for bake/broil operations and helps regain timed cooking when the original timer fails. What it does:

• Advances and controls timed cooking cycles so the oven runs for the set duration
• Triggers the end-of-cycle signal or shutoff for manual/timed operations
• Prevents oven from completing or starting timed functions when the timer is faulty (symptom: oven won't run or stops during a timed cycle)
• Provides a direct, dial-based replacement for failed or non-advancing mechanical timers

• Disconnect power to the appliance before beginning any service to avoid shock
• Access requires removing the range/oven control panel and knobs; handle glass knobs and bezels carefully
• Verify control panel alignment and knob seating during reassembly to ensure proper operation

Push-in.

The Push to Start Switch is an OEM part for Whirlpool dryers. It is responsible for initiating the drying cycle when pressed, sending an electrical signal to start the dryer.

You should replace this push to start switch if it becomes defective. Causes of a bad switch can include electrical failures, physical damage from repeated use, or internal wear over time.

Symptoms of a bad push to start switch include:

• The dryer not starting when the button is pressed
• The need to press the button multiple times to start the dryer
• No response or clicking sound when the button is pressed

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For square top push to start switch, use part number W10156101.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

This drying rack is a flat drum accessory that lets delicate or non-tumble items dry safely without spinning, so sweaters, shoes and other fragile pieces keep their shape and avoid wear from tumbling. What it does:

• Holds items flat inside the dryer so they dry without tumbling or twisting
• Lets you dry shoes, sweaters, stuffed toys and other delicate items safely
• Helps prevent stretching, snagging or damage caused by regular drum rotation
• Works with dryer cycles designed for air-dry or no-tumble drying

• One drying rack

• Place the rack flat inside the dryer drum before starting a no-tumble or air-dry cycle
• Ensure the rack is centered and lays flat to avoid contact with the dryer's door or vent
• Do not use with heavy, unbalanced loads or cycles designed for high-speed tumbling

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Dryer Vent Test Kit ensures your dryer's vent system is operating properly. Kit includes two tests depending on the location of your dryer's lint screen: One for the lint screen in the top of your dryer, and one for the lint screen in the front of your dryer. Instructions included.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Dryer Repair Kit is an OEM replacement part for Whirlpool 29-inch large capacity dryer models. It is a kit designed to provide various essential components and hardware needed for common dryer repairs or maintenance tasks.

The kit includes:

• One Dryer belt (341241)
• Drum support roller kit (349241T)
• One idler pulley (WP691366)
• Instructions.

Please note: Some parts in this kit may not fit your specific model. Use your model number to check for your specific parts.

Causes of needing a dryer repair kit can include worn-out or damaged components due to normal wear and tear, accidental impact or mishandling, or maintenance requirements after a certain period of use.

Symptoms that may indicate the need for a dryer repair kit include:

• Excessive noise or vibrations during operation
• Difficulty in opening or closing the dryer door
• Clothes becoming tangled or wrapped around the drum
• Leaks or air drafts affecting drying performance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.
