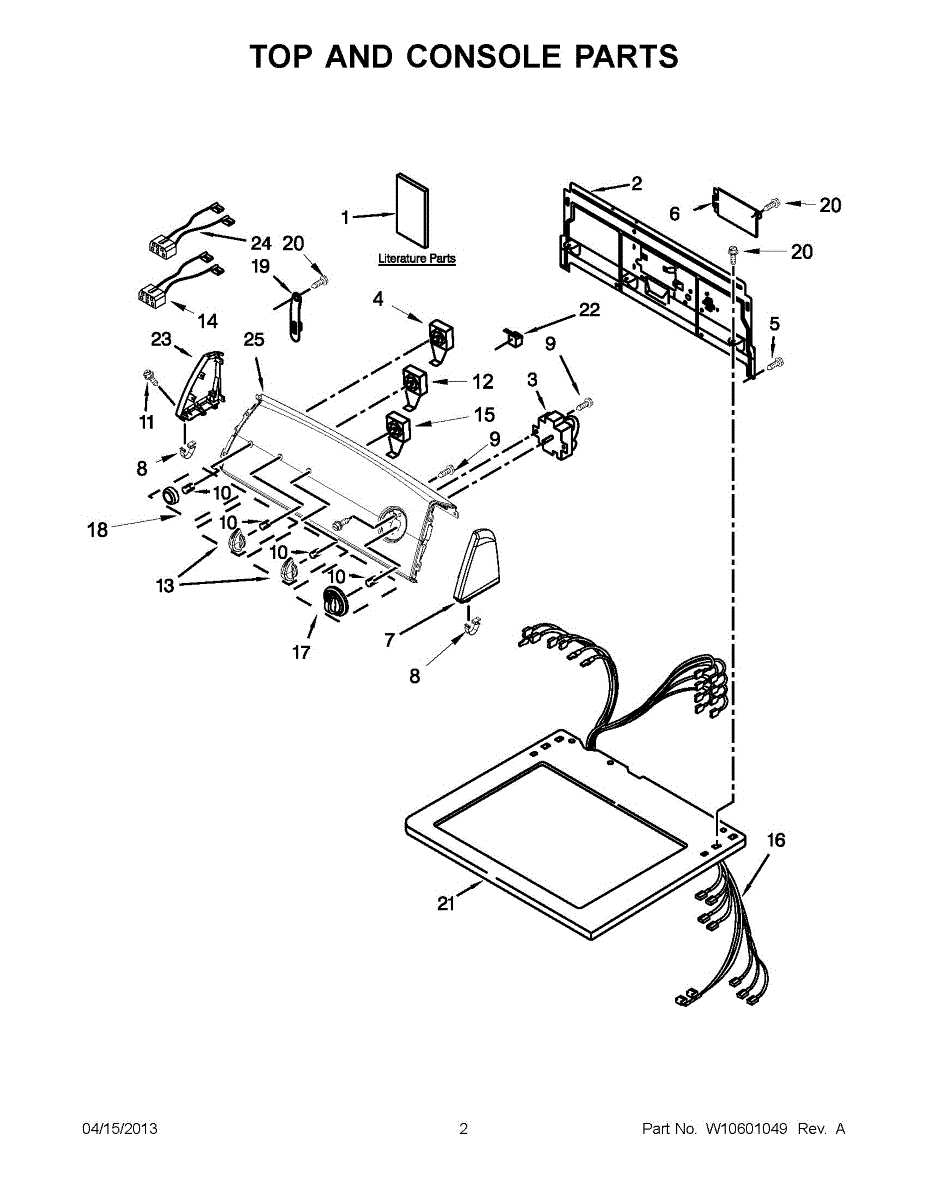

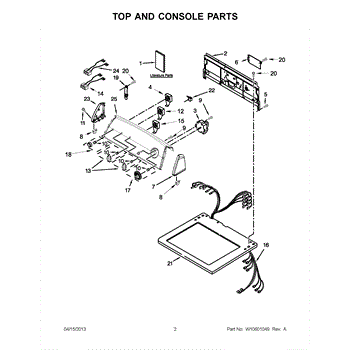

Parts for Whirlpool 3LWED4900YW2: 01 - Top And Console Parts

This 3-cycle timer controls the sequence and duration of wash/dry cycles, restoring proper cycle advancement and timing so your appliance completes its selected program reliably. What it does:

• Advances the appliance through programmed cycles and controls how long each cycle runs
• Replaces a worn or failed timer that prevents cycle progression or causes the unit to stop mid-cycle
• Can resolve symptoms like cycles not starting, not advancing, or failing to complete
• Works as the timed control for mechanical cycle selection and sequencing

• Disconnect power before starting; for gas models, shut off the gas supply first
• Handle the timer carefully and note wiring locations or take a photo for reference
• Mount and wire the new timer exactly as the old unit was connected

The Push to Start Switch is an OEM component designed for Whirlpool electric dryers. Located on the control panel, the start switch initiates and stops each drying cycle upon button depression. Its electronic components coordinate power to the drum motor and other functions.

Symptoms of a bad start switch include:

• The dryer failed to start despite selecting the settings
• Inability to cancel or pause cycles in progress
• Intermittent or unreliable response when pressing the button
• Lights or displays functioning but the drum remains motionless

Causes can involve normal wear over thousands of uses wearing out integrated circuits and connections. Water intrusion may lead to early failure.

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This small mounting screw secures the appliance's timer to its bracket or control console. It replaces missing or stripped hardware to keep the timer stable, properly aligned, and operating smoothly when you turn the control knob.

• Fastens the timer assembly securely to its mounting bracket or console
• Prevents shifting and vibration that can make the control feel loose or wobbly
• Helps maintain proper alignment of the timer shaft/knob
• Ideal replacement when original hardware is missing or threads are damaged

• Disconnect power before servicing; shut off gas if applicable
• Access the control console and support the timer while removing/reinstalling hardware
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening into plastic or thin metal
• Replace screws one at a time to keep the timer aligned

This terminal cover protects and conceals the appliance's electrical wire terminals for safer handling and cleaner internal appearance. It helps reduce accidental contact with live connections and keeps wiring organized. What it does:

• Covers exposed wire terminals to help prevent accidental contact and shorting
• Keeps wiring routed and held in place for improved serviceability
• Protects terminals from dust and debris that can affect connections
• Supports safer access during diagnostics and repairs

• One terminal cover, as shown

• Disconnect power to the appliance before attempting any service
• Remove outer panels as needed to access the terminal area; use manufacturer service guide for panel removal steps
• Align cover over the terminal block and secure per factory mounting points; do not force or modify
• If terminals or wiring appear damaged or corroded, replace or repair those components before reinstalling the cover

This end cap is a replacement outer trim piece that restores proper fit and finish to the appliance and helps protect internal components from debris. It returns a secure, clean edge where the original cap was damaged or missing. What it does:

• Covers and protects the exposed end of the housing or panel to prevent debris intrusion and wear
• Restores proper alignment of adjacent trim and panels for a snug fit
• Helps stop rubbing, vibration noise, or snagging caused by cracked or missing trim
• Provides the original appearance and protective edge after damage

• One end cap

• Disconnect power to the appliance before beginning any repair
• Remove any fasteners or retaining clips holding the old cap; keep hardware if reusable
• Snap or fasten the replacement cap into place, ensuring proper alignment with adjacent trim
• Test the appliance for proper operation after reassembly

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: gray. Measures about 3 inches in diameter.

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This end cap is a replacement outer trim piece that restores proper fit and finish to the appliance and helps protect internal components from debris. It returns a secure, clean edge where the original cap was damaged or missing. What it does:

• Covers and protects the exposed end of the housing or panel to prevent debris intrusion and wear
• Restores proper alignment of adjacent trim and panels for a snug fit
• Helps stop rubbing, vibration noise, or snagging caused by cracked or missing trim
• Provides the original appearance and protective edge after damage

• One end cap

• Disconnect power to the appliance before beginning any repair
• Remove any fasteners or retaining clips holding the old cap; keep hardware if reusable
• Snap or fasten the replacement cap into place, ensuring proper alignment with adjacent trim
• Test the appliance for proper operation after reassembly
