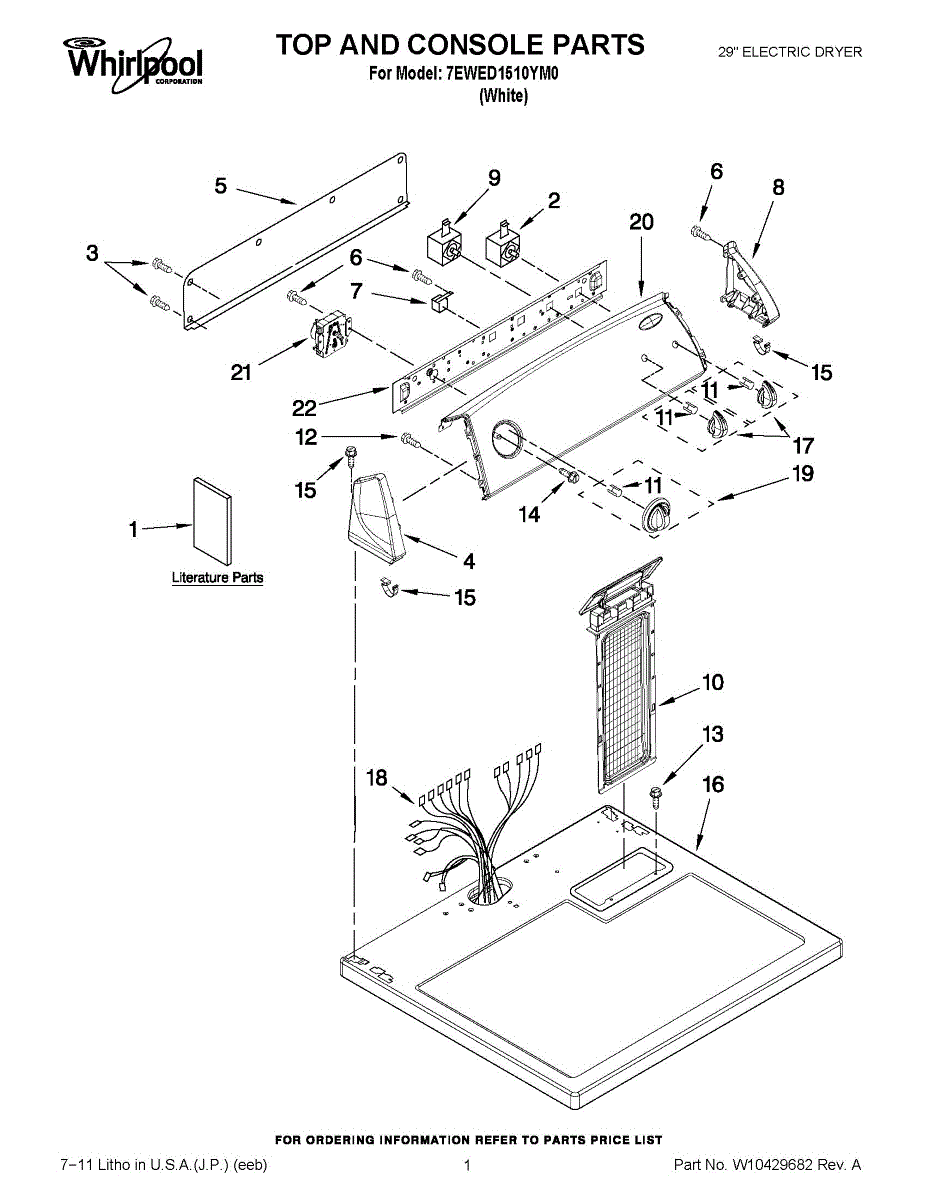

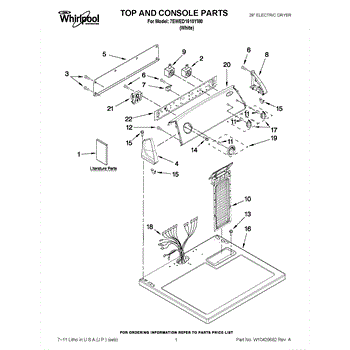

Parts for Whirlpool 7EWED1510YM0: 01 - Top And Console Parts

The Push To Start Switch is an OEM part for Whirlpool dryers. It is the interface between the user and the dryer, initiating the drying cycle when pressed. This switch is essential for the safe and efficient operation of the dryer, ensuring that it starts only when the button is deliberately pressed, thereby preventing accidental start-ups.

Causes of a bad Push To Start Switch can include electrical failures within the switch mechanism, wear and tear from repeated use, or damage from spills or moisture exposure.

Symptoms of a bad Push To Start Switch include:

• The dryer not starting when the button is pressed
• The need to press the button multiple times to start the dryer
• The dryer starting without the button being pressed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This end cap is a replacement outer trim piece that restores proper fit and finish to the appliance and helps protect internal components from debris. It returns a secure, clean edge where the original cap was damaged or missing. What it does:

• Covers and protects the exposed end of the housing or panel to prevent debris intrusion and wear
• Restores proper alignment of adjacent trim and panels for a snug fit
• Helps stop rubbing, vibration noise, or snagging caused by cracked or missing trim
• Provides the original appearance and protective edge after damage

• One end cap

• Disconnect power to the appliance before beginning any repair
• Remove any fasteners or retaining clips holding the old cap; keep hardware if reusable
• Snap or fasten the replacement cap into place, ensuring proper alignment with adjacent trim
• Test the appliance for proper operation after reassembly

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This end cap is a replacement outer trim piece that restores proper fit and finish to the appliance and helps protect internal components from debris. It returns a secure, clean edge where the original cap was damaged or missing. What it does:

• Covers and protects the exposed end of the housing or panel to prevent debris intrusion and wear
• Restores proper alignment of adjacent trim and panels for a snug fit
• Helps stop rubbing, vibration noise, or snagging caused by cracked or missing trim
• Provides the original appearance and protective edge after damage

• One end cap

• Disconnect power to the appliance before beginning any repair
• Remove any fasteners or retaining clips holding the old cap; keep hardware if reusable
• Snap or fasten the replacement cap into place, ensuring proper alignment with adjacent trim
• Test the appliance for proper operation after reassembly

The Temperature Selector Switch is an OEM replacement part for Whirlpool dryers. This electro-mechanical switch allows consumers to choose between heat settings that adequately dry different fabric types.

Causes of a damaged selector switch can include regular wear from hundreds of cycles over the appliance's lifetime. Mineral deposits accumulating inside linkage mechanics may cause rotational movements to stiffen. The physical impacts of shifting internal contact positions could potentially lead to switching issues as well.

Symptoms of a faulty temperature selector involve:

• Inability to change heat level for desired drying performance
• Temperature remaining stuck on highest or lowest settings
• Lint filter or duct cleaning lights failing to illuminate properly

This OEM replacement is compatible with some Kenmore and KitchenAid electric dryer models too.

This replacement screen fits into the appliance's filtration path. It captures debris to protect internal components and helps restore proper airflow or water flow when the original screen is torn, warped, clogged, or missing.

• Filters debris to prevent it from entering sensitive components such as pumps, blowers, or valves
• Helps maintain proper airflow or water circulation for consistent performance
• Common failure signs: torn mesh, cracked or warped frame, debris bypassing the screen
• Can contribute to longer cycles, reduced performance, or recurring clogs when damaged or missing

• Disconnect power to the appliance; turn off water supply if applicable
• Access the screen location per your model's instructions; remove the old screen and clean the housing
• Seat the new screen fully, ensuring correct orientation and that any tabs/locks engage
• Reassemble and test for proper operation; check for leaks or airflow restrictions

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the appliance's main top panel assembly. It restores a clean, sturdy top surface and protects internal components, helping the unit look and function like new after cosmetic or physical damage.

• Forms the finished top surface of the appliance and protects internal wiring/mechanisms
• Provides mounting/attachment points for surface components specific to the model
• Helps maintain proper alignment of surrounding panels and trim
• Common signs it needs replacement: dents, cracks, chips, rust, bowed or loose panel, rattling, or sharp edges

• Disconnect power to the appliance; shut off gas/water if your model requires it.
• Wear cut-resistant gloves and handle carefully to avoid bending or chipping the panel.
• Transfer any reusable brackets, trim, or grommets from the original panel to the new one.
• Reinstall using existing fasteners; avoid overtightening on painted or glass surfaces.

Color: gray. Measures about 3 inches in diameter.

The Dryer Timer is an OEM replacement part for Whirlpool dryers. It is a critical component that controls the timing and sequence of the various drying cycles, ensuring the machine operates correctly and efficiently.

Causes of needing to replace the dryer timer can include general wear and tear over time, electrical malfunctions, damage from power surges or voltage fluctuations, or moisture or water exposure within the timer itself.

Symptoms of a bad dryer timer include:

• The dryer failing to advance through the complete cycle or getting stuck in one part of the cycle
• Cycles running for an incorrect duration (too short or too long)
• The dryer failing to heat, tumble, or stop at the appropriate times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
