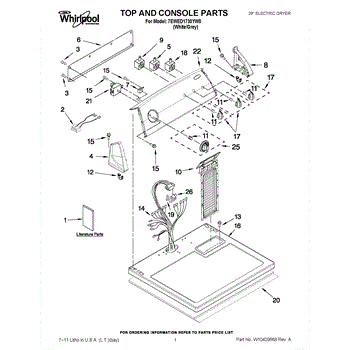

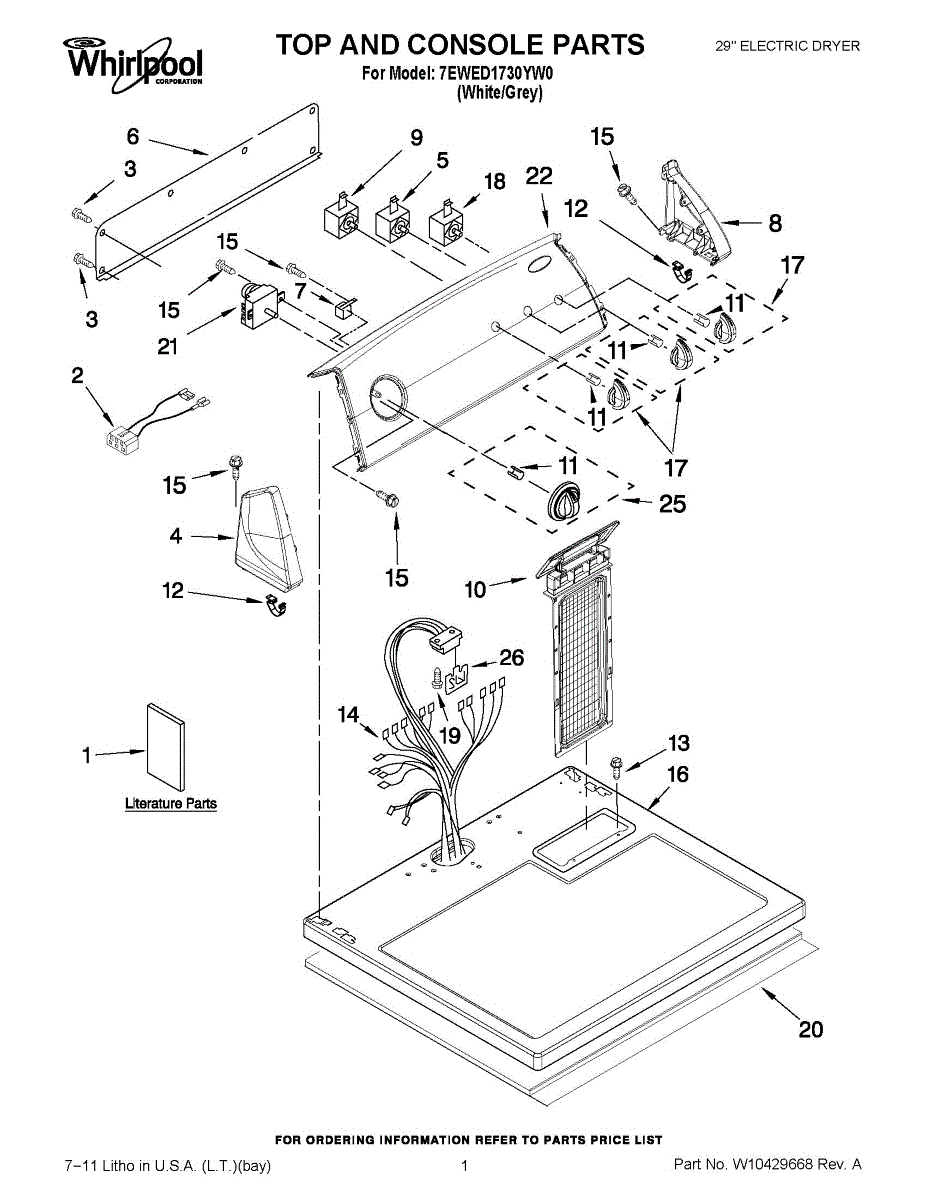

Parts for Whirlpool 7EWED1730YW0: 01 - Top And Console Parts

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This end cap is a replacement outer trim piece that restores proper fit and finish to the appliance and helps protect internal components from debris. It returns a secure, clean edge where the original cap was damaged or missing. What it does:

• Covers and protects the exposed end of the housing or panel to prevent debris intrusion and wear
• Restores proper alignment of adjacent trim and panels for a snug fit
• Helps stop rubbing, vibration noise, or snagging caused by cracked or missing trim
• Provides the original appearance and protective edge after damage

• One end cap

• Disconnect power to the appliance before beginning any repair
• Remove any fasteners or retaining clips holding the old cap; keep hardware if reusable
• Snap or fasten the replacement cap into place, ensuring proper alignment with adjacent trim
• Test the appliance for proper operation after reassembly

This rotary on/off switch controls the dryer's Finish Guard (also called Wrinkle Guard/Wrinkle Shield) feature. Replacing it restores proper control of the post-cycle intermittent tumbling that helps reduce wrinkles, preventing the feature from being stuck on or off.

• Provides 2-position on/off selection for the Finish Guard/Wrinkle Guard function
• Failure can cause the feature not to engage or to stay on after the cycle ends
• Knob may feel loose or fail to click when the switch is worn
• Mounts in the control console and interfaces with the external selector knob

• Disconnect power before servicing
• Access through the control console; remove paneling as needed
• Transfer wires one at a time or photograph connections for reference
• Reinstall using the existing knob and mounting hardware

Rear panel for dryers. Covers the back of the cabinet. Replace if cracked, damaged, or missing to restore the outer appearance and structure.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This end cap is a replacement outer trim piece that restores proper fit and finish to the appliance and helps protect internal components from debris. It returns a secure, clean edge where the original cap was damaged or missing. What it does:

• Covers and protects the exposed end of the housing or panel to prevent debris intrusion and wear
• Restores proper alignment of adjacent trim and panels for a snug fit
• Helps stop rubbing, vibration noise, or snagging caused by cracked or missing trim
• Provides the original appearance and protective edge after damage

• One end cap

• Disconnect power to the appliance before beginning any repair
• Remove any fasteners or retaining clips holding the old cap; keep hardware if reusable
• Snap or fasten the replacement cap into place, ensuring proper alignment with adjacent trim
• Test the appliance for proper operation after reassembly

Dryer won't heat or stuck on one temperature? This 4-position rotary switch restores precise heat control. Quick 5-minute DIY fix for intermittent heating.

This lint filter catches lint and debris during the drying cycle to maintain proper airflow through the dryer's exhaust system. A clogged or damaged filter restricts airflow, which forces longer dry times, increases energy costs, and creates a fire hazard from lint buildup in the vent system.

Replace this filter if the pull handle is broken or cracked, the mesh is torn or separating from the frame, rust or metal flakes are visible on the screen, or lint is passing through instead of being trapped. The filter is white, measures approximately 20 inches long (excluding the handle) by 8.5 inches wide, and slides directly into the lint filter slot -- no tools needed, takes under a minute. Clean the filter before every load for best performance.

This is a D-shaped knob insert or spring clip that fits inside a control knob and connects it to the control shaft on the dryer's front panel. It ensures the knob grips the shaft properly so you can turn the timer or selector. Replace this insert if your control knob spins freely without engaging the shaft or if the knob feels loose and won't stay in position.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

Wire harness for dryers. Connects electrical components inside the cabinet. Replace if wires are frayed, damaged, or connections are loose or broken.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Main top panel assembly that forms the finished top surface of your dryer. Replace if cracked, discolored, damaged, or worn to restore appearance.

Dryer won't start when you push the button or stops running when released? This push to start switch fixes both issues. DIY-friendly, 5-15 minute repair.

Specs: 10-16 x 1/2 inch.

Sound absorber insulation pad for dryers. Installs inside cabinet to dampen noise and vibration. Replace if torn, compressed, or missing.

Dryer won't stop running or timer knob doesn't advance? The timer control regulates cycle duration. Moderate DIY repair, about 30 minutes to replace.

Color: gray. Measures about 3 inches in diameter.

Dryer stops early on auto cycle but works on timed? The moisture sensor control board monitors dryness levels. DIY-friendly repair, 15-20 minutes.
