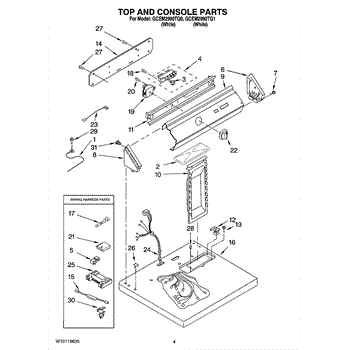

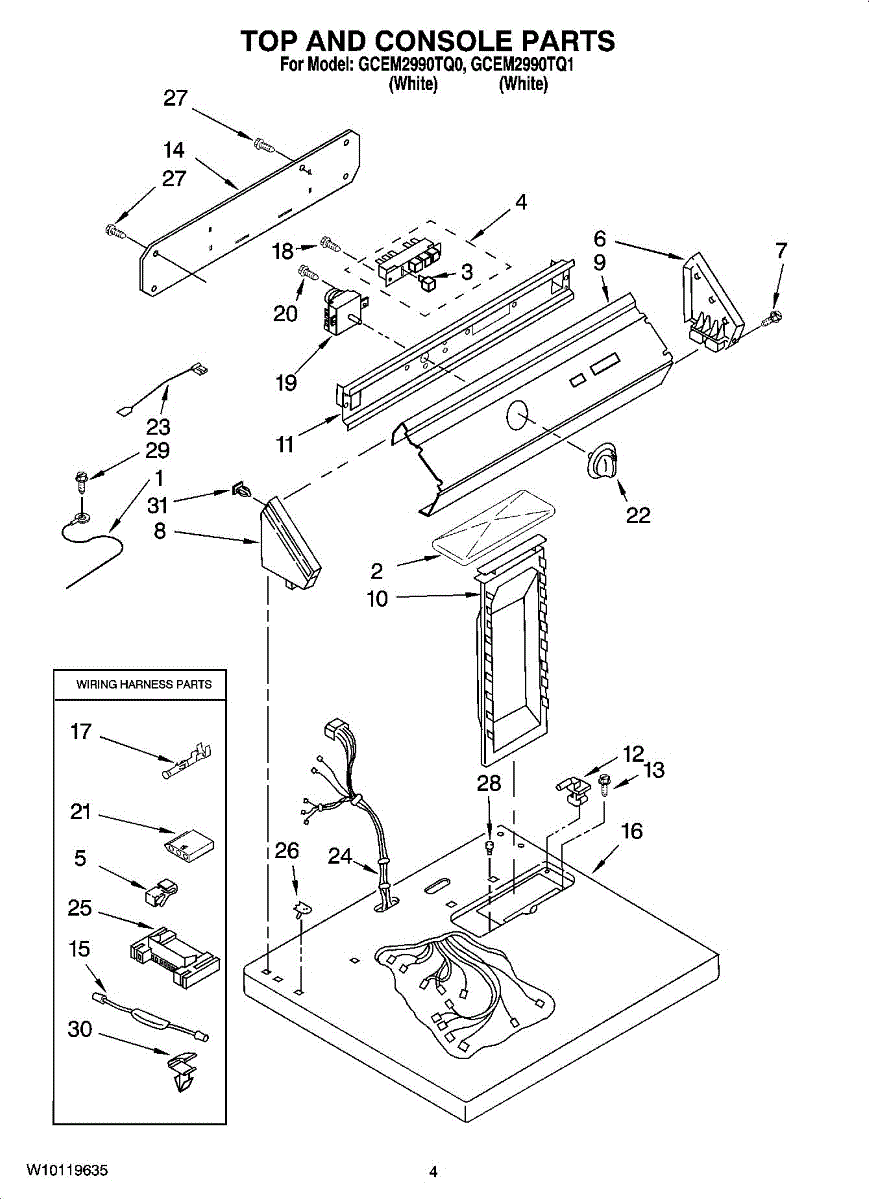

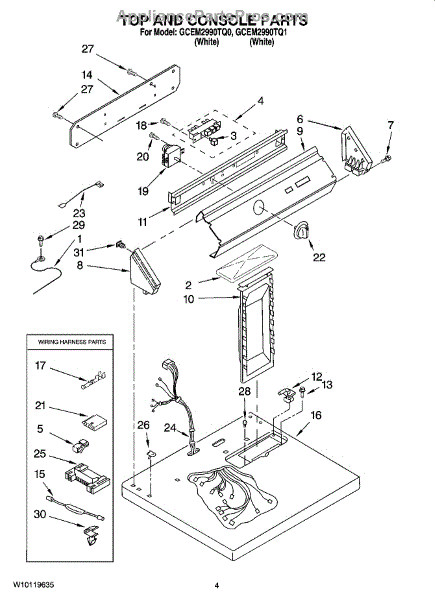

Parts for Whirlpool GCEM2990TQ1: 02 - Top And Console Parts

The Push Button Switch is an OEM part for Whirlpool washing machines. This part activates various functions and cycles on the control panel of the washer. The switch is designed to ensure responsive and reliable operation when selecting wash settings.

Causes of a bad push button switch can include wear and tear from frequent use, exposure to moisture, or physical damage from impacts.

Symptoms of a bad push button switch include:

• Unresponsive buttons on the control panel
• Inability to start or change wash cycles
• Intermittent operation of washer functions
• Error codes related to control panel issues

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Push Button Switch is an OEM part for Whirlpool washing machines. This part activates various functions and cycles on the control panel of the washer. The switch is designed to ensure responsive and reliable operation when selecting wash settings.

Causes of a bad push button switch can include wear and tear from frequent use, exposure to moisture, or physical damage from impacts.

Symptoms of a bad push button switch include:

• Unresponsive buttons on the control panel
• Inability to start or change wash cycles
• Intermittent operation of washer functions
• Error codes related to control panel issues

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement clamp secures flexible hoses and lines to prevent leaks and keep connections tight. It restores a secure seal so appliances move water or air without escaping at the joint. What it does:

• Secures inlet, drain or water lines to fittings and housings
• Helps stop leaks from loose or worn hose connections
• Keeps hoses from slipping off during operation or vibration
• Commonly replaced when clamps are corroded, broken, or no longer hold tension

• Inspect hose and fitting for damage before installing the new clamp
• Position clamp over the hose barb and tighten evenly until snug; avoid over-tightening
• Use appropriate tools (pliers or clamp driver) and follow appliance safety procedures
• Disconnect power and shut off water supply when working on water lines

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

The Lint Screen is an OEM part for Whirlpool dryers. It is crucial for trapping lint and debris from clothes during the drying process, helping to prevent these materials from clogging the dryer vent or causing potential fire hazards. This lint screen measures approximately 20 1/2" x 7 1/2".

Symptoms of a bad Lint Screen include:

• Tearing or holes in the screen that allow lint to pass through
• Excessive lint accumulation in the dryer or vent
• The dryer taking longer than usual to dry clothes

Causes of a bad lint screen can stem from normal wear and tear, improper cleaning practices that lead to build-up and degradation, or accidental damage during handling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the 19 inch long filter order 339392V.

Right handed Hinge

This lint screen lid hinge connects the dryer's lint lid to its mounting point, allowing smooth, aligned opening and secure closing. Replacing a bent or broken hinge restores proper lid operation and helps keep lint contained in the trap.

• Provides the pivot point for the lint screen lid/cover
• Helps the lid sit flush and stay aligned when closed
• Symptoms of a failed hinge can include a loose or misaligned lid, difficulty opening/closing, or squeaking/binding at the hinge
• Replace when the hinge is bent, cracked, or missing

• Disconnect power before servicing; sharp cabinet edges—wear cut-resistant gloves
• Support the lint lid to avoid bending or scratching
• Remove the mounting screws, note the hinge orientation, and transfer the new hinge in the same position
• After reassembly, cycle the lid open/closed to ensure smooth operation before restoring power

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This fixed-value resistor is an electrical component used in select dryers to limit current in a specific control circuit. It helps the timer or electronic control operate correctly by dropping voltage to safe, design-intended levels.

• Provides precise resistance to reduce voltage/current in the designated dryer circuit
• Supports proper operation of the timer, control board, or end-of-cycle signal (varies by model)
• Failure may present as a timer that won't advance, an inoperative signal/buzzer, or irregular cycle behavior
• Replace if visibly burned/damaged or if testing shows an open or shorted condition

• Disconnect power to the appliance before servicing
• Access the console/wiring harness and note original wire routing
• Make secure, insulated connections and route the resistor/leads exactly as original to avoid heat or chafing
• After installation, run a test cycle to ensure proper operation of the affected function

For mating terminal use [AP31136300].

Screw: 8-16 x 3/8 inch.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Push-in.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This rubber bumper cushions and protects moving parts and panels, reducing noise and preventing metal-to-metal contact. It restores proper spacing and stops rattles so doors, drawers or panels close smoothly and quietly. What it does:

• Acts as a shock-absorbing cushion to prevent damage from impact or slamming
• Reduces vibration and rattling noise from doors, drawers or panels
• Maintains proper clearance and helps parts align during operation
• Commonly replaced when worn, flattened, missing or causing noise

• One rubber bumper

• Typically press-fits into a hole or onto a mounting post
• Clean the mounting surface of dirt and old adhesive or debris for best retention
• No special tools required for most installs; use gentle pressure or a blunt tool to seat the bumper
• Unplug the appliance or disconnect power before servicing

10 - 16 x 1/2

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair
