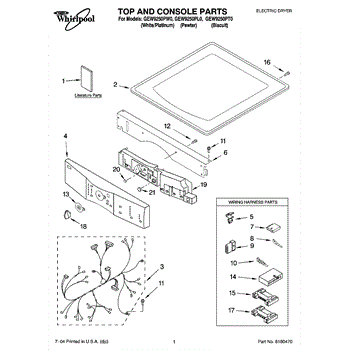

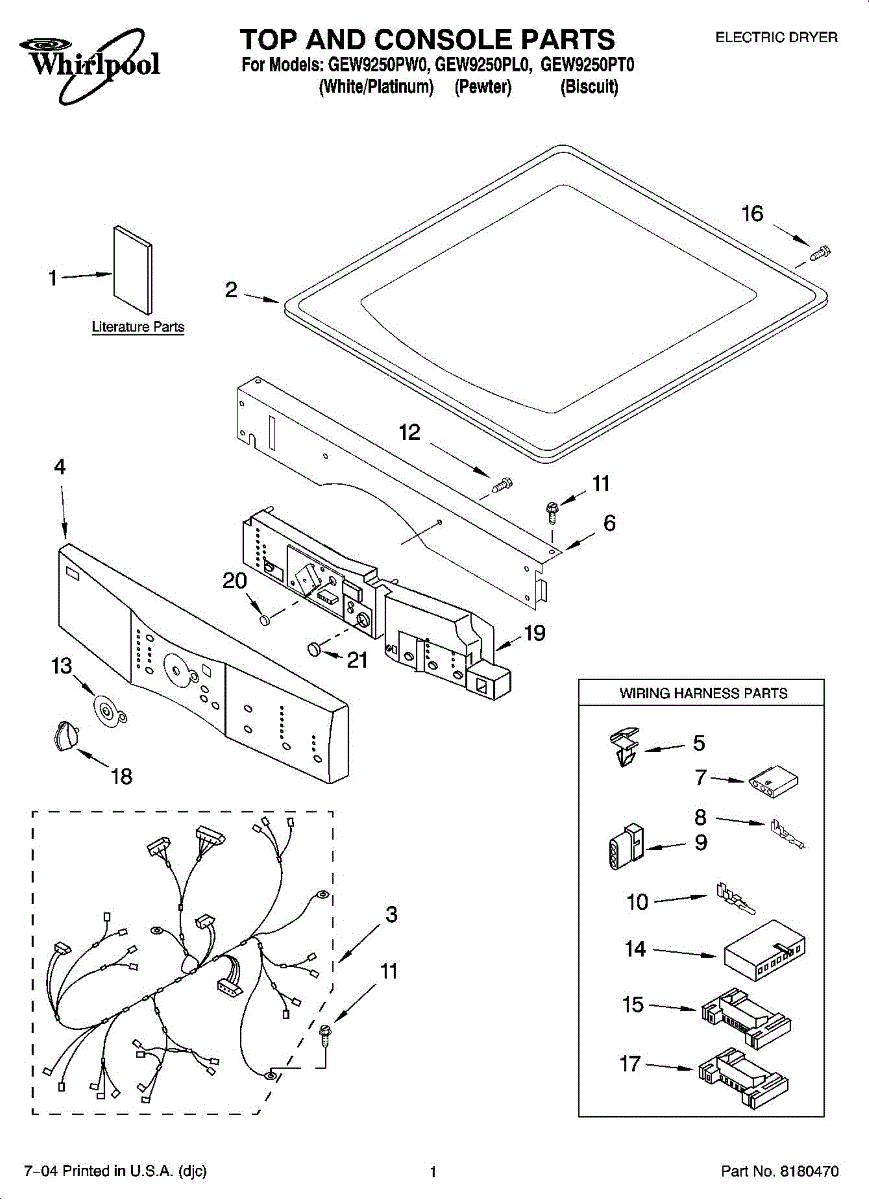

Parts for Whirlpool GEW9250PT0: 01 - Top And Console Parts

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

For mating plug use 691707.

For mating terminal use [AP31136300].

For mating terminal use WP94614.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size; 8-18 x 1/2 inch.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Size: 8-18 x 1/2 inch.

Color: biscuit. Measures about 2 inches in diameter where the handle extends.

Front load washer control knob. Color: Pewter. For gray order WP8181859. For Biscuit order WP8182049. For blue order WP8181881.

The Washer Control Knob is an OEM replacement part for Whirlpool washers.

Causes of malfunctions include stripped interior gears losing secure connection to circuit boards over hundreds of wash cycles. Repeated twisting motions can also crack fragile exterior ring structures.

Symptoms consist of:

• Refusal to rotate between settings
• Missing or faded graphics impairing readability
• Inability to start or stop washer cycles as needed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Color: Light gray used on platinum models. Measures about 1-2/3 inches in diameter. For blue order WP8181881. For dark gray used on pewter models order WP8182050.

Color: Platinum - This is a Whirlpool dryer user interface. It sits behind the outer control panel on top of the dryer and manages and monitors the dryer's cycles. The user interface can short out due to power surge or exposure to excessive heat or moisture. If the dryer is not responding to user input, the control has likely shorted out. Before installing this part, be sure to disconnect power to the appliance and allow it to cool completely. The dryer will need to be pulled away from the wall to access the screws holding the outer control panel in place. Remove the screws from each side of the control panel to gain access to the old control. Disconnect any wire harnesses connected to it and remove any screws mounting it in place before installing the new part. This is a genuine OEM part compatible with dryers manufactured by Whirlpool brands, including Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and others. This product contains no additional parts or hardware.

Color: Pewter
