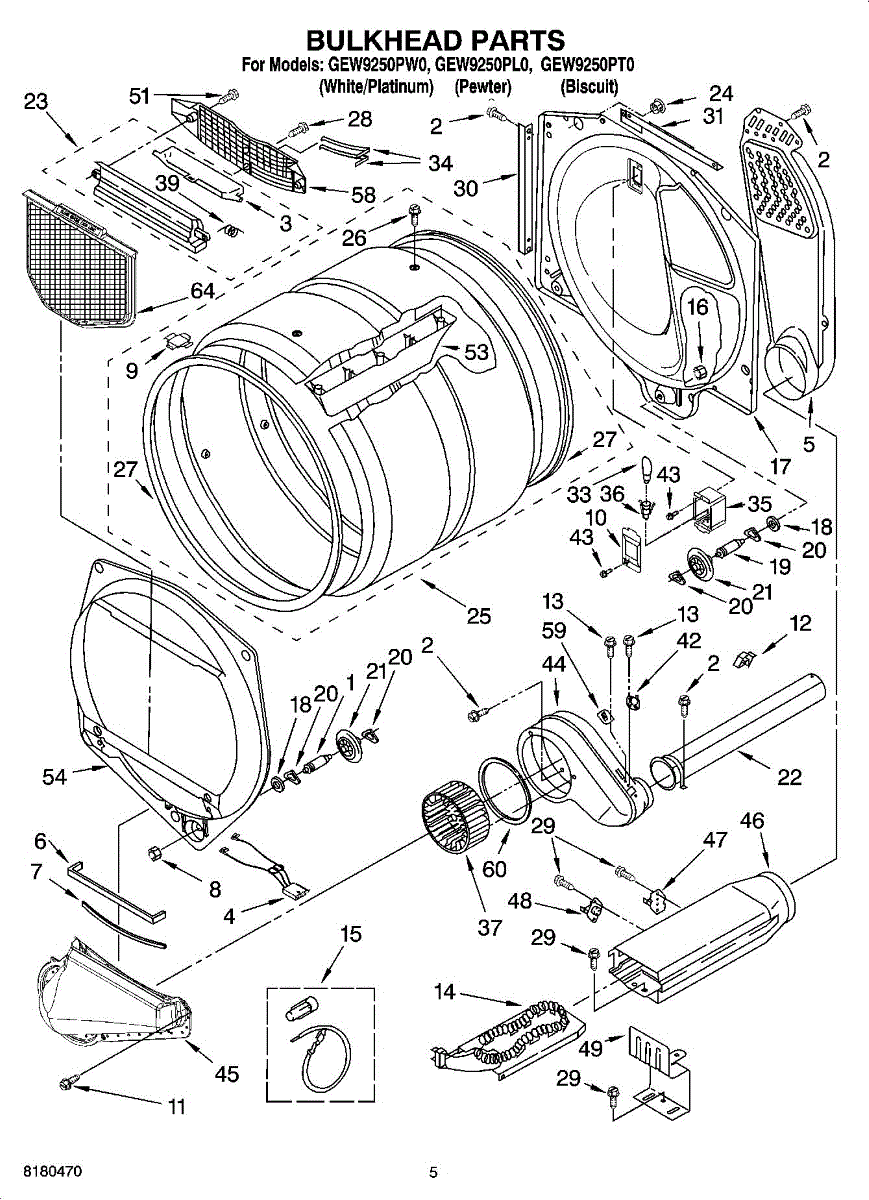

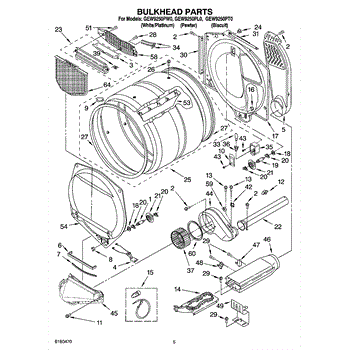

Parts for Whirlpool GEW9250PT0: 03 - Bulkhead Parts

The Front Drum Roller Shaft is an OEM part for Whirlpool dryers. This component provides support and stability to the drum while it rotates, ensuring smooth and quiet operation during the drying cycle. The roller shaft works in conjunction with the drum rollers to maintain proper alignment and reduce friction.

Over time, the front drum roller shaft can wear out or become damaged due to continuous use and the constant movement of the drum. Factors such as heavy loads, misalignment, and lack of lubrication can contribute to the deterioration of the shaft.

Symptoms of a bad front drum roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The drum not rotating smoothly
• Increased friction or resistance when turning the drum by hand
• Uneven or excessive wear on the drum rollers

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Lint Screen Door is an OEM part for Whirlpool dryers. It is located at the front of the dryer and provides easy access to the lint screen. It helps to trap lint and debris from the drying process, preventing it from entering the dryer vent and potentially causing clogs or fire hazards.

Causes of a faulty or damaged lint screen door can include regular wear and tear, physical damage, or improper handling. These factors can result in issues such as difficulty in opening or closing the door, a loose or insecure fit, or reduced effectiveness in capturing lint.

Symptoms of a bad lint screen door may include:

• Difficulty in opening or closing the door
• Loose or wobbly door fit
• Lint bypassing the lint screen and accumulating in the dryer vent

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This sensor harness connects the dryer's moisture sensor bars to the main wiring, helping the control or timer read moisture levels so Auto Dry cycles can advance and deliver consistent, reliable drying performance.

• Provides the electrical path between the moisture sensor bars and the control/timer
• Enables the dryer to sense wet fabrics and adjust or advance Auto Dry cycles
• A damaged or open harness can cause Auto Dry to not advance, run too long, or stop early
• Contribute to inconsistent dry times or a "Sensing" indicator that behaves abnormally

• Disconnect power before servicing
• Access the sensor bars at the front bulkhead; note wire routing and clip locations
• Transfer routing/clips from the old harness; connect to both sensor bars and the main harness plug, ensuring snug terminals and clear wire paths
• Restore power and run an Auto Dry test; inspect/clean the sensor bars and check harness continuity

This air duct collar channels dryer exhaust to the external vent connection. It provides a secure, sealed outlet for the vent hose to help maintain proper airflow, reduce leaks, and support consistent drying performance.

• Directs exhaust air from the blower/outlet to the rear vent connection
• Provides a stable connection point for the vent hose
• Helps maintain airflow and drying efficiency
• Common symptoms: vent hose won't stay attached, heat or lint leakage at the back of the dryer, longer dry times, visible cracks/warping at the outlet

• Disconnect power; for gas dryers, also shut off gas supply
• Pull the dryer forward and detach the vent hose
• Remove mounting screws/clips, replace the collar, and reuse existing hardware
• Clear lint from ducting, reattach the vent hose securely, and verify strong airflow at the exterior vent

The Dryer Outlet Housing Seal is an OEM part for Whirlpool dryers. This seal ensures that the hot air and moisture are properly vented out of the dryer during the drying cycle, maintaining efficiency and preventing leaks. It fits around the outlet housing to create a tight seal, keeping the internal components protected and ensuring optimal drying performance. The seal measures approximately 15 inches.

You should replace the outlet housing seal if it becomes damaged or worn out. Causes of a bad seal can include wear and tear over time, heat damage, or physical deterioration from repeated use.

Symptoms of a bad outlet housing seal include:

• Air leaks around the dryer outlet
• Reduced drying efficiency
• Excessive lint buildup around the dryer vent
• Unusual noises during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Outlet Housing Seal is an OEM part for Whirlpool dryers. This seal ensures that the hot air and moisture are properly vented out of the dryer during the drying cycle, maintaining efficiency and preventing leaks. It fits around the outlet housing to create a tight seal, keeping the internal components protected and ensuring optimal drying performance. The seal measures approximately 15 inches.

You should replace the outlet housing seal if it becomes damaged or worn out. Causes of a bad seal can include wear and tear over time, heat damage, or physical deterioration from repeated use.

Symptoms of a bad outlet housing seal include:

• Air leaks around the dryer outlet
• Reduced drying efficiency
• Excessive lint buildup around the dryer vent
• Unusual noises during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This locking nut is used for many purposes on a range of machines including household appliances. This nut is often used for leg leveling for machines. It will help with vibrations from washers and dryers. If the nut is used for this purpose and goes missing or becomes damaged, it could cause the machine to vibrate more and seem louder.Nuts are made from metal and are built to last a long time. However, there can still be issues that arise. In some cases, the nuts might go missing if they become loose and the machine is moved. They could also corrode over time and need to be replaced. The replacement of the nut is typically a fast and simple repair.The nut is a genuine OEM replacement part sourced from the manufacturer. It can work with washers, dryers, and combo machines, and is compatible with models from Whirlpool, Kenmore, Maytag, and Roper. The part is sold individually. Owners may want to have several on hand.

This drum hole plug seals an unused or service access hole in the dryer drum to help prevent clothing snags and reduce interior airflow leaks. Simple replacement restores the drum surface and helps keep items from catching. What it does:

• Covers a drum access/service hole to provide a smooth interior surface
• Prevents fabric from catching or tearing on open drum holes
• Reduces unwanted air leakage through the drum
• Helps maintain normal drum rotation contact points by keeping openings closed

• One drum hole plug

• Disconnect power to the appliance before starting any repairs
• Inspect the drum area and remove any debris before installing the plug
• Press or snap the plug into the hole until fully seated; replace if damaged or deformed

This lens covers and diffuses an appliance light source, protecting it from heat, grease, and moisture while delivering even illumination. Replacing a cracked or yellowed cover restores brightness and a clean, finished look.

• Shields the bulb or LED from debris, grease, and impact
• Diffuses light for more even, glare-free illumination
• Helps maintain the appearance of the light area
• Common symptoms: cracked, broken, missing, discolored, or loose lens

• Disconnect power and let the lamp/surface cool before servicing
• Support the old lens while removing any retaining screws or clips
• Align tabs or holes carefully; seat the new lens fully and evenly
• Do not overtighten fasteners to avoid cracking the lens

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

The Access Panel Spring Retainer is an OEM part for Whirlpool dryers. This part secures the access panel of the dryer, ensuring it stays in place during operation. The spring retainer provides tension and stability, making it easy to open and close the access panel when maintenance or repairs are needed.

Causes of a bad access panel spring retainer can include regular wear and tear, loss of tension, or physical damage.

Symptoms of a bad access panel spring retainer include:

• Access panel not staying securely closed
• Difficulty opening or closing the access panel
• Loose or rattling access panel during dryer operation
• Visible damage or wear on the retainer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

The Dryer Heating Element is an OEM replacement part for Whirlpool dryers. It is responsible for generating the heat necessary for the drying process, ensuring clothes and fabrics are thoroughly dried.

Symptoms of a bad dryer heating element include:

• Clothes coming out damp or taking excessive time to dry
• No heat or insufficient heat produced during the drying cycle
• Visible signs of damage or burnout on the heating element itself
• Unusual burning smells emanating from the dryer

Causes of a faulty heating element can include normal wear over time, electrical issues, or physical damage from impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Heating Element Connecting Wire is an OEM part for Whirlpool dryers, designed to provide a secure electrical connection to the dryer's heating element. This critical component ensures that the heating element receives the power it needs to generate heat for drying clothes.

Causes of a bad heating element connecting wire can include overheating, physical damage, or wear and tear over time. These issues can lead to a loss of connectivity, resulting in the heating element failing to heat up.

Symptoms of a bad Heating Element Connecting Wire include:

• The dryer not heating up despite having power
• Intermittent heating, suggesting a loose or faulty connection
• Unusual smells or signs of burning, indicating overheating or damage to the wire

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A replacement front drum bulkhead that supports the dryer drum and helps keep the front bearing and seal aligned for smooth rotation. Use this bulkhead to restore proper drum alignment and reduce rubbing, noise, and excessive front play. What it does:

• Supports the front of the dryer drum and centers the front bearing/seal for stable rotation.
• Helps prevent drum rub, scraping noises, and uneven wear caused by a misaligned front support.
• Used when the front drum shows excessive play, thumping, or visible damage to the front support area.
• Installing a new bulkhead is commonly done alongside inspection of rollers, bearings, and the drive belt to ensure full drum stability.

• Disconnect electrical power (and shut off gas supply for gas dryers) before starting any service.
• Remove the front panel and drum to access the bulkhead; expect sharp edges and tensioned components—wear gloves and eye protection.
• Transfer any existing seals, bearings, or retainers only if undamaged; replace worn fasteners and inspect rollers/belts while the dryer is open.

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drum Support Roller is an OEM replacement part for Whirlpool dryers. It plays a crucial role in supporting and facilitating the smooth rotation of the dryer drum during the drying cycle.

Symptoms of needing to replace the drum support roller include:

• Excessive noise or grinding sounds coming from the dryer drum
• Difficulty in rotating the drum or drum not turning at all
• Visible signs of wear, cracking, or damage on the existing roller(s)
• Increased vibrations or shaking during the drying cycle

Causes of a faulty drum support roller can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This out exhaust pipe directs a dryer's exhaust airflow from the appliance to the home vent, helping remove moisture and lint from the dryer cabinet. Durable replacement for worn or damaged exhaust tubing. What it does:

• Channels hot, moist air from the dryer to the external vent to prevent moisture buildup
• Helps maintain proper airflow for efficient drying and reduces lint accumulation inside the cabinet
• Replaces cracked, crushed, or disconnected exhaust connections that cause poor venting or air leaks
• Works as a direct-fit plumbing piece when original exhaust piping is damaged

• One out exhaust pipe

• Disconnect power to the appliance before installing; for gas dryers, turn off gas supply and pilot per manufacturer instructions
• Ensure the pipe fits securely to the dryer outlet and the wall vent; use manufacturer-recommended clamps or fasteners
• Inspect and clean the vent path and lint screen while replacing the pipe to ensure safe airflow

The Lint Screen Housing is an OEM part for Whirlpool dryers. This part holds the lint screen in place, ensuring that lint is effectively captured during the drying cycle. This housing helps maintain dryer efficiency by preventing lint from entering the exhaust system, which can cause blockages and reduce performance.

Causes of a bad lint screen housing can include frequent use, accidental impacts, or heat-related degradation over time.

Symptoms of a bad lint screen housing include:

• Difficulty fitting the lint screen securely
• Lint escaping into the dryer drum or exhaust system
• Visible cracks or breaks in the housing
• Reduced drying efficiency and longer drying times

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement dryer drum that holds and tumbles laundry so air circulates evenly for efficient drying. Restores a smooth rotating drum surface to prevent fabric damage and improve drying performance. What it does:

• Houses and tumbles clothes while allowing heated air to pass through the load.
• Replaces a dented, cracked or scored drum that can catch or abrade fabric.
• Stops metal-on-metal scraping or grinding noises caused by a damaged drum surface.
• Helps eliminate uneven drying caused by a misshapen or warped drum.

• One replacement drum.

• Disconnect power (and gas supply for gas models) before starting any repair.
• Drum removal usually requires loosening the front panel and supporting the drum; consider a second person—the drum is heavy and awkward.
• Inspect and replace related components if worn to prevent repeat failures.
• Test-run the dryer after installation to ensure smooth rotation and proper clearance.

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

The Dryer Drum Felt Seal is an OEM replacement part for Whirlpool electric dryers. Located inside the spinning dryer drum, it lines the perimeter and protects the interior surface from abrasions. This seal measures approximately 82 inches in length.

Symptoms of a bad dryer drum felt seal include:

• Scratches or scuff marks visible on the inside of the drum
• Visible wear patterns or thinning of the felt material
• Premature rusting or corrosion of the steel drum
• Chipped or delaminated areas exposing bare steel

Causes of failure can include normal wear from friction generated during high-speed spins. Mineral deposits and grit trapped between the seal and drum may accelerate wear over extended use as well.

This OEM part is also compatible with brands like Maytag, Amana and Kenmore.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Light Bulb is an OEM part for Whirlpool dryers. This bulb is specifically designed to provide illumination inside the dryer drum, allowing for better visibility when loading and unloading laundry. It ensures a well-lit drying environment.

Causes of a bad dryer light bulb can include normal wear and tear, electrical issues, or accidental breakage.

Symptoms of a bad dryer light bulb may include:

• The bulb not turning on when the dryer door is open.
• Dim or flickering light inside the dryer drum.
• A burnt-out or broken bulb.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Moisture Sensor Bar is an OEM replacement part for Whirlpool dryers. It is a component located inside the dryer drum that senses the moisture level of clothes during tumble drying cycles. The moisture sensor bar utilizes sensors or probes to gauge how dry clothes are getting and signals the dryer to shut off once clothes reach the desired dryness level selected by the user.

Symptoms of a bad moisture sensor bar include:

• Dryer failing to shut off automatically at the end of cycles, leaving clothes over-dried
• Cycles taking excessively long to complete
• Dryer not sensing moisture levels properly to allow automatic ending of cycles

Causes of a faulty moisture sensor bar are usually due to normal wear and tear over time. Dust or lint buildup can also affect its ability to provide accurate readings.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This light socket holds the appliance bulb and provides a reliable electrical connection, restoring clear visibility inside your unit. Replace a cracked, heat-damaged, or loose socket to fix lights that flicker, go out, or won't stay seated.

• Secures the bulb and makes proper electrical contact with the wiring
• Powers the bulb when the control or door switch commands illumination
• Helps maintain consistent lighting during normal operation
• Typical symptoms: light won't turn on with a good bulb, flickers, intermittent lighting, burnt or brittle socket, bulb won't stay seated

• Disconnect power to the appliance before servicing; allow hot areas to cool
• Note wire locations and socket orientation; take a photo before removal
• Transfer any mounting screws/bracket from the old socket as needed
• Install the correct bulb type and wattage per your appliance manual; do not overtighten

The Blower Wheel is an OEM part for Whirlpool dryers. This component is essential in the dryer's air system, as it is responsible for moving air through the drum and out the vent. The blower wheel works by pulling air over the heating element, circulating it through the clothes, and expelling the moist air outside, which assists in the efficient drying of laundry.

Symptoms of a failing Blower Wheel include:

• Reduced airflow, resulting in clothes not drying properly or increased drying times
• Unusual noises like rattling or thumping, suggesting the wheel may be loose or damaged
• Excessive vibration of the dryer, especially if the blower wheel is unbalanced
• The dryer overheating due to restricted airflow if the wheel is clogged or malfunctioning

Causes of a bad blower wheel typically involve objects getting caught in the wheel, lint build-up that unbalances the wheel, or wear and tear that leads to the wheel's fins breaking or deforming.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Restore smooth operation of your dryer's lint screen cover with this lint screen door spring. It provides the correct tension so the cover opens and closes properly and the lint screen seats securely for reliable lint collection.

• Applies spring tension to the lint screen door/cover hinge
• Helps the lint screen and cover stay properly positioned
• A worn or broken spring may cause the cover to feel loose, pop open, or not stay closed
• May make inserting or removing the lint screen difficult

• Disconnect power; for gas dryers, also shut off gas supply
• Access the lint screen door area per your model's service information
• Note the original spring orientation; transfer the new spring carefully using needle-nose pliers
• Check cover operation and lint screen seating before restoring power

The Thermistor is an OEM part for Whirlpool brand dryers. It is a temperature-sensing resistor that monitors air temperature changes during the drying cycle. The thermistor provides feedback to the control board on heating element performance and internal air condition.

Symptoms of a failed thermistor include:

• Inaccurate temperature readings and selections
• Improper or incomplete drying
• Safety issues from overheating due to lack of feedback
• Error codes displayed on the control panel

Causes can be related to normal wear and environmental exposure over time. Failure prevents the dryer from achieving optimal drying conditions.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replacement housing that supports and protects internal components in compatible Whirlpool appliances. Restores structural integrity to the cabinet, helping reduce vibration and keeping wiring and components enclosed for safe, reliable operation. What it does:

• Provides the outer cabinet support that secures motors, controls and wiring
• Protects internal parts from debris and accidental contact
• Helps reduce rattling, vibration and misalignment symptoms caused by cracked or damaged cabinets
• Restores proper fit for panels and fasteners to eliminate rubbing or interference noises

• Disconnect power (and water if applicable) before starting any repair
• Basic hand tools are typically required; keep screws and clips organized during disassembly
• Some housings may require two people to position during replacement—avoid forcing parts to prevent damage
• Fasteners and any sealing gaskets are in good condition and replaced if worn

This lint duct assembly forms the sealed air path between the lint screen and the blower. Replacing a damaged or leaking duct restores proper airflow and drying performance while helping keep lint contained within the filtration path.

• Directs air from the drum through the lint screen to the blower and exhaust
• Maintains a sealed passage to optimize airflow and drying efficiency
• Replace if cracked, warped, or loose, or if mounting tabs are broken
• Common symptoms: long dry times, weak exhaust airflow, lint inside the drum/cabinet, or visible damage/gaps

• Disconnect power and shut off gas supply before servicing
• Remove the lint screen and access panels as required by the model to reach the duct
• Note fastener locations; transfer any attached sensors, brackets, seals, and screws from the old duct to the new one
• Vacuum lint from the blower housing and vent path before reassembly; ensure the duct seats and seals evenly

This heater box is the protective housing that encloses and supports the heating element in your appliance. Replacing a warped or damaged housing helps restore safe, efficient heating and protects nearby components from excessive heat.

• Holds the heater element securely and maintains proper spacing from surrounding parts
• Shields adjacent wiring and components from direct heat
• Helps maintain consistent heating performance when the original housing is heat-damaged or cracked
• Common symptoms include visible melting/warping, loose element fitment, burning odors, or repeated safety shutoffs

• Disconnect power (and gas supply, if applicable) and allow the unit to cool completely before service
• Take photos of the existing layout to aid reassembly and wire routing
• Transfer the heater element and any model-specific hardware to the new housing in the same orientation
• Ensure wiring is clear of sharp edges and heat sources; reassemble and test for proper operation

The Thermal Cut-Off Kit is an OEM replacement part for Whirlpool dryers, responsible for protecting the dryer from overheating by interrupting the power flow to the heating element if the dryer air temperature reaches a dangerously high level.

Symptoms of a bad Thermal Cut-Off Kit include:

• The dryer not heating up
• Excessive heat buildup within the dryer drum
• Clothes not drying properly

Causes of failure can include restricted airflow from a clogged lint filter or venting system or a malfunctioning heating element causing excessive temperatures. These issues can lead to the thermal cut-off being triggered to prevent overheating, necessitating the replacement of the kit.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Note: It's possible some models may use part number 280148 in place of this. Look at photo's for verification.

The High Limit Thermostat is an OEM replacement part for Whirlpool dryers. Located on the heater housing, it functions as a critical safety component monitoring drum compartment temperatures. L295-50F.

Causes of thermostat failure include normal conductor fatigue from many heating cycles over extended usage. Chemical degradation potentially infiltrates components as well.

Symptoms of an ineffective high-limit thermostat include:

• Dryer fails to automatically disengage heat above certain temperatures
• Decreased safety risking overheating scenarios
• Dryer will not start
• Dryer shuts off prematurely

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This Heater Box Bracket secures the dryer's heater housing to the cabinet, keeping the heating assembly firmly mounted and aligned. Replace a bent, cracked, or missing bracket to restore stable support and reduce vibration around the heater area.

• Anchors the heater housing/box to the cabinet frame
• Maintains proper alignment and clearance for the heating element assembly
• Helps prevent rattling or rubbing noises from a loose heater housing
• A damaged bracket may leave the heater housing loose, cause vibration, or contribute to intermittent heating issues

• Disconnect power; if gas, shut off gas supply and allow the unit to cool completely
• Access the heater housing; note bracket orientation and reuse existing fasteners
• Support the heater housing and keep wiring clear while removing/installing the bracket
• After installation, verify the housing sits square and clear of the drum and wiring before restoring power

The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This drum baffle restores proper tumbling by lifting and separating laundry as the dryer drum rotates. It helps improve drying performance and reduces garment bunching. What it does:

• Lifts and tumbles clothes so air flows more evenly through the load
• Helps prevent garments from clumping or wrapping around the drum
• Can reduce rubbing, thumping, or scraping noises caused by a loose or damaged lifter
• Restores consistent drum contact and improves drying efficiency

• Disconnect power before starting any repair to avoid shock or injury
• Access typically requires opening the dryer cabinet or front panel; small tools may be needed
• Align the baffle with factory mounting holes and secure with existing fasteners; use correct screws if replacements are required
• Inspect and replace worn drum or support parts as needed for reliable operation

The Lint Screen Grille is an OEM part for Whirlpool dryers. It works with the lint screen to capture and collect lint during the drying cycle, preventing it from clogging the vent and ensuring proper airflow.

A bad dryer lint screen grille can be caused by regular wear and tear, accumulation of debris, or accidental damage. If the grille becomes cracked, broken, or warped, it can lead to lint escaping from the lint screen or obstructed airflow.

Symptoms of a bad dryer lint screen grille include:

• Lint escaping from the lint screen area.
• Reduced drying efficiency or longer drying times.
• Visible damage or warping of the grille.
• Excessive lint buildup in the venting system.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Stop dryer downtime in its tracks — install the Whirlpool WP3392519 OEM Thermal Fuse in minutes.

OEM Quality Fast 1–2 Day Shipping* Free Tech Help

Why choose this fuse?

• Guaranteed OEM: built by Whirlpool to Whirlpool specs — no risky aftermarket clones.
• Broad compatibility: works with Whirlpool, Kenmore, Maytag, KitchenAid, Roper & more.
• Quick delivery: over 94 % of APP orders arrive in 2 days or less.

Fixes these common dryer problems

4-step DIY installation (≈10 min)

1. Unplug dryer and remove rear panel.
2. Locate thermal fuse on blower housing.
3. Transfer wires; secure new fuse with ¼-inch nut-driver.
4. Clean the vent & lint path before testing to prevent repeat failure.

*Video tutorial below.

Ready to get heat back?
Click Add to Cart now & enjoy industry-leading 1–2 day delivery on

The Blower Housing Seal is an OEM part for Whirlpool dryers. This seal is strategically placed around the blower housing to prevent air leaks, which can reduce the efficiency of your dryer by allowing heated air to escape and drawing in unheated air. A proper seal ensures optimal air flow and temperature regulation within the dryer, contributing to faster drying times and reduced energy consumption.

Symptoms of a failing blower housing seal include:

• Increased drying times due to inefficient heat use
• Unusual noises from air escaping the blower housing
• Excess lint escaping into the dryer cabinet, which could lead to maintenance issues

Causes of blower housing seal degradation typically involve wear and tear from regular use, exposure to high temperatures that can cause the material to harden and crack, and improper installation that can lead to premature failure.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Lint Filter is an OEM replacement part for Whirlpool electric dryers. This essential screen traps lint and debris released from tumbling clothes. Consistent filtration is key for safety and performance. This filter measures approximately 12 1/2 inches wide and 10 1/2 inches deep.

Causes of a clogged lint filter can be an accumulation of lint from regular drying cycles plugging ventilation holes. Neglecting filter cleaning allows fluff to build up rapidly.

Symptoms of a dirty lint filter include:

• Extended drying times as airflow is restricted
• Overheating problems or melted slots in the filter housing
• Risk of dryer or clothing fires from unvented lint buildup

This OEM replacement part is also compatible with Kenmore and Maytag models too, it removes the fire hazard of neglected cleaning.
