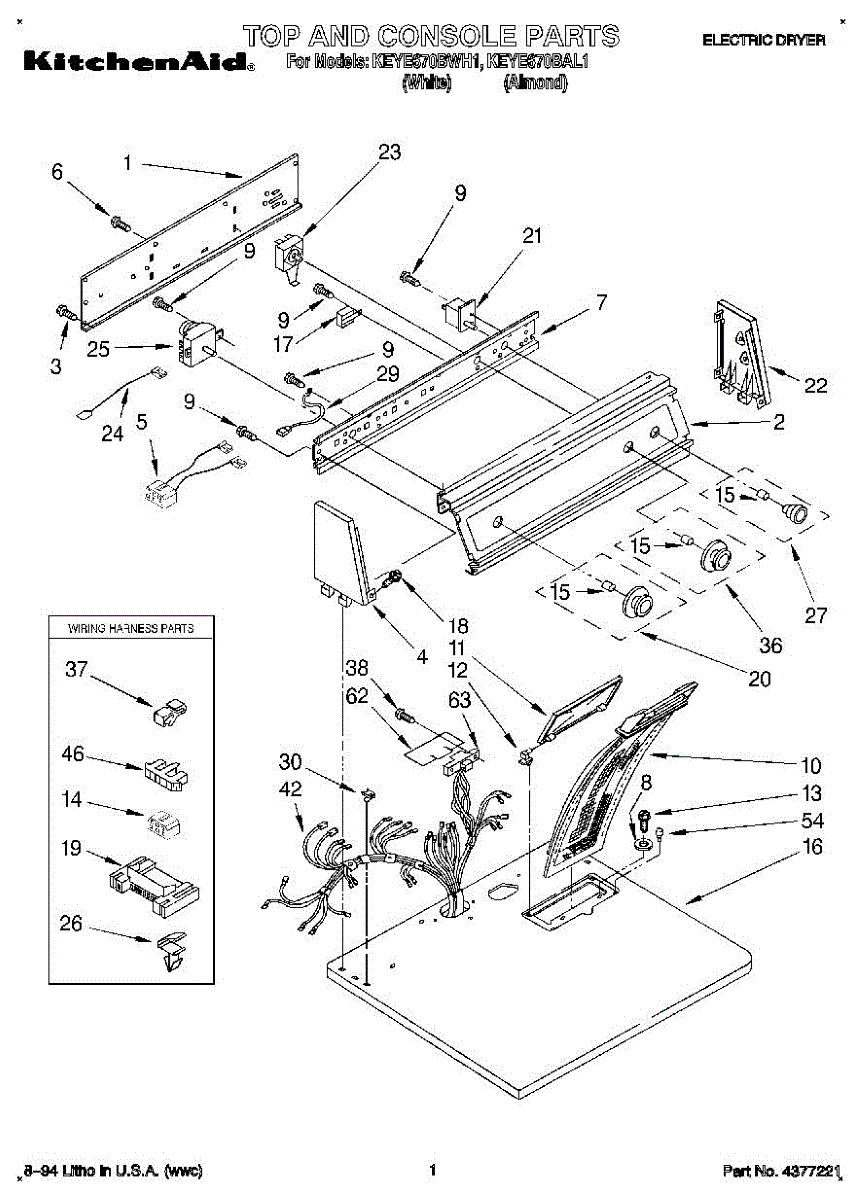

Parts for Kitchenaid KEYE670BWH1: 01 - Section Parts

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Wire harness assembly that routes power and control signals between dryer components. Replace if wires are damaged, worn, broken, or connections are loose.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

Captures lint and debris during drying to prevent clogs and fire hazards. Replace when torn, worn, or no longer catching lint effectively. Verify fit.

Connects lint screen lid to dryer, enabling smooth opening and secure closing. Replace when bent, cracked, or broken to restore proper lid operation.

Right handed Hinge

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Dryer not heating or stuck on one temperature? This temperature selector switch controls heat settings. Moderate DIY repair with video guide available.

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

Push-in.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This rubber bumper cushions and protects moving parts and panels, reducing noise and preventing metal-to-metal contact. It restores proper spacing and stops rattles so doors, drawers or panels close smoothly and quietly. What it does:

• Acts as a shock-absorbing cushion to prevent damage from impact or slamming
• Reduces vibration and rattling noise from doors, drawers or panels
• Maintains proper clearance and helps parts align during operation
• Commonly replaced when worn, flattened, missing or causing noise

• One rubber bumper

• Typically press-fits into a hole or onto a mounting post
• Clean the mounting surface of dirt and old adhesive or debris for best retention
• No special tools required for most installs; use gentle pressure or a blunt tool to seat the bumper
• Unplug the appliance or disconnect power before servicing

Dryer stops early on auto cycle but works on timed? The moisture sensor control board monitors dryness levels. DIY-friendly repair, 15-20 minutes.

Fix a dryer that won't start or has no power with this terminal block connector assembly. Common repair for electrical connection issues. Moderate DIY.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
