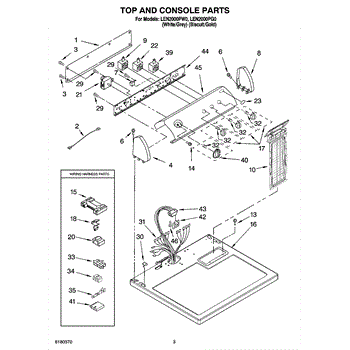

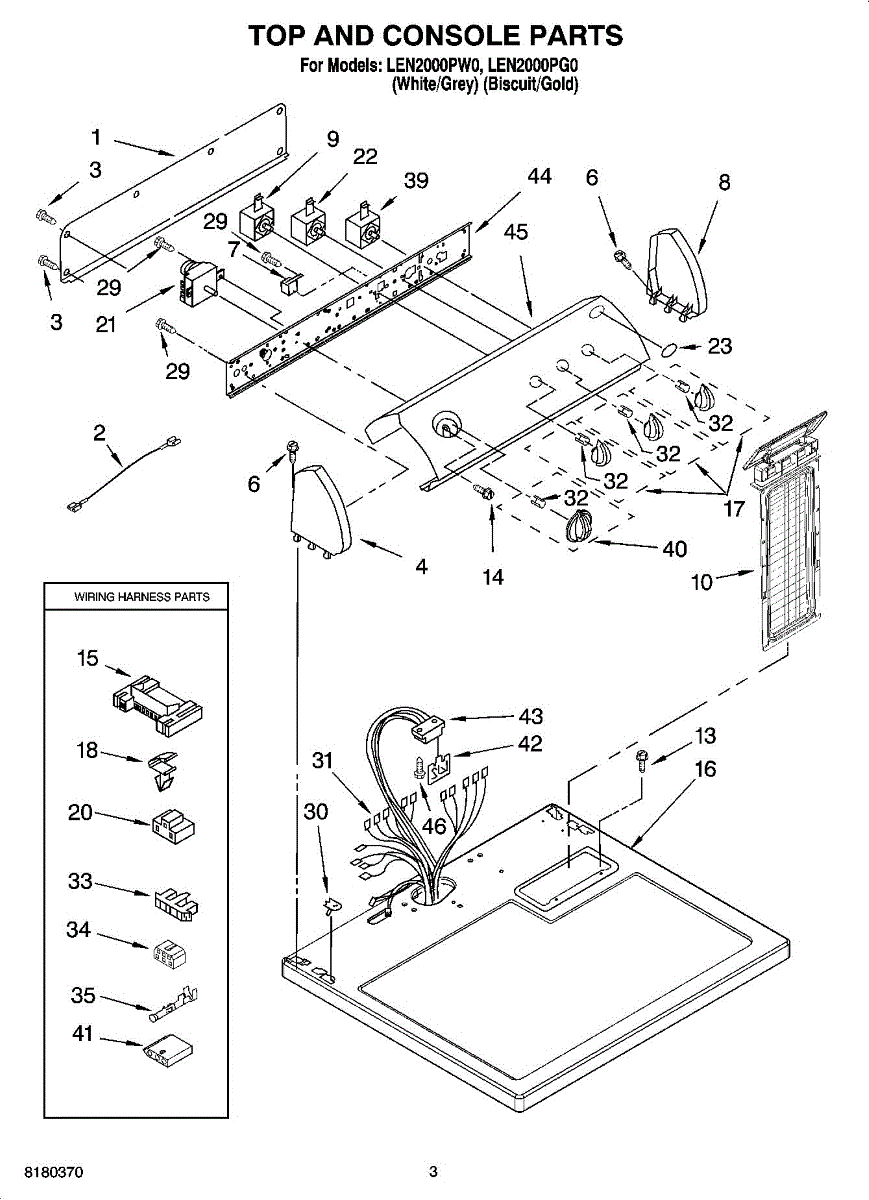

Parts for Whirlpool LEN2000PG0: 02 - Top And Console Parts

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

Color: Biscuit. It measures about 9 inches wide by 22 inches high. For white order W11778253.

This replacement screen fits into the appliance's filtration path. It captures debris to protect internal components and helps restore proper airflow or water flow when the original screen is torn, warped, clogged, or missing.

• Filters debris to prevent it from entering sensitive components such as pumps, blowers, or valves
• Helps maintain proper airflow or water circulation for consistent performance
• Common failure signs: torn mesh, cracked or warped frame, debris bypassing the screen
• Can contribute to longer cycles, reduced performance, or recurring clogs when damaged or missing

• Disconnect power to the appliance; turn off water supply if applicable
• Access the screen location per your model's instructions; remove the old screen and clean the housing
• Seat the new screen fully, ensuring correct orientation and that any tabs/locks engage
• Reassemble and test for proper operation; check for leaks or airflow restrictions

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces, brackets or small components to prevent movement
• Helps stop rattling, vibration noise, or loose-fitting parts
• Replaces missing or damaged screws to restore proper alignment of panels or controls
• Used wherever an 8-18 x 7/32 machine screw is specified by the manufacturer

• Unplug the appliance or turn off power before servicing.
• Use the correct screwdriver or bit to avoid stripping the head; tighten snugly but do not over-torque.
• Replace any stripped inserts or mating hardware if threads are damaged.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

This connector buzzer wire harness links the appliance control to the buzzer/alert so the unit can emit audible tones for cycle completion and error warnings. Replaces a damaged or corroded buzzer connector to restore alert sounds. What it does:

• Provides the electrical connection between the control board and the buzzer/alert assembly.
• Restores audible beeps or tones when the original connector is loose, broken, or corroded.
• Helps prevent intermittent or no-sound conditions caused by poor connector contact.
• Fits into the existing harness and plugs into the buzzer/board mating connector.

• One connector buzzer wire harness (1 piece).

• Disconnect power to the appliance before inspecting or replacing the connector.
• Unplug the old connector from the buzzer/control; note orientation and routing before removing.
• Plug the replacement connector into the matching buzzer/control socket until it snaps into place.

This two-cycle dryer timer controls cycle selection, timing, and automatic shutoff. Replacing a worn or stuck timer restores reliable cycle advance so your dryer starts, runs, and stops when it should.

• Times and advances the two drying cycles using internal cams and electrical contacts
• Directs power to the drive motor and heating circuit during the selected cycle
• Moves the dial and stops the dryer at the OFF position
• Common symptoms include: cycle won't advance, dryer runs too long/doesn't shut off, only certain settings work, or the timer knob doesn't move on its own

• Disconnect power; if gas, shut off the gas supply before servicing
• Remove the control panel/back cover and pull off the timer knob/dial as needed
• Label or photograph wire positions; transfer wires to the new timer one at a time
• Reuse existing mounting screws and the original dial/knob; reinstall panels and test

This switch finish guard is a trim piece that protects and conceals the control switch area, restoring a clean appearance and helping keep debris out of the switch opening. Designed to match the original equipment fit and finish. What it does:

• Covers and protects the control switch opening to prevent dirt and moisture intrusion
• Restores the appliance's factory appearance around the switch area
• Helps keep the switch stable and properly aligned in the control panel
• Useful when replacing a cracked, worn, or missing switch trim piece

• Basic snap-in or screw-in installation; verify fasteners before tightening
• Power off and unplug the appliance before attempting any panel work
• Handle trim pieces gently to avoid cracking; align tabs before seating
• If other switch components are damaged, inspect and replace as needed

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing

Push-in.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For mating terminal use [AP31136300].

The Start Switch is an OEM part for Whirlpool dryers. This switch initiates the dryer's cycle, signaling the dryer to begin its drying process. Made with precision to fit specific Whirlpool models, this start switch ensures reliability and performance. Over time, wear and tear or electrical issues can impact the switch's functionality, leading to potential problems with starting the dryer.

Causes of a bad start switch can range from electrical faults within the switch itself, wear and tear from repeated use, or physical damage that affects the switch mechanism.

Symptoms of a bad Start Switch include:

• The dryer not starting when the start button is pressed
• Intermittent operation or failure to maintain the cycle once started
• Unusual noises when the start button is pressed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part is a moisture sensor control board that is used on dryer units. This component monitors the moisture levels within the dryer and adjusts the dry time during the automatic drying cycle. A new moisture sensor control board will be needed if the time is not advancing in the automatic drying cycle, even if it does advance in the timed dry cycle. Another sign is if the dryer continues to run after the clothing inside is dry. Unplug the dryer from its power source prior to replacing this component. The person performing this task may wish to wear work gloves to protect their hands.The moisture sensor control board is compatible with dryers that are manufactured by Kenmore, KitchenAid, Kenmore Elite, Whirlpool, Amana, Crosley, Maytag, Inglis, Sears Canada, Roper, and Sears. This part is sold individually and it is a genuine OEM replacement part that comes straight from the manufacturer.

Specs: 10-16 x 1/2 inch.
