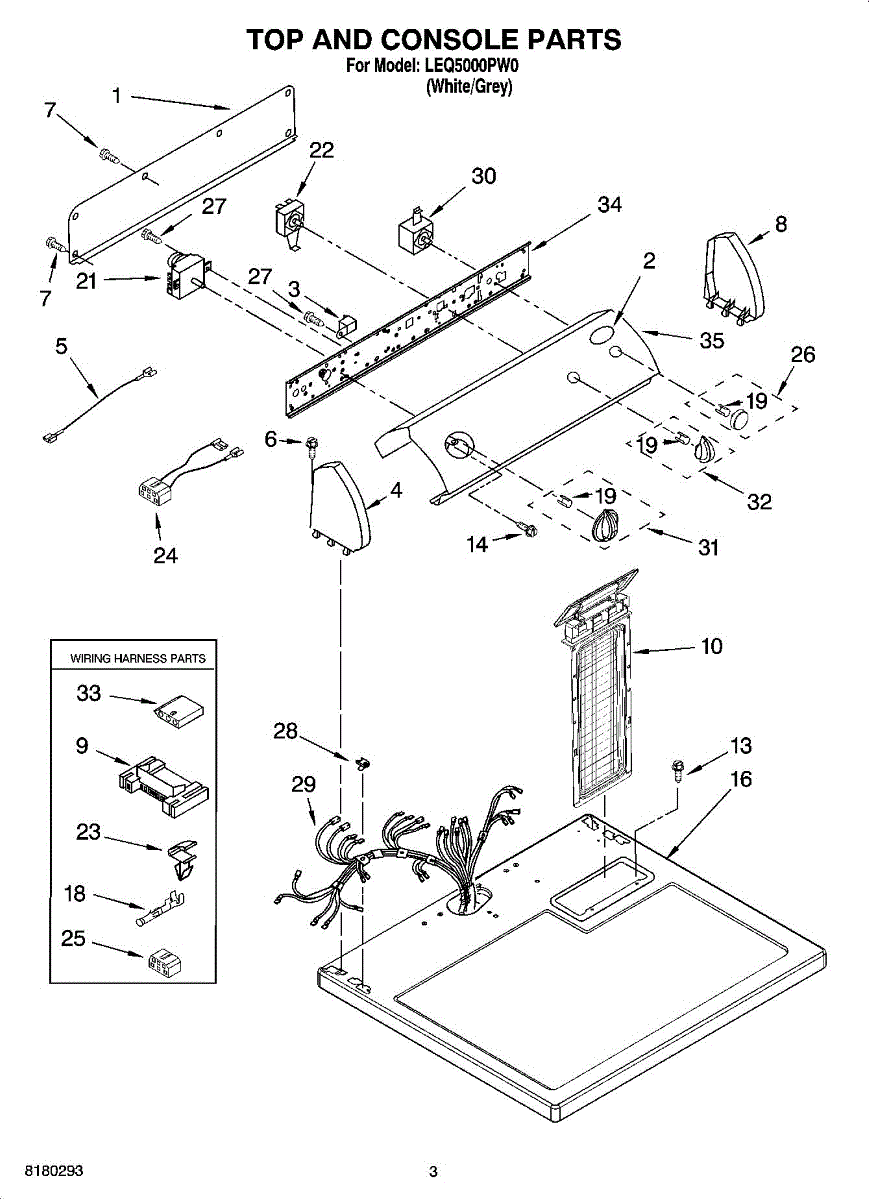

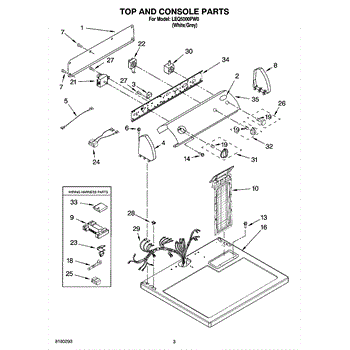

Parts for Whirlpool LEQ5000PW0: 02 - Top And Console Parts

Rear panel for dryers. Covers the back of the cabinet. Replace if cracked, damaged, or missing to restore the outer appearance and structure.

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

This replacement screen fits into the appliance's filtration path. It captures debris to protect internal components and helps restore proper airflow or water flow when the original screen is torn, warped, clogged, or missing.

• Filters debris to prevent it from entering sensitive components such as pumps, blowers, or valves
• Helps maintain proper airflow or water circulation for consistent performance
• Common failure signs: torn mesh, cracked or warped frame, debris bypassing the screen
• Can contribute to longer cycles, reduced performance, or recurring clogs when damaged or missing

• Disconnect power to the appliance; turn off water supply if applicable
• Access the screen location per your model's instructions; remove the old screen and clean the housing
• Seat the new screen fully, ensuring correct orientation and that any tabs/locks engage
• Reassemble and test for proper operation; check for leaks or airflow restrictions

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces, brackets or small components to prevent movement
• Helps stop rattling, vibration noise, or loose-fitting parts
• Replaces missing or damaged screws to restore proper alignment of panels or controls
• Used wherever an 8-18 x 7/32 machine screw is specified by the manufacturer

• Unplug the appliance or turn off power before servicing.
• Use the correct screwdriver or bit to avoid stripping the head; tighten snugly but do not over-torque.
• Replace any stripped inserts or mating hardware if threads are damaged.

For mating terminal use [AP31136300].

Secures control knobs to the panel on washers and dryers. Replace if the clip is broken, missing, or worn, causing knobs to fall off or sit loose.

Dryer won't shut off or advance through cycles? A faulty timer prevents automatic shutoff and cycle progression. Moderate DIY repair restores normal operation.

Fix a dryer that won't stop running when the cycle ends. This end of cycle switch signals the timer to stop. Simple DIY repair for most models.

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

If your dryer won't start without holding the knob, this push-to-start control restores one-press operation. Simple 5-minute repair for gray knobs.

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

Push-in.

Dryer won't start when button pressed? The push to start switch sends the signal to begin the cycle. Simple 10-minute fix with basic tools.

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Dryer Vent Test Kit ensures your dryer's vent system is operating properly. Kit includes two tests depending on the location of your dryer's lint screen: One for the lint screen in the top of your dryer, and one for the lint screen in the front of your dryer. Instructions included.

Stationary rack installs inside dryer drum to hold shoes, sweaters, and delicates flat without tumbling. Replace if cracked, broken, or missing.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

The Dryer Repair Kit is an OEM replacement part for Whirlpool 29-inch large capacity dryer models. It is a kit designed to provide various essential components and hardware needed for common dryer repairs or maintenance tasks.

The kit includes:

• One Dryer belt (341241)
• Drum support roller kit (349241T)
• One idler pulley (WP691366)
• Instructions.

Please note: Some parts in this kit may not fit your specific model. Use your model number to check for your specific parts.

Causes of needing a dryer repair kit can include worn-out or damaged components due to normal wear and tear, accidental impact or mishandling, or maintenance requirements after a certain period of use.

Symptoms that may indicate the need for a dryer repair kit include:

• Excessive noise or vibrations during operation
• Difficulty in opening or closing the dryer door
• Clothes becoming tangled or wrapped around the drum
• Leaks or air drafts affecting drying performance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.
