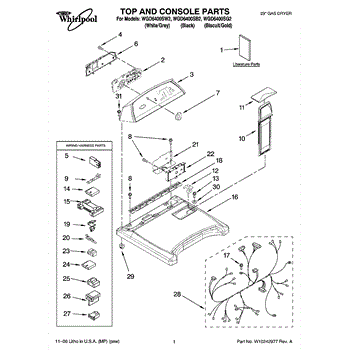

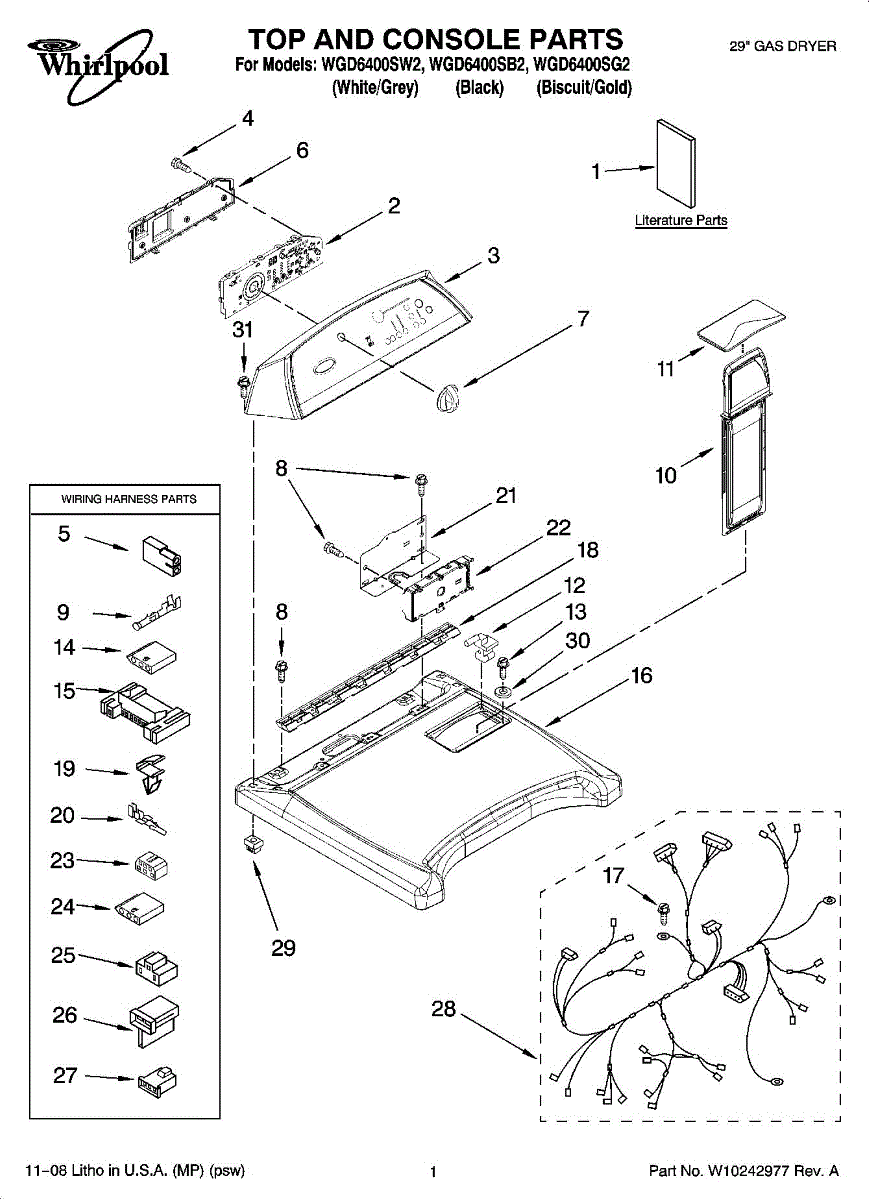

Parts for Whirlpool WGD6400SB2: 01 - Top And Console Parts

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

This quality part is a user control and display board for dryers. This is a component that is located inside the dryer. The user control and display board offers a way to control the dryer cycle times and manage all the components of the dryer. It can also be used to choose the ideal temperature for the appliance during a cycle. If this component is no longer working correctly, the dryer may not turn on, could be cooler than expected, or may not turn off.If this part is damaged, it needs to be replaced. Before starting the process, make sure there is no power to the dryer. Move the dryer away from the wall to have access to the back. The cover should be removed by using a screwdriver on the screws that hold the cover to the frame. Slide the cover forward to lift it up. Next, the screws on the control board bracket can be removed. Tip the assembly into the dryer and press in the clips to take off the cables. Replace with the new part.The user control and display board is an authentic OEM replacement part that is sold as a single component. It is made to be a replacement part for Estate, Roper, KitchenAid, and Whirlpool dryers.

Screw for control panel.

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

For mating terminal use [AP31136300].

The Dryer Lint Screen is an OEM part for Whirlpool dryers. It is designed to trap lint and debris from the drying process, preventing these particles from clogging the dryer vent and ensuring efficient airflow. This screen plays a crucial role in maintaining dryer performance and safety by reducing the risk of overheating and fires.

You should replace this lint screen if it becomes damaged or worn out. Causes of a bad lint screen can include tears or holes in the mesh, warping from excessive heat, or buildup of lint and debris that is difficult to clean.

Symptoms of a bad lint screen include:

• Lint escaping into the dryer drum
• Reduced drying efficiency
• Longer drying times
• The screen not fitting securely into its slot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This lint screen lid hinge connects the dryer's lint lid to its mounting point, allowing smooth, aligned opening and secure closing. Replacing a bent or broken hinge restores proper lid operation and helps keep lint contained in the trap.

• Provides the pivot point for the lint screen lid/cover
• Helps the lid sit flush and stay aligned when closed
• Symptoms of a failed hinge can include a loose or misaligned lid, difficulty opening/closing, or squeaking/binding at the hinge
• Replace when the hinge is bent, cracked, or missing

• Disconnect power before servicing; sharp cabinet edges—wear cut-resistant gloves
• Support the lint lid to avoid bending or scratching
• Remove the mounting screws, note the hinge orientation, and transfer the new hinge in the same position
• After reassembly, cycle the lid open/closed to ensure smooth operation before restoring power

Right handed Hinge

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Specs: 10-16 x 1/2 inch.

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

For mating terminal use WP94614.

This replacement dryer control board is made by Whirlpool. The control board manages the various different functions of the appliance, such as the temperature and drying time. As the appliance ages or is used regularly, this part may begin to grow faulty, causing the user to be unable to use the dryer as intended. If the error code F-01 is visible on the display or the display fails to light up despite being connected to power, it's an indication the control board needs to be replaced. Wear work gloves for safety whenever replacing or repairing any parts. This is a genuine OEM part and has been sourced directly from the manufacturer. This is an authentic part made of high-quality, durable materials and is sold individually. This control board can be used with various different models of dryers that have been manufactured Whirlpool, Maytag, Jenn-Air, Amana, and some other brands.

For mating plug use 691707.

This connector buzzer wire harness links the appliance control to the buzzer/alert so the unit can emit audible tones for cycle completion and error warnings. Replaces a damaged or corroded buzzer connector to restore alert sounds. What it does:

• Provides the electrical connection between the control board and the buzzer/alert assembly.
• Restores audible beeps or tones when the original connector is loose, broken, or corroded.
• Helps prevent intermittent or no-sound conditions caused by poor connector contact.
• Fits into the existing harness and plugs into the buzzer/board mating connector.

• One connector buzzer wire harness (1 piece).

• Disconnect power to the appliance before inspecting or replacing the connector.
• Unplug the old connector from the buzzer/control; note orientation and routing before removing.
• Plug the replacement connector into the matching buzzer/control socket until it snaps into place.
