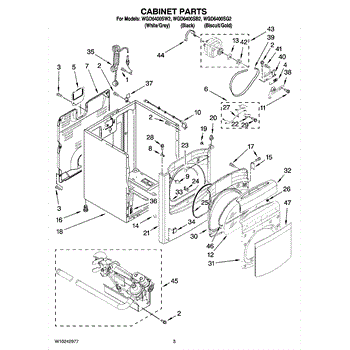

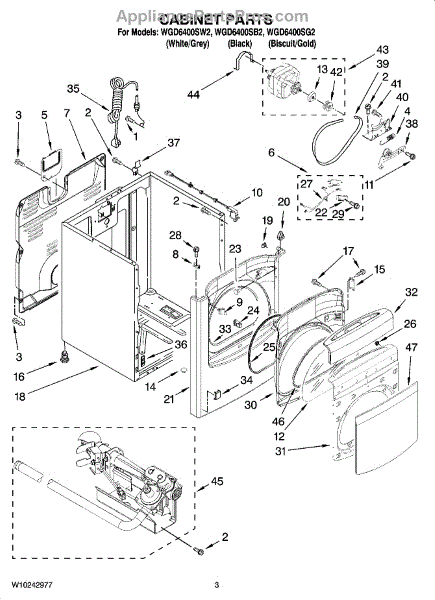

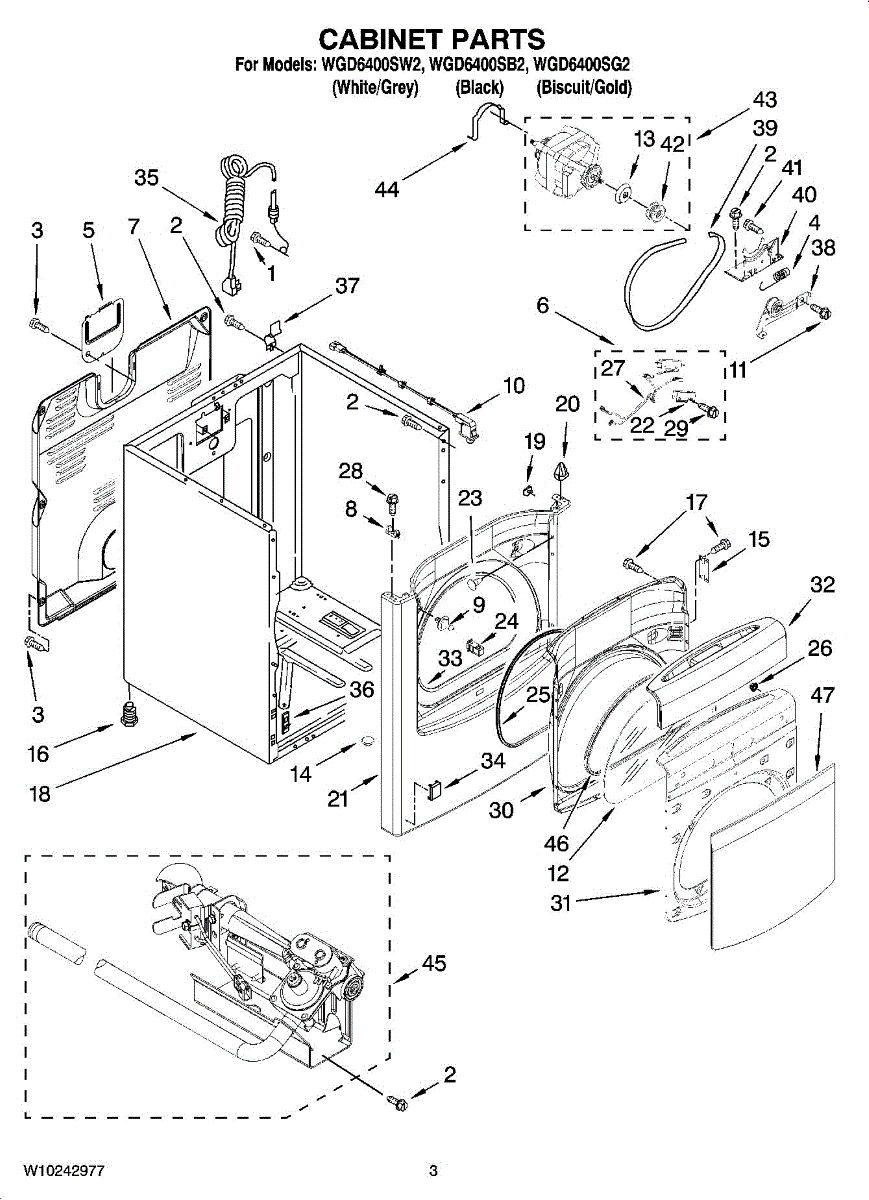

Parts for Whirlpool WGD6400SB2: 02 - Cabinet Parts

Replacement screw secures panels, brackets, and internal assemblies. Needed when original hardware is stripped, corroded, or missing to keep parts tight.

10 - 16 x 1/2

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the outer cover that protects the electrical terminal block on the back of a dryer. It shields the power cord connection point from accidental contact and helps prevent dust or debris from reaching the wiring terminals. Replace this cover if it is cracked, broken, or missing to ensure safe operation and protect the electrical connections.

Dryer won't start even though power is on? This broken belt safety switch detects a snapped or loose belt and shuts down the motor to prevent damage.

If assemblies shift or rattle during dryer operation, this snap-down locator clip secures components in place. Simple snap-in installation restores alignment.

Dryer door won't stay closed? This door strike engages with the catch to secure the door. Simple DIY fix in minutes with basic tools and video guide.

Dryer won't start but lights work? A faulty door switch prevents operation. This replacement switch restores normal function in under 10 minutes.

Secures the idler pulley to maintain proper drum belt tension in your dryer. Replace if worn, loose, or causing squealing noises. Confirm fit with your model.

A hinge pin assembly that secures and aligns an appliance door to its cabinet, restoring proper fit and smooth opening and closing while reducing hinge noise. What it does:

• Secures the door pivot and maintains proper door alignment for a consistent seal.
• Can correct door sag, uneven gaps, or doors that stick, scrape, or fail to close fully.
• Can reduce grinding, clicking, or binding noises caused by worn or bent hinge pins.
• Replaces worn, broken, or bent hinge components that affect door motion.

• Disconnect power to the appliance before beginning any repair.
• Support the door (use a helper or suitable block) to prevent it from dropping when removing the hinge.
• Basic hand tools are typically required; follow the manufacturer's service instructions for safe removal and reinstallation.
• Inspect adjacent hinge mounts and fasteners during installation; replace damaged mounting hardware as needed.

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

Dryer cabinet housing that encloses internal components. Replace if the outer cabinet is cracked, dented, rusted, or structurally damaged beyond repair.

This lock secures the appliance's top panel to the front frame for a tight, stable cabinet. Replacing a worn lock restores a solid fit and helps eliminate rattles, gaps, and vibration during operation.

• Locks the top panel to the front panel to keep the top closed and secure
• Helps maintain cabinet alignment and rigidity
• Reduces movement that can cause vibration and rattling/squeaking noises
• Common symptoms: loose or popping top, visible gap at front edge, buzzing or clunking during cycles

• Disconnect power before servicing.
• Access the lock at the front edge where the top meets the front panel; remove the old lock and install the new one in the same orientation.
• Reuse original mounting hardware and ensure both sides are evenly aligned.
• Close the top and ensure a secure latch before restoring power.

White plastic hole plug for dryer cabinet panels. Covers unused mounting holes for a clean finish. Replace when missing, cracked, or discolored.

Dryer door won't stay closed or latch properly? This door catch securely holds the door shut during operation. Easy DIY repair in under 30 minutes.

Dryer door seal prevents air leaks and retains heat inside the drum. Replace when loose, torn, or causing heat loss. Includes adhesive. Verify fit.

1/4-inch hex flange nut secures panels, brackets, and hardware in dryers, ovens, and ranges. Replace if worn, stripped, or missing to restore firm connections.

Seals the gap between the dryer bulkhead and front panel around the door opening. Replace if torn, deformed, or causing air leaks. Confirm fit by model.

Drum plug insert for dryers. Fills holes in the drum where baffles or lifters attach. Replace if cracked, broken, or missing to restore drum integrity.

Seals unused factory or service holes on your dryer cabinet or liner. Restores a clean appearance and keeps dust out. Replace if cracked, broken, or missing.

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC power from the wall outlet to the appliance's electrical system
• Helps resolve no power, intermittent power loss, or tripped breaker issues
• Replace if the cord is cut, frayed, melted, discolored, or feels hot at the plug
• Restores safe operation when the original plug or insulation is damaged

• Disconnect power at the outlet or circuit breaker before servicing
• Note wire routing and connection points; match the original orientation for hot, neutral, and ground
• Seat the cord properly and secure with the model's required strain relief or clamp to prevent tension on terminals
• Ensure the cord is not pinched and is clear of sharp edges, hot surfaces, and moving parts; test for proper operation

The Dryer Clip is an OEM component for Whirlpool electric and gas dryers. It securely fastens critical ductwork attached to the dryer cabinet. Over extended periods, the constant vibrations produced during tumbling cycles cause microscopic fractures or loosening within the clip material where it grips duct joints.

Causes relate to ordinary fatigue from long-term resonance vibrations concentrated at anchoring points.

Symptoms involve:

• Loose or detached venting/ductwork affecting airflow
• Noticeable leaks emerging at separation interfaces
• Reduced drying effectiveness due to compromised ventilation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Supports and pivots the hinged dryer top panel for service access. Replace if cracked, broken, or causing wobble, scraping, or alignment gaps.

Idler pulley assembly mounts near the motor to maintain tension on the dryer belt. Replace if the pulley wheel is cracked, worn, or no longer rotating.

Replace your dryer drive belt if the drum won't rotate or you hear squeaking noises. This poly-V belt connects the motor to the drum. Verify fit with your model.

Leveling foot base for dryers. Installs on the bottom corner of the cabinet to support and level the unit. Replace if cracked, broken, or missing.

Size: 6-20 x 1.0 inch.

The Motor Pulley is an OEM part for Whirlpool dryers, connects the dryer motor to the drum belt, enabling the drum to turn and efficiently dry your clothes. This pulley is crucial for the smooth operation of the dryer, ensuring that the belt is tensioned correctly and runs smoothly without slipping or causing wear.

Causes of a bad Motor Pulley include wear and tear from regular use, a buildup of lint and debris that can interfere with its operation, or a malfunctioning dryer motor that puts undue stress on the pulley.

Symptoms of a bad Motor Pulley include:

• Unusual noises coming from the dryer, such as squeaking or grinding
• The dryer drum failing to turn even though the motor is running
• The dryer taking longer than normal to dry clothes, which can occur if the pulley is not providing proper tension to the belt

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This electric drive motor rotates the dryer drum and in many models also powers the blower fan to circulate heated air through the drum. It mounts to the dryer base and connects to the drum via a belt and to the blower via a direct shaft connection. Replace it if the dryer hums but won't turn, makes loud grinding or squealing noises, or fails to start altogether.

This metal clamp secures the drive motor to its mounting bracket inside the dryer. It prevents the motor from shifting or vibrating during operation. Replace this clamp if it is bent, broken, or missing, which can cause excessive vibration, unusual noises, or a motor that moves out of position.
