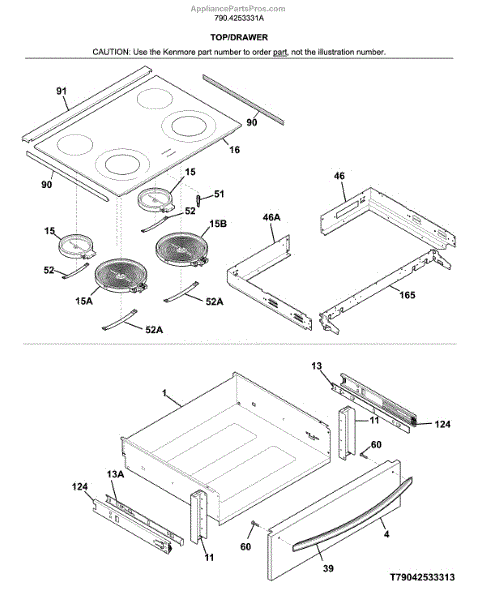

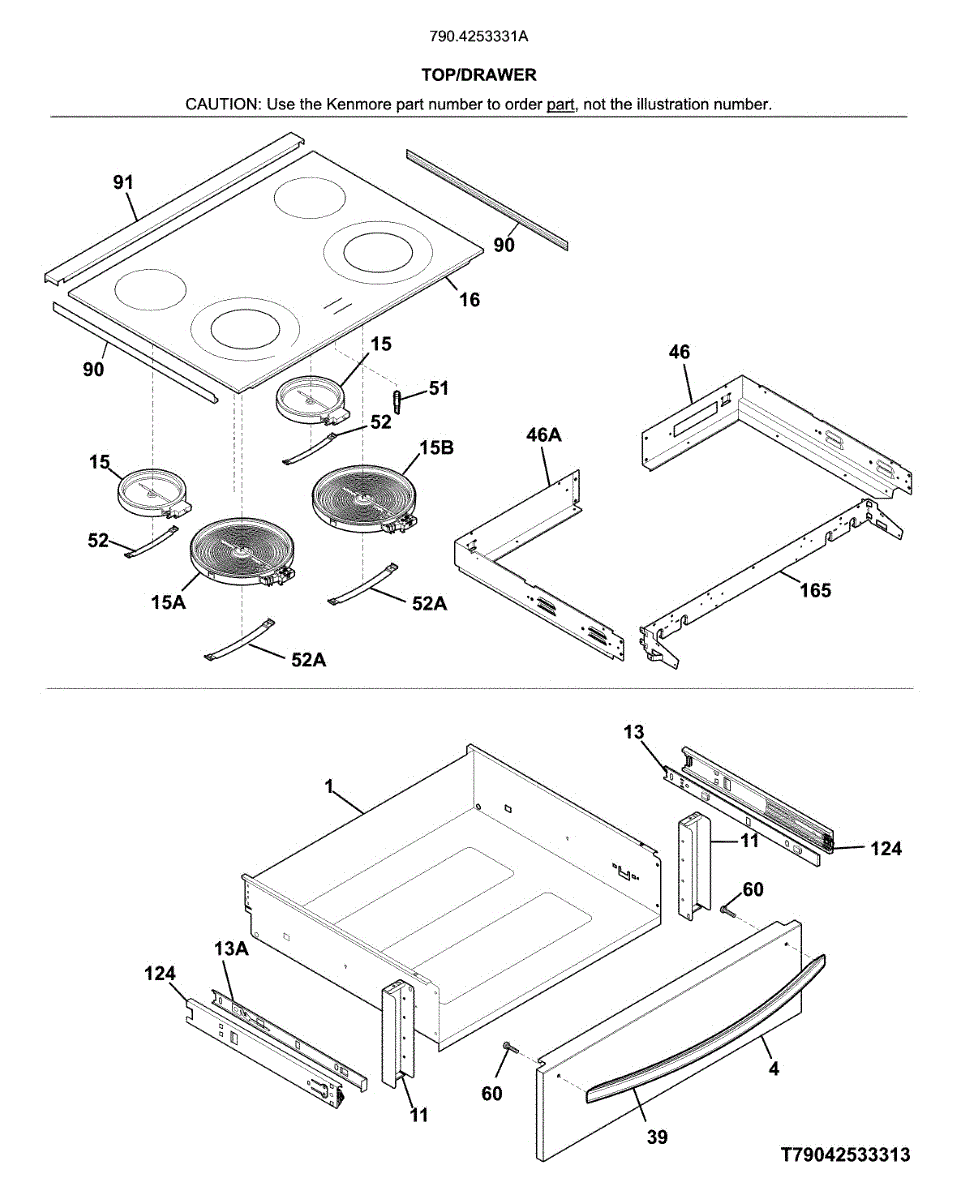

Parts for Kenmore 790.4253331A (7904253331A, 790 4253331A): Top / Drawer Parts

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dual Element is an OEM replacement part for Frigidaire electric ranges. This component is located on the cooktop surface and features two heating coils in one unit, one measuring 6 inches in diameter and the other 9 inches. It allows for precise control of cooking temperatures, accommodating various pot and pan sizes for more efficient cooking.

Causes of a bad dual element can include prolonged use that leads to wear and tear, electrical surges that can damage the heating element, or physical damage due to impact or mishandling. Over time, these issues can result in the element failing to heat properly or not working at all.

Symptoms of a bad dual element include:

• The element not heating up or only partially heating
• Inconsistent or fluctuating temperatures
• Visible damage, such as burns or breaks in the element
• The element not responding to temperature controls
• Sparking or unusual noises when the element is in use

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dual Element is an OEM part for Frigidaire ranges. This element features two heating zones, allowing for versatile cooking options by providing both high and low heat settings on the same burner. It ensures efficient and consistent heating, making it ideal for various cooking tasks. It contains a 9-inch, 1200-watt element and a 6-inch, 1300-watt element, combining for 2500 watts at 240 volts

Causes of a bad dual element can include electrical issues, wear and tear from regular use, or physical damage such as cracks or breaks in the heating element. These issues can lead to inconsistent heating or complete failure of the element.

Symptoms of a bad dual element include:

• Burner not heating up
• Inconsistent or uneven heating
• Element not switching between high and low heat
• Visible damage to the element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a smoothtop assembly that is used on a variety of ranges. It is located on the top of the range over internal parts like the heating elements. The purpose of the smoothtop assembly is to be a surface for cookware. It heats up to create food and beverages with a kitchen range. The smoothtop assembly can be cracked, chipped, and otherwise damaged. When this occurs, the component will need to be replaced.To replace the smoothtop assembly, a set of basic tools and a pair of work gloves will be needed. Pull the oven out from the wall to unplug it or turn off the appropriate circuit breaker. The oven door should be opened to gain access to the screws that hold on the smoothtop assembly. Unscrew the component from the stove and lift up. The connects components, such as the heating elements, should be removed. Take the smoothtop assembly off and reconnect the extra parts to the new replacement assembly. Reassemble and turn the power back on before use.This part is made to be compatible with ovens, ranges, and stoves made by Kenmore. The smoothtop assembly is sold on an individual basis. It is an authentic OEM replacement part that is directly obtained from the manufacturer.

This replacement refrigerator door handle provides a secure grip and restores safe, easy access to your refrigerator. It replaces a worn, cracked, or missing handle to improve function and appearance. What it does:

• Provides a sturdy grip to open and close the refrigerator door
• Replaces cracked, broken, loose, or missing handles and improves door usability
• Restores the cabinet's finished look by covering damaged or worn handle areas
• Helps maintain a proper seal by enabling correct door alignment when closed

• One refrigerator door handle

• Disconnect power to the appliance or unplug before working near electrical components
• Support the door while removing fasteners to prevent damage or injury
• Use the original screws and any mounting hardware;

This interior refrigerator light assembly provides replacement illumination for the fresh food compartment, restoring visibility when the door opens. Designed to match the original fit and function for a direct swap. What it does:

• Replaces a burned-out, dim, or flickering interior light to restore proper compartment lighting
• Houses the bulb and lens to direct light into the refrigerator cavity
• Ensures the door switch/lighting circuit can illuminate the compartment when closed/opened
• Helps you see food clearly and check contents without guessing

• Disconnect power or unplug the appliance before service to avoid shock
• Use a non-abrasive cloth to clean surrounding area; avoid touching bulb with bare hands if replacing bulb
• Remove the old assembly by releasing the lens/fasteners and disconnecting the wiring harness; reverse steps to install
• If light still does not work after installation, check the door switch and bulb and power to the unit

Used on the 1200 watt element

Used on the 2500 watt element

This is a replacement mounting screw used to secure panels and components in compatible Frigidaire appliances. It restores proper fit and helps prevent rattles, loose panels, and parts that shift during operation. What it does:

• Fastens trim, panels, brackets, or controls to the appliance frame
• Restores secure attachment to reduce vibration, noise, and movement
• Replaces stripped, missing, or corroded screws that prevent proper assembly
• Works wherever the OEM screw with this part number is specified

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging parts
• Keep removed hardware organized and compare parts to the old screw for correct fit

This trim is a decorative finishing panel that restores the appliance's original appearance and covers exposed edges for a clean, factory look. It replaces damaged, cracked, or missing trim to improve cosmetic appearance. What it does

• Covers and protects exposed edges on the appliance surface for a finished look
• Hides gaps and fasteners for a clean, factory appearance
• Replaces cracked, chipped, or otherwise damaged trim that detracts from appearance
• Helps keep dirt and moisture out of exposed seams

• One trim piece as shown

• Disconnect power (and water, if applicable) before beginning any repair
• Remove any retaining screws or clips and carefully pry away old trim to avoid damaging adjacent surfaces
• Align new trim and secure with original screws or clips; do not overtighten fasteners
• Handle painted or chrome-finish trim with care to avoid scratching during installation

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
