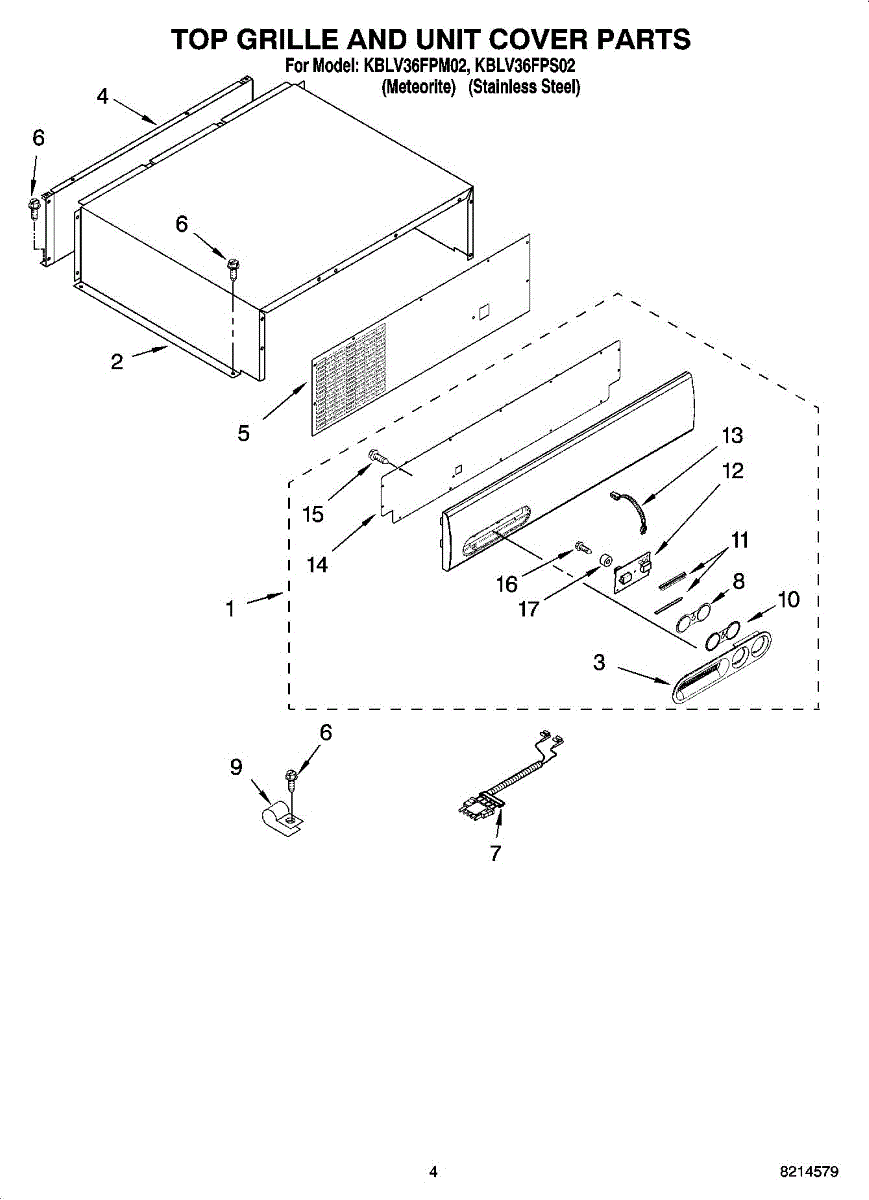

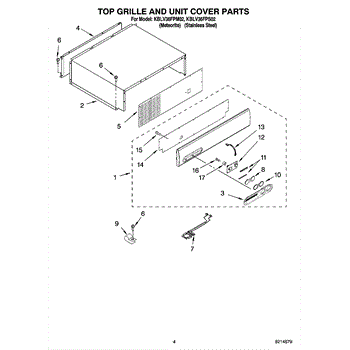

Parts for Kitchenaid KBLV36FPM02: 03 - Top Grille And Unit Cover Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This top door spacer positions and supports the upper edge of the appliance door to maintain correct clearance and alignment for smooth opening and closing. It helps keep the door trim and glass properly spaced for reliable operation. What it does:

• Keeps the top edge of the door correctly spaced from the cabinet to prevent rubbing or binding
• Helps maintain door alignment for an even seal and consistent closing
• Reduces vibration-related noise by stabilizing the door assembly
• Protects trim and glass from contact damage at the top edge
• Useful when replacing worn or missing door support components

• One top door spacer

• Disconnect power to the appliance before starting any repair
• Remove the door or door trim panels per the manufacturer's instructions to access the spacer
• Handle door glass and trim carefully; use appropriate tools and support to avoid damage
