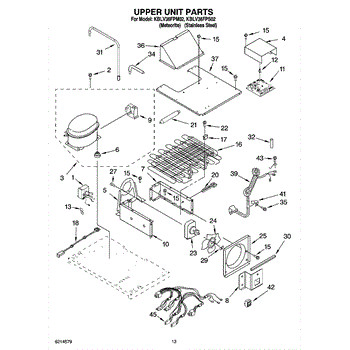

Parts for Kitchenaid KBLV36FPM02: 08 - Upper Unit Parts

Replace your refrigerator water filter every 6 months for clean, fresh-tasting water and ice. Simple twist installation. Verify fit with your model number.

Fix a refrigerator that won't cool or has inconsistent temperatures with this inverter control board. Moderate DIY repair with step-by-step video guide.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Refrigerator not cooling or running constantly? This compressor circulates refrigerant to restore proper cooling. Professional installation recommended.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Protects the terminal block on your refrigerator compressor by shielding electrical connections. Replace if cracked, broken, or missing for safety.

Plastic spacer that mounts between refrigerator door panels or hinges. Replace if cracked, broken, or missing to restore proper door alignment.

Mounting bracket that secures the inverter box inside your refrigerator. Replace if cracked, bent, or missing to properly support the inverter assembly.

Hex head screw for trash compactor assembly. Replaces lost, stripped, or damaged screws during repairs. Essential hardware for securing components.

Refrigerator not cooling properly? A faulty condenser fan jumper wire disrupts fan operation. This wire assembly restores electrical continuity.

Secures wiring bundles inside your microwave. Replace this wire tie if it's cracked, broken, or missing to keep internal wires organized and secure.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Fix hot refrigerator walls or a non-spinning condenser fan. This motor drives airflow across coils to remove heat. Easy DIY install in 1-2 hours.

Mounting screw for refrigerator assembly and component installation. Replace missing, stripped, or damaged screws to secure panels, shelves, or hardware.

Secures shelves, panels, and brackets in your refrigerator. Replace if loose, stripped, or missing to restore stability. Verify fit with your model.

Fix a leaking or slow-filling water dispenser or ice maker with this water fill tube. Replaces cracked or clogged tubes to restore proper water flow.

Secures the handle end cap to the center of your refrigerator door. Replace if missing, stripped, or lost during handle repairs. 8-18 x 1/2 inch size.

This fan cover protects the refrigerator's evaporator fan and helps direct cold air through the freezer/refrigerator compartments for consistent cooling. It restores proper airflow paths and keeps the fan area clear of ice and debris. What it does:

• Shields the evaporator fan and blade from contacts and debris
• Helps channel airflow for even cooling across compartments
• Prevents fan blades from striking ice or loose items
• Can reduce unusual fan noise caused by interference or obstruction

• Disconnect power to the appliance before starting any repair.
• Access typically requires removing interior panels or the evaporator cover; keep track of fasteners.
• Handle the evaporator and fan assembly carefully to avoid damaging fins or the motor.
• Fully defrost the evaporator area before reinstalling the cover.

Refrigerator won't turn on or stays running constantly? This power disconnect switch controls main power to your unit. Easy DIY replacement fix.

8-16 x 3/8 inch screw fastener for dryers. Secures baffles to drum and various internal components. Replace if missing, stripped, or damaged.

Size: 1/2 inch.

Size: 5/8 inch.

Fix refrigerant leaks or low cooling with this 3/4 inch service valve. Essential for AC system pressure testing and refrigerant recharge procedures.

Refrigerator not cooling properly? A faulty 1/4 inch service valve can prevent proper refrigerant flow. This valve connects refrigerant lines in your system.

Service valve for refrigerators, freezers, and ice makers. Used for refrigerant system service and maintenance. 5/16 inch fitting size for technicians.

Fix refrigerant leaks or cooling issues with this 3/8 inch service valve. Essential for refrigeration system repairs and maintenance on multiple models.

Fix refrigerant leaks or low cooling with this 3/16 inch service valve. Essential for AC recharging and system maintenance on multiple models.
