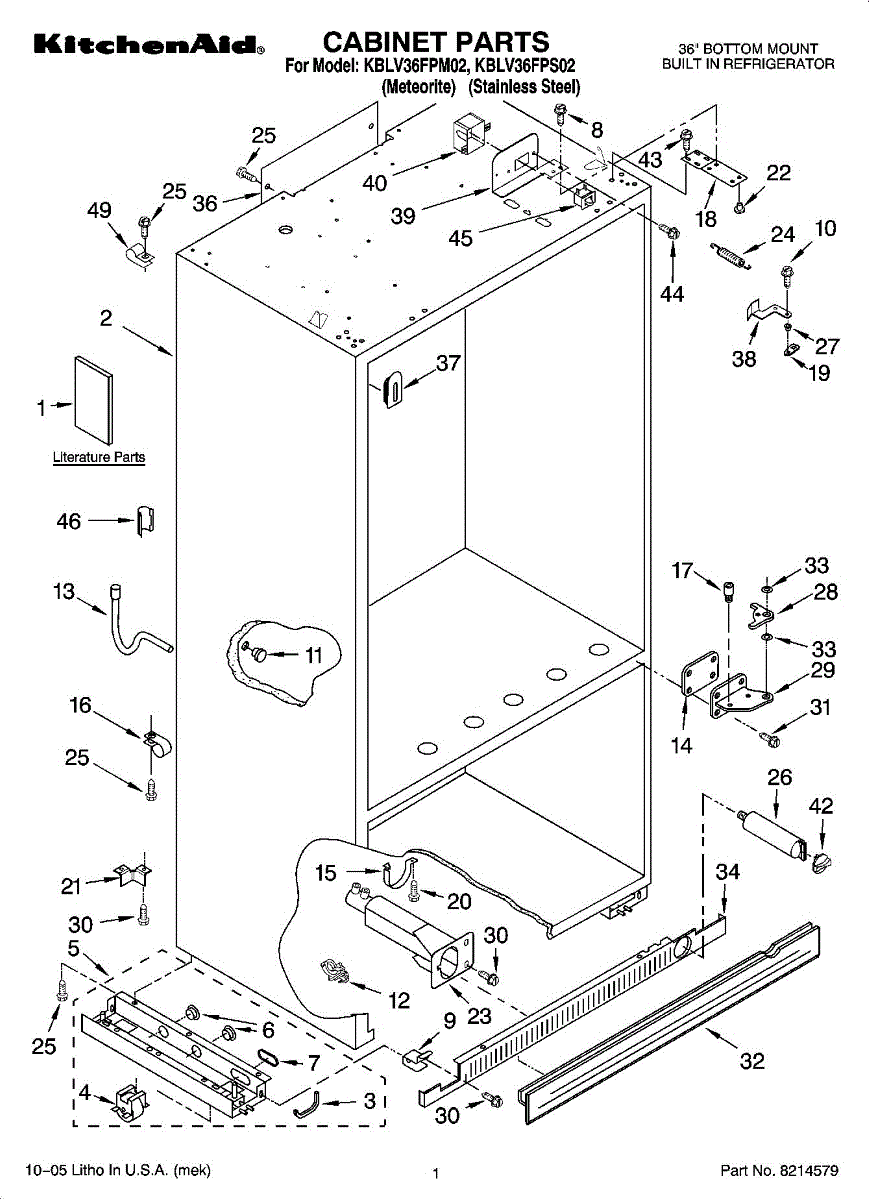

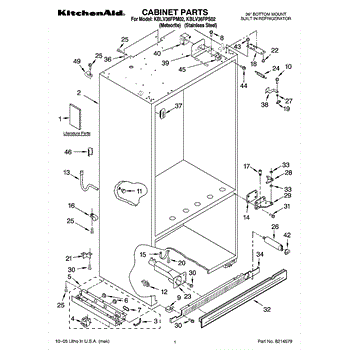

Parts for Kitchenaid KBLV36FPM02: 01 - Cabinet Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This replacement roller fits the front or rear position of a slide mechanism, restoring smooth, even movement and reducing noise when a wheel is worn or broken. It helps racks or drawers glide properly and stay aligned. What it does:

• Provides low-friction rolling support for the slide track
• Helps slide-out assemblies move freely without binding or scraping
• Worn or damaged rollers can cause sticking, squeaking, or uneven travel
• Restores proper alignment and smooth operation when replaced

• 1 roller assembly

• Disconnect power and allow the appliance to cool before servicing
• Remove the slide-out assembly; note roller orientation and hardware
• Transfer/reuse existing screws, clips, or retainers as required
• Do not lubricate unless the manufacturer specifies a lubricant

This Support (mounting bracket) secures internal components and stabilizes the appliance's assembly to help prevent sagging, misalignment and excess vibration. It's a small replacement that restores proper fit and reduces rattling. What it does:

• Provides a stable mounting point for panels or internal assemblies
• Keeps components aligned to prevent binding or wear
• Reduces noise caused by loose or sagging parts
• Helps stop intermittent contact or rubbing that can cause rattles

• Disconnect power (and water, if applicable) before servicing
• Access may require removing outer panels or trim; keep track of fasteners
• Support the assembly while replacing the bracket to avoid strain

This Support bracket holds internal components in place to restore proper alignment and reduce rattling or sagging. It's a simple replacement that helps stabilize the appliance's interior structure. What it does:

• Secures internal panels or assemblies to prevent movement and vibration
• Restores proper alignment when a factory support is damaged or missing
• Can reduce noise caused by loose components
• Helps maintain safe, stable operation of the affected area

• One Support bracket

• Disconnect power and unplug the appliance before beginning any repair
• Inspect surrounding fasteners and mounting points; replace any damaged hardware as needed
• Use appropriate hand tools; avoid over-tightening to prevent cracking plastic or stripping threads

Size: 8-32 x .312 inch.

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This genuine replacement screw secures a refrigerator/freezer door stop so the door opens and closes correctly. It restores proper door positioning and helps prevent the door from coming off its stop or shifting during use. What it does:

• Fastens the door stop assembly to the cabinet or hinge bracket so the door stops at the correct position
• Helps eliminate door misalignment, excessive travel, or doors that swing too far
• Used where a small machine screw is required to hold the stop in place
• Simple, low-profile fastener designed for reliable, long-term hold

• Verify the screw matches the removed fastener in length and thread before installing
• Use appropriate screwdriver and avoid over-tightening to prevent strip or damage
• Disconnect power only if working near energized components; otherwise follow basic safety and appliance manufacturer instructions
• Check hinge/stop components for wear

This top door hinge secures the refrigerator door to the cabinet and lets the door pivot smoothly. Replace a worn hinge to restore proper door alignment and even sealing for better cooling performance. What it does

• Supports the top of the refrigerator door and provides the pivot point for opening and closing.
• Helps keep the door aligned so the gasket seals properly and cold air stays inside.
• Worn or damaged hinge can cause door sag, uneven gaps, rubbing, or noisy operation.
• Restoring the hinge can reduce stress on the door and other hinge components.

• One top door hinge.

• Basic hand tools are usually required; support the door while removing or installing hinges to prevent injury or door damage.
• Disconnect power only if working near electrical components; this hinge replacement typically does not require electrical disconnection.
• If the door was removed, recheck alignment and gasket contact after reinstalling; adjustments may be needed.
• Follow OEM instructions and use proper safety equipment.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This refrigerator water filter housing holds the filter cartridge and routes water through the dispenser and ice system. Replacing a cracked or leaking housing restores proper sealing, water flow, and smooth, reliable filter changes.

• Secures the water filter and seals the inlet/outlet connections
• Channels water through the filter to the dispenser and ice maker
• Helps correct leaks around the filter area
• Common symptoms: low/no dispenser flow, ice maker not filling, filter won't seat or release

• Disconnect power and turn off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Access location varies by model; remove the grille or interior cover, then disconnect the water lines and mounting hardware from the old housing
• Install the new housing, ensure tubing is fully seated, restore water and power, check for leaks, and purge air by dispensing water

The door closure spring restores the tension that pulls the door closed and holds it securely. Replacing a fatigued spring brings back smooth, reliable closing action and helps prevent doors that drift open or feel loose.

• Provides return tension to assist door closing and latch engagement
• Replaces a stretched, broken, or missing spring
• Can help with symptoms like a door that won't stay shut, pops open, or closes weakly
• Restores a consistent, even feel to the door movement

• Disconnect power to the appliance before servicing; wear gloves and eye protection
• Support the door/drawer to relieve spring tension before removal
• Note the spring's routing and hook locations; take a photo for reference
• Use pliers to detach/attach the spring; keep hands clear of pinch points and avoid overstretching

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

2 pack. For a single pack order EDR5RXD1.

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This gap hinge is a direct-fit door hinge that helps maintain correct alignment and spacing between refrigerator doors for smooth opening and a consistent seal. It restores proper door positioning and reduces rubbing or uneven gaps. What it does:

• Supports and pivots the door to maintain correct alignment and spacing
• Prevents door binding, uneven gaps, and rubbing against adjacent surfaces
• Helps doors close fully to preserve the fresh seal and temperature control
• Durable metal construction designed for repeated door cycles

• Use appropriate hand tools and keep power to the appliance off when adjusting nearby electrical components or lighting
• Follow manufacturer torque and alignment recommendations to avoid misalignment or seal issues
• Inspect surrounding hinges and mounting hardware for wear and replace as needed

This bottom refrigerator hinge secures and supports the door pivot point to keep the door aligned and closing properly. Replacing a worn hinge restores smooth door movement and corrects door sag or misalignment. What it does:

• Provides the pivot and support for the refrigerator door to open and close smoothly
• Maintains proper door alignment for a consistent seal and better cooling performance
• Common symptoms: door sagging, scraping at the cabinet, uneven gap, or door that won't close fully
• Fits the lower hinge location on compatible refrigerator models

• Unplug the refrigerator or disconnect power before starting any work.
• Support the door securely (use a second person or a suitable prop) before removing the hinge to avoid injury or damage.
• Keep track of mounting hardware; reuse original screws if the replacement does not include them.
• After installation, check door alignment and gasket contact across the full perimeter.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This bottom skirt grille replaces the lower front trim on compatible refrigerators to restore appearance and help protect internal components. A direct-fit exterior piece that keeps the appliance looking finished while covering the lower access area. What it does:

• Covers and protects the refrigerator's lower front area and components from dirt and accidental contact
• Restores the appliance's finished appearance when the original grille is cracked, broken, or missing
• Helps maintain proper airflow pathways by keeping the access area closed (when installed correctly)
• Prevents small objects from entering the condenser/vent area behind the grille

• Disconnect power to the appliance before beginning any work near electrical components
• Typically installs at the refrigerator's lower front; remove the toe-kick or existing grille per manufacturer instructions
• May require basic hand tools; handle carefully to avoid scratching the finish

This door bearing fits the washer door assembly to restore smooth opening and closing and reduce noise, wobble, or binding. Replacing a worn bearing helps maintain proper door alignment for reliable operation. What it does:

• Supports the door hinge so the door pivots smoothly without sagging or sticking
• Reduces squeaks, grinding, or rough movement when opening or closing the door
• Helps keep the door aligned to reduce stress on the latch and door seal
• Addresses symptoms like door wobble, uneven closing, or noisy operation

• Disconnect power (and water if accessing near waterlines) before starting any repair
• Removing the door panel or inner door trim may be required; retain all fasteners and document their locations
• Inspect surrounding parts (hinge, seal, latch) and replace if damaged; improper alignment can cause premature wear

Replacement extension that secures or supports a component on select Whirlpool appliances to restore proper fit and alignment. Helps reduce panel or drawer movement and improves smooth operation when a factory extension is damaged or missing. What it does:

• Secures and supports a panel, drawer, or internal component to maintain correct alignment.
• Restores smooth movement and prevents binding or sagging caused by a missing or broken extension.
• Reduces rattling and improves overall fit to help prevent further wear on adjacent parts.
• Works as a direct-fit replacement for the exact OEM extension designed for specific models.

• Disconnect power (and water, if applicable) before beginning any repair.
• Remove required trim or access panels to reach the mounting area; retain any factory fasteners unless replacement hardware is provided.
• Refer to the appliance's service manual or exploded parts diagram to fit and proper orientation before installing.

Left hand side

The Water Filter Cap is an OEM part for Whirlpool refrigerators. It secures the water filter in place, ensuring a proper seal and preventing leaks. This cap also facilitates the easy replacement of the water filter by providing a handle to twist the filter in and out.

You should replace the water filter cap if it becomes damaged or worn out. Causes of a bad water filter cap can include repeated use, cracking from excessive force, or wear and tear from regular filter replacements.

Symptoms of a bad water filter cap include:

• Leaking water from the filter area
• Difficulty in securing the water filter
• The cap being cracked or visibly damaged
• The filter not staying in place properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


A small metal retaining clip that secures a bi-metal thermostat or temperature sensor in place, helping maintain proper contact and accurate temperature sensing for reliable appliance operation. Simple, durable replacement part. What it does

• Holds a bi-metal thermostat or temperature sensor firmly against its mounting point or probe.
• Maintains consistent contact to support accurate temperature sensing and control.
• Can help stop intermittent temperature-related issues caused by a loose or damaged clip.
• Designed for direct replacement where a spring-style or formed metal retainer is required.

• One bi-metal retaining clip (single clip).

• Disconnect power to the appliance before attempting any repair.
• Removal/installation typically requires small pliers or a flat screwdriver; avoid excessive force to prevent damage.
• Verify clip orientation and that the sensor/thermostat is seated fully before securing.

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components
