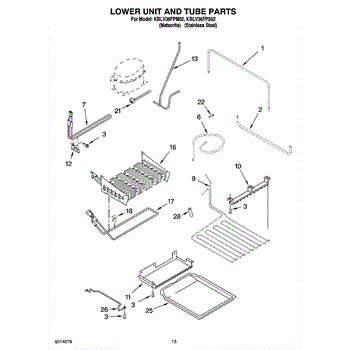

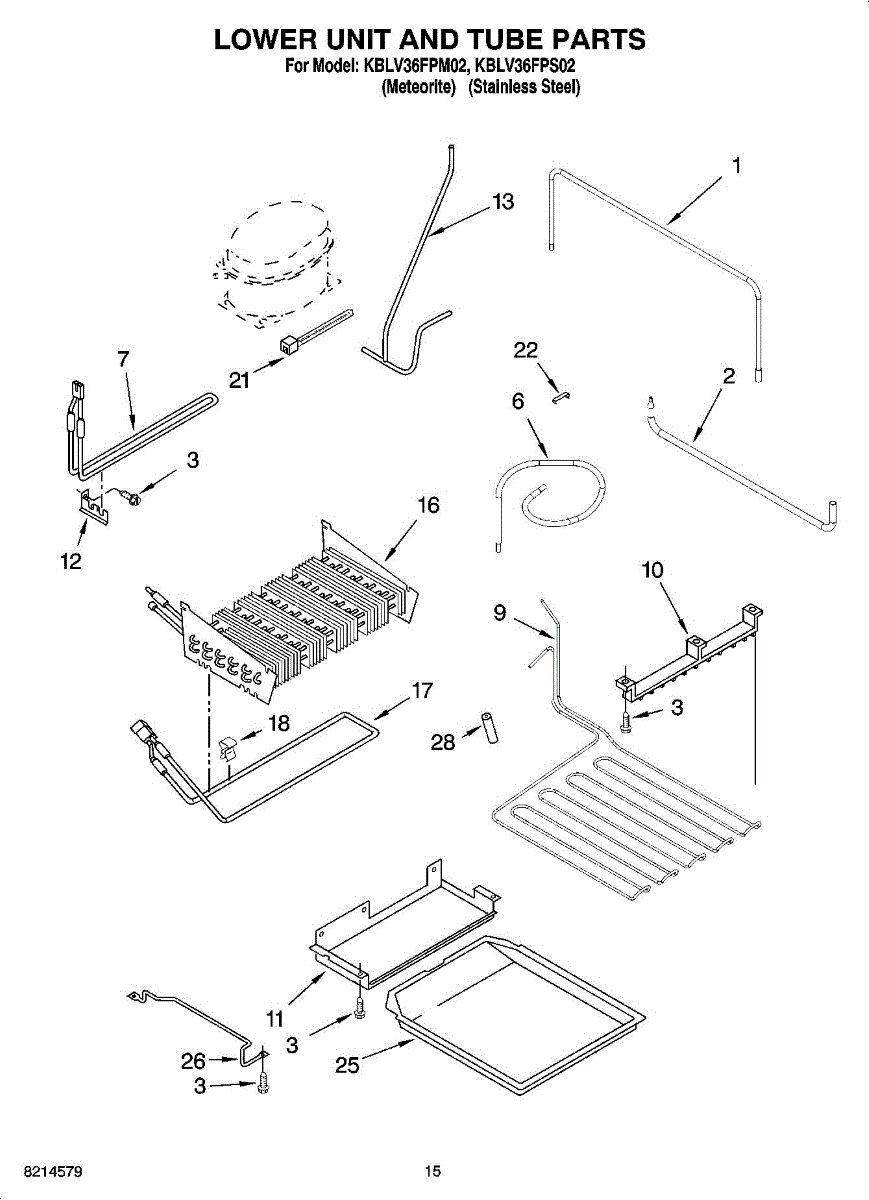

Parts for Kitchenaid KBLV36FPM02: 09 - Lower Unit And Tube Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A replacement drain pan that captures defrost and condensation water to keep it contained and away from the cabinet and floor. Restores the appliance's normal water-collection path and helps reduce leaks. What it does:

• Collects melting ice and condensation from the evaporator to prevent water from pooling under the appliance.
• Channels collected water toward the drain system so it evaporates or exits as designed.
• Stops common symptoms like puddles or moisture under the unit and musty odors caused by standing water.
• Fits under the evaporator/coil area to restore proper water management.

• Disconnect power to the appliance before service to avoid electrical hazards.
• Remove the required access panels or move the appliance per the manufacturer's guidance to reach the pan.
• Lift out the old pan carefully—it may contain standing water—and position the replacement so the drain outlet and routing match the OEM layout.
• After installation, restore power and check for proper water flow during a defrost cycle; inspect surrounding seals and tubing for proper seating.

This damper heater is the heater element used with the refrigerator air-damper assembly to help prevent frost and condensation buildup around the damper. Replaces a failed heater to restore proper damper operation and airflow. What it does:

• Warms the damper area to reduce ice and condensation that can block the damper
• Helps ensure the fresh-food and freezer compartments share airflow as intended
• Commonly replaced when frost or ice accumulates near the damper or when the damper fails to open/close smoothly
• Works as part of the damper/air control system; does not include the full damper housing or actuators unless specified

• Disconnect power to the appliance before replacing this part to avoid shock or injury
• Access may require removing interior panels or the damper housing; follow OEM instructions for your model
• Inspect the damper housing and actuator for damage or ice buildup when replacing the heater
