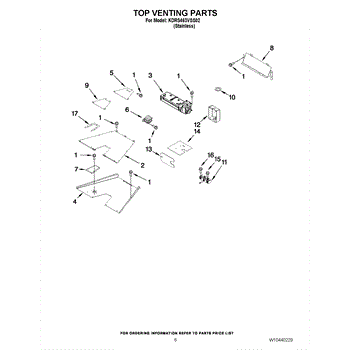

Parts for Kitchenaid KDRS463VSS02: 04 - Top Venting Parts

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This control transformer reduces incoming line voltage to the low voltage required by the appliance's control circuit or lighting. Replacing a failed transformer restores proper power to the controls so the unit operates as designed. What it does:

• Steps down household line power to low voltage for control boards, relays, or lighting circuits
• Provides electrical isolation to help protect sensitive control components
• A failed transformer may leave the control/display dead or make low-voltage features (like lights) inoperative; may also blow a fuse

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram; transfer wires one at a time to the matching terminals
• Mount securely in the original location; keep wires clear of sharp edges and heat sources
• If a fuse opened, inspect wiring and downstream loads for shorts before restoring power

The Terminal Block is an OEM part for Whirlpool ranges and ovens. It is designed to provide a secure connection point for the appliance's electrical wiring, ensuring the safe transmission of power to the heating elements and other components.

You should replace the terminal block if it becomes damaged or faulty. Causes of a bad terminal block can include electrical arcing, loose connections, or damage from overheating. A compromised terminal block can lead to electrical issues, affecting the performance and safety of the appliance.

Symptoms of a bad terminal block include:

• The oven or range not heating up properly
• Visible damage or burning around the terminal block
• Intermittent power issues or flickering display
• Unusual electrical smells or sparks from the terminal area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Range Door Handle Screw is an OEM part compatible with Whirlpool ranges. Over time, the door handle screw may become loose due to frequent use or other external factors. If the screw is damaged or missing, it can lead to a loose or wobbly handle, making it difficult to open and close the range door securely.

Size: 10-16” x 7/8”

Symptoms of a faulty or missing screw may include:

• Loose or wobbly handle
• Difficulty in opening or closing the range door
• Handle coming off from the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.
