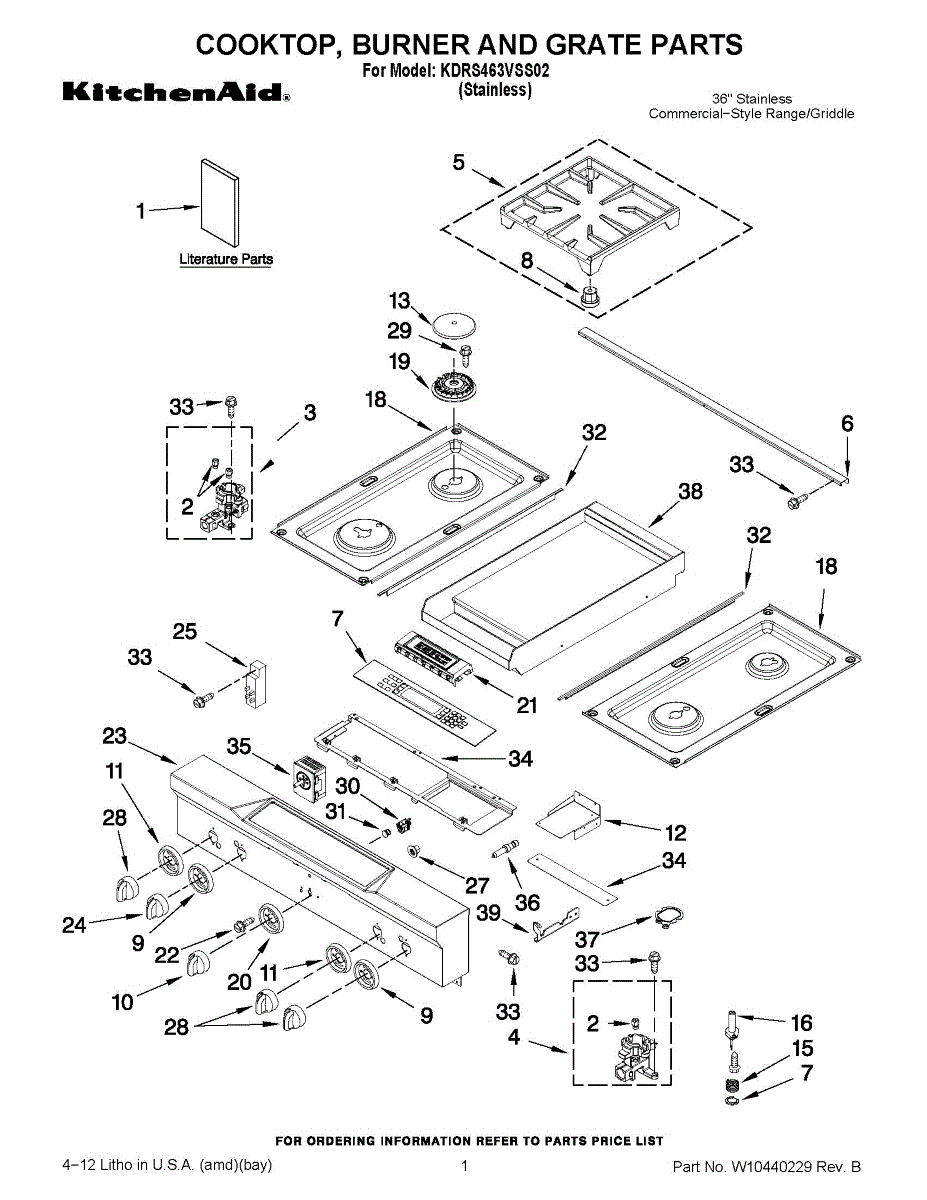

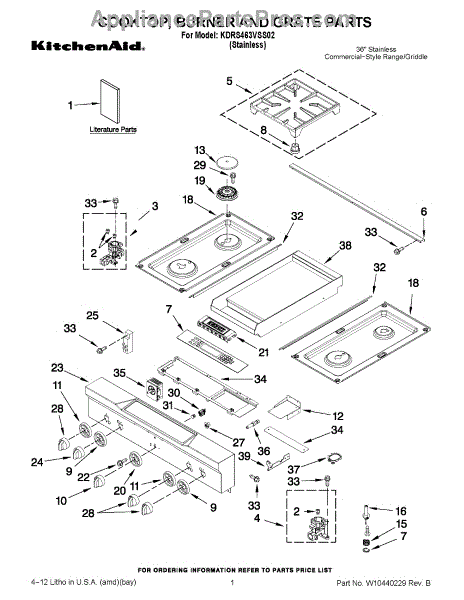

Parts for Kitchenaid KDRS463VSS02: 01 - Cooktop, Burner And Grate Parts

This orifice is the small, precision-opening nozzle that meters gas flow to a range or cooktop burner for proper flame performance. It helps restore steady ignition and consistent cooking heat when a burner is underperforming. What it does:

• Directs and meters gas to the burner to produce a stable flame
• Helps correct weak, uneven, or yellow flames caused by a worn or damaged nozzle
• Supports consistent burner output for predictable cooking results
• Works as the calibrated passage between the valve and burner head

• One orifice

• Install only after disconnecting gas supply and following appliance shutoff procedures
• Tighten to OEM torque recommendations and use thread sealant only where specified by manufacturer
• Test for leaks with a soap solution or approved gas leak detector before use

This orifice spud directs gas flow into the burner for consistent ignition and flame control. It restores proper burner performance so cooking heats evenly and burners light reliably. What it does:

• Seats the burner orifice to control gas flow to the burner
• Helps maintain a steady, even flame for consistent cooking
• Can resolve weak or uneven flames and burners that struggle to light
• Works as the sealed interface between the gas manifold and burner tube

• One orifice spud

• Turn off the gas supply and disconnect power before servicing
• Inspect surrounding seals and gaskets for damage and replace if necessary
• Use basic hand tools; avoid overtightening to prevent damage

This orifice holder assembly secures the burner orifice and positions gas flow for proper burner operation on gas ranges and ovens. It restores correct gas delivery to the burner for reliable ignition and consistent flame performance. What it does:

• Holds the burner orifice in the correct position so gas flows into the burner tube
• Helps maintain even flame distribution for consistent cooking heat
• Can resolve symptoms like weak or uneven flames and burners that won't light reliably
• Works with the burner valve and ignition system as part of the gas delivery path

• Turn off the appliance's gas supply and electrical power before servicing.
• Replace only with the matching orifice holder assembly for your appliance model.
• Handle carefully to avoid damaging the orifice opening; do not enlarge or modify.

The Holder Orifice is an OEM component specifically designed for Whirlpool ranges. Located inside the gas burner unit, the orifice holds the brass valve that regulates gas flow to each burner flame. Its sturdy construction and precisely sized opening ensure a stable, controlled fuel supply.

Causes of a bad holder orifice can include mineral deposits building over time which diminish sizing accuracy or cracks developing that cause leaks.

Symptoms of a bad holder orifice include:

• Burners emitting unstable or sporadic flames of abnormal sizes
• Inability to efficiently ignite or achieve proper burner settings
• Strong gas or fuel smells coming from the range top
• Discolored or corroded brass components

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore cooking appliances.

Replace worn or damaged surface grates with this grate kit to restore a sturdy, level cooking surface on your gas range or cooktop. It keeps pots and pans stable over the burners for safer, more consistent cooking.

• Supports cookware above the burners and provides a continuous cooking surface
• Helps keep pots and pans level to prevent rocking or tipping
• Replace if grates are cracked, warped, severely chipped, or missing feet/pads
• Can help address wobbly cookware, unstable placement, or uneven pan contact

• Turn all burners off and allow the cooktop to cool completely before handling grates
• Lift off old grates; clean the cooktop surface and burner caps while accessible
• Position the new grates in the proper locations; ensure all feet sit flat and any alignment features engage
• Test pan stability on each burner before cooking

This membrane switch touch pad is the user interface board that lets you select functions and control the appliance. It restores button response and readable control feedback for reliable operation. What it does:

• Registers user button presses and sends control signals to the main control board
• Replaces worn or unresponsive buttons that no longer activate cycles or settings
• Fixes intermittent or no-response issues from the console keypad
• Works with the console assembly to restore normal touch control behavior

• Disconnect power before servicing to avoid shock or damage
• Remove the console or control cover to access the keypad; handle gently to avoid tearing the membrane
• Verify connector seating and inspect the ribbon/harness for damage before installation
• No special programming typically required; test keypad function after reassembly

The Grate Pad is an OEM replacement part for  Whirlpool gas ranges. This set of 4 pads is designed to fit securely underneath the grates above the burner pans. The grate pad works to protect the grates from scratches and prolong their service life. It also helps distribute heat evenly across cookware during cooking.

Causes of a bad grate pad can include soiling or staining that is not removable through normal cleaning. Exposure to high heat over many years could cause cracks or brittleness in the material.

Symptoms include:

• Scratches or pits appearing on the grate surface
• Warping of the pad shape makes secure fitting difficult
• The pad deteriorating or flaking off in pieces

This part is also compatible with Maytag, KitchenAid, Jenn-Air, and other gas ranges

This burner cap sits on top of the surface burner head to shape the flame and shield the head from spills. Replacing a damaged or missing cap helps restore even heating, reliable ignition, and the cooktop's original appearance.

• Covers the burner head and disperses flame for more even cooking
• Protects burner head and ports from food and liquid spills
• Helps maintain proper ignition and a steady blue flame
• Helps with symptoms like uneven/yellow flame, delayed ignition, or poor simmer

• Allow the cooktop to cool completely before handling
• Disconnect power and shut off gas
• Clean the burner head and clear ports before seating the cap
• Center the cap so it sits level and flush; misalignment can affect ignition and flame

This gas surface burner cap sits on top of the burner head to shape an even flame and shield the burner from spills. Replace a missing, chipped, or warped cap to restore proper flame pattern and appearance.

• Directs and evens the flame across the burner for consistent heating
• Shields the burner head and ports from spills and debris
• Helps promote reliable ignition when properly seated on the burner head
• Common signs it's needed: uneven or yellow flames, delayed ignition, flames lifting or noisy, visible chips/warping

• Ensure the cooktop/range is cool; disconnect power and shut off gas if working near igniters
• Lift off the old cap and clean the burner head/ports; do not enlarge or damage the ports
• Place the new cap on the matching burner, centered and seated flat; do not interchange sizes between burners
• Light the burner and confirm a steady, even blue flame; reseat the cap if the flame is uneven

This burner cap covers the auxiliary (small) gas burner on your cooktop or range. It shapes the flame for even heating and protects the burner head—helping restore reliable ignition and a clean, finished look.

• Sits on the auxiliary burner head to shape and contain the flame
• Promotes even heating and dependable ignition when properly centered
• Shields the burner head from spills and debris
• Replace if the original cap is missing, warped, chipped, or discolored
• Typical symptoms: uneven or yellow flame, delayed ignition or continuous clicking without lighting, weak heat on that burner

• Shut off gas and power; allow the surface to cool before servicing
• Lift off the old cap, clean the burner head, and place the new cap over the auxiliary burner
• Align any locating features so the cap sits flat and centered; misalignment can prevent ignition or cause a yellow flame

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

This small mounting clip secures small panels and components on compatible Whirlpool appliances, restoring proper fit and preventing parts from coming loose. It's a simple replacement that helps stop rattles and misaligned panels. What it does:

• Secures trim, panels or small components to the appliance frame to maintain proper alignment
• Prevents parts from shifting or vibrating during operation, reducing rattling noises
• Restores fit where a broken or missing clip allowed gaps or loose pieces
• Designed to snap into place for a secure hold without added hardware

• One clip

• Disconnect power to the appliance before attempting any repair
• Remove any trim or panels carefully to access the clip location; note original orientation
• Press or snap the clip into the mounting slot until it seats; some locations may require a flat tool or light force
• Replace or repair the adjacent parts for a secure fit

This surface igniter electrode creates the spark that lights the gas at the burner. Replacing a worn or cracked electrode restores quick, reliable ignition and helps stop constant clicking or burners that only light with a match.

• Generates a high-voltage spark at the burner head to ignite gas
• Connects to the spark module via the attached lead wire
• Typical symptoms: burner won't spark or light, intermittent or weak spark, delayed ignition, visible cracks in the ceramic insulator
• Helps address arcing to ground or persistent clicking at a single burner

• Disconnect power and shut off gas before servicing; allow the cooktop/range to cool
• Remove grates, burner caps, and burner heads to access the electrode
• Route and connect the lead securely to the spark module; avoid pinching or chafing the wire
• Set the electrode tip gap/alignment near the burner per the original position; avoid stressing the ceramic insulator
• Test for proper spark and ignition before full reassembly

The Spark Electrode is an OEM part for Whirlpool gas ranges and cooktops. It is responsible for igniting the gas burner by generating a spark when the burner knob is turned to the ignite position, ensuring efficient and safe ignition of the gas.

Causes of a bad spark electrode can include exposure to high heat, accumulation of food debris, or wear and tear over time. These issues can prevent the electrode from producing a proper spark, leading to ignition problems.

Symptoms of a bad spark electrode include:

• Burner not igniting or taking longer to ignite
• Weak or no spark visible when igniting the burner
• Clicking sound without ignition
• Intermittent ignition problems

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cooktop glass surface is the smooth top replacement that restores a clean, even cooking area and holds burners and controls in place. It helps maintain safe, efficient stove operation and a finished look for the range. What it does

• Provides the finished glass cooking surface that supports burners and control components.
• Restores a sealed, easy-to-clean area for normal cooking use.
• Common replacement for cracked, chipped or heavily scratched tops that affect appearance or function.
• Helps prevent food and spills from reaching internal components when intact.

• Disconnect power (and gas if applicable) to the appliance before starting work.
• Handle the glass carefully—use gloves and eye protection to avoid cuts from edges or broken pieces.
• Installation may require removing burners, controls, and trim; keep screws and small parts organized.

This auxiliary burner head restores the small/simmer burner on a gas cooktop to proper flame shape and heat delivery, helping improve low-heat cooking control and consistent simmering. What it does:

• Directs and disperses gas to create a stable, even flame for the auxiliary (small) burner.
• Replaces damaged, warped or clogged burner heads that can cause uneven heating.
• Helps address weak, spotty or irregular flames on the small/simmer burner.
• Works with the burner cap and base to maintain correct flame pattern and efficiency.

• Turn off the appliance power and gas supply before servicing; follow all safety precautions.
• Remove the grate and burner cap, lift off the old burner head, then set the new head into place ensuring it seats correctly.
• After reinstalling the cap and grate, test for proper ignition and flame pattern; if you smell gas or see persistent problems, stop.

This burner head distributes gas evenly around the burner for a steady flame and reliable ignition. Replace a worn or clogged head to restore even heating, proper simmering, and consistent burner performance on your gas range or cooktop.

• Spreads gas from the orifice through ports to create an even, controlled flame ring
• Works with the burner cap and igniter/electrode for quick, consistent lighting
• Replace if ports are clogged, corroded, cracked, or warped causing uneven/yellow flames, delayed ignition, or popping
• Can help when the igniter sparks but the burner won't light or the flame won't spread

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the burner cap, then lift off the old head (some models use a retaining screw—reuse existing hardware)
• Align the new head with the orifice and igniter; seat fully and level
• Reassemble and test for proper ignition and flame; do not enlarge or clean ports with hard objects

This surface burner head distributes gas to the flame on a gas cooktop or range burner. Replacing a worn or clogged head helps restore even flame, reliable ignition, and consistent heat on the affected burner.

• Channels gas from the orifice through burner ports to create a uniform flame pattern under the cap
• Works with the spark electrode to ignite the gas
• A damaged or clogged head can cause: burner won't light or only clicks; uneven/yellow flame; weak or low heat on that burner
• Carbon buildup or corrosion on the head can lead to delayed ignition

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the burner cap; take off the old head and retain any mounting screws
• Align the new head over the orifice and spark electrode; seat flat and secure
• Clean burner ports and cap before testing for a steady, blue flame

This user interface control board sits behind the oven's control panel, interpreting keypad inputs and driving the display. Replace it to restore responsive buttons, readable time/temperature, and reliable communication with the main oven control.

• Interprets keypad/touchpad signals and sends commands to the main control
• Powers and updates the clock, temperature, and status display
• Enables selection of bake, broil, clean, and temperature settings
• Common symptoms: unresponsive or intermittent keys, dim/blank display, random beeps or panel error codes, oven won't start though it has power

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD protection; handle the board by the edges and avoid touching connector pins
• Note ribbon/wire orientation; transfer any brackets or overlays from the old board if needed
• After installation, restore power, set the clock, and test all keypad functions

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This control console assembly houses the user controls and display for the appliance, restoring a solid mounting surface and full button/knob function for operating cycles. It replaces a cracked, damaged, or non-responsive console. What it does:

• Provides the front control surface and mounting for switches, buttons, knobs, and the display
• Restores secure mounting and alignment for control components and user interface
• Replaces consoles with visible damage, broken button areas, or loose/bent housings that affect operation
• Helps eliminate intermittent or non-responsive controls when damage to the console is the root cause

• Disconnect power to the appliance before starting any repairs
• Handle electronic components and ribbon cables carefully to avoid damage
• Retain and reuse original screws and fasteners when possible; align console before tightening

This control knob replaces a worn, cracked, or missing push-on knob so you can turn and set appliance controls easily. It restores a secure grip and clear control feel for smooth operation. What it does:

• Fits onto the control shaft to allow manual selection of cycles, temperatures, or settings
• Restores a solid grip when the original knob is stripped, cracked, or loose
• Provides precise rotation and tactile feedback for accurate setting changes
• Helps prevent accidental setting changes by providing a secure fit

• Disconnect power to the appliance before servicing.
• This knob installs by pushing onto the splined control shaft; pull straight off to remove.
• Do not force; align splines before seating to avoid damage.
• If knob will not seat or the shaft is damaged, inspect/replace the control shaft or console components.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This infinite switch is the temperature control for a cooktop griddle, letting you adjust heat smoothly for even cooking. Replaces a worn or failed griddle control to restore reliable temperature regulation and consistent results. What it does:

• Regulates griddle heat by providing variable power levels to the element
• Helps restore proper heating when griddle stays too cool, won't heat, or has inconsistent temperature
• Operates as the user control input for turning heat up or down on the griddle zone
• Compatible with systems that use an infinite (continuously variable) control for temperature adjustment

• One infinite switch (griddle control) as shown

• Disconnect power to the appliance before attempting service to avoid shock hazard
• Access may require removing cooktop or control panel
• Verify harness connector orientation and secure mounting; replace any damaged wiring or fasteners

This surface igniter lights gas burners on compatible ranges so burners ignite quickly and reliably. Replaces a cracked, worn or non-sparking igniter to restore normal ignition and help your cooktop operate safely. What it does:

• Sends the spark that ignites the burner when the control knob is turned
• Commonly replaces igniters that click repeatedly, spark without lighting, or don't spark at all
• Works with the burner head and valve to initiate flame during startup
• Helps prevent delayed ignition and assists consistent burner performance

• One surface igniter

• Disconnect power and shut off gas supply before starting any service
• Handle the ceramic igniter element carefully; it is fragile and can crack if dropped or flexed
• Inspect wiring and connector for heat damage; replace connectors or harnesses if corroded
