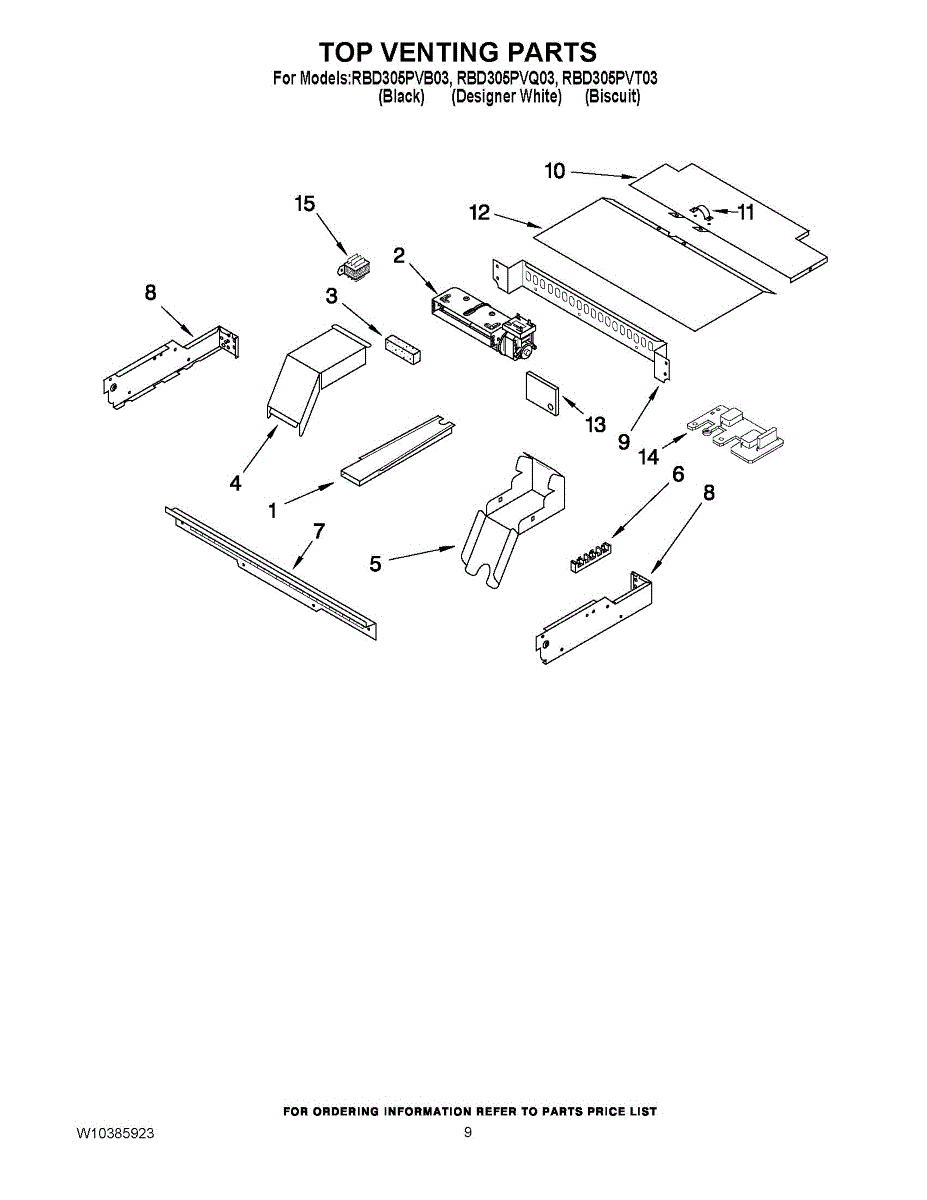

Parts for Whirlpool RBD305PVB03: 07 - Top Venting Parts

This replacement exhaust vent directs oven/dryer exhaust airflow away from the appliance to maintain proper ventilation and reduce backflow. Restores intended airflow path to help reduce odors and heat buildup around the appliance. What it does

• Channels exhaust fumes and hot air out of the appliance's vent path.
• Helps restore proper ventilation when previous vent is cracked, warped, or blocked.
• Can reduce abnormal heat, odors, or poor drying/cooking performance tied to ventilation issues.
• Limits airflow leak points that can cause noise or vibration during operation.

• One exhaust vent housing.

• Disconnect power (and gas, if applicable) before starting work.
• Inspect and replace any worn gaskets, clamps, or vent hose to ensure a proper seal.

Size: 8-18 x 3/8 inch.

This blower is the internal cooling fan that circulates air through the appliance to keep components at safe temperatures and maintain proper airflow. Replacing a failed or noisy blower restores ventilation and reliable operation.

• Moves air across heat-sensitive parts to prevent overheating
• Maintains proper ventilation inside the unit
• Common symptoms: fan not running, loud grinding/squealing, intermittent operation
• May cause hot control panel, over-temp errors, or unexpected shutdowns

• Disconnect power at the breaker or unplug the appliance before servicing
• Access location varies by model; retain and transfer any brackets, seals, or fasteners from the original
• Note wire/connector orientation and airflow direction; match to the original
• After installation, verify the fan spins freely and no wiring contacts the impeller

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

The Screw is an OEM replacement part for Whirlpool ranges. This screw is used to secure various components of the range, ensuring that parts such as panels, brackets, or burners remain firmly in place during operation. It is designed to withstand the high-heat environment of a range, providing long-lasting durability.

Symptoms of a bad or missing Screw include:

• Loose or misaligned range components
• Rattling or unusual noises during operation
• Difficulty maintaining the range's structural stability

Causes of a failing or missing screw can include normal wear over time, accidental loss during maintenance or repairs, or damage from overtightening. Replacing faulty screws ensures the appliance remains safe and functional.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This vent control damper assembly opens and closes the appliance vent to allow steam and exhaust to exit when needed, helping maintain proper airflow and reduce moisture buildup. It replaces a worn or stuck vent actuator. What it does:

• Operates the vent/damper to allow exhaust air to escape during use
• Prevents vent from staying stuck open or closed, which can cause excess moisture or reduced airflow
• Restores proper venting function when the original damper fails or binds
• Works as the mechanical control between the appliance cavity and external venting path

• One vent control (damper) assembly

• Disconnect power to the appliance before beginning any service
• Access may require removing exterior panels or the back cover
• Handle the damper gently to avoid bending the flap or linkages

Screw for control panel vent.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This transient suppressor helps protect the appliance's electronic control by absorbing voltage spikes and filtering electrical noise on the power line. Replacing a failed suppressor can restore control stability after power events. What it does:

• Clamps transient voltage spikes to help protect the control board from surge-induced damage
• Filters electrical noise that can cause erratic displays, resets, or nuisance shutoffs
• Typically mounts near the main control and wires per the unit's schematic
• Common signs include a charred/cracked component, burnt odor, or repeated control failures after power issues

• One transient suppressor module

• Disconnect power at the breaker before servicing; verify no power is present
• Photograph/label wiring and move leads one at a time per the model's wiring diagram
• Mount securely and route wires away from sharp edges and high-heat sources
• After a surge event, inspect the control and wiring for additional damage

This replacement transformer steps down household 120VAC, 60Hz power to the low voltage used by the appliance's electronic control. Replacing a failed transformer can restore power to the display/clock and control circuits so cooking functions respond properly. What it does:

• Converts 120VAC line power to low-voltage for the control board/clock and related circuits
• Helps provide stable power to the display and control relays
• Helps resolve: blank or intermittent display, unresponsive controls, oven not starting, or visible heat damage to the original transformer

• One transformer

• Disconnect power at the breaker before servicing; verify no voltage is present
• Note and label all wire positions or take photos before removal; transfer connections one-for-one
• Mount securely and route leads away from sharp edges and hot surfaces
• Inspect wiring and the control board for shorts before restoring power
