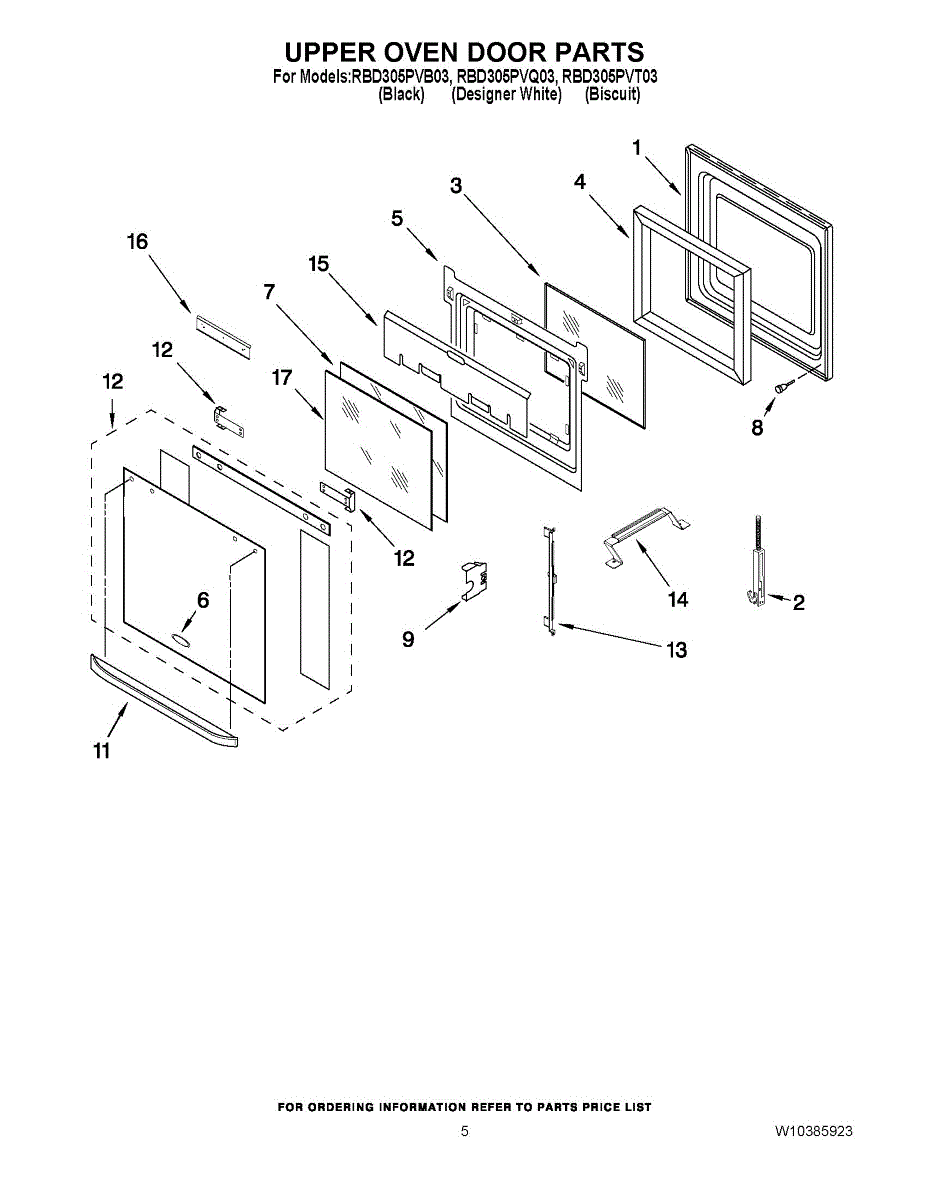

Parts for Whirlpool RBD305PVB03: 03 - Upper Oven Door Parts

This is the 30-inch door panel for select ovens/ranges. It restores the door's appearance and provides the structural skin that supports the handle, glass, and trim for a solid, properly aligned door assembly. What it does:

• Forms the primary outer skin of the door assembly and supports handle/trim
• Provides a mounting surface for door glass and nameplate/emblems
• Helps maintain proper door alignment and a tight, rattle-free fit
• Common reasons to replace: dents, bends, scratches, discoloration, or stripped mounting holes

• 1 door panel

• Disconnect power and allow the appliance to cool completely before servicing
• Remove the door assembly and place it on a protected surface; wear cut-resistant gloves
• Transfer handle, screws, glass, and trim from the old panel to the new one; note screw lengths/locations
• Align carefully and avoid overtightening to prevent damaging threads or cracking glass

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

Left hinge for Colored/Clear Doors.

Right hinge for Colored/Clear Doors.

The Rear Oven Door Glass is an OEM part for Whirlpool ovens. This glass panel is installed on the inside of the oven door and is essential for providing a heat-resistant viewing window, allowing users to monitor the cooking process without opening the door. Measuring about 20 inches by 10 inches, this quality glass keeps heat in the oven and provides a clear view for easy baking.

Symptoms of a bad Rear Oven Door Glass include:

• Cracks or chips in the glass,
• Visible streaks or fogging between glass layers that can't be cleaned,
• A loose fit that may cause heat to escape or the glass to rattle during oven use.

Causes of rear oven door glass damage typically include thermal stress from high heat, impact from closing the door too forcefully, or accidental bumps with pots or pans.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Insulation is an OEM part for Whirlpool ranges and wall ovens. This part provides thermal insulation for the oven door, helping to maintain the internal temperature and improve energy efficiency. It also protects the exterior surfaces of the oven door from becoming excessively hot during operation.

Causes of bad door insulation can include general wear and tear over time, degradation from repeated exposure to high temperatures, or physical damage.

Symptoms of bad door insulation include:

• Oven taking longer to heat up
• Heat escaping from the oven door
• Outer door surfaces becoming too hot to touch
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This inner oven door glass panel restores the heat-resistant barrier between the oven cavity and the door. Replacing damaged glass helps the oven hold temperature, improves safety, and keeps the viewing window clear and easy to clean.

• Forms the interior heat barrier of the door window to contain heat inside the oven
• Lets you monitor cooking without opening the door
• Supports stable temperatures and consistent baking performance
• Common symptoms: visible cracks, chips, or shattered glass; rattling pieces in the door; missing or visibly damaged inner pane

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Remove the door per your model's instructions and place it face-down on a padded, protected surface
• Wear cut-resistant gloves and eye protection; handle glass carefully and avoid stressing the edges
• Reassemble in the original order, ensuring brackets/seals are seated correctly; tighten fasteners snugly without overtightening

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

Mounting bracket for bottom trim.

Color: White

Color: Bisque

Color: Black

Color: Bisque

Color: White

This is the left side handle bracket. For right side use 4455803.

Color: Black

This is the right side handle bracket. For left side use 4455804.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
