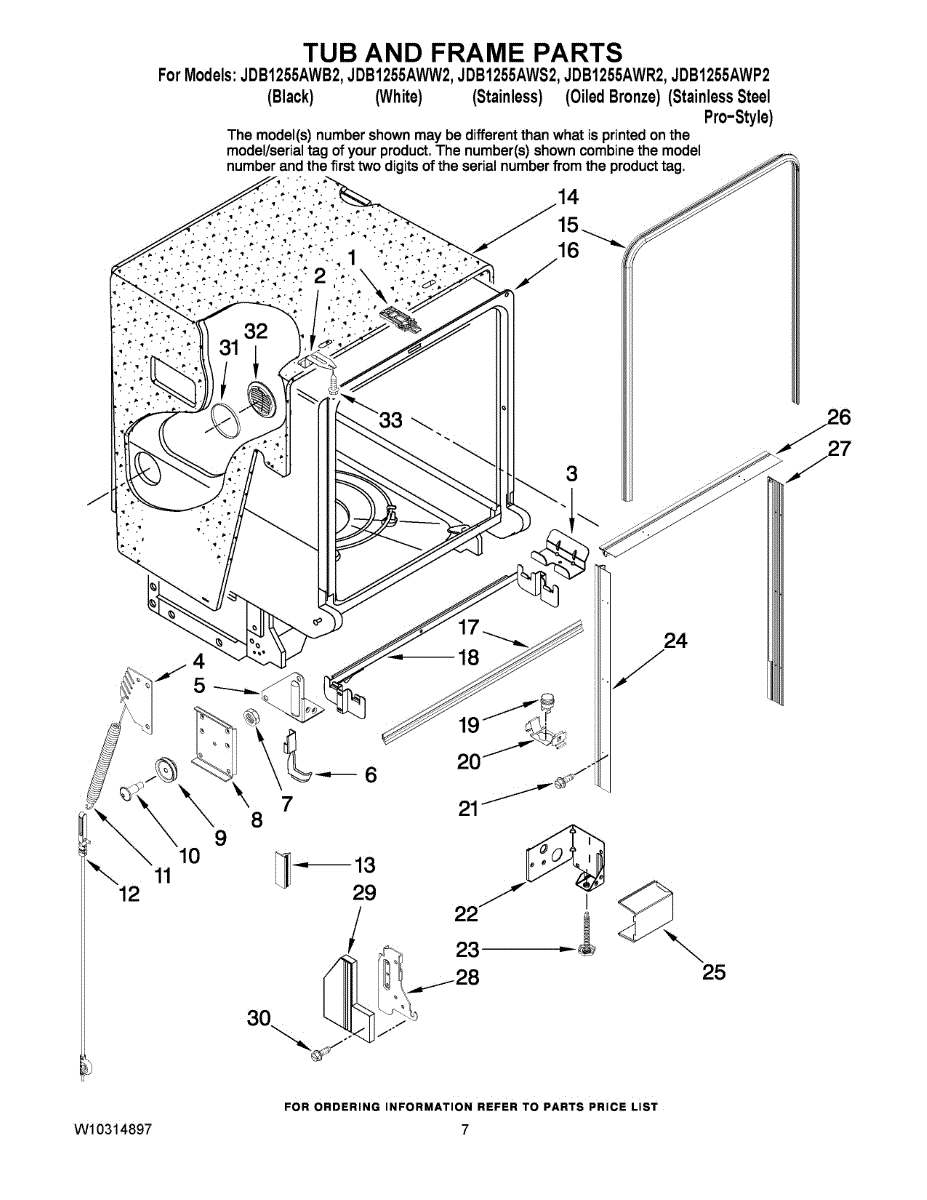

Parts for Maytag JDB1255AWS2: 07 - Tub And Frame Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Cabinet Mount Bracket secures a built-in appliance to the surrounding cabinetry. Replacing a bent or missing bracket restores a tight, rattle-free installation so the unit stays level and aligned during everyday use.

• Anchors the appliance to the cabinet or side walls to prevent shifting or tip-out
• Maintains flush, level alignment with adjacent cabinets and countertop
• Helps reduce vibration and rattling noises during operation
• Replace if the original bracket is bent, cracked, corroded, or missing

• Disconnect power and any utilities before starting work.
• Support the appliance and pull it forward enough to access the mounting area.
• Reuse manufacturer-specified screws or approved replacements; tighten securely without overtightening.
• Secure both sides as originally configured and test operation.

Left hand side

This left corner trim restores the finished edge on a refrigerator door or cabinet frame, improving appearance and helping protect the gasket area from damage. It's a direct-fit plastic trim piece used where the door meets the cabinet. What it does:

• Covers and protects the door/frame corner to prevent chipping and wear
• Helps maintain a smooth seal surface by securing the gasket edge
• Reduces visible gaps or rough edges that cause cosmetic issues
• Commonly replaced when cracked, broken, or missing after impact or wear

• One left corner trim piece

• Unplug the appliance or disconnect power before beginning work when applicable
• Remove any adjacent trim or fasteners gently to access the mounting area
• Align the trim with the corner and press or fasten per the OEM attachment points
• Avoid forcing the piece; inspect surrounding gasket and mounting clips and replace if damaged

This roller fits the cable bracket assembly and helps guide the cable smoothly to reduce binding and wear. It restores proper cable tracking so the mechanism moves more quietly and reliably. What it does:

• Guides and supports the cable within the bracket so the cable runs true
• Reduces rubbing, binding, and premature cable wear
• Helps eliminate squeaks or grinding where the cable contacts the bracket
• Restores smoother operation of the affected door/assembly movement

• One roller for the cable bracket (quantity: 1)

• Disconnect power before starting any repair and follow all safety guidelines
• Requires basic hand tools; access the bracket per your model's service instructions
• Inspect the cable and bracket for wear or damage and replace if necessary
• Test operation after installation to ensure proper cable routing and smooth movement

Restore safe, smooth door operation with this dishwasher door spring. It counterbalances the door's weight so it opens and closes in a controlled way, preventing a sudden drop when the original spring breaks or fatigues.

• Provides the tension that counterbalances the dishwasher door through the hinge mechanism
• Helps prevent the door from slamming open or feeling unusually heavy
• Restores smooth, even door movement side-to-side
• Typical symptoms: door drops quickly, feels heavier than normal, uneven motion, or a visibly broken/stretched spring

• Disconnect power and shut off water before servicing
• Remove the toe/kick panel to access the hinge area
• Support the door, then move it slightly to relieve tension before unhooking the old spring
• Attach the new spring between the frame anchor and hinge arm; if your model uses two springs, replace both sides for even tension

The Door Cable Assembly is an OEM part for Whirlpool dishwashers. It plays a crucial role in connecting the dishwasher door to the door springs, ensuring smooth and balanced opening and closing. This assembly helps in controlling the door's tension and preventing it from falling open or slamming shut.

Causes of a bad door cable assembly can include wear and tear from frequent use, fraying or breaking of the cable, or damage due to accidental mishandling. Over time, the cable can become less effective, leading to issues with the door's functionality.

Symptoms of a bad door cable assembly include:

• The door falling open unexpectedly
• Difficulty in opening or closing the door
• The door not staying securely in place
• Noticeable slack or damage to the cable

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Long tub insulation that fits the appliance's inner tub, reducing operating noise and helping stabilize temperature around the tub for quieter, more consistent performance. Replaces worn or damaged insulation to address rattles and drafts. What it does:

• Dampens noise and vibration when insulation is torn, compressed or missing.
• Helps limit heat loss and reduce cold spots that can cause condensation or longer warm-up times.
• Reduces rattling or knocking caused by loose or degraded insulation.
• Intended for specific Whirlpool tubs—verify model fit before ordering.

• Disconnect power (and water supply for washers) before starting any repair.
• Remove outer panels or drum components per the service manual; insulation may be held with clips, adhesive, or fasteners.
• Wear gloves and a dust mask—insulation fibers can irritate skin and lungs.

This dishwasher door seal fits into the tub channel to create a tight, water-resistant barrier when the door closes. Replacing a worn gasket helps stop nuisance leaks and restores proper door compression and moisture containment.

• Creates the primary seal around the dishwasher tub opening when the door is closed
• Helps keep wash water, suds, and steam inside the wash cavity
• Wear can lead to drips at the front corners or along the sides
• Replace if the gasket is cracked, torn, flattened, or no longer sealing; the door may be harder to latch

• Disconnect power and turn off the water supply before servicing
• Remove the old gasket and thoroughly clean the channel of debris and residue
• Warm and relax the new gasket; start at the top center and press evenly into the channel without stretching
• Close the door for several hours to help the seal set; run a test cycle and check for leaks

This Tub Edge Trim (bottom) fits along the lower edge of the dishwasher tub opening. Replacing a cracked, warped, or missing trim restores a clean finished edge and helps the door open and close smoothly without rubbing or snagging.

• Finishes and protects the bottom lip of the tub opening
• Helps maintain proper clearance for the door panel and gasket
• Replaces damaged, warped, discolored, or missing trim
• Typical symptoms: loose or broken strip, rubbing when closing, visible gap along the lower edge

• Disconnect power to the dishwasher before servicing
• Open the door and remove the old trim by releasing its retaining tabs or screws; note orientation
• Align the new trim on the lower tub edge and press or fasten until fully seated across the opening
• Verify the door closes freely and the gasket seats evenly before restoring power

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

A replacement leveling leg that stabilizes your appliance and allows height adjustment for a secure, level install. Restores proper alignment to reduce rocking, vibration and uneven door gaps. What it does:

• Raises and levels the appliance so all feet contact the floor evenly.
• Stops rocking and excessive vibration that can cause noise or wear.
• Helps restore proper drainage and door alignment by correcting tilt.
• Matches original fit and function for reliable support.

• Disconnect power (and water for appliances with plumbing) before servicing.
• Raise or support the appliance safely before removing or adjusting legs.
• Turn the leg to raise or lower; make small adjustments and recheck level.
• Use common hand tools (wrench or pliers) and avoid forcing damaged threads.

Right hand side. For left hand use WPW10117485

Left hand side. For right hand use W10117484

Right hand side

Left hand side

This seal sits at the dishwasher's air/water inlet, creating a tight barrier where the inlet assembly meets the tub or door. Replacing a worn seal helps stop nuisance leaks and supports proper fill and venting performance. What it does

• Forms a watertight seal at the air/water inlet connection
• Helps prevent drips or seepage during fill and wash
• Supports correct venting to keep moisture contained inside the tub
• Common failure signs include water on the floor near the unit, dampness around the inlet/vent area, or a cracked, flattened, or brittle seal

• One air/water inlet seal

• Disconnect power and shut off water before servicing
• Access method varies by model; remove the inlet/vent cover or side panel to reach the seal
• Clean mating surfaces; seat the new seal evenly without distortion
• Reassemble and run a brief fill/wash to check for leaks

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
