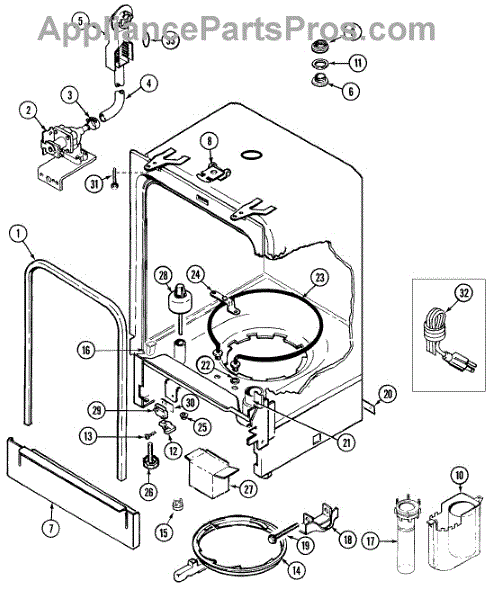

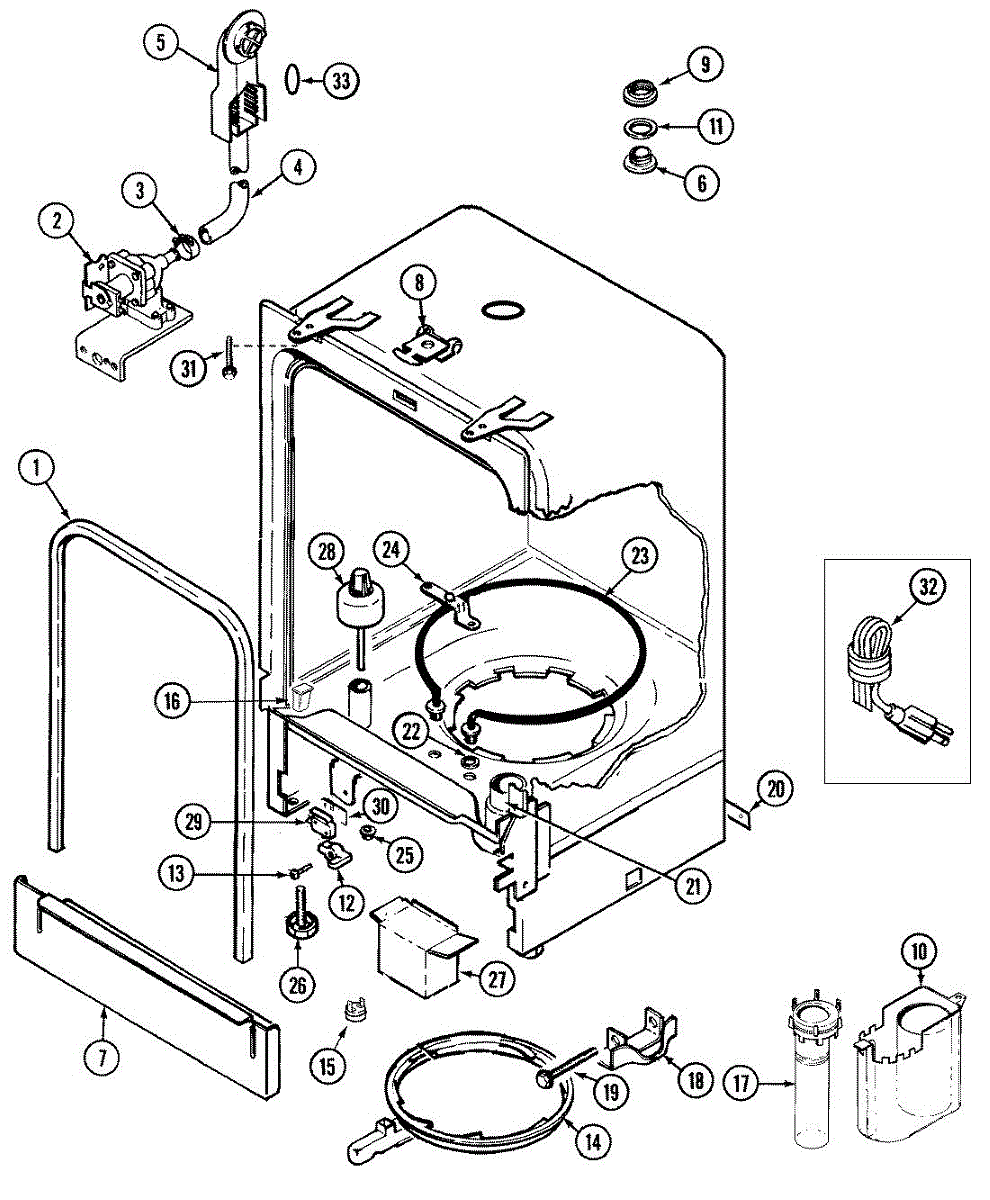

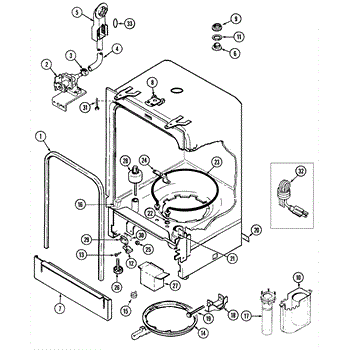

Parts for Magic Chef DU2000V: 06 - Tub Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Whirlpool Dishwasher Door Gasket is an OEM part for Whirlpool dishwashers. It provides a watertight seal around the door to prevent water leaks during the wash cycle.  With a length of 66.5 inches, this part forms an airtight seal around the dishwasher door, preventing water leaks during operation.

Causes of a bad door gasket can include cracks and breaks developing from repeated exposure to temperature changes during wash cycles. Over time, rubber perishes leaving gaps that compromise the seal.

Symptoms of a failing door gasket:

• Water pools on the floor in front of the dishwasher
• Dishes remaining wet after a full cycle
• Visible cracks or tears in the rubber

This genuine OEM  part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

Screw: 8-16 x 3/8 inch.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This dishwasher water deflector redirects spray back into the tub at the front edge, helping prevent splash-over and leaks during cycles. Replace a cracked, warped, or missing deflector to keep floors dry and wash performance consistent.

• Directs wash water away from the door opening and front corners
• Helps reduce leaks and puddles at the bottom front of the dishwasher
• Restores proper containment when the original deflector is deformed, loose, or missing
• Common symptoms include water on the floor at the front, drips during cycles, or visible damage to the deflector

• Disconnect power and turn off the water supply before servicing
• Open the door to access the front/tub area; remove the old deflector
• Clean the mating area and seat the new deflector fully and evenly
• Run a short test cycle and check for leaks

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

O-rings, sleeves and nuts are not included. For O-rings use WPY913079. For sleeves use 99001333. For nuts use 99002208

This electric heating element generates the high heat needed for your appliance to reach operating temperatures, restoring normal heating performance and cycle effectiveness. Use the correct replacement for safe, reliable heat output. What it does:

• Heats the appliance's air or oven cavity so cycles reach intended temperatures
• Restores proper heating when the appliance runs but produces little or no heat
• Helps resolve long cycles or poor performance caused by a failed element
• Replaces a worn or open element that shows visible damage or electrical failure

• One heating element

• Disconnect all power before beginning service to avoid shock or injury
• Handle the element carefully to avoid bending or kinking the tubing/coil
• Verify electrical connections are secure and correct before restoring power

This float palnut is a push-on retainer that secures the dishwasher's water-level float to its stem. Keeping the float anchored helps the overfill protection work properly, supporting correct fill levels and helping prevent leaks from overfilling. What it does:

• Holds the float in position so it can move freely with water level changes
• Helps the float reliably actuate the overfill/float switch
• Replace if cracked, loose, or missing
• Typical symptoms include a loose or wobbly float, the float popping off, erratic filling, overfilling, or leaks near the float area

• One float palnut

• Disconnect power and turn off water supply before servicing
• Remove the lower rack to access the float assembly
• Remove the old retainer; press the new palnut squarely onto the float stem until snug
• The float moves freely up and down before reassembling

A replacement leveling leg that stabilizes your appliance and allows height adjustment for a secure, level install. Restores proper alignment to reduce rocking, vibration and uneven door gaps. What it does:

• Raises and levels the appliance so all feet contact the floor evenly.
• Stops rocking and excessive vibration that can cause noise or wear.
• Helps restore proper drainage and door alignment by correcting tilt.
• Matches original fit and function for reliable support.

• Disconnect power (and water for appliances with plumbing) before servicing.
• Raise or support the appliance safely before removing or adjusting legs.
• Turn the leg to raise or lower; make small adjustments and recheck level.
• Use common hand tools (wrench or pliers) and avoid forcing damaged threads.

This power cord strain relief secures the cord where it passes through the appliance cabinet, protecting the jacket and preventing pull on internal connections. Replacing a cracked or missing connector restores a safe, stable cord entry. What it does:

• Secures the power cord at the cabinet entry to relieve strain on internal terminals or junction connections
• Provides a protective bushing to reduce abrasion of the cord jacket against cabinet edges
• Helps maintain proper routing and support for the incoming power cord
• Typical signs it's needed: loose or wobbly cord at entry, broken/missing connector, or visible chafing on the cord jacket

• 1 strain relief connector

• Disconnect power at the breaker or unplug the appliance before servicing
• Remove the access cover, release and remove the old strain relief, and route the cord through the new connector
• Seat the connector fully so it captures the cord's outer jacket—not the individual conductors
• After reassembly, verify the cord is secure and does not move at the entry point

This float controls your dishwasher's water level. As the tub fills, it rises to signal the float switch to shut off incoming water, helping prevent overfilling and leaks.

• Lifts with the water to actuate the float switch and stop filling
• Helps protect against overfilling and door leaks
• Replace if the float is cracked, deformed, waterlogged, or sticks in its well
• Symptoms can include: won't fill or stops filling early; overfilling or leaks at the door

• Disconnect power and shut off the water supply before servicing
• Remove the lower rack and locate the float in the tub floor
• Lift the old float straight up; clear any debris; seat the new float and free up-and-down movement
• Restore power and run a fill test to proper operation and check for leaks

This water level switch senses the dishwasher's tub float and controls the water inlet. Replacing a worn switch restores correct filling, helping prevent overfilling or dry cycles that can reduce cleaning performance. What it does:

• Monitors the float position to open/close the fill circuit at the proper water level
• Common symptoms: dishwasher won't fill or stops filling too soon
• May also cause continuous filling/overfill if contacts are stuck closed
• Intermittent operation can leave the tub underfilled and washing performance poor

• 1 water level (float) switch

• Disconnect power and shut off the water supply before servicing
• Remove the toe/kick panel to access the switch near the float assembly under the tub
• Note wire positions; transfer connectors one at a time and secure the switch in its bracket
• The float moves freely and actuates the switch before reassembly and testing

Screw: 8-16 x 3/8 inch.

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
