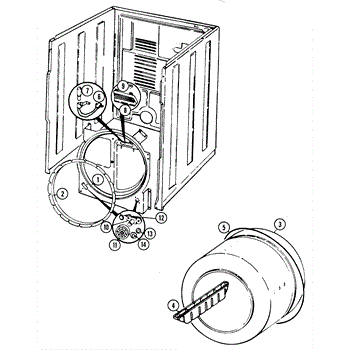

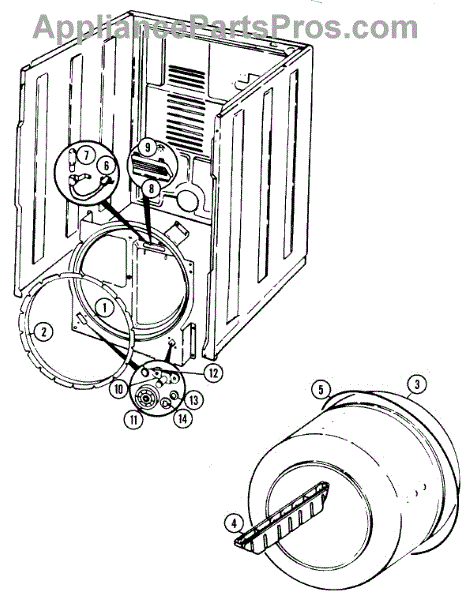

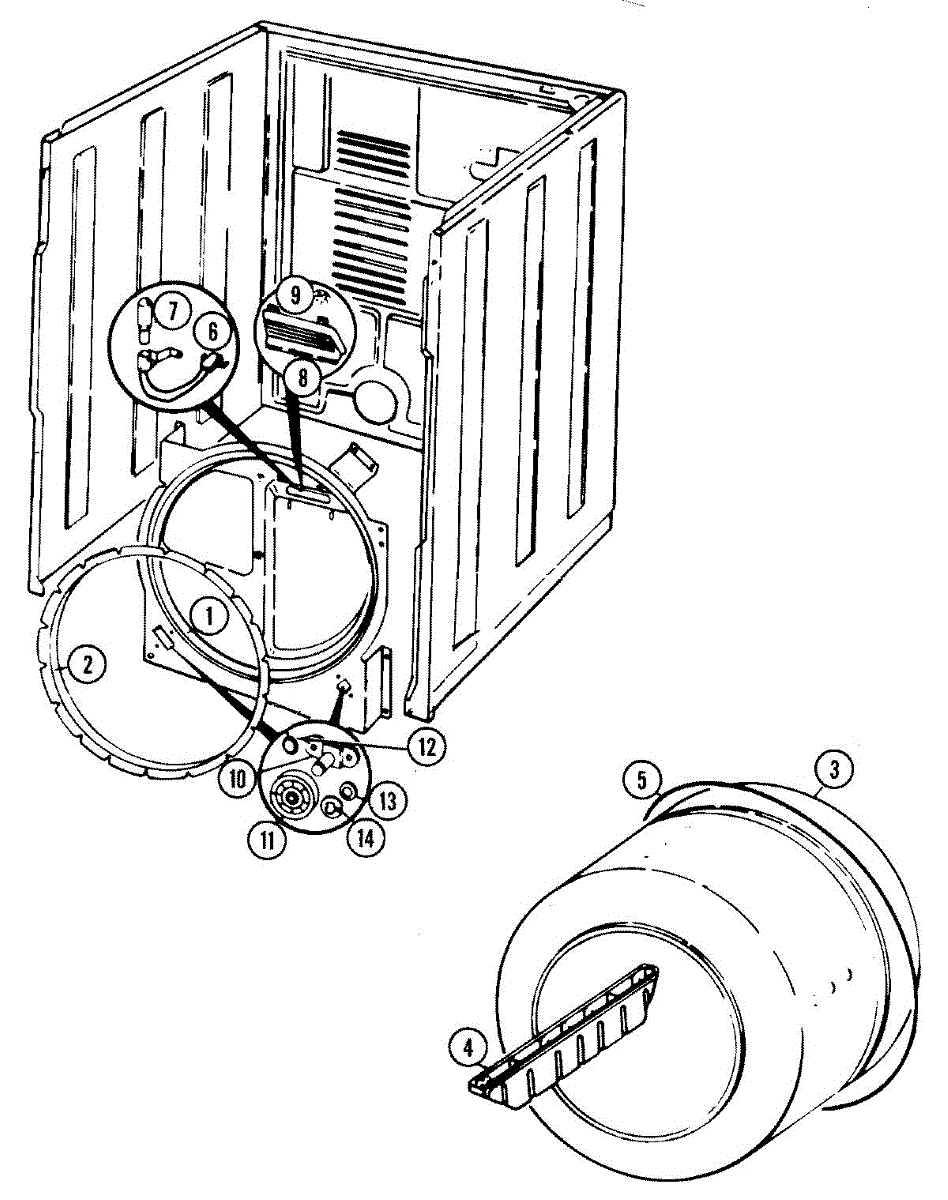

Parts for Magic Chef YE20HY3C: 09 - Tumbler (Rev. E) Parts

Specs: 10-16 x 1/2 inch.

Seals the gap between the dryer drum and front panel to prevent air leaks and protect clothes from damage. Replace if worn, torn, or causing black marks on laundry.

The Screw is an OEM part for Whirlpool appliances that is responsible for securing various parts in place. The screw ensures a tight and secure fit, preventing any loose parts. A bad screw can occur due to wear and tear or accidental damage. If the screw becomes stripped, rusted, or lost, it can lead to instability or even malfunction of the affected parts.

Symptoms of a bad screw include:

• Loose or wobbly parts.
• Components not securely fastened.
• Difficulty in assembling or disassembling the appliance.
• Rattling or unusual noises during operation.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Hex head sheet metal screw secures appliance panels, brackets, and trim. Replace missing, stripped, or damaged screws to keep covers firmly attached.

This assembly includes the roller shaft and rear support bracket that holds a drum support roller in place inside the dryer. It allows the drum to rotate smoothly on its rear support rollers. Replace this part if the dryer is making squealing, thumping, or rumbling noises, or if the existing shaft is worn, bent, or seized.

Size: 10-24 x 3/8 inch.

Made for most Admiral, Crosley, Norge, and Magic Chef dryers. Kit includes 2 drum support rollers, 2 support shafts, 4 screws, 2 spacers, 2 washers, 2 retaining rings and instruction sheet.

This retaining ring secures a component on a shaft or within a groove so it stays aligned during operation. Replacing a bent, rusted, or missing ring helps stop wobble, noise, and parts working loose.

• Locks into a groove to keep gears, pulleys, wheels, or spacers from sliding off a shaft
• Helps maintain proper spacing and alignment of moving parts
• Common signs of failure: wobbling parts, scraping/rubbing noises, or components that work loose
• Visual clues: deformation, corrosion, or loss of spring tension

• Disconnect power and any utilities to the appliance before service
• Wear eye protection—retaining rings can spring free under tension
• Note the order/orientation of any washers or spacers before removal
• Use appropriate snap-ring or needle-nose pliers and ensure the ring seats fully in its groove
