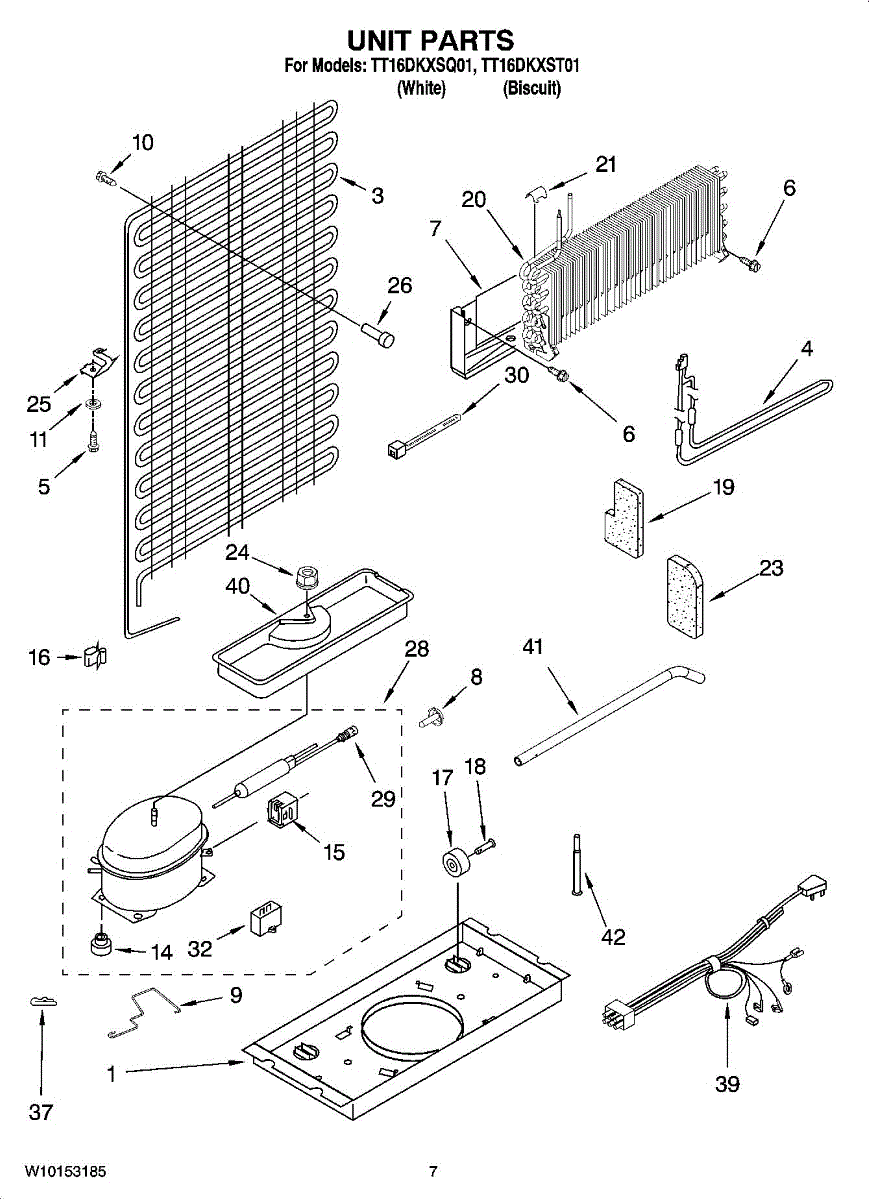

Parts for Estate TT16DKXST01: 04 - Unit Parts

This refrigerator support bracket provides structural stability for internal components. Replace if cracked, broken, or missing to restore proper support.

Refrigerator not cooling or running constantly? A faulty condenser prevents proper heat release. This repair requires basic tools and 1-2 hours to complete.

Fix freezer icing and blocked vents with this defrost heater. Melts frost buildup on evaporator coils during defrost cycle. 30-minute DIY repair.

Replacement mounting screw for refrigerator panels and components. Needed when original screw is stripped, missing, or damaged during repairs or maintenance.

Size: 8-18 x 1/2 inch.

Secures refrigerator components in place. Replace if damaged, cracked, or missing to prevent parts from shifting. Verify fit with your model number.

Mounting washer for securing components in washers and appliances. Replace if worn, missing, or damaged to ensure proper fastening and stability.

Excessive vibration or loud humming from your fridge? This rubber compressor mount grommet reduces noise and vibration. Simple DIY fix in minutes.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

Refrigerator won't start or compressor clicks but doesn't run? This start relay and overload protector helps the compressor motor start reliably.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Rivet for refrigerators. Secures components and panels inside the cabinet. Replace if rivet is loose, missing, or broken during repair work.

Fix water leaking on the floor or cooling issues with this refrigerator evaporator assembly. Located behind the freezer back panel. Moderate repair.

A small metal retaining clip that secures a bi-metal thermostat or temperature sensor in place, helping maintain proper contact and accurate temperature sensing for reliable appliance operation. Simple, durable replacement part. What it does

• Holds a bi-metal thermostat or temperature sensor firmly against its mounting point or probe.
• Maintains consistent contact to support accurate temperature sensing and control.
• Can help stop intermittent temperature-related issues caused by a loose or damaged clip.
• Designed for direct replacement where a spring-style or formed metal retainer is required.

• One bi-metal retaining clip (single clip).

• Disconnect power to the appliance before attempting any repair.
• Removal/installation typically requires small pliers or a flat screwdriver; avoid excessive force to prevent damage.
• Verify clip orientation and that the sensor/thermostat is seated fully before securing.

Secures trim, panels, and assemblies to prevent rattling and keep parts aligned. Replace when original clip breaks or goes missing. Verify fit with your model.

Refrigerator not cooling or running warm? This compressor pumps refrigerant through the sealed system to restore proper temperatures. Professional repair.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement drain tube routes defrost and condensation water away from the refrigerator cabinet to the drain pan, helping prevent leaks and pooling inside the unit. It's a simple, direct-fit plumbing part for effective water removal. What it does:

• Channels defrost and condensation water from the evaporator area to the appliance drain pan
• Helps prevent water pooling or dripping inside the cabinet that can cause odors or floor damage
• Restores a cracked, clogged or missing tube's ability to route water properly
• Works with the freezer/refrigerator defrost/drain system to maintain normal drainage

• One replacement drain tube

• Disconnect power before servicing to avoid electrical shock
• Remove food and shelving as needed to access the evaporator/drain area
• Verify routing and secure connections to avoid kinks; do not force fittings
• Inspect and clear the drain trough and drain heater while replacing the tube

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/4 inch.
