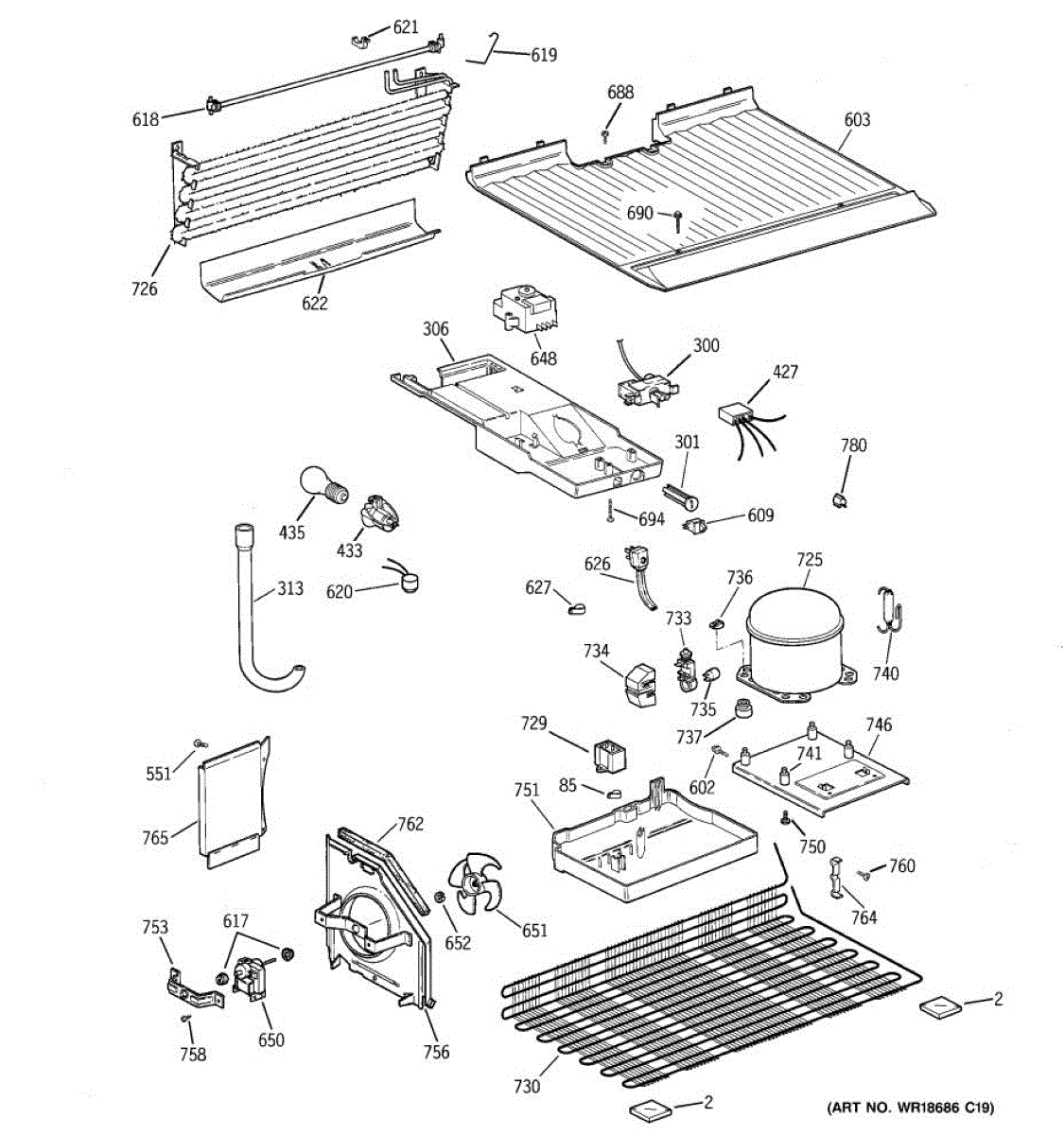

Parts for Ge GTS15BBMDRWW: 03 - Unit Parts

This vinyl sleeve fits over a rod, tube, or wire in the refrigerator to protect and cushion contact points. It reduces wear and vibration and helps keep components aligned for smooth, reliable operation.

• Provides a protective barrier at contact points to prevent abrasion or marring
• Helps maintain spacing and alignment for a snug, proper fit
• Cushions to damp vibration and reduce rattles or squeaks
• Replace if the sleeve is missing, cracked, hardened, or if components feel loose or make noise

• Disconnect power; turn off the water supply if working near water lines
• Note the sleeve's original location and orientation; take a photo for reference
• Remove the old sleeve and any debris; slide the new sleeve into the same position
• Check clearance and resecure related parts before restoring power

The Temperature Control Thermostat is an OEM part for GE refrigerators. It functions as the primary sensor and control for regulating the refrigerator and freezer temperatures, ensuring that the appliance maintains optimal cooling conditions. By monitoring the internal temperatures and triggering the cooling system when necessary, this thermostat helps preserve food freshness and consistency.

Symptoms of a bad Temperature Control Thermostat include:

• The refrigerator or freezer being too cold or too warm
• Frequent or continuous running of the refrigerator
• Unusual fluctuations in internal temperatures

Causes of a bad thermostat can include electrical issues such as faulty wiring or sensor malfunctions, wear and tear from normal use, or improper settings that prevent the thermostat from accurately gauging and controlling temperature.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control knob fits onto the control shaft to let you adjust settings on your refrigerator. Replacing a cracked or missing knob restores smooth adjustments and keeps the control easy to use.

• Attaches to the control shaft to select temperature/settings
• Common fix for a knob that is cracked, stripped, loose, or missing
• Helps when the knob spins without engaging the shaft or falls off
• Restores proper feel for everyday adjustments

• Unplug the refrigerator before working near the control area
• Pull the old knob straight off—avoid prying on the panel
• Align the flat/D-shaped opening with the shaft and press firmly until seated
• If the knob won't seat, inspect the control shaft for damage before forcing

This control housing is the molded frame for the refrigerator's control area. It supports and protects the control components and trim. Replacing a damaged housing restores proper alignment and secure mounting so adjustments and buttons engage correctly.

• Provides the mounting structure for control components behind the panel
• Keeps buttons/switches aligned for reliable actuation
• Helps protect wiring and control parts from vibration and impact
• Symptoms of a failed housing can include cracked plastic, broken tabs, a loose or sagging control panel, or buttons that don't press cleanly

• Disconnect power to the refrigerator; shut off water if working near the dispenser area
• Remove trim/cover and mounting screws; release locking tabs to remove the old housing
• Transfer existing switches, boards, and hardware to the new housing
• Reinstall, restore power, and verify proper control operation

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Grommet is an OEM part for GE refrigerators. This component serves as a cushion and stabilizer for the evaporator fan motor, reducing vibrations and noise while ensuring the fan operates smoothly. It helps to secure the fan motor in place, maintaining proper airflow and efficient cooling within the refrigerator.

Common causes of a bad grommet include wear and tear from constant use, damage from excessive vibrations, or degradation of the material over time.

Symptoms of a bad evaporator fan grommet include:

• Increased noise or rattling sounds coming from the fan area
• Vibrations felt within the refrigerator
• The evaporator fan motor becoming loose or misaligned
• Reduced cooling efficiency due to improper fan operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Defrost Heater is an OEM part for GE refrigerators. This part melts away frost that accumulates on the evaporator coils during the cooling cycle. This process is vital for maintaining the efficiency of the refrigerator, ensuring that air can flow freely over the coils to keep the unit cooling effectively.

Causes of a bad defrost heater can include a faulty heater element, electrical issues preventing the heater from activating, or damage to the heater's wiring.

Symptoms of a bad Defrost Heater include:

• Frost buildup on the evaporator coils
• The refrigerator or freezer section is too warm
• The refrigerator is running constantly without cycling off
• Pools of water or ice on the floor of the freezer compartment

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Defrost Thermostat is an OEM part for GE refrigerators. It plays a critical role in the refrigerator's defrost system, preventing frost build-up on the evaporator coils by turning the defrost heater on and off at appropriate times. This component is designed to sense the temperature of the evaporator coils and activate the defrost heater when the coils get too cold, ensuring efficient operation and optimal cooling performance.

Symptoms of a bad Defrost Thermostat include:

• Excessive frost or ice accumulation in the freezer compartment
• The refrigerator or freezer section becoming too warm
• The defrost heater not activating, leading to reduced efficiency

Causes of a bad defrost thermostat can include damage from moisture or ice, electrical failures within the thermostat, or simply wear and tear from regular use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This holder element assembly secures the appliance's heating element in the correct position so the element stays stable for consistent operation and safe performance. It's a direct-fit replacement for worn or damaged holders. What it does:

• Secures and supports the heating element inside the appliance to maintain proper alignment
• Prevents element sagging or contact with other components that can cause noise or arcing
• Helps reduce vibration and movement that can lead to intermittent heating
• Common symptom: visible holder damage, loose or shifted element, unusual noise during operation

• Disconnect power (unplug or switch off breaker) before starting any repair
• Allow appliance and element to fully cool before handling
• Handle the element and holder carefully to avoid bending or damaging the element

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This defrost timer cycles the refrigerator in and out of defrost at set intervals. By powering the defrost heater and then returning to cooling, it clears frost from the evaporator so airflow and temperatures remain stable.

• Switches power to the defrost heater on a timed schedule, then back to the compressor and fans
• Helps prevent heavy frost buildup on the evaporator coils
• Failure may present as persistent frost, warm sections, the unit stuck in defrost (no cooling), or continuous running
• May also cause irregular clicking or a timer that won't advance

• Disconnect power before servicing; wear cut-resistant gloves
• Access the control housing or machine compartment, note wire positions, and remove the original timer
• Transfer any mounting hardware/bracket, orient the new timer like the original, and reconnect wiring securely
• Manually advance the timer if applicable to confirm switching, then restore power and monitor operation

The Condenser Fan Motor is an OEM part for GE refrigerators. This motor is the primary component responsible for drawing cool air through the condenser coils to remove heat generated by the refrigeration system.

Causes of a bad condenser fan motor can include wear and tear over time, dust or debris buildup, electrical issues, or mechanical failure.

Symptoms of a bad condenser fan motor include:

• Increased temperature and humidity buildup inside the refrigerator
• Difficulty maintaining temperature setpoints
• Accumulation of frost or ice on external components
• Abnormal noise or vibration coming from the motor

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This Hi-Lo truss-head screw secures plastic and sheet-metal components in your refrigerator. Replacing stripped or missing fasteners restores a tight, rattle-free fit and keeps brackets, trim, and covers properly aligned.

• Fastens brackets, panels, trim, covers, and other components to the cabinet or liner
• Hi-Lo thread design grips plastic or thin metal for a strong, reliable hold
• Helps address loose or vibrating parts, rattling noises, and misaligned covers
• Direct replacement for a missing, worn, or damaged mounting screw

• Disconnect power before servicing any appliance
• Support the part being secured to avoid stress or misalignment
• Start the screw by hand to prevent cross-threading; use the correct driver
• Snug firmly but do not overtighten, especially when threading into plastic

This evaporator coil circulates refrigerant inside the freezer compartment to absorb heat and keep internal temperatures cold. Replacing a damaged evaporator restores proper cold transfer for reliable cooling performance. What it does:

• Absorbs heat from the freezer compartment by circulating refrigerant through the coil
• Helps maintain proper freezer and refrigerator temperatures when functioning correctly
• Common symptom: excessive frost or ice buildup on the evaporator fins
• Common symptom: warm freezer or refrigerator temps and longer run cycles
• Common symptom: compressor runs constantly or cooling becomes inconsistent

• Disconnect power to the appliance before any service to avoid electrical shock
• Refrigerant system access or refrigerant evacuation may be required; have a certified HVAC/refrigeration technician perform refrigerant work
• May require removal of interior panels, shelving, and insulation for access; follow factory service instructions
• Handle the coil carefully to avoid bending fins or damaging tubing

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This overload is a compressor protector that helps stop the compressor from overheating or drawing excessive current, keeping the refrigeration system safer and helping prevent premature compressor failure. What it does:

• Opens the compressor circuit when the compressor overheats or draws excessive current
• Helps protect the compressor motor from damage caused by electrical overloads or locked-rotor conditions
• Works with the start device/relay to allow normal compressor starting and operation
• Commonly used when a compressor fails to start, hums, or trips the circuit

• One overload protector

• Disconnect power to the appliance before attempting service
• Handle the part carefully and avoid bending terminals; secure it per OEM mounting method
• If compressor or start components show damage, inspect/replace those parts as well; consider service for sealed-system diagnosis

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

Specs: 8-32 ca hxw 1/2
