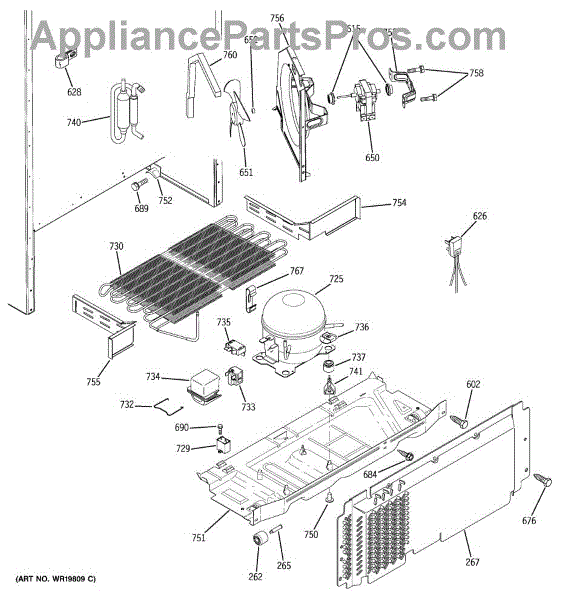

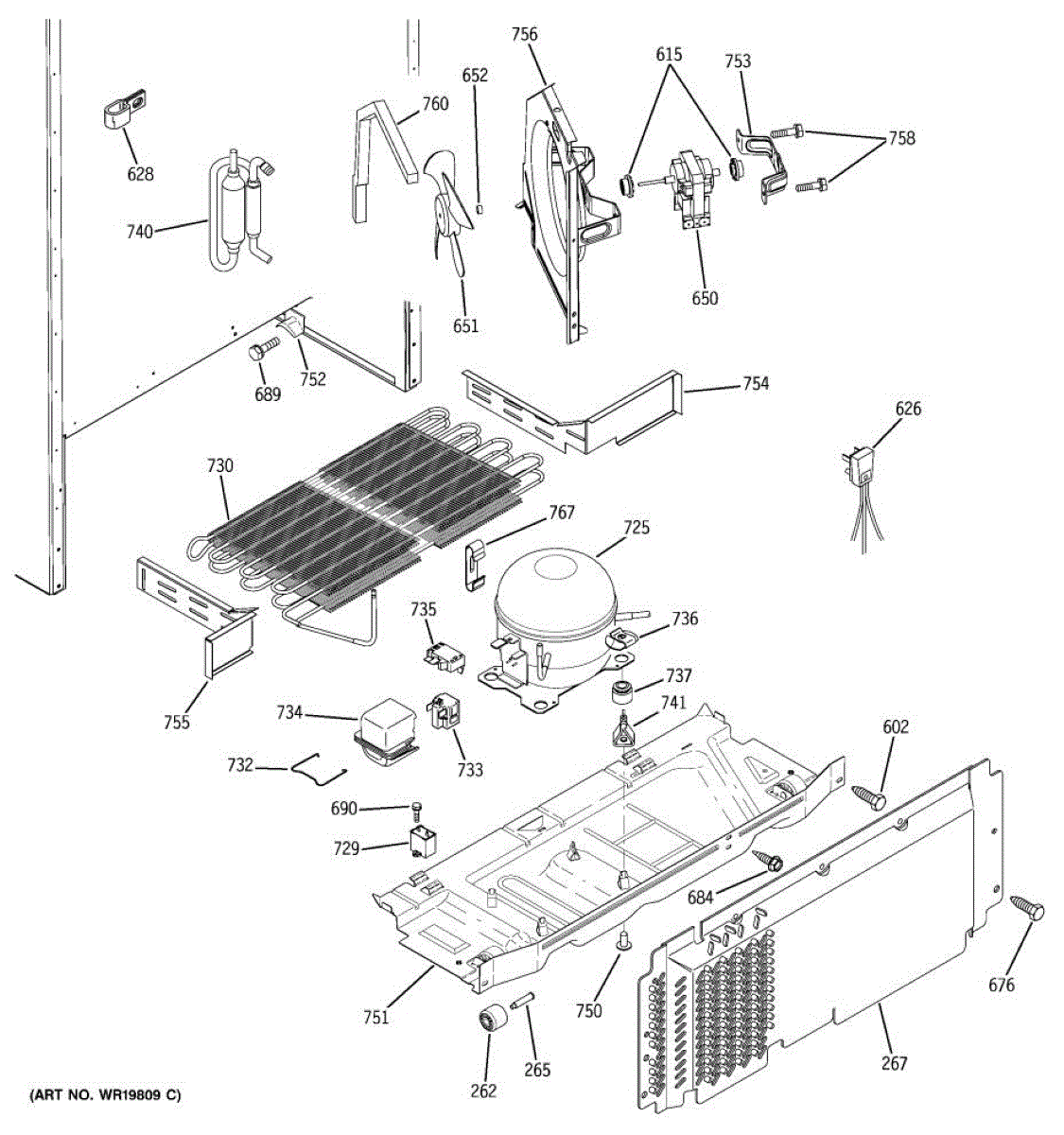

Parts for Ge GTS18DBPFRBB: 06 - Unit Parts

This mobility wheel is the small cabinet roller that helps your refrigerator glide for cleaning or service. Replacing a worn, cracked, or missing wheel restores smooth movement and supports proper leveling and positioning. What it does:

• Supports the base of the cabinet and allows the unit to roll when repositioning
• Replaces wheels that are cracked, flat-spotted, broken, or missing
• Common symptoms: refrigerator is hard to move, drags or scrapes, sits unevenly, or shows visible wheel damage
• Aids in pulling the appliance out for maintenance or cleaning

• 1 mobility wheel

• Disconnect power and shut off the water supply before moving the appliance
• Use two people and protect flooring; raise/adjust leveling legs to relieve weight from the wheel
• Access the base/roller bracket, remove the damaged wheel, and install the new wheel securely
• Lower and re-level the unit, reconnect utilities, and verify smooth movement

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

The Condenser Fan Motor is an OEM replacement part for GE bottom-mount refrigerator models. Located behind the rear refrigerator panel, it powers the critical evaporator fan circulating airflow within the sealed system.

Symptoms of a bad motor include:

• Elevated compressor run times from lack of air movement
• Inability to maintain proper interior temperatures
• Abnormal compressor cycling patterns

Causes can involve normal wear over extended use taxing motor windings, accumulation of dirt interfering with operation, or damage sustained during maintenance or repairs.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-16 ab.

This screw secures panels and components on compatible GE appliances to restore proper fit and reduce vibration. Use it to replace a lost or stripped fastener and keep covers and brackets held firmly in place. What it does:

• Fastens access panels, trim pieces, or internal brackets to maintain proper alignment
• Stops rattling or vibration caused by missing or loose screws
• Restores secure mounting after repair or parts replacement
• Works where the appliance requires a short sheet-metal or machine screw for fastening

• Disconnect power to the appliance before removing panels or performing repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Hand-start the screw to ensure proper threading; tighten until snug but avoid over-torquing.

Size: 8-32 t. Includes 12 screws.

This 15 uF capacitor kit supports an AC motor by providing the phase shift needed to start and run smoothly. Replacing a weak or failed capacitor can help resolve hard-start or no-start issues and restore consistent performance. What it does

• Stores and releases energy to help a single-phase AC motor start and maintain proper torque
• Common symptoms include humming or buzzing without starting, repeated clicking, intermittent starting, or warmer-than-normal temperatures
• Visual clues of failure may include a swollen or cracked housing
• Matched 15 uF rating supports correct motor operation per the original design

• One 15 uF capacitor

• Disconnect power before servicing; verify the capacitor is fully discharged before handling
• Note wire positions; move one lead at a time to the new capacitor
• Match the microfarad (uF) rating to the original part for proper performance
• Secure the capacitor using the existing bracket/strap and route wires away from heat and moving parts

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This PTC start relay mounts on the refrigerator compressor and briefly energizes the start winding, then automatically opens as it warms. Replacing a weak relay helps restore reliable compressor starts and consistent cooling. What it does:

• Provides momentary power to the compressor's start winding at startup; the PTC element opens as it heats
• Helps ensure smooth compressor starts and reduces repeated start attempts
• Signs of a failed start device can include no cooling because the compressor won't run
• Clicking or buzzing from the compressor area every few minutes
• Compressor starts intermittently or stops shortly after starting

• Includes: 1 PTC start relay

• Disconnect power and pull the refrigerator forward to access the rear service area
• Remove the rear panel to reach the compressor compartment
• Unplug the wire harness and pull the old relay straight off the compressor terminals; note its orientation
• Push the new relay fully onto the compressor prongs, reconnect the harness, reinstall the panel, and restore power

This compressor overload protects the refrigerator's compressor by interrupting power when it overheats or draws excessive current. Replacing a weak or failed overload can stop repeated click/no-start symptoms and help restore normal cooling performance.

• Opens the circuit to protect the compressor during overheat or over-current conditions
• Automatically resets after cooling to prevent sustained damage
• Symptoms include: compressor won't start, rapid clicking from the compressor area, starts then stops, and a warm refrigerator/freezer
• Helps prevent motor and wiring damage caused by repeated overload events

• Disconnect power before servicing; wear appropriate PPE
• Access the rear machine compartment and remove the compressor/start device cover
• Note wire positions; pull the old overload straight off the compressor terminal and push the new one on fully seated; reconnect wiring and covers
• If the overload trips again after replacement, further diagnosis of the start relay, run capacitor, or compressor may be required

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

This right-hand condenser baffle helps direct airflow around the condenser coil so your refrigerator cools efficiently and runs quietly. It replaces a damaged or missing baffle to restore proper air circulation and component protection. What it does:

• Channels airflow across the condenser coil to support efficient heat dissipation and consistent cooling.
• Helps reduce vibration and rattling by stabilizing airflow around rear components.
• Protects the condenser area from debris and accidental contact.
• Common symptoms of a failing or missing baffle: uneven cooling, louder compressor/condenser noise, or visible damage to the baffle.

• One right-hand condenser baffle

• Disconnect power to the appliance before starting any repair.
• Access may require removing the rear access panel or lower kick plate; follow your model's service manual.
• Handle edges carefully around the condenser; wear gloves to avoid cuts.
• If other components are damaged or obstructed, inspect and replace as needed for safe operation.

This condenser fan housing provides the mounting and airflow channel for the refrigerator condenser fan, helping maintain proper condenser cooling and airflow for efficient operation. Replaces a damaged or cracked housing to restore secure fan mounting and airflow direction. What it does:

• Secures the condenser fan motor and blade in the correct position behind the condenser coils
• Directs airflow across the condenser to help dissipate heat from the refrigeration system
• Reduces vibration and fan movement that can cause noise or wear
• Can prevent fan contact with other components if the original housing is cracked or broken

• One condenser fan housing

• Disconnect power to the appliance before starting any repair
• Some disassembly (rear access panel or toe grille) is typically required to reach the condenser area
• Handle sheet metal carefully; wear gloves to avoid cuts
• Reuse existing mounting hardware when possible; verify fan/motor alignment before fully tightening
