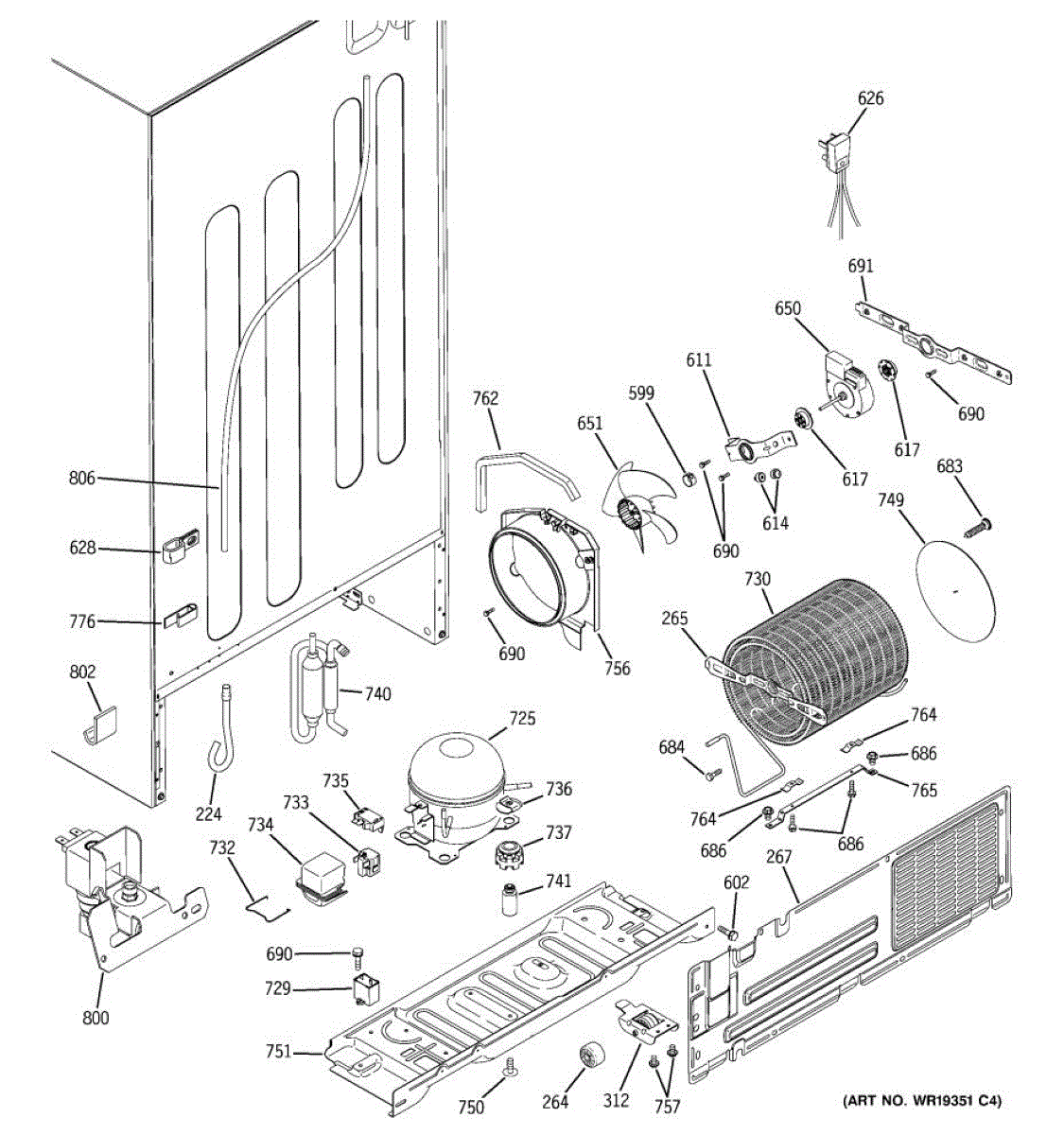

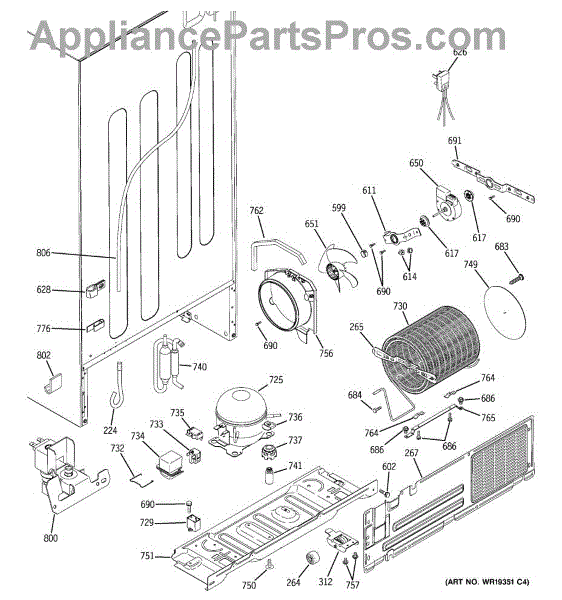

Parts for Ge GTS22WCPARWW: 08 - Unit Parts

The Drain Tube is an OEM part for GE refrigerators. It is responsible for directing defrost water to the drain pan located beneath the appliance, where it can evaporate safely.

Causes of a bad drain tube can include blockages from debris or ice, physical damage such as cracks or splits that allow water leakage, or a disconnection from its fitting points due to improper installation or material fatigue.

Symptoms of a bad Drain Tube include:

• Water pooling at the bottom of the refrigerator compartment
• Ice accumulation in or around the freezer area
• Leakage of water onto the kitchen floor beneath the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rear Refrigerator Wheel is an OEM replacement part for GE refrigerators. This wheel is attached to the bottom rear of the refrigerator, facilitating easy movement of the appliance for cleaning, maintenance, or repositioning. It is designed to support the weight of the refrigerator while ensuring smooth and stable mobility.

Symptoms of a bad Rear Refrigerator Wheel include:

• Difficulty moving the refrigerator
• Unusual noises, such as squeaking or grinding, when the appliance is moved
• The refrigerator not sitting level or stable
• Visible damage or wear to the wheel

Causes for a malfunctioning Rear Refrigerator Wheel can include wear and tear from regular movement, damage due to excessive weight or impact, or issues with the axle or mounting hardware that secure the wheel in place.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This access cover closes a service opening on the refrigerator cabinet, protecting internal components and restoring a secure, finished fit. Replacing a cracked or missing cover helps keep debris out and supports proper operation and airflow paths.

• Covers the machine/service compartment to shield wiring, fan, and other components from contact and debris
• Helps maintain designed airflow through the compartment when properly installed
• Reduces vibration and rattling when the cover is secured
• Replace if the cover is missing, cracked, warped, or no longer fastens securely

• Disconnect power before servicing
• Remove any retaining screws/clips and note the cover's orientation and vent/slot alignment
• Transfer any original grommets or insulation to the new cover if present
• Reinstall with existing hardware; do not overtighten; ensure openings/vents remain unobstructed

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This condenser fan mounting bracket secures the condenser fan motor and blade in the correct position to move air across the coils. Replacing a cracked or bent bracket restores stable mounting, reduces vibration, and helps maintain proper condenser airflow.

• Holds the condenser fan motor/blade assembly in alignment for proper airflow through the condenser
• Maintains clearance to prevent the fan blade from rubbing or contacting nearby components
• Helps reduce rattling, vibration, or scraping noises from the rear of the refrigerator
• Damage or misalignment can contribute to restricted condenser airflow and warmer temperatures

• Disconnect power and pull the refrigerator away from the wall to access the rear service area
• Remove the rear lower access panel; note wiring and hardware locations
• Support the fan motor/blade while removing the old bracket; transfer motor, blade, grommets, and screws to the new bracket
• The fan spins freely with proper clearance and correct airflow direction before reassembly

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fan-mount grommet fits the evaporator or condenser fan assembly to isolate vibration and keep the motor aligned. Replacing a worn grommet can quiet rattles and prevent the fan blade from rubbing the housing. What it does:

• Isolates the fan motor from its bracket to reduce vibration and operating noise
• Helps maintain proper fan motor and blade alignment/clearance
• Replaces cracked, flattened, hardened, or missing grommets
• Typical symptoms: rattling, buzzing, or vibration sounds from the freezer or rear machine compartment

• 1 fan motor grommet

• Disconnect power before servicing; pull the refrigerator forward for rear access if needed
• Evaporator fan: remove the freezer's rear panel; condenser fan: remove the rear service panel
• Support the motor, remove the fan blade and mounting hardware as needed, replace the grommet, and reassemble
• Ensure the fan spins freely and does not contact the shroud before restoring power

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This AC/DC fan motor circulates air inside the appliance to maintain proper airflow for cooling and ventilation. Replace a noisy, non-spinning, or intermittently running fan to restore normal airflow and appliance performance. What it does:

• Powers the fan blade to move air for cooling, ventilation, or heat distribution.
• Commonly used to replace motors that hum, don't start, or run inconsistently.
• Helps prevent overheating by maintaining airflow over components or compartments.
• Works with existing fan blades and mounting hardware when compatible.

• One fan motor (identical to the listed part number)

• Disconnect power before starting and verify the appliance is de-energized.
• Note and reconnect wiring exactly as found; mark harnesses or take a photo before removal.
• Use basic hand tools; support the fan assembly while removing and installing the motor.

The Condenser Fan Blade is an OEM part for GE refrigerators. It is responsible for moving air across the condenser coils to help dissipate heat, allowing the refrigerator to maintain the proper cooling temperature. This fan blade ensures efficient operation of the cooling system by facilitating proper airflow.

You should replace this condenser fan blade if it becomes damaged, warped, or fails to move air effectively. Common causes of a bad fan blade include physical damage from debris, wear and tear over time, or warping due to prolonged exposure to heat.

Symptoms of a bad condenser fan blade include:

• Refrigerator not cooling properly
• Increased noise from the refrigerator
• Overheating of the condenser coils
• Reduced airflow around the condenser area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a 10-32 machine-thread screw used to secure appliance panels, trim, and components. It replaces missing or damaged fasteners so parts fit tightly and operate without rattles or misalignment. What it does:

• Fastens panels, brackets, or assemblies that use a 10-32 machine screw
• Restores secure mounting where a stripped, missing, or corroded screw causes looseness
• Helps eliminate vibration noise or gaps caused by loose hardware
• Matches OEM thread size and length for correct fit in designated mounting holes

• One 10-32 x 5/16 machine screw

• Disconnect power and remove power source or batteries before servicing appliances
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully; do not force or overtighten to prevent thread damage
• Replace any damaged mating hardware or clipped inserts for a secure repair

Size: 8-32 t. Includes 12 screws.

This rear condenser fan bracket secures the condenser fan assembly to the refrigerator chassis, helping keep the fan stable for proper airflow and efficient cooling. It restores correct fan alignment and reduces rattling or vibration. What it does:

• Holds the condenser fan motor and blade in the correct position behind the condenser coil
• Prevents fan wobble, rubbing, and metal-on-metal noise
• Helps maintain consistent condenser airflow for efficient cooling
• Useful when the original bracket is bent, cracked, or broken

• Disconnect power to the appliance before starting any work.
• Basic hand tools are typically required; handle sharp sheet metal carefully.
• Inspect surrounding mounting hardware and fan components; replace any damaged fasteners.

The Run Capacitor is an OEM part for GE refrigerators. It plays a crucial role in the refrigerator's cooling system by providing the necessary start and run voltage to the compressor. Without a properly functioning run capacitor, your refrigerator may struggle to maintain the desired temperature, leading to spoiled food and inefficient energy use.

Causes of a bad run capacitor include electrical surges, wear and tear over time, or overheating due to a malfunctioning refrigerator compressor or poor ventilation.

Symptoms of a bad Run Capacitor include:

• The refrigerator compressor fails to start.
• Unusual humming noises coming from the refrigerator.
• The refrigerator cycles on and off more frequently than normal.
• A noticeable increase in energy consumption as the refrigerator struggles to maintain the proper temperature.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This PTC start relay mounts on the refrigerator compressor and briefly energizes the start winding, then automatically opens as it warms. Replacing a weak relay helps restore reliable compressor starts and consistent cooling. What it does:

• Provides momentary power to the compressor's start winding at startup; the PTC element opens as it heats
• Helps ensure smooth compressor starts and reduces repeated start attempts
• Signs of a failed start device can include no cooling because the compressor won't run
• Clicking or buzzing from the compressor area every few minutes
• Compressor starts intermittently or stops shortly after starting

• Includes: 1 PTC start relay

• Disconnect power and pull the refrigerator forward to access the rear service area
• Remove the rear panel to reach the compressor compartment
• Unplug the wire harness and pull the old relay straight off the compressor terminals; note its orientation
• Push the new relay fully onto the compressor prongs, reconnect the harness, reinstall the panel, and restore power

This compressor overload protects the refrigerator's compressor by interrupting power when it overheats or draws excessive current. Replacing a weak or failed overload can stop repeated click/no-start symptoms and help restore normal cooling performance.

• Opens the circuit to protect the compressor during overheat or over-current conditions
• Automatically resets after cooling to prevent sustained damage
• Symptoms include: compressor won't start, rapid clicking from the compressor area, starts then stops, and a warm refrigerator/freezer
• Helps prevent motor and wiring damage caused by repeated overload events

• Disconnect power before servicing; wear appropriate PPE
• Access the rear machine compartment and remove the compressor/start device cover
• Note wire positions; pull the old overload straight off the compressor terminal and push the new one on fully seated; reconnect wiring and covers
• If the overload trips again after replacement, further diagnosis of the start relay, run capacitor, or compressor may be required

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

This condenser fan shroud directs cooling airflow across the condenser and keeps the condenser fan and motor securely positioned for reliable cooling performance. It helps maintain proper condenser airflow and protects fan components from contact. What it does:

• Guides airflow from the condenser fan to improve heat dissipation
• Holds the condenser fan motor and blade in the correct position
• Reduces the risk of fan-to-coil contact and related noise or damage
• Can help address symptoms like noisy fan operation, increased run time, or reduced cooling when damaged or missing

• Disconnect power to the appliance before beginning any work
• Handle carefully — edges and nearby sheet metal can be sharp
• Basic hand tools are typically required; follow OEM instructions for removal/installation

This self-adhesive foam strip provides a flexible seal and buffer for appliance gaps, helping reduce drafts, rattling, and moisture intrusion. Designed for easy stick-on replacement where foam padding or sealing is needed. What it does

• Seals small gaps between components to help reduce air leaks and temperature loss
• Cushions panels and doors to minimize noise and vibration
• Helps block moisture and dust from entering sensitive areas
• Self-adhesive backing allows for quick placement without extra glue

• One self-adhesive foam strip

• Surface must be clean and dry; wipe with isopropyl alcohol for best adhesion
• Measure and trim the foam strip to fit—use scissors or a utility knife
• Press firmly along the length to ensure full contact; allow adhesive to set before closing doors or panels
• For safety, disconnect power to the appliance before working in internal areas

This tube clamp secures flexible water tubing to its fitting in refrigerators. It helps maintain a tight seal to prevent leaks and keeps lines from slipping off under normal operating pressure.

• Holds plastic or rubber tubing firmly on a barbed fitting or nipple
• Helps prevent drips and leaks at tube connection points
• Addresses loose or disconnected water lines
• Useful when tubing slips off or won't stay seated

• Disconnect power and shut off the water supply before servicing
• Position the clamp over the tube and fitting; compress with pliers and release to lock in place
• Ensure the clamp is centered and fully seated; tug-test the tube
• Restore water and power; check all connections for leaks

The Water Valve is an OEM replacement part for GE side-by-side refrigerators. As part of the internal plumbing system, the valve controls the supply of water into the refrigerator for ice and water dispensing functions. It opens and closes precisely based on electronic signals from the control board.

Causes of a bad water valve can include mineral buildup disrupting water flow, seal deterioration from repeated use, or damage due to freezing temperatures.

Symptoms of a bad water valve include:

• Slow fill times for the ice maker or water dispenser
• Odd sounds coming from the valve area
• Water leaks at the valve inlet/outlet ports
• Failures of the ice/water dispenser to function normally

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Maker Water Line is an OEM replacement part for GE refrigerators. It is an important supply line that delivers water from the main water source to the icemaker component. The water line allows water to flow smoothly, facilitating the icemaking process.

Causes of a bad water line can include cracks or punctures from impact or bending, mineral deposits and corrosion building up inside the line restricting flow, or improper connection fittings causing leakage.

Symptoms of a bad ice maker water line include:

• Irregular or insufficient ice production
• No water delivery to the icemaker despite activation
• Noticeable leaks or drips near the water line attachment points
• Strange knocking or hammering sounds are heard when the icemaker is running

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
