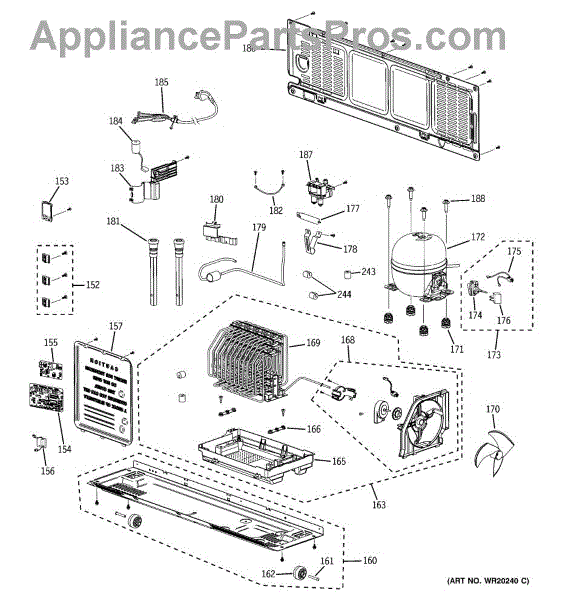

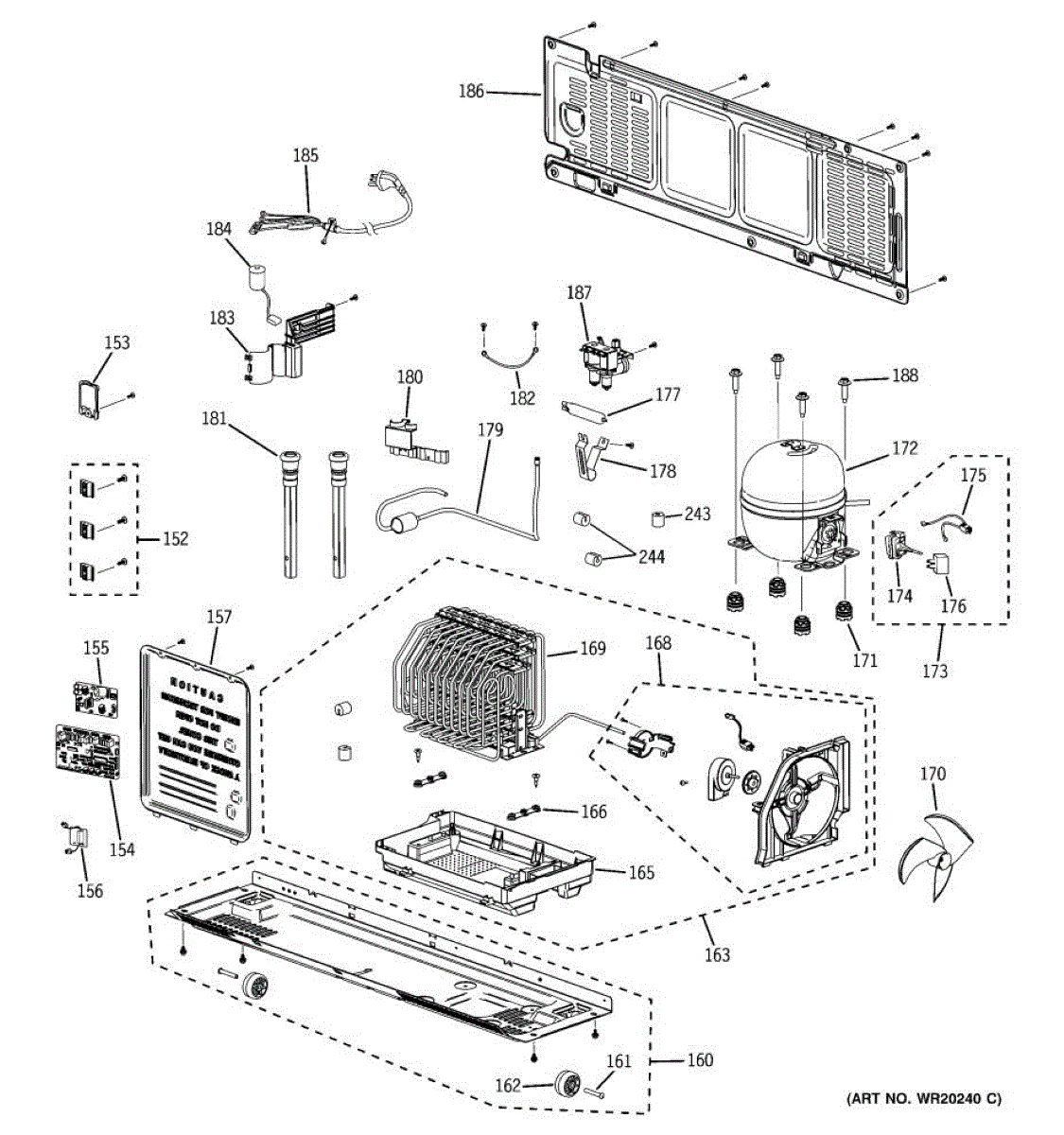

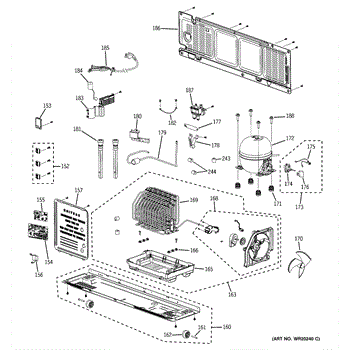

Parts for Ge PFSS6PKXASS: 09 - Unit Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This water line holder secures a refrigerator or ice maker supply tube to the cabinet or internal frame to keep the line routed and stable. Replacing a worn or missing holder helps prevent rubbing, kinks, and stress on the water line. What it does:

• Holds the water supply line in place to reduce movement and wear
• Helps prevent kinks that can restrict water flow to icemakers and dispensers
• Reduces vibration and potential chafing against sharp edges
• Addresses symptoms like a loose or sagging water line, intermittent flow, or audible line movement

• One water line holder clip

• Disconnect power and shut off the water supply before servicing
• Inspect the water line for damage; replace the line if cracked or leaking
• Mounting may require a screw, push-fit, or slot engagement depending on model—retain existing fasteners or your model's instructions

This is a control board for refrigerator units. This part controls all of the functions of the refrigerator. These functions include cooling, defrost times, alarms, lights, and more.If the buttons do not allow the user to change any of the controls or functions, it is likely that this part will need to be replaced. Some users report the refrigerator being stuck in a certain setting for an extended period of time. This is a high-quality replacement part. Be sure to disconnect the refrigerator from its power source prior to attempting to repair or replace this part. Wear gloves during the process for safety.This specific control board is compatible with refrigerators that are manufactured by the GE brand. It is sold individually and comes directly from the manufacturer.

This molded rubber condenser grommet cushions and positions the condenser assembly to reduce vibration and wear. It restores proper mounting alignment so the condenser sits securely and operates quietly. What it does:

• Cushions condenser against the cabinet frame to dampen vibration and rattling
• Helps hold the condenser in proper position for correct airflow and clearance
• Prevents metal-to-metal contact that can cause noise or part wear
• Commonly used when the condenser rattles, vibrates, or sits loose after impact or age

• One condenser grommet

• Disconnect power to the appliance before servicing to avoid electrical shock
• Access the condenser from the back or lower rear, remove any service panels as needed
• Remove the old grommet and press the new grommet into place on the condenser mounting post or bracket

This condenser fan assembly circulates air across the condenser coils to help remove heat from the refrigerator, improving cooling efficiency and system performance. Replaces a worn or noisy condenser fan to restore proper airflow. What it does:

• Spins the condenser fan blade to move air over the condenser coils, aiding heat rejection
• Commonly fixes symptoms like reduced cooling, warm interior, or a loud/grinding fan noise
• Prevents condenser overheating and helps maintain compressor efficiency
• Operates whenever condenser cooling is required (fan cycles with system demand)

• Disconnect power before servicing to avoid electrical shock
• Handle metal edges and fan blades carefully to prevent cuts
• Verify connector orientation and secure mounting to eliminate vibration or noise

This compressor overload is the start-protection device that helps the refrigerator compressor run safely and restart after an overcurrent or overload. Replacing a faulty overload restores reliable compressor starting and helps protect the compressor motor. What it does:

• Protects the compressor by interrupting power during an electrical overload or locked-rotor condition
• Works with the start relay to allow the compressor motor to start and run properly
• Common symptom: refrigerator not cooling because compressor won't start
• Other symptom: humming or buzzing from the compressor or intermittent starting

• One compressor overload (start device)

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle terminals carefully; install on the compressor per OEM orientation and secure connections

This drain line assembly routes condensation/defrost water from the refrigerator cabinet to the rear drain pan. Replacing a cracked, warped, or clogged line restores proper drainage and helps prevent interior leaks and ice buildup.

• Directs meltwater from the evaporator drain to the condenser/drain pan
• A restricted or damaged line can lead to water under crispers or on the floor
• Ice sheet forming at the bottom of the freezer is a common sign of a blocked drain
• Restores correct moisture management and helps reduce odors from standing water

• Unplug the refrigerator and turn off the water supply if applicable
• Pull the unit forward and remove the lower rear access cover to reach the drain outlet and pan
• Place a towel, disconnect the old line, clear any ice/debris in the drain channel, and seat the new line fully
• Route the tube into the pan without kinks, reassemble, and verify flow by pouring warm water through the interior drain

This refrigerator water inlet valve controls the incoming household water supply to the dispenser and icemaker. When energized, it opens to allow water flow, helping restore reliable dispensing and proper ice production.

• Regulates water flow to both the dispenser and the icemaker
• Common failure signs: no or slow water dispensing, no ice production, small/hollow ice cubes, valve humming but no water, or water leaking from the valve body
• Electrical solenoid-operated design opens only when signaled by the control system
• Helps maintain consistent water delivery and ice fill levels

• Disconnect power and turn off the household water supply before servicing
• Place a towel or pan to catch residual water; relieve line pressure carefully
• Transfer tubing and wire connectors one at a time to the new valve to avoid mix-ups
• Check for leaks after installation; do not overtighten compression fittings

A replacement compressor mounting bolt that secures the refrigerator compressor to the chassis to help keep the compressor stable and reduce vibration. Direct-fit hardware to restore proper compressor attachment and quiet operation. What it does:

• Fastens the compressor to the refrigerator frame or mounting bracket for secure operation
• Keeps the compressor aligned to prevent movement and reduce vibration-related noise
• Helps maintain a stable seal for connected refrigerant lines by preventing compressor shifting
• Appropriate when original bolt is stripped, corroded, or missing

• Disconnect power to the appliance before starting any repair
• Support the compressor or mounting bracket while removing/installing the bolt to prevent strain on lines
• Use correct socket/wrench size and replace with identical hardware; do not overtighten
• Address those issues before reuse

This rubber grommet seals the suction/water pipe where it passes through the appliance cabinet to reduce leaks and dampen vibration. It restores a tight, durable seal to help prevent water intrusion and rattling. What it does:

• Cushions and seals the suction/water pipe where it passes through sheet metal or plastic.
• Reduces vibration and pipe movement that can cause noise or wear.
• Helps prevent water leaks or moisture entry at the cabinet penetration.
• Maintains a proper fit for tubing routing and component alignment.

• One rubber suction pipe grommet.

• Disconnect power and shut off water supply before servicing.
• Remove access panels as needed to reach the pipe penetration; press grommet into opening and route pipe through center.
• Replace any brittle, torn, or deformed grommets; do not force a damaged grommet into place.
