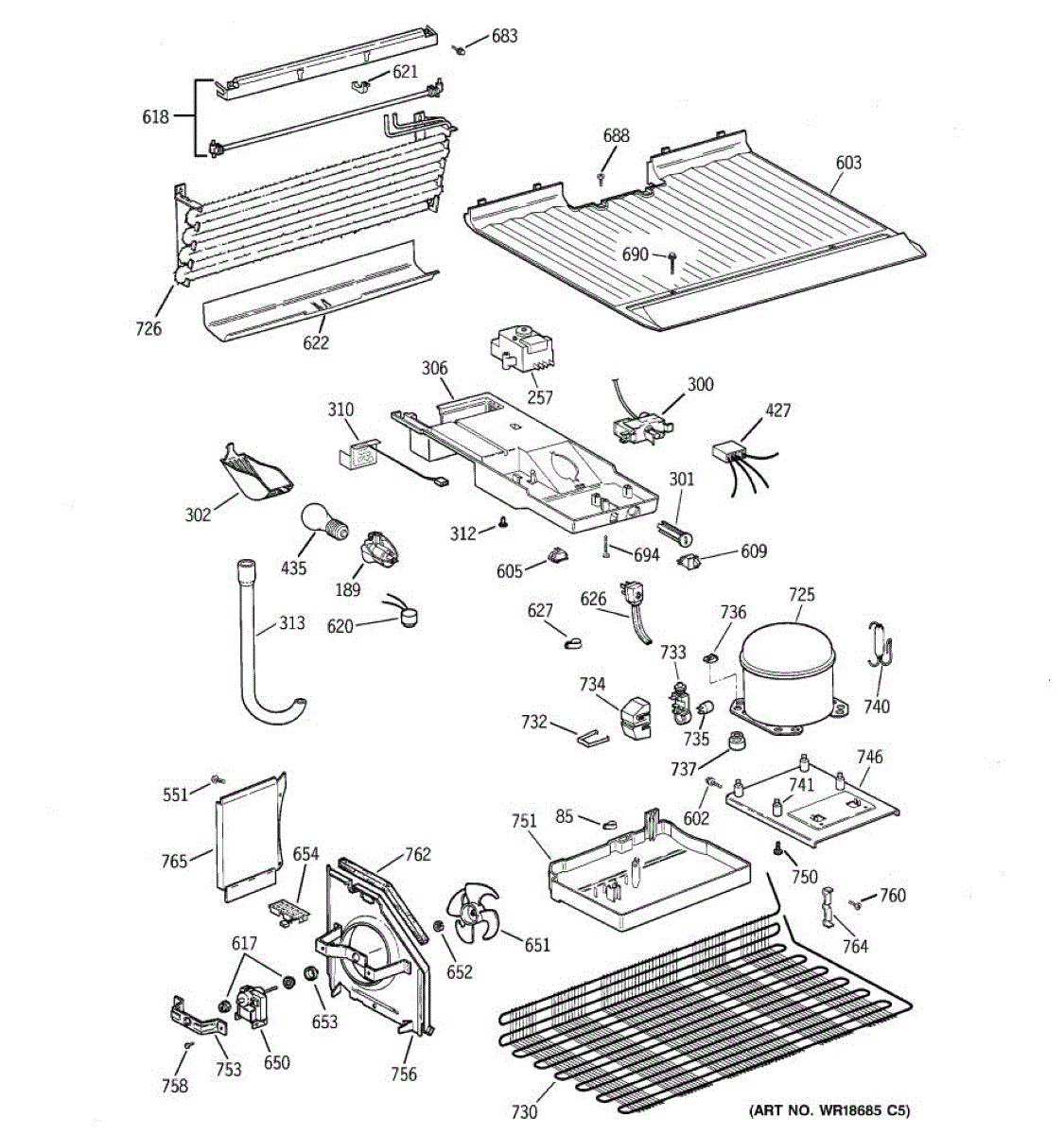

Parts for Ge TBZ14SACKRWW: 03 - Unit Parts

Control defrost module

This vinyl sleeve fits over a rod, tube, or wire in the refrigerator to protect and cushion contact points. It reduces wear and vibration and helps keep components aligned for smooth, reliable operation.

• Provides a protective barrier at contact points to prevent abrasion or marring
• Helps maintain spacing and alignment for a snug, proper fit
• Cushions to damp vibration and reduce rattles or squeaks
• Replace if the sleeve is missing, cracked, hardened, or if components feel loose or make noise

• Disconnect power; turn off the water supply if working near water lines
• Note the sleeve's original location and orientation; take a photo for reference
• Remove the old sleeve and any debris; slide the new sleeve into the same position
• Check clearance and resecure related parts before restoring power

A small canoe-shaped mounting clip used to secure tubes, wiring or small components inside the appliance, keeping lines routed and preventing rubbing or vibration for quieter, safer operation. What it does

• Secures tubing, wiring harnesses or small components to cabinet walls or frames.
• Keeps lines properly routed to prevent rubbing, chafing or pinching.
• Reduces vibration and rattling from loose parts.
• Helps maintain proper clearances that can prevent intermittent electrical contact or line wear.

• Disconnect power and shut off water before servicing.
• Verify exact clip location and orientation before removing the old clip.
• Snap into the original mounting hole or slot; do not force or bend mounting surfaces.
• Replace any damaged mounting posts or surrounding hardware to ensure a secure fit.

The Bulb Light is an OEM part for GE refrigerators. It is designed to illuminate the interior of the refrigerator and freezer compartments, making it easier to see and access food items. This light bulb fits securely into the designated socket and provides bright, reliable lighting to enhance visibility.

You should replace the bulb light if it burns out or becomes damaged. Causes of a bad bulb light can include regular wear and tear, electrical issues, or physical damage from impacts or vibrations. A faulty bulb can leave the refrigerator compartments dim or completely dark, making it difficult to find items.

Symptoms of a bad bulb light include:

• The light not turning on when the refrigerator door is opened
• Flickering or intermittent lighting
• A visibly burned-out or broken bulb

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Grommet is an OEM part for GE refrigerators. This component serves as a cushion and stabilizer for the evaporator fan motor, reducing vibrations and noise while ensuring the fan operates smoothly. It helps to secure the fan motor in place, maintaining proper airflow and efficient cooling within the refrigerator.

Common causes of a bad grommet include wear and tear from constant use, damage from excessive vibrations, or degradation of the material over time.

Symptoms of a bad evaporator fan grommet include:

• Increased noise or rattling sounds coming from the fan area
• Vibrations felt within the refrigerator
• The evaporator fan motor becoming loose or misaligned
• Reduced cooling efficiency due to improper fan operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This defrost thermostat monitors evaporator temperature and controls power to the defrost heater, helping prevent frost buildup and overheating. Replacing a failed thermostat restores proper automatic defrosting and more consistent refrigerator temperatures. What it does:

• Monitors evaporator-coil temperature to control the defrost heater circuit
• Terminates the defrost cycle when the coil warms to a safe temperature
• Failure can cause heavy frost behind the freezer panel and poor cooling
• May lead to longer-than-normal run times or a heater that won't energize

• 1 defrost thermostat

• Disconnect power before servicing; access is typically behind the freezer's rear panel
• Note wiring; transfer any existing mounting clip and clamp firmly to the same evaporator tube location
• Avoid damaging fins or refrigerant tubing; route wires clear of the fan and heater
• Thermostat must be cold to read closed continuity during testing

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

This Hi-Lo truss-head screw secures plastic and sheet-metal components in your refrigerator. Replacing stripped or missing fasteners restores a tight, rattle-free fit and keeps brackets, trim, and covers properly aligned.

• Fastens brackets, panels, trim, covers, and other components to the cabinet or liner
• Hi-Lo thread design grips plastic or thin metal for a strong, reliable hold
• Helps address loose or vibrating parts, rattling noises, and misaligned covers
• Direct replacement for a missing, worn, or damaged mounting screw

• Disconnect power before servicing any appliance
• Support the part being secured to avoid stress or misalignment
• Start the screw by hand to prevent cross-threading; use the correct driver
• Snug firmly but do not overtighten, especially when threading into plastic

This evaporator coil circulates refrigerant inside the freezer compartment to absorb heat and keep internal temperatures cold. Replacing a damaged evaporator restores proper cold transfer for reliable cooling performance. What it does:

• Absorbs heat from the freezer compartment by circulating refrigerant through the coil
• Helps maintain proper freezer and refrigerator temperatures when functioning correctly
• Common symptom: excessive frost or ice buildup on the evaporator fins
• Common symptom: warm freezer or refrigerator temps and longer run cycles
• Common symptom: compressor runs constantly or cooling becomes inconsistent

• Disconnect power to the appliance before any service to avoid electrical shock
• Refrigerant system access or refrigerant evacuation may be required; have a certified HVAC/refrigeration technician perform refrigerant work
• May require removal of interior panels, shelving, and insulation for access; follow factory service instructions
• Handle the coil carefully to avoid bending fins or damaging tubing

This part has been discontinued by the manufacturer and is no longer available.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations
