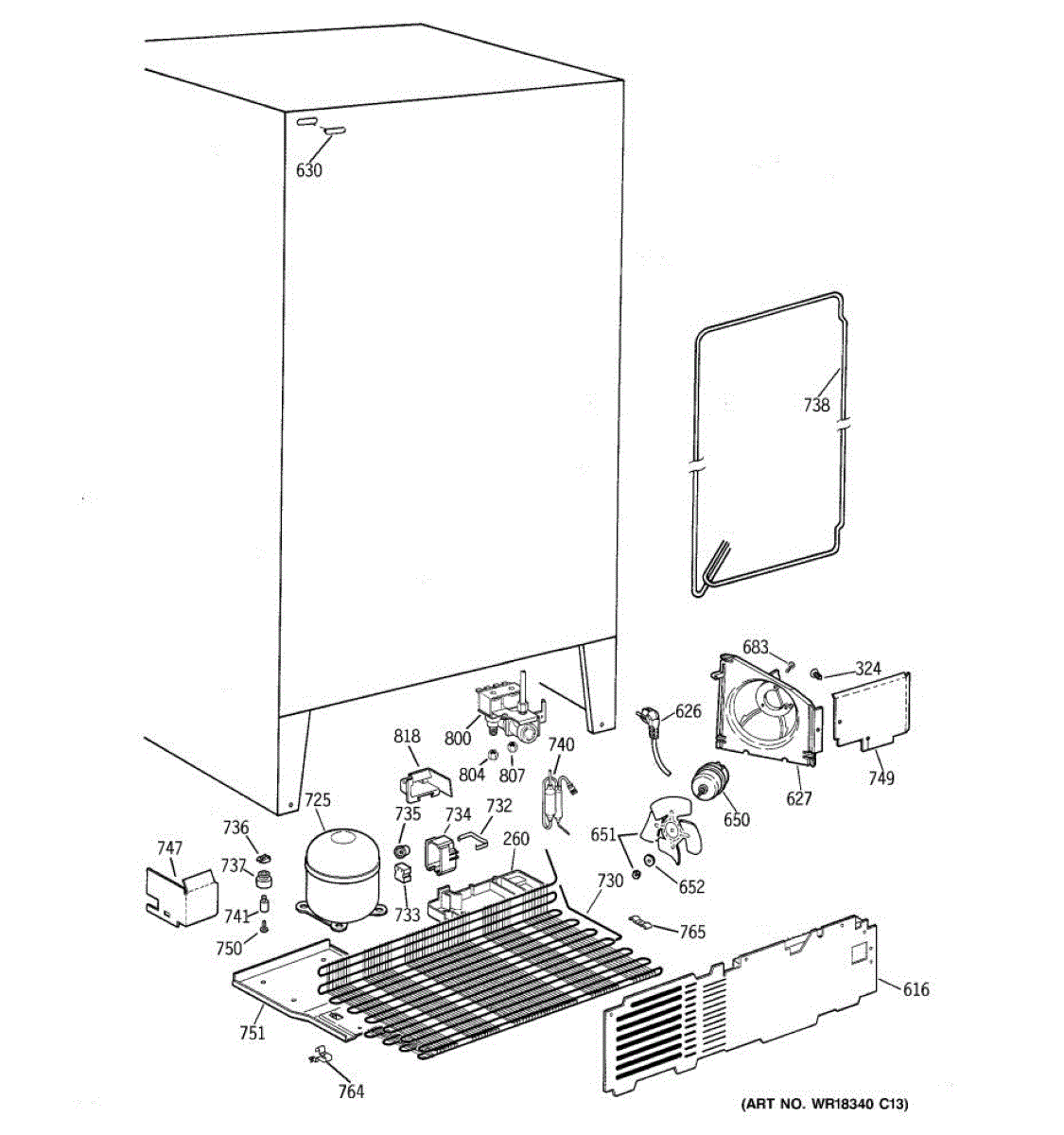

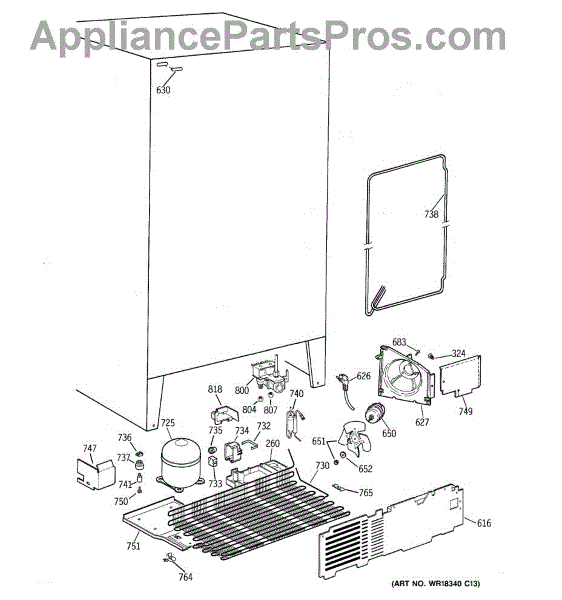

Parts for Ge TFM20JRBCAA: 09 - Unit Parts

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

The Condenser Fan Motor is an OEM part for GE refrigerators. It is designed to circulate air through the condenser coils, helping to dissipate heat and keep the refrigerator's internal components cool. This ensures efficient operation and prevents the compressor from overheating, which is essential for maintaining the refrigerator's performance and longevity.

You should replace the condenser fan motor if it becomes faulty. Causes of a bad fan motor can include electrical failures, wear and tear from regular use, or blockages that cause the motor to overheat or burn out. A malfunctioning fan motor can lead to inadequate cooling, increased energy consumption, and potential damage to other refrigerator components.

Symptoms of a bad condenser fan motor include:

• The refrigerator not cooling properly
• Unusual noises coming from the back of the refrigerator
• The compressor running hot or cycling on and off frequently
• The condenser coils feeling excessively hot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

This PTCR is the compressor's start device for select refrigerators. It helps the compressor start smoothly by momentarily boosting the start winding, then automatically reduces current as the motor reaches speed.

• Provides initial start assist to the compressor, then self-resets
• A failing PTCR can cause clicking, repeated start attempts, warm temperatures, or the compressor not running
• Helps protect the compressor by limiting inrush current during startup

• Disconnect power before servicing; allow components to cool
• Note wire positions and orientation before removal
• Inspect compressor terminals for heat damage and ensure firm connections
• If the old device shows signs of overheating, also check the overload and wiring

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This baffle side discharge assembly directs dryer exhaust airflow to the side discharge port, helping maintain proper ventilation and reduce unusual noise from a damaged or misaligned baffle. Fits as a direct replacement for the original assembly. What it does

• Guides dryer exhaust air from the drum to the side discharge opening to maintain airflow.
• Helps prevent rubbing or contact between the drum and housing that can cause squeaks or scraping.
• Reduces the chance of airflow restriction that can extend drying times.
• Restores correct alignment of the exhaust path after damage or wear.

• One baffle side discharge assembly, as shown.

• Disconnect power before starting; for gas dryers, turn off the gas supply and disconnect per local codes.
• Installation typically requires removing access panels and the dryer drum or housing; have basic hand tools ready.
• Handle edges carefully and avoid forcing the part; proper alignment is needed for quiet operation and correct airflow.

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

The Dual Water Inlet Valve Kit is an OEM part for GE refrigerators. It controls the flow of water to both the ice maker and the water dispenser. This dual-function valve ensures that your refrigerator can produce ice and dispense water efficiently. The valve operates by opening and closing in response to signals from the refrigerator, allowing water to flow into the ice maker or water dispenser when needed.

The dual water inlet valve may wear out over time, especially in hard water areas, leading to issues like no ice production, malfunctioning water dispenser, or leaks.

Symptoms of a bad Dual Water Inlet Valve Kit include:

• No water being dispensed
• The ice maker not producing any ice
• A slow or irregular flow of water from the dispenser
• Water leaking from the valve

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Guard Splash is a molded splash shield that helps direct water away from sensitive components and prevents drips or spray from reaching internal parts. It's a direct-fit replacement that restores proper water routing and protection. What it does:

• Redirects water and condensation away from electrical and mechanical components
• Helps prevent water from dripping into cabinets or onto wiring and connectors
• Restores the original splash protection after damage or wear
• Compatible with the OEM mounting locations to maintain correct fit and function

• One Guard Splash

• Disconnect power to the appliance before beginning work to avoid shock
• Remove any obstructing panels, shelves or trim to access the splash area
• Verify correct orientation and seating of the guard before reinstalling panels
• Replace damaged clips or fasteners to ensure a secure fit
