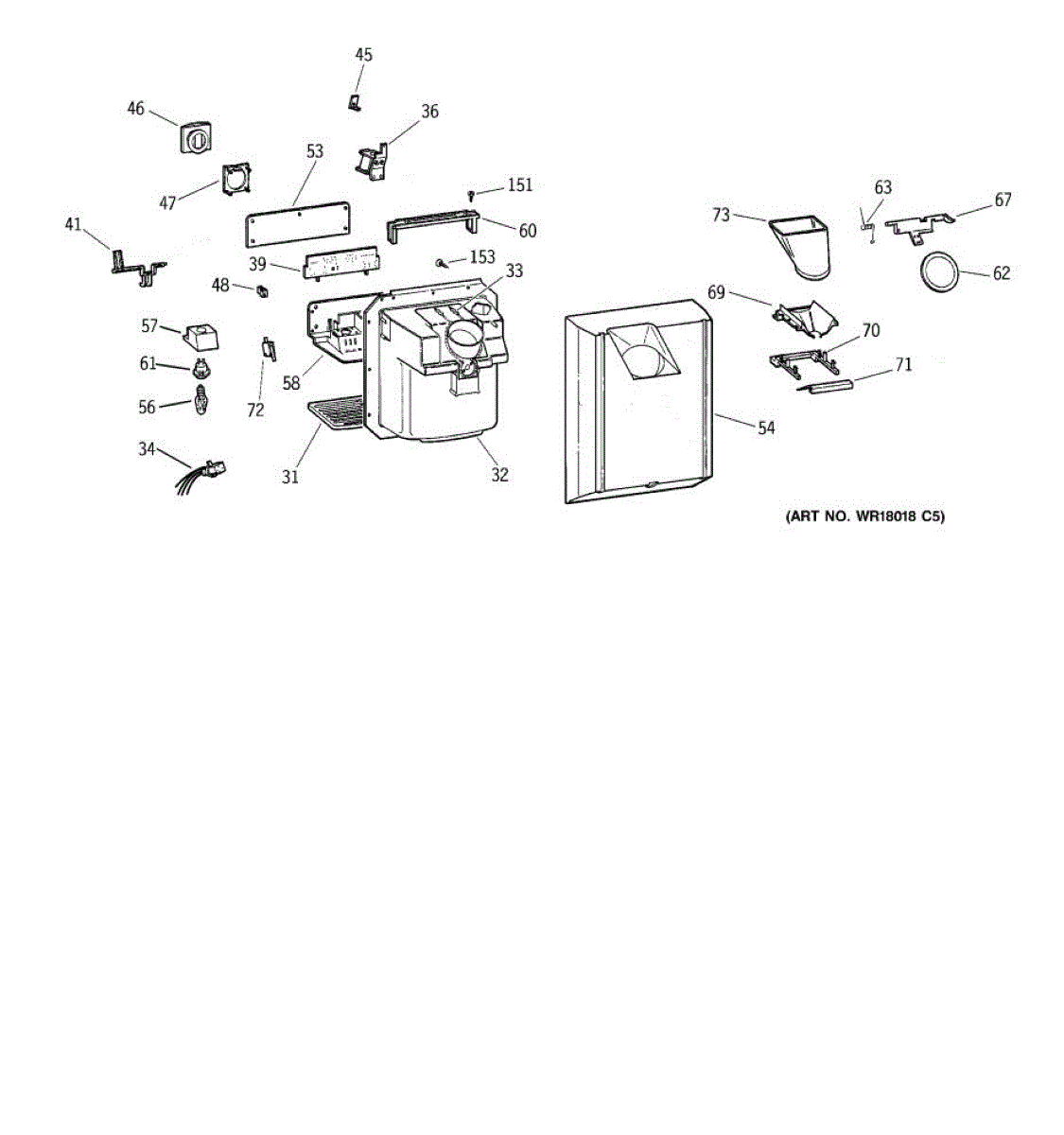

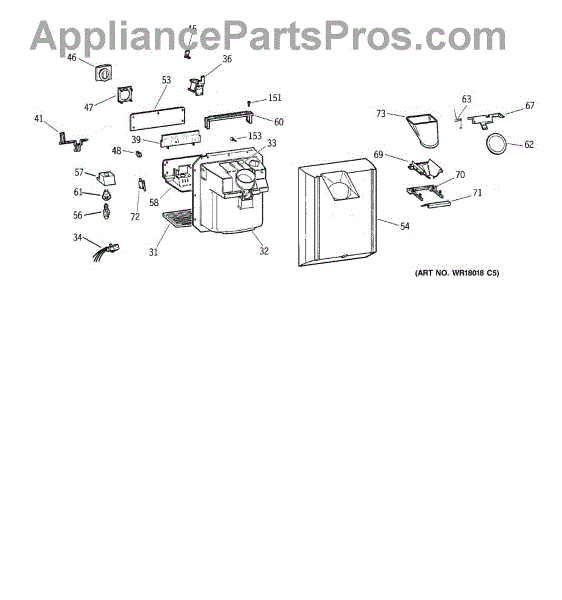

Parts for Ge TFM20JRBCAA: 02 - Dispenser Parts

Door solenoid with plunger.

This control board comes with 2 slide switches and is mounted in the dispenser area.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Color: Black.

Color: clear. It's 7 watts 130 volts.

This refrigerator lamp socket holds an E12-base appliance bulb and provides the electrical connection for the light fixture. Replace it when the light won't turn on or flickers despite a known-good bulb and functioning door switch.

• Secures an E12 (candelabra) bulb and supplies power to it
• Works with the door/light switch to illuminate the compartment or dispenser area
• Typical failures include heat damage, cracking, or internal contact wear
• Symptoms: no light, intermittent flicker, or a bulb that won't seat firmly

• Disconnect power to the refrigerator before servicing
• Remove any lens/cover, note wire placement, and install the new socket in the original orientation
• Use an E12-base appliance bulb with the wattage specified on your model's rating label
• Restore power and verify operation with the door switch

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Door Spring is an OEM part compatible with GE refrigerators. It is responsible for providing tension and support to the ice chute door, allowing it to open and close smoothly. When you activate the ice dispenser, the spring helps to release the door and allow the ice to pass through. After dispensing, the spring assists in closing the door to prevent cold air leakage and maintain the desired temperature inside the refrigerator.

You should replace the ice door spring if it loses tension or breaks, which can happen due to regular wear and tear, frequent use, or accidental damage. A faulty spring can lead to issues with the ice dispenser's operation and overall efficiency.

Symptoms of a bad ice door spring may include:

• Difficulty in opening or closing the ice chute door
• Ice dispensing issues, such as the door not opening when the dispenser is activated
• Cold air leakage from the ice chute area
• Ice buildup on the front of the icemaker

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dispenser crank links the dispenser solenoid and the ice chute door. When you press the dispenser lever, the crank pivots to open and close the ice door so cubes or crushed ice can dispense cleanly without warm air leaking into the freezer.

• Connects the solenoid to the ice chute door to control door movement
• Helps seal the chute when not dispensing to reduce frost and moisture issues
• Common failure signs include ice door not opening/closing, constant frost around chute, or warm/moist air leakage at dispenser
• Can cause ice clumping, frost buildup, or water/ice dispensed irregularly when worn or broken

• Disconnect power before servicing the dispenser area
• Access typically requires removing the dispenser front panel and trim; use care with plastic tabs and wiring
• Note linkage orientation to the solenoid and door flap before removal
• Inspect related parts for wear while open

Color: Black.

Color: Black.

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

Includes 12 screws.
