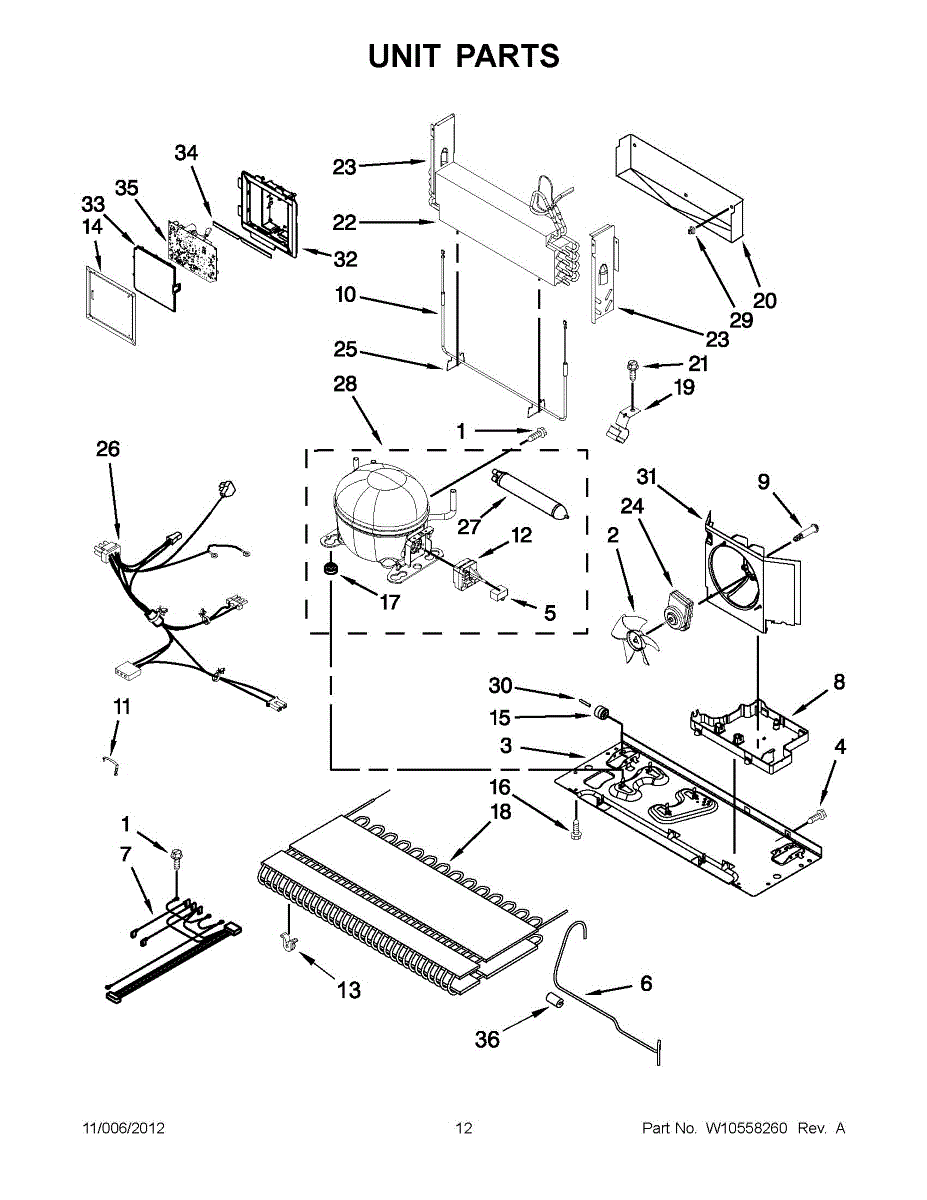

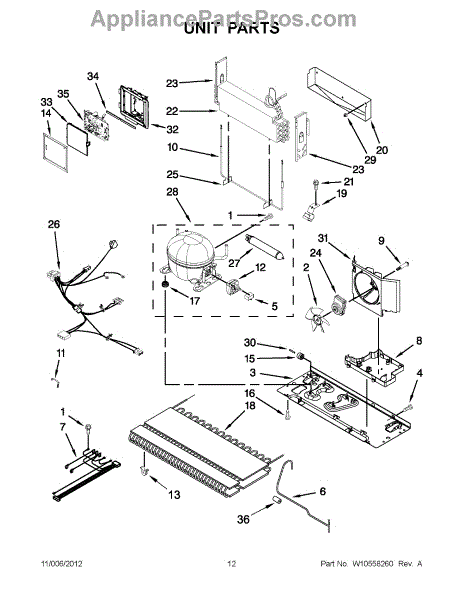

Parts for Kitchenaid KBFS20EVMS13: 06 - Unit Parts

This condenser fan blade restores the airflow that carries heat away from the condenser coils and compressor. Replacing a cracked, warped, or loose blade helps your refrigerator remove heat properly so it cools reliably and runs more quietly. What it does

• Draws room air through the condenser coil and over the compressor to dissipate heat
• Helps maintain stable cabinet temperatures and overall cooling performance
• Typical failure symptoms: fan not spinning or moving enough air, wobbling or rattling from the rear base, weak cooling, compressor running hot

• 1 condenser fan blade

• Unplug the refrigerator and remove the rear lower access panel before servicing
• Note the blade's orientation; pull the old blade straight off the motor shaft and press the new blade on until fully seated
• Ensure proper clearance in the shroud and spin by hand to confirm it turns freely
• Wear gloves and eye protection; keep hands clear of the blade during testing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Run Capacitor is an OEM part for Whirlpool refrigerators. It is an electronic component that assists in powering the refrigerator's compressor motor. The capacitor functions to provide an electrical boost needed to start the compressor running smoothly during each cooling cycle.

Causes of a bad capacitor can include deterioration of dielectric material over many years of operation or accidental moisture penetration into the capacitor case.

Symptoms of a bad capacitor include:

• The refrigerator compressor failing to turn on/refrigeration cycles not operating
• Loud humming noises coming from behind the refrigerator
• Erratic cooling performance and fluctuating interior temperatures

This OEM part is also compatible with KitchenAid, Jenn-Air, Admiral, and Kenmore refrigerator models.

This wire harness routes power and signals between an appliance's control and electrical components to restore reliable connections and operation. Use it to replace a damaged or frayed harness that is causing power or control issues. What it does:

• Re-establishes secure electrical connections between controls, motors, switches and sensors
• Routes and organizes multiple wires to prevent shorts and chafing
• Replaces burned, frayed or broken wiring that can cause intermittent operation
• Helps resolve symptoms like no power to controls, unit not starting, or inconsistent function

• Disconnect all power (unplug or switch off circuit breaker) before servicing
• Label or photograph connector locations before removal to ensure correct reassembly
• Route harness to avoid pinch points and secure with original clips or ties
• Replace the harness and inspect mating components if you see melted connectors or damaged terminals

The Drip Pan is an OEM part for Whirlpool refrigerators. Located beneath the refrigerator, it collects and holds water that drips from the defrost system, preventing it from leaking onto the floor.

Causes of a bad drip pan can include cracks or holes from physical damage, warping from exposure to temperature fluctuations, or excessive buildup of dirt and mold.

Symptoms of a bad drip pan include:

• Water pooling under the refrigerator
• Visible cracks, holes, or warping in the pan
• Mold or mildew growth in the pan
• Unpleasant odors emanating from the refrigerator base

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This genuine replacement screw secures appliance components for reliable fit and function, helping restore proper assembly and reduce rattling or loose panels. Use it to replace a stripped or missing fastener during repairs. What it does:

• Fastens panels, brackets, or components to maintain structural stability
• Prevents movement that can cause noise, vibration, or misalignment
• Replaces stripped, corroded, or missing screws to restore secure assembly
• Compatible where the OEM mounting screw is required for safe operation

• Turn off and unplug the appliance before performing any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts
• If other fasteners show wear, inspect and replace as needed for safe operation

This dishwasher heater mounts at the bottom of the tub to raise wash-water temperature and boost the heated dry cycle. Replacing a failed element restores proper heating, helping cycles finish on time and improving drying performance.

• Heats wash water to the correct temperature for effective cleaning
• Aids the dry cycle by evaporating moisture from dishes
• Common symptoms of failure: dishes not drying, water staying cool, longer-than-normal cycles, sanitize option not reaching target temperature
• May show visible damage or test open for continuity

• Disconnect power and shut off water supply before servicing
• Pull the dishwasher forward for access to the underside
• Remove wires and retaining nuts from the old element; lift it out through the tub openings
• Seat the new element evenly, tighten hardware securely without overtightening, reconnect wires, then run a short cycle and check for leaks at the ports

This bale strap is a direct-replacement part that helps secure the dryer's latch/bale assembly so the door closes and stays closed during operation. Replacing a worn or broken strap restores reliable door engagement and safer drying cycles. What it does:

• Anchors the dryer door's latch/bale so the door remains properly closed during operation
• Prevents intermittent door opening that can stop cycles or cause heat loss
• Replaces a stretched, torn, or broken strap that no longer holds the latch securely
• Works with the door/latch mechanism to maintain safe operation during drying

• One bale strap

• Disconnect power before beginning any repair to avoid electrical shock
• Verify strap routing and attachment points match the original before reinstalling
• Basic hand tools are typically required; avoid forcing plastic clips to prevent breakage

The Compressor Start Device is an OEM part for Whirlpool refrigerators. This device is essential for initiating the compressor, which is responsible for circulating refrigerant through the cooling system, thus maintaining the refrigerator's temperature. The start device works by providing the necessary power boost to get the compressor running.

Over time, the compressor start device can wear out or fail due to electrical issues, regular wear and tear, or overheating. A faulty start device will prevent the compressor from starting, resulting in cooling problems.

Symptoms of a bad compressor start device include:

• The refrigerator not cooling
• The compressor not running or starting intermittently
• Clicking sounds coming from the refrigerator
• Overheating of the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rubber condenser grommet cushions and secures the condenser assembly to reduce vibration and noise, helping the refrigerator run quieter and preventing wear where the condenser mounts to the cabinet. What it does:

• Cushions condenser mounting points to reduce rattling and vibration
• Helps prevent metal-on-metal wear between condenser and chassis
• Keeps the condenser properly seated for reliable airflow
• Reduces noise caused by loose or worn condenser mounts

• Disconnect power to the appliance before beginning any service
• Access the condenser area per your model's service instructions
• Remove the old grommet and press the replacement into the mounting hole until seated
• Do not use solvents or adhesives unless specified by the manufacturer; wear gloves to protect hands

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

This spring hose clamp secures flexible hoses to fittings to prevent leaks and keep connections tight. It's a simple, durable retaining clip used on water and vent lines to maintain a reliable seal during operation. What it does:

• Holds a hose or duct onto a spud or barb to prevent leaks and disconnection
• Keeps hoses secure against vibration and pressure changes
• Helps stop water leaks or airflow loss caused by loose connections
• Works on flexible rubber or corrugated hoses in laundry and appliance water/vent systems

• Disconnect power and water supply before servicing the appliance.
• Relieve any pressure and drain hoses before removing the old clamp.
• Use appropriate pliers or clamp tool to expand or compress the clamp for removal and installation.
• Test for leaks after reassembly.

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

The Motor-Condenser Fan is an OEM part for Whirlpool refrigerators. This motor drives the condenser fan, which is essential for cooling the compressor and expelling heat from the refrigerator. By maintaining optimal temperatures within the cooling system, it ensures the efficient operation of the refrigerator.

Over time, the motor-condenser fan can fail due to electrical issues, wear and tear, or exposure to dust and debris. A malfunctioning fan motor can lead to overheating and reduced cooling efficiency.

Symptoms of a bad motor-condenser fan include:

• The refrigerator running continuously or not cooling properly
• Unusual noises from the back of the refrigerator
• The compressor overheating
• Poor airflow around the condenser coils

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This evaporator clip secures the refrigerator evaporator assembly and related components so the cooling system stays aligned and vibration-free. It helps maintain proper airflow and prevents rubbing or loose parts. What it does:

• Holds the evaporator coil/assembly or associated covers in place
• Prevents vibration, noise, and contact between the coil and cabinet parts
• Helps maintain consistent airflow for reliable cooling performance
• Commonly linked to rattling, buzzing, or loose parts around the freezer evaporator

• Disconnect power before servicing the appliance
• Handle evaporator and surrounding fins carefully; they are sharp and fragile
• Verify clip orientation against the OEM diagram before fastening

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

This electronic control board is the central module that runs your dishwasher's cycles. It controls power and timing so the unit fills, washes, drains, and dries correctly—restoring normal operation when the original board has failed.

• Manages cycle timing and options, routing power to the wash motor, drain pump, water inlet valve, and heating circuit
• Interfaces with sensors and the door latch to start and advance cycles
• Monitors faults to help protect components and ensure proper operation

• Disconnect power at the breaker and verify no voltage before service
• Access location varies by model
• Use ESD precautions; move connectors one at a time to the matching terminals
• After reassembly, run the unit's diagnostic/service cycle per the tech sheet to verify operation

This rubber grommet provides a tidy, protective seal where hoses, wires, or shafts pass through the appliance cabinet—helping prevent chafing, reduce vibration noise, and maintain proper sealing around openings. What it does:

• Cushions and protects wiring or hoses from rubbing against metal edges
• Helps maintain a seal to reduce water or air bypass where fitted
• Dampens vibration and reduces related noise at the penetration point
• Keeps openings finished and helps prevent further component wear

• Disconnect power (and water for washers) before starting any repair
• Inspect the mounting area for sharp edges or damage; replace if surrounding parts are compromised
• Push the grommet into the opening and seat evenly; do not stretch excessively

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
