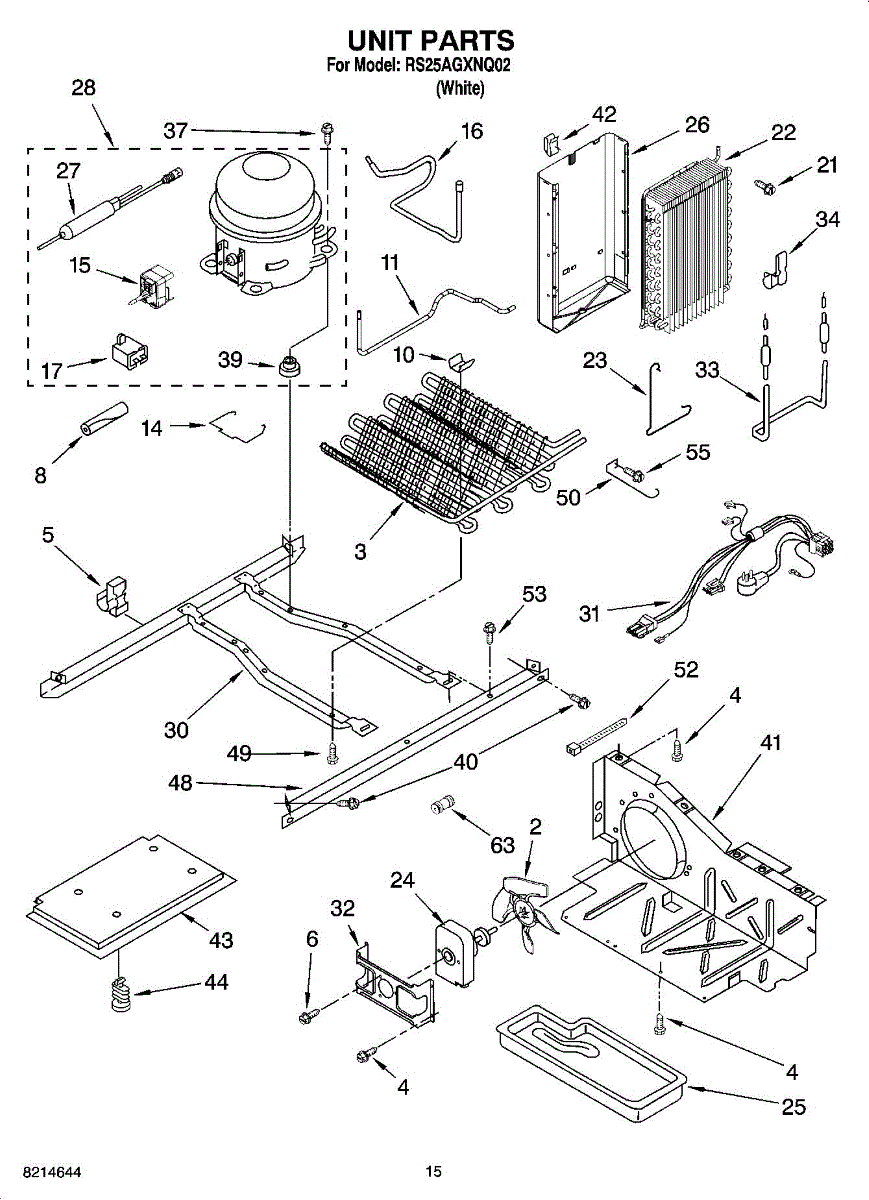

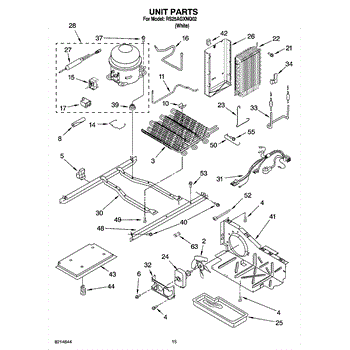

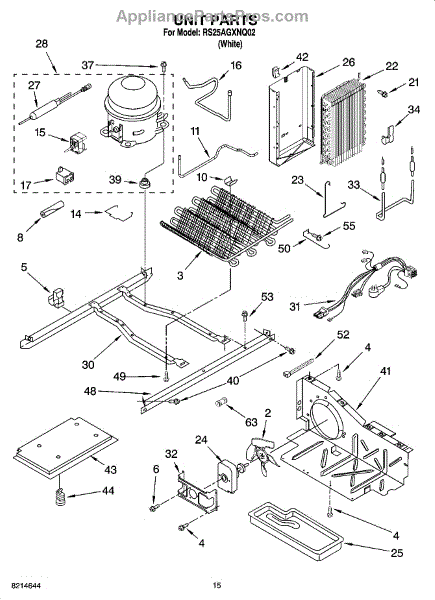

Parts for Roper RS25AGXNQ02: 09 - Unit Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

This bale strap is the replacement strap used to secure and support the appliance's bale or handle assembly, restoring proper hold and alignment for normal operation. It replaces a worn or broken strap to help the door/handle stay connected and function reliably. What it does:

• Secures the bale/handle assembly to the door or frame so the handle stays engaged during use
• Restores proper tension and positioning when the original strap is cracked, stretched, or torn
• Helps prevent the bale or handle from detaching or sagging under normal use
• Reduces rattling or loose-handle symptoms caused by a compromised strap

• One replacement bale strap

• High-level replacement: remove access panel or trim as required, detach the old strap, and fasten the new strap in the same orientation
• Use basic hand tools; avoid forcing parts to prevent breakage
• Disconnect power and follow appliance-specific safety procedures before servicing

This start device is the factory replacement part that helps the compressor start and protects it during startup, restoring reliable cooling cycles when the original start device fails. Fits single-compressor refrigeration systems that use the 5SP module. What it does:

• Provides the initial start boost the compressor needs to begin running
• Protects the compressor from repeated hard-start conditions
• Helps prevent warm-fridge symptoms caused by a compressor that won't start or stalls at startup
• Works with compatible refrigerator sealed-system components that use the 5SP start/protect configuration

• One start device (5SP start/protect) as shown

• Installation requires access to the refrigerator compressor area; unplug the appliance and shut off power before starting
• Handle and route wires carefully; match connector types and terminal orientation when replacing
• Do not install a damaged part; inspect for shipping damage before installation

The Run Capacitor is an OEM part for Whirlpool refrigerators. It is responsible for helping the compressor motor start and run efficiently by providing an extra electrical boost. This component ensures that the refrigerator operates smoothly and maintains the correct temperature by stabilizing the compressor's performance.

Causes of a bad run capacitor can include electrical surges, age-related wear, or overheating. When the capacitor fails, the compressor may struggle to start or run continuously, leading to inefficient cooling or a non-functional refrigerator.

Symptoms of a bad run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual clicking noises from the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8 x 1/2 ab.

This evaporator assembly circulates refrigerant and removes heat inside the freezer section to enable proper cooling and frost control. Replaces a damaged or corroded evaporator to restore normal temperature performance. What it does:

• Holds refrigerant and transfers heat so the freezer evaporates moisture and cools the compartment.
• Commonly used when frost builds up, freezer runs warm, or cooling is intermittent.
• Works with the sealed refrigeration system and defrost components to maintain proper cold temperatures.
• Designed to match OEM fit and function for compatible refrigerators.

• System evacuation, recharge, and leak testing are required after installation.
• Disconnect power before servicing to avoid electrical shock and appliance damage.
• Inspect related defrost and sealing components during replacement.

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

The Condenser Motor Kit is an OEM part for Whirlpool refrigerators. It includes a motor, fan blade, wire harness, and hardware, designed to replace the existing condenser motor in your refrigerator. This kit is crucial for maintaining the appliance's cooling efficiency by circulating air through the condenser coils and over the compressor, helping to dissipate heat and prevent overheating.

Over time, the condenser motor can fail due to mechanical wear, electrical issues, or blockages that restrict airflow and cause the motor to overheat.

Symptoms of a bad Condenser Motor Kit include:

• The refrigerator does not cool adequately
• Unusual noises from the back of the refrigerator where the motor is located
• The refrigerator compressor runs hotter than normal
• Increased electrical consumption as the refrigerator tries to maintain cooling efficiency

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Evaporator Drip Tray is an OEM replacement part for Whirlpool refrigerators.

Causes of a bad drip tray can include cracks developing in the plastic over time. Mineral deposits may also accumulate, reducing the tray's drainage functionality.

Symptoms of a bad Evaporator Drip Tray include:

• Water leaks or overflow detected inside the freezer base
• Potential freezing or short circuits from excess pooled moisture
• Inability to effectively direct condensate away from coils
• Promotes conditions for mold or odor development

This OEM Whirlpool part is also compatible with Maytag, KitchenAid and some Kenmore models.

This sealed-system compressor circulates refrigerant to cool your refrigerator, restoring normal cooling performance when the compressor fails. Designed to replace a failing compressor and help bring temperatures back to safe food-storage levels. What it does:

• Compresses and circulates refrigerant through the sealed refrigeration circuit
• Restores cooling when the compressor motor runs properly
• Commonly linked to symptoms like weak or no cooling, loud humming or clattering sounds, or a refrigerator that cycles continuously
• May be the cause if the appliance frequently trips a circuit breaker or shows hard-starting behavior

• Sealed-system work requires certified HVAC/refrigeration service and proper refrigerant handling per local regulations
• Disconnect power before beginning any repair; follow lockout/tagout practices
• Compressor replacement often requires system evacuation, brazing, and recharge — do not attempt unless qualified
• Use the identical replacement part number and follow OEM service instructions to avoid damage

This condenser fan motor bracket secures the condenser fan motor to the appliance chassis, keeping the cooling fan stable so it can move air across the condenser for proper cooling performance and prevent wobble or contact. What it does:

• Holds the condenser fan motor in the correct position so the fan blades clear surrounding components.
• Stabilizes the motor to reduce vibration and noise caused by a loose or damaged mount.
• Helps maintain proper condenser airflow to avoid overheating or reduced cooling.
• Can be replaced when the original bracket is bent, cracked, or broken and no longer supports the motor.

• Disconnect power before starting any repair to avoid electric shock.
• Verify motor and fan assembly alignment when reinstalling the bracket; secure mounting hardware snugly but do not overtighten.
• Inspect related fasteners and fan components for wear and replace as needed.

The Heater is an OEM part for Whirlpool refrigerators. This part prevents frost buildup by heating the evaporator coils during the defrost cycle. This part ensures that air flows freely over the coils, improving the efficiency of the cooling system and maintaining the refrigerator at the optimal temperature.

Causes of a bad heater can include electrical failures, such as a blown fuse or a faulty wiring connection, or physical damage to the heater element itself.

Symptoms of a bad Heater include:

• Frost buildup on the evaporator coils
• The refrigerator and freezer not maintaining the desired temperatures
• Increased energy consumption as the refrigerator works harder to cool
• Unusual noises from the refrigerator as the fan hits frost buildup

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part is a grommet. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken or misplaced grommet in a variety of different appliance models.Grommets have a number of uses in different appliances. Typically, grommets are important for letting water pass through the appliance without leaking. Over time, grommets can become brittle, cracked, or lost and may need replacing. Please follow appropriate safety precautions when attempting to replace any appliance parts. Make sure the appliance is completely disconnected from its gas, water, and power sources before attempting any repairs or replacements. Proper tools might be required to replace this part. For more accurate information on how and where to install this replacement grommet, reference the appropriate manufacturer owner's manual and diagrams. As an authentic replacement part, this grommet is suitable for use on several different models of refrigerators, freezers, and washers manufactured by Whirlpool, Kenmore, KitchenAid, Roper, and other Whirlpool brands. Please note that this is a genuine part made of high-quality, durable, rubber material and is sold individually.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

8 x 1/12

This air baffle directs and controls cold airflow inside the refrigerator compartment to help maintain even temperatures and proper circulation. Replaces a cracked, warped, or missing baffle to restore intended airflow paths. What it does

• Directs cold air from the evaporator into the refrigerator compartment for balanced cooling.
• Helps prevent uneven temperatures and localized warm or cold spots.
• Reduces excessive airflow directly onto stored items that can cause freezing or drying.
• Can rattle or obstruct airflow when cracked or loose, causing noise or reduced performance.

• One air baffle

• Disconnect power to the appliance before beginning work.
• Installation typically requires removing shelves or drawers for access; handle plastic parts gently to avoid damage.
• Align tabs or tracks and snap the baffle into place; do not force or bend beyond natural fit.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 5/16 to 1/4. Universal John Guess Push On
