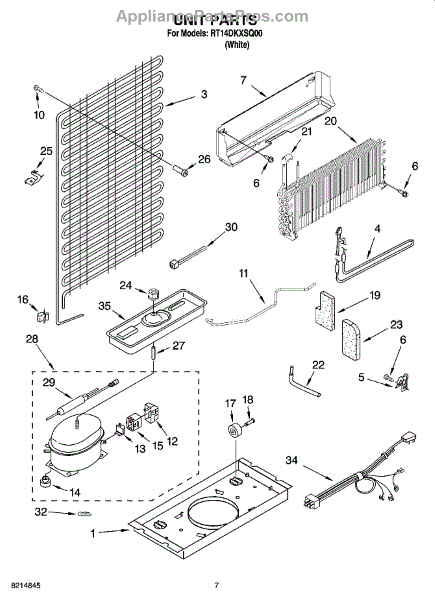

Parts for Roper RT14DKXSQ00: 04 - Unit Parts

The Defrost Heater is an OEM part for Whirlpool refrigerators. This heater turns on during the defrost cycle to melt the frost on the evaporator coils. If you need the defrost thermostat order WP4387490

Causes may include cracked heater elements reducing heat output or open circuit damage limiting functionality over time.

Symptoms of a faulty heater involve:

• Periodic refrigerator odors
• Prolonged defrost cycles or remaining ice
• Frost and ice buildup beyond normal amounts

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Size: 8-18 x 1/2 inch.

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

A thermal overload protector that helps prevent motor damage by cutting power if the dryer motor overheats. Fits the motor assembly and restores normal operation once the motor cools. What it does:

• Detects excessive motor temperature and interrupts power to prevent motor burnout
• Helps stop the motor from running when overheating occurs
• Commonly replaced when the dryer won't start or the motor hums but does not turn
• Can prevent further electrical damage by opening the circuit during thermal faults

• One thermal overload protector

• Disconnect power to the appliance before servicing to avoid shock or injury
• Located on or near the dryer motor; note wire locations or take a photo before removal
• Replace with the correct PN and secure terminals firmly; do not force connections
• Check motor bearings, start components, and wiring if symptoms continue after replacement

This compressor overload is a thermal protector that opens the circuit if the compressor overheats or draws excessive current. Replacing a failed overload restores reliable starts and helps prevent compressor damage when your refrigerator won't cool.

• Protects the compressor by interrupting power during overheat/overcurrent conditions
• Common symptoms: refrigerator not cooling, compressor won't start, repeated clicking or brief hum then shutoff
• Mounts on the compressor terminal and works alongside the start relay on applicable models
• Built for proper fit and dependable operation in the start circuit

• Unplug the refrigerator and remove the rear access panel to reach the compressor
• Note wire positions; pull the old overload straight off the compressor pin
• Push the new overload fully onto the correct terminal and reconnect wiring/terminal cover
• Restore power and verify the compressor starts without repeated clicking

This rubber grommet cushions and secures the compressor to the fridge frame, helping reduce vibration and noise while protecting mounting hardware. It's a direct-fit replacement for a single compressor mounting point. What it does:

• Absorbs compressor vibration to reduce operational noise and rattling
• Protects compressor studs and mounting bracket from metal-on-metal wear
• Helps keep the compressor properly positioned during operation
• Commonly replaced when cracked, flattened, or missing and causing vibration or noise

• One compressor-mount grommet

• Disconnect power to the appliance before beginning any repair
• Support the compressor or work with the unit tilted to relieve pressure on mounts
• Remove old grommet(s) and clean mounting surfaces before installing the new grommet
• If multiple mounts show wear, replace them as a set for balanced support

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

This start relay mounts on the side of the refrigerator's compressor and momentarily powers the start winding so the compressor can start reliably—helping restore consistent cooling and eliminating repeated click-and-no-start issues.

• Provides the initial boost to start the compressor, then disengages automatically
• Supports proper refrigerator and freezer temperatures by ensuring reliable compressor starts
• Common symptoms of a failing relay: warm temps, compressor won't start, rapid clicking or humming from the rear, or repeated overload trips
• Intermittent cooling after power cycling can also point to a weak start relay

• Unplug the refrigerator before servicing; pull the unit forward to access the rear
• The start device is under a small cover on the compressor side; remove the cover to access
• If a run capacitor is present, discharge it before handling any wiring
• Note wire positions and relay orientation; push the new relay straight onto the compressor pins without bending terminals, reinstall the cover, and restore power

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A small metal retaining clip that secures a bi-metal thermostat or temperature sensor in place, helping maintain proper contact and accurate temperature sensing for reliable appliance operation. Simple, durable replacement part. What it does

• Holds a bi-metal thermostat or temperature sensor firmly against its mounting point or probe.
• Maintains consistent contact to support accurate temperature sensing and control.
• Can help stop intermittent temperature-related issues caused by a loose or damaged clip.
• Designed for direct replacement where a spring-style or formed metal retainer is required.

• One bi-metal retaining clip (single clip).

• Disconnect power to the appliance before attempting any repair.
• Removal/installation typically requires small pliers or a flat screwdriver; avoid excessive force to prevent damage.
• Verify clip orientation and that the sensor/thermostat is seated fully before securing.

This retaining clip secures trim, panels or small assemblies to keep parts aligned and prevent rattling. It's a simple replacement that restores a snug, stable fit where the original clip has broken or gone missing. What it does:

• Holds plastic or metal trim and panels in place to prevent gaps and movement
• Restores proper alignment and reduces vibration or rattling noises
• Keeps assembled components from shifting during normal use
• Useful when a damaged or missing clip causes loose or sagging parts

• One retaining clip

• Disconnect power and/or water to the appliance before beginning any repair
• Use needle-nose pliers or a flat screwdriver to remove the old clip and snap the replacement into place
• Verify the clip is fully seated and the panel/trim is secure before returning the appliance to service
• If the original clip required additional fasteners, retain and reuse them as needed

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
