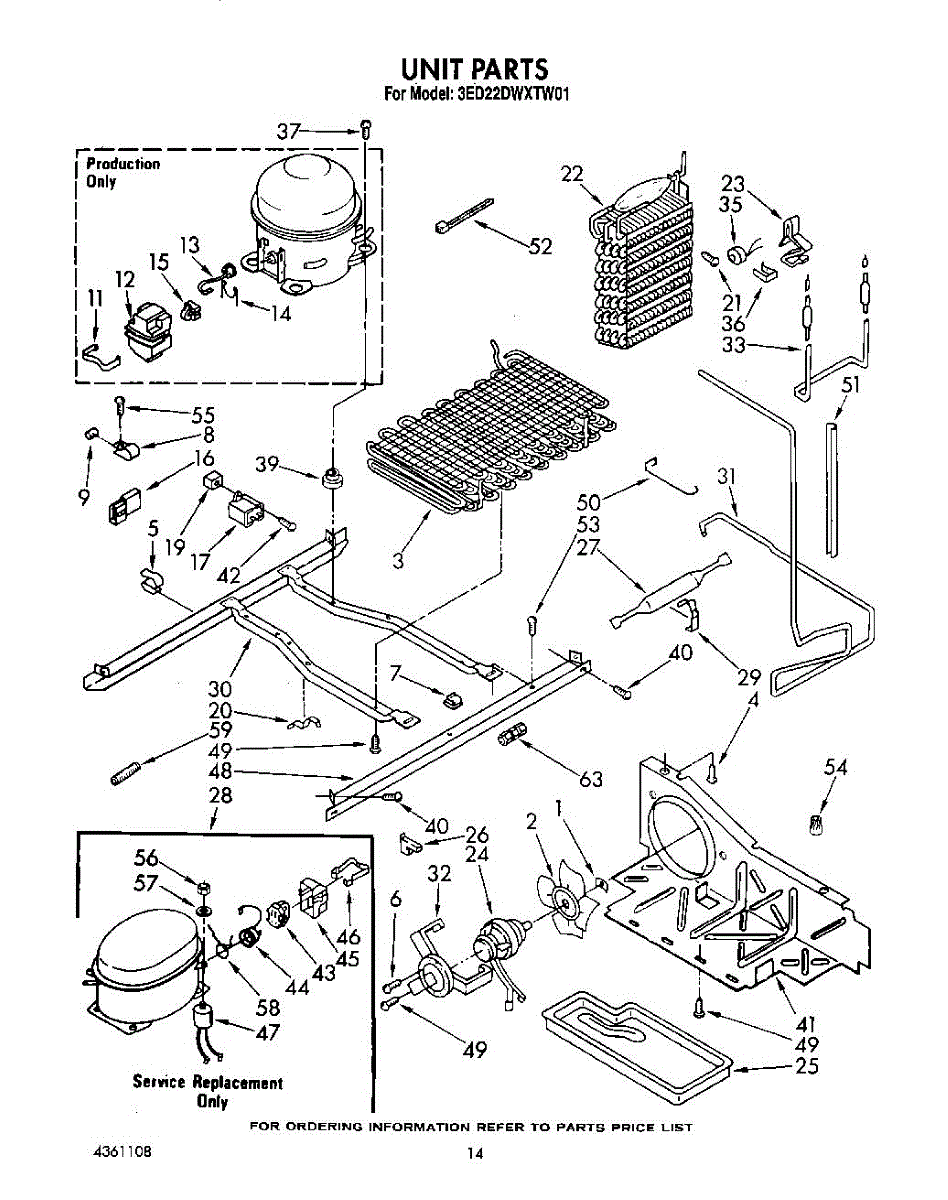

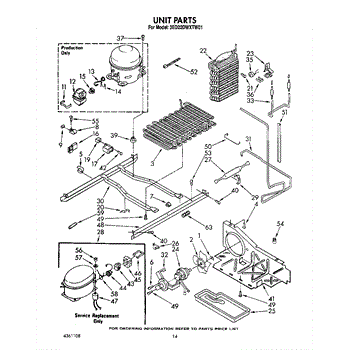

Parts for Whirlpool 3ED22DWXTW01: 11 - Unit Parts

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This OEM Replacement Part is a high-quality, 2-watt condenser fan motor for Whirlpool refrigerators.The motor is designed to optimize your refrigerator's cooling performance. This 115-volt motor operates with a clockwise rotation.

Symptoms of a bad condenser fan motor kit include:

• Gradual rise in interior freezer temperatures
• Inability to maintain consistent cooling performance
• Loud buzzing or grinding noises coming from inside
• Tripped breakers or failure to restart after service

Causes stem from normal wear of ball bearings as the high-efficiency motor operates continuously. Exposure to dust or debris introduced through openings accelerates wear over many years of use.

This OEM part is also compatible with brands including Kenmore, KitchenAid, and Danby.

Color: Black. Due to manufacturer changes this replacement is now 17" x 7".

The Defrost Thermostat is an OEM part for Whirlpool refrigerators. The thermostat monitors the temperature of the evaporator coil and signals the defrost heater to turn on or off to prevent frost buildup, ensuring efficient cooling.

Causes of a bad defrost thermostat can include wear and tear over time, exposure to extreme temperatures, or electrical malfunctions.

Symptoms of a bad defrost thermostat include:

• Excessive frost buildup in the freezer
• The refrigerator not maintaining the correct temperature
• The defrost heater not activating
• The refrigerator running continuously or not running at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

8 x 1/12

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This PTC start relay mounts on the compressor and momentarily powers the start winding to get the motor running, then disengages for normal operation. Replacing a weak relay can stop repeated clicking and help restore cooling.

• Provides initial boost to the compressor's start winding for reliable startup
• Automatically drops out after startup so the compressor runs on the run winding
• Helps address symptoms like warm temperatures, compressor clicking or humming without starting, or frequent overload trips
• Failure may show as rattling, burn marks, or a melted relay housing

• Disconnect power and remove the rear access panel to reach the compressor
• Allow components to cool; note wire locations and take a reference photo
• Pull the old relay straight off the compressor pins; align and firmly seat the new relay in the same orientation, then reconnect wires
• If your unit uses a run capacitor and/or separate overload protector, reconnect per the wiring diagram before restoring power

Compressor relay & overload combination kit with all related mounting hardware. Replaces old style relay and overload.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

This tube union connector joins two water or refrigerant tubes to restore a sealed flow path and stop leaks. It's a direct-replacement plumbing fitting used on refrigerators and ice/water systems. What it does

• Joins two sections of tubing to maintain a sealed water line connection.
• Restores proper water flow to the dispenser or ice maker when a damaged union causes leaks or loss of supply.
• Provides a threaded/press-fit junction to prevent drips and reduce pressure loss.
• Helps avoid water damage from a cracked or corroded tube joint.

• One tube union connector

• Turn off the water supply and unplug the appliance before starting work.
• Confirm tube sizes and connection type before installation; tighten fittings per manufacturer guidance to avoid overtightening.
• Inspect tubing ends for damage and cut squarely if needed for a proper seal.
• After installation, restore water and power, then check the connection carefully for leaks.
