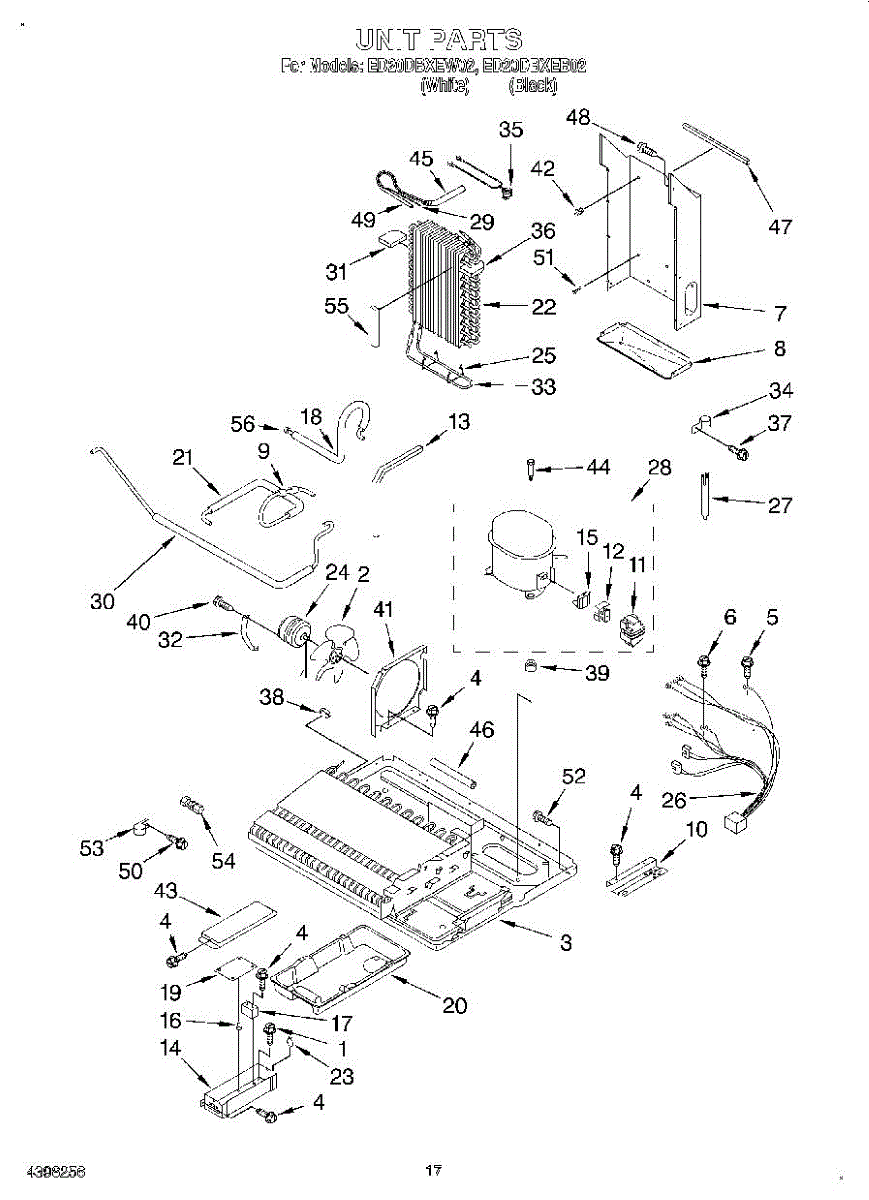

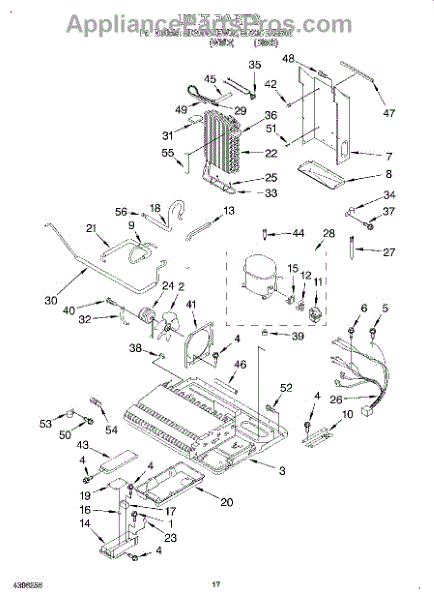

Parts for Whirlpool ED20DBXEW02: 10 - Unit Parts

Mounting screw for refrigerators. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during appliance repair.

Size: 8-18 x 3/8 inch.

Mounting screw for refrigerators. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during appliance repair.

This overload is a thermal protection device that mounts on the motor/compressor and opens the circuit when excessive heat or current is detected. Replacing a weak or failed overload helps restore safe startup and protects the windings from damage. What it does:

• Monitors motor/compressor temperature and current draw
• Interrupts power on overheat/overload to prevent damage
• Aids troubleshooting of start/run issues when paired with the start device
• Common symptoms: hums then clicks off, won't start, intermittent shutdown, frequent tripping

• 1 thermal overload protector

• Disconnect power before servicing; allow components to cool
• Access the terminal area on the motor/compressor; remove any cover
• Note/photograph wire positions; transfer wires and fully seat the new overload on the correct terminal
• Inspect the start relay, capacitor, and terminals for heat damage; replace any compromised parts

Fix a refrigerator that won't cool or clicks repeatedly. This compressor start relay powers the start winding to help your compressor run. DIY repair.

This discharge tube directs wastewater from the appliance to the drain pump or household drain, helping prevent leaks and standing water. Replaces a worn, cracked, or clogged discharge line to restore proper draining. What it does:

• Guides wastewater from the tub to the drain pump or house drain
• Prevents leaks by providing a sealed channel for discharge flow
• Helps stop pooling or slow-drain symptoms caused by damaged or collapsed tubing
• Can reduce noises or siphoning caused by misrouted or kinked lines

• Disconnect power and water supply before beginning any repair
• Inspect and clear nearby fittings, clamps, and hose connections; replace clamps if worn
• Ensure proper routing and secure clamps to avoid kinks, sags, or contact with moving parts

Refrigerator runs warm or freezer not cooling properly? The condenser fan motor circulates air over the coils. DIY repair takes 15-60 minutes with basic tools.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Fix a refrigerator that won't cool or runs constantly with this compressor. Essential sealed system component. Professional installation recommended.

Fixes frost buildup on evaporator coils and inconsistent cooling. This refrigerator defrost heater melts ice during defrost cycles. 20-minute repair.

Fixes ice buildup on the back freezer wall and constant running. This defrost thermostat monitors temperature during defrost cycles. 20-minute repair.

Size: 8-18 x 3/8 inch.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Connects two refrigerator water line tubes to restore a sealed flow path. Replace when leaking or damaged to maintain reliable water flow to your appliance.

Size: 1/2 inch.

Size: 5/8 inch.

Fix refrigerant leaks or low cooling with this 3/4 inch service valve. Essential for AC system pressure testing and refrigerant recharge procedures.

Refrigerator not cooling properly? A faulty 1/4 inch service valve can prevent proper refrigerant flow. This valve connects refrigerant lines in your system.

Service valve for refrigerators, freezers, and ice makers. Used for refrigerant system service and maintenance. 5/16 inch fitting size for technicians.

Fix refrigerant leaks or cooling issues with this 3/8 inch service valve. Essential for refrigeration system repairs and maintenance on multiple models.

Fix refrigerant leaks or low cooling with this 3/16 inch service valve. Essential for AC recharging and system maintenance on multiple models.
