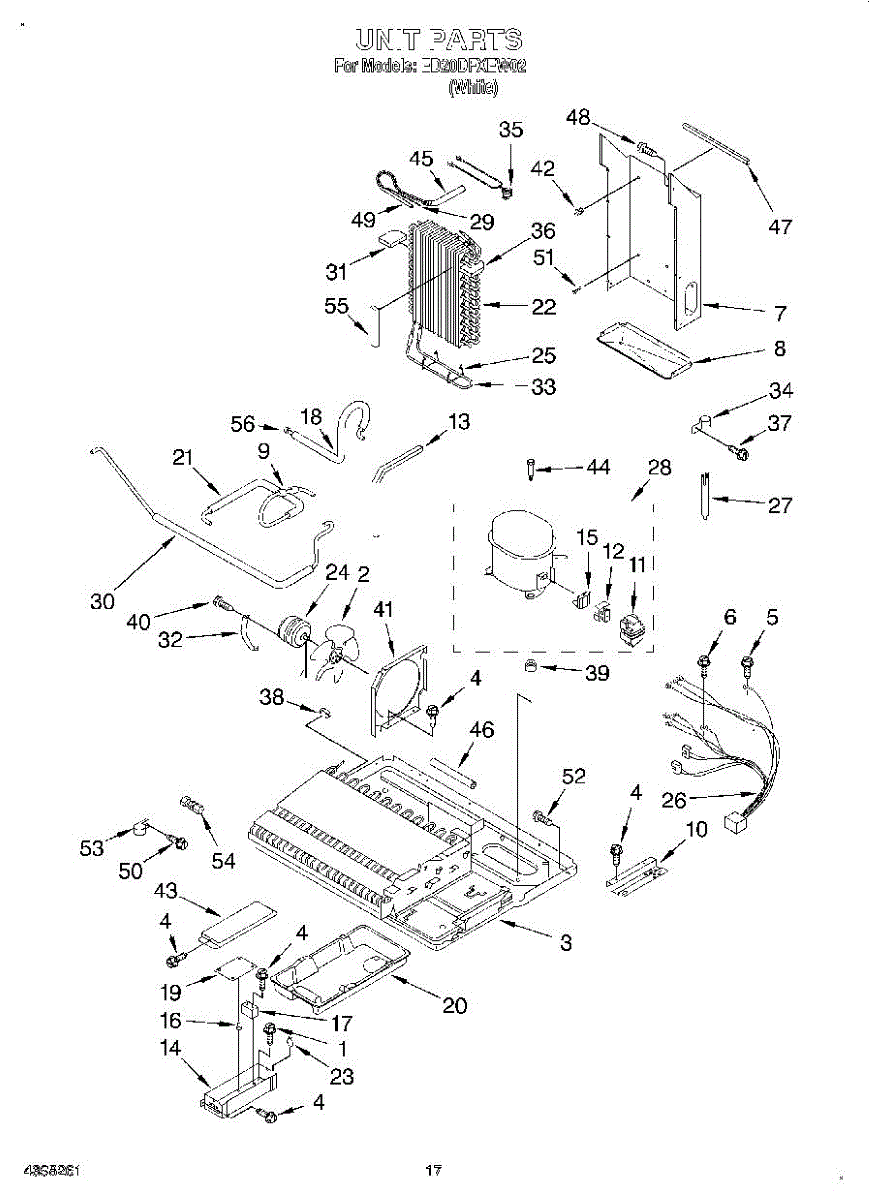

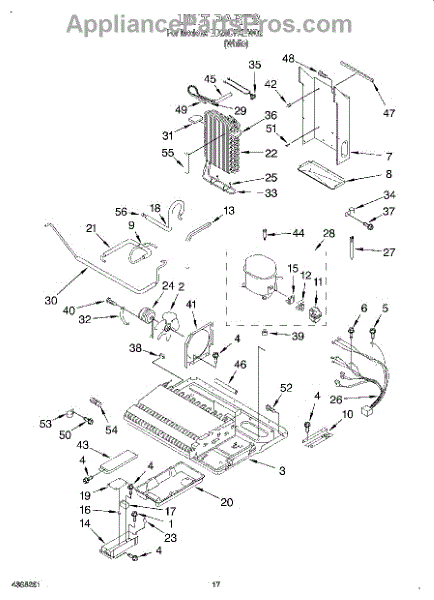

Parts for Whirlpool ED20DFXEW02: 10 - Unit Parts

Size: 8-18 x 3/8 inch.

This overload is a thermal protection device that mounts on the motor/compressor and opens the circuit when excessive heat or current is detected. Replacing a weak or failed overload helps restore safe startup and protects the windings from damage. What it does:

• Monitors motor/compressor temperature and current draw
• Interrupts power on overheat/overload to prevent damage
• Aids troubleshooting of start/run issues when paired with the start device
• Common symptoms: hums then clicks off, won't start, intermittent shutdown, frequent tripping

• 1 thermal overload protector

• Disconnect power before servicing; allow components to cool
• Access the terminal area on the motor/compressor; remove any cover
• Note/photograph wire positions; transfer wires and fully seat the new overload on the correct terminal
• Inspect the start relay, capacitor, and terminals for heat damage; replace any compromised parts

This PTC start relay plugs onto the compressor to momentarily power the start winding and help the compressor spin up smoothly. Replacing a failed relay can stop repetitive clicking and help restore stable cooling performance. What it does:

• Momentarily energizes the compressor's start winding at startup; the PTC element then increases resistance to take the start winding out of the circuit.
• Helps protect against repeated hard-start attempts that cause clicking and no-cool conditions.
• Common failure signs include repeated clicking, the compressor not starting, warm temperatures, burn marks/melted housing, or a relay that rattles when shaken.
• Mounts directly on the compressor terminals and interfaces with the model-specific overload and cover.

• 1 PTC start relay

• Disconnect power and allow components to cool before servicing.
• Access the compressor compartment; remove any cover/retainer to reach the start device.
• Note wiring and orientation; pull the old relay straight off the compressor pins and push the new relay fully onto the pins. Reconnect wires and reinstall the cover.
• Use only the start device specified for your exact model/compressor. If the old relay shows heat damage, inspect the matching overload and wiring for issues.

This OEM Replacement Part is a high-quality, 2-watt condenser fan motor for Whirlpool refrigerators.The motor is designed to optimize your refrigerator's cooling performance. This 115-volt motor operates with a clockwise rotation.

Symptoms of a bad condenser fan motor kit include:

• Gradual rise in interior freezer temperatures
• Inability to maintain consistent cooling performance
• Loud buzzing or grinding noises coming from inside
• Tripped breakers or failure to restart after service

Causes stem from normal wear of ball bearings as the high-efficiency motor operates continuously. Exposure to dust or debris introduced through openings accelerates wear over many years of use.

This OEM part is also compatible with brands including Kenmore, KitchenAid, and Danby.

This sealed-system compressor circulates refrigerant to cool your refrigerator, restoring normal cooling performance when the compressor fails. Designed to replace a failing compressor and help bring temperatures back to safe food-storage levels. What it does:

• Compresses and circulates refrigerant through the sealed refrigeration circuit
• Restores cooling when the compressor motor runs properly
• Commonly linked to symptoms like weak or no cooling, loud humming or clattering sounds, or a refrigerator that cycles continuously
• May be the cause if the appliance frequently trips a circuit breaker or shows hard-starting behavior

• Sealed-system work requires certified HVAC/refrigeration service and proper refrigerant handling per local regulations
• Disconnect power before beginning any repair; follow lockout/tagout practices
• Compressor replacement often requires system evacuation, brazing, and recharge — do not attempt unless qualified
• Use the identical replacement part number and follow OEM service instructions to avoid damage

This defrost heater warms the evaporator coil during the automatic defrost cycle to melt frost and clear airflow. Replacing a failed heater helps prevent ice buildup and restores more consistent cooling performance throughout the refrigerator. What it does

• Heats the evaporator during defrost cycles to melt accumulated frost
• Keeps airflow paths clear so temperatures stay stable
• Helps prevent frost-clogged coils that reduce cooling
• Common signs of failure: heavy frost on the back wall/evaporator cover, weak cooling, evaporator fan hitting ice, or ice returning soon after a manual defrost

• One defrost heater

• Disconnect power before servicing; wear cut-resistant gloves
• Access is behind the freezer's rear evaporator cover; remove shelves/bins and the panel
• Defrost heavy ice before removal to avoid damaging the coil or insulation
• Transfer any original mounting clips/insulators and route wires exactly like the original; avoid bending the heating element

The Defrost Bimetal is an OEM part for Whirlpool refrigerators. It acts as a safety thermostat that monitors and controls the temperature during the defrost cycle. This component ensures that the defrost heater turns off when the evaporator coil reaches a specific temperature, preventing overheating and potential damage.

Causes of failure may include a malfunction due to wear and tear over time, electrical failure, or damage from moisture and ice.

Symptoms of a bad Defrost Bimetal include:

• The refrigerator is constantly running without cycling off
• Frost buildup on the evaporator coils, leading to reduced cooling efficiency
• The refrigerator or freezer compartment is too warm
• Unusual fluctuations in refrigerator temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-18 x 3/8 inch.

Size: 8 x 1/2 ab.

This union tube connector joins two sections of tubing to restore a sealed flow path. It replaces a damaged or worn tube union to help stop leaks and re-establish reliable fluid passage. What it does:

• Connects two tubing ends to maintain a sealed fluid path
• Restores proper flow where a cracked or separated union causes interruption
• Helps stop visible leaks at the union connection
• Works with the appliance's existing tubing and fittings when undamaged

• Turn off power and water supply before starting work
• Inspect mating tubing and fittings; replace damaged tubing or O-rings as needed
• Hand-start threads, then tighten securely without over-torquing to avoid damage
• After installation, restore water and power and check the connection for leaks

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.
