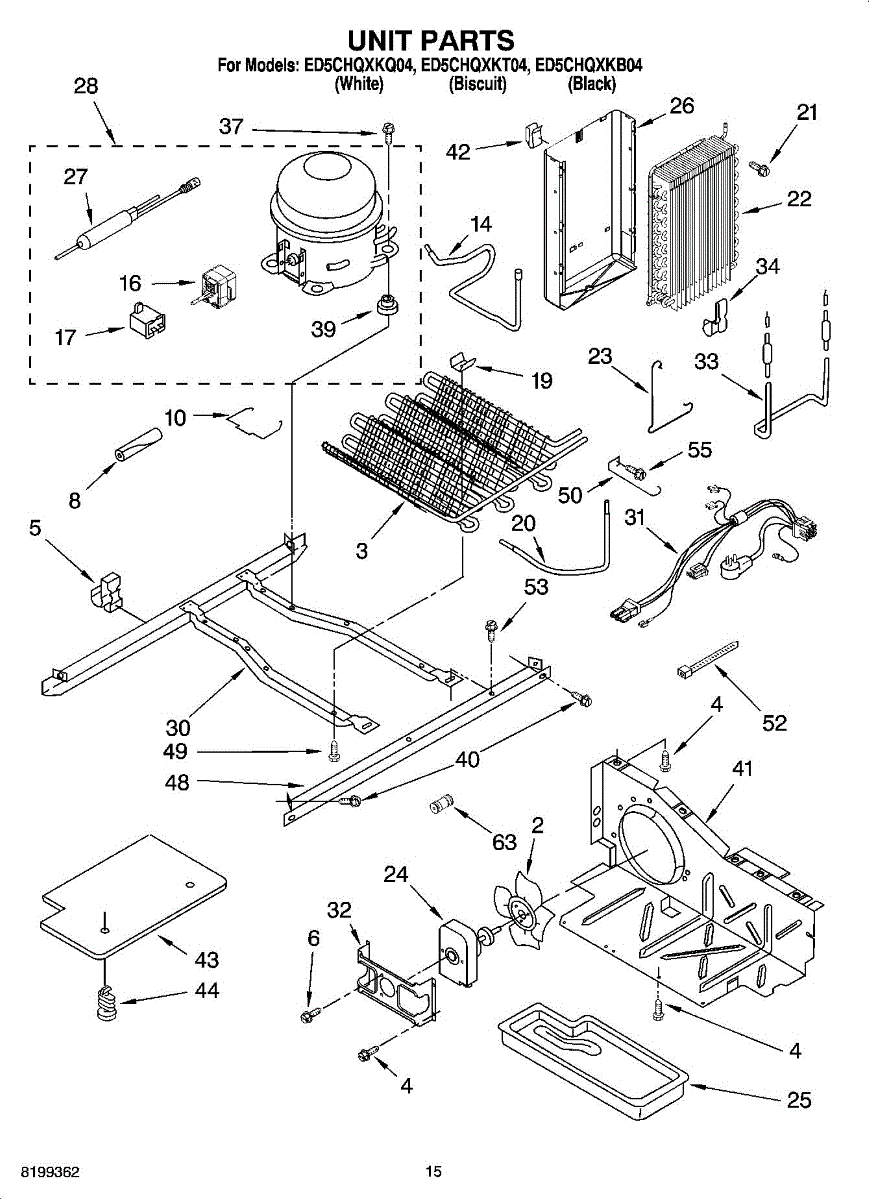

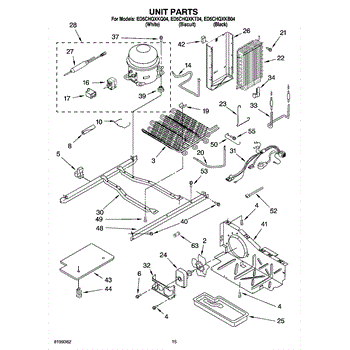

Parts for Whirlpool ED5CHQXKB04: 09 - Unit Parts

Refrigerator not cooling or freezer too warm? A faulty condenser may be the cause. This part helps dissipate heat for proper cooling performance.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or sma

This bale strap is the replacement strap used to secure and support the appliance's bale or handle assembly, restoring proper hold and alignment for normal operation. It replaces a worn or broken strap to help the door/handle stay connected and function reliably. What it does:

• Secures the bale/handle assembly to the door or frame so the handle stays engaged during use
• Restores proper tension and positioning when the original strap is cracked, stretched, or torn
• Helps prevent the bale or handle from detaching or sagging under normal use
• Reduces rattling or loose-handle symptoms caused by a compromised strap

• One replacement bale strap

• High-level replacement: remove access panel or trim as required, detach the old strap, and fasten the new strap in the same orientation
• Use basic hand tools; avoid forcing parts to prevent breakage
• Disconnect power and follow appliance-specific safety procedures before servicing

This start device is the factory replacement part that helps the compressor start and protects it during startup, restoring reliable cooling cycles when the original start device fails. Fits single-compressor refrigeration systems that use the 5SP module.

The Run Capacitor is an OEM part for Whirlpool refrigerators. It is responsible for helping the compressor motor start and run efficiently by providing an extra electrical boost. This component ensures that the refrigerator operates smoothly and mainta

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order a new clip if yours is broken, cracked, or missing.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Freezer not cooling or excessive frost buildup? The evaporator assembly circulates refrigerant to remove heat. Moderately difficult repair for DIYers.

Fix frost buildup in your refrigerator with this defrost heater mounting clip. Secures heater to evaporator for consistent defrosting performance.

Refrigerator not cooling or making noise? This condenser fan motor kit fixes cooling issues and noisy operation. DIY-friendly with video guide.

Water leaking from bottom of fridge? Cracked evaporator drip tray lets defrost water escape. Moderate DIY repair, about 45-60 minutes with our guide.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Refrigerator not cooling or running too warm? A failed compressor stops refrigerant circulation. This is an advanced repair requiring special tools.

Support frame for refrigerators. Mounts internally to provide structural support. Replace if cracked, broken, or damaged to restore proper alignment.

Refrigerator not cooling properly? A damaged condenser fan motor bracket causes fan wobble and poor airflow. This mounting bracket restores stability.

Ice buildup in freezer or warm fridge? This defrost heater melts frost from evaporator coils during the defrost cycle. Moderate DIY repair with video guide.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

8 x 1/12

Fix uneven cooling and warm spots in your refrigerator with this air baffle. Directs cold air properly throughout compartments. Simple DIY fix.

Door shelf support rail for side-by-side refrigerators. Mounts inside the door to hold shelves and bins. Replace if cracked, broken, or missing.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels,

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or compo

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Connects water tubes of different sizes at the base of your refrigerator door. Replace if leaking, cracked, or calcified to restore a watertight seal.
