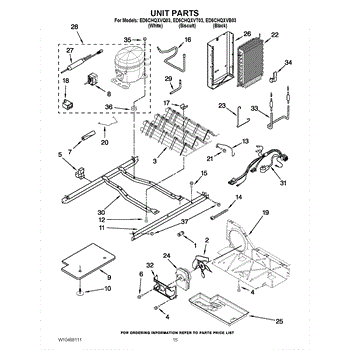

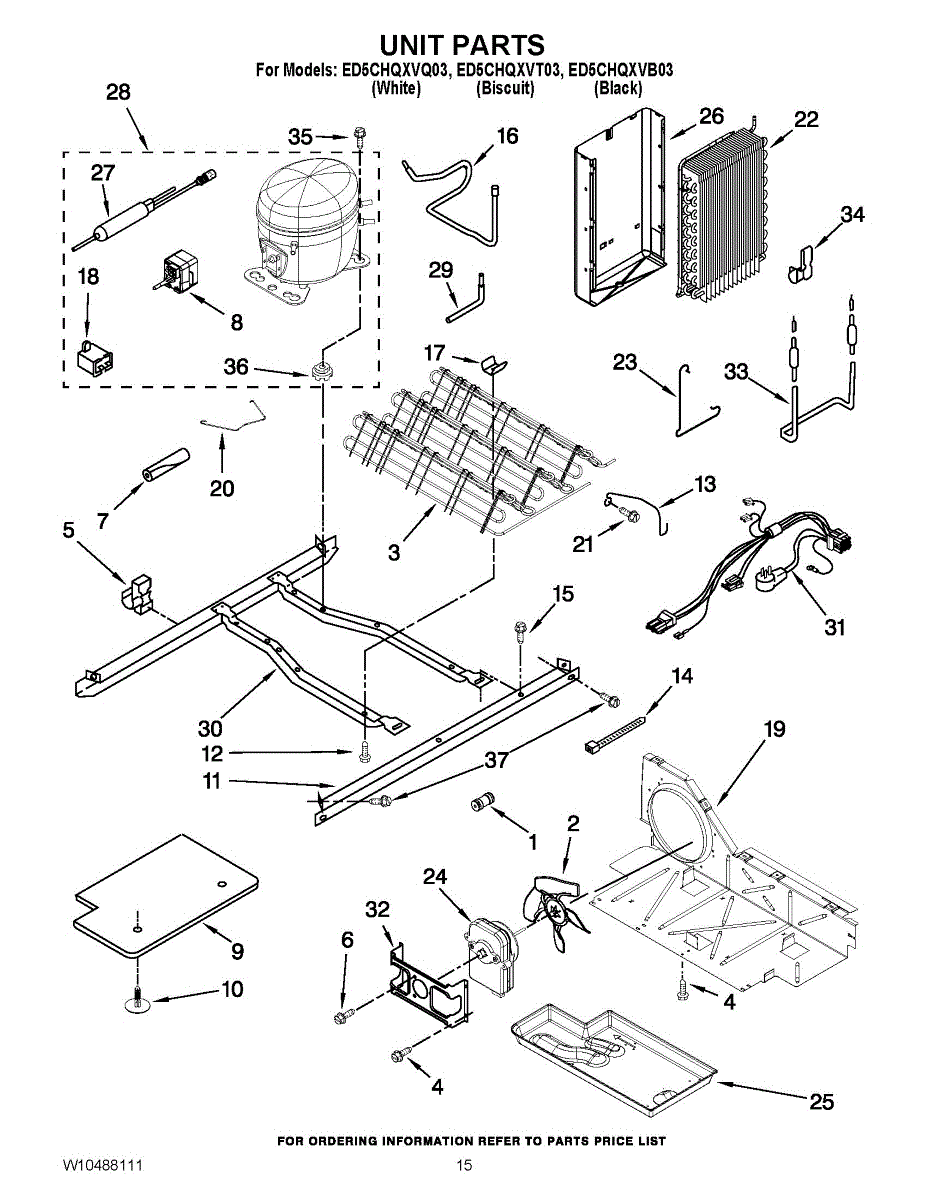

Parts for Whirlpool ED5CHQXVT03: 09 - Unit Parts

Connects two sections of water tubing in your refrigerator's supply system. Replace if cracked, leaking, or broken during door removal or transport.

Refrigerator not cooling or freezer too warm? A faulty condenser may be the cause. This part helps dissipate heat for proper cooling performance.

Loose panels or rattling components? This mounting screw secures body panels and electronics in appliances. Quick 5-minute fix for most models.

Replacement mounting screw for securing panels, trim, and components. Needed when original screws are stripped, missing, or lost during repairs.

Guide sleeve for washer drum or agitator assembly. Replaces worn, cracked, or missing sleeves that cause misalignment or rattling during operation.

Fix a refrigerator that won't cool or won't start with this start device relay. Common repair for non-starting compressors. DIY-friendly fix.

Secures components in your coffee maker. Replace if broken, loose, or missing to prevent leaks or rattling. Verify fit with your model number.

Replacement mounting screw for refrigerators and freezers. Secures panels, brackets, or internal components. Order if original is stripped, lost, or damaged.

Secures wiring bundles inside your microwave. Replace this wire tie if it's cracked, broken, or missing to keep internal wires organized and secure.

Replacement 1/4-20 threaded screw for securing refrigerator panels, brackets, and assemblies. Restores proper fastening when original is missing or stripped.

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order a new clip if yours is broken, cracked, or missing.

Refrigerator stopped cooling or compressor won't start? This run capacitor provides the electrical boost needed to start the compressor motor. Easy DIY fix.

Air baffle directs airflow inside your refrigerator to maintain proper ventilation. Replace if cracked, broken, or missing to restore correct airflow routing.

Secures the door latch assembly for reliable closure. Replace if your door won't stay closed or latch feels loose. Verify fit with your model number.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Freezer not cooling or excessive frost buildup? The evaporator assembly circulates refrigerant to remove heat. Moderately difficult repair for DIYers.

Fix frost buildup in your refrigerator with this defrost heater mounting clip. Secures heater to evaporator for consistent defrosting performance.

Refrigerator not cooling or making noise? This condenser fan motor kit fixes cooling issues and noisy operation. DIY-friendly with video guide.

Water leaking from bottom of fridge? Cracked evaporator drip tray lets defrost water escape. Moderate DIY repair, about 45-60 minutes with our guide.

Protective shield that covers the evaporator coils in your refrigerator. Replace if cracked, broken, or missing to restore proper airflow protection.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Refrigerator not cooling or making unusual noises? This compressor system tube connects critical sealed system components for proper refrigerant flow.

Wire harness for side-by-side refrigerators. Replaces damaged or frayed electrical wiring connections. Essential when original harness is worn or broken.

Refrigerator not cooling properly? A damaged condenser fan motor bracket causes fan wobble and poor airflow. This mounting bracket restores stability.

Ice buildup in freezer or warm fridge? This defrost heater melts frost from evaporator coils during the defrost cycle. Moderate DIY repair with video guide.

Rubber grommet for refrigerators and freezers. Protects wires and components from sharp edges. Replace if cracked, worn, or missing for proper fit.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

8 x 1/12

Size: 1/2 inch.

Size: 5/8 inch.

Fix refrigerant leaks or low cooling with this 3/4 inch service valve. Essential for AC system pressure testing and refrigerant recharge procedures.

Fix refrigerant leaks or low cooling with this 3/16 inch service valve. Essential for AC recharging and system maintenance on multiple models.

Refrigerator not cooling properly? A faulty 1/4 inch service valve can prevent proper refrigerant flow. This valve connects refrigerant lines in your system.

Service valve for refrigerators, freezers, and ice makers. Used for refrigerant system service and maintenance. 5/16 inch fitting size for technicians.

Fix refrigerant leaks or cooling issues with this 3/8 inch service valve. Essential for refrigeration system repairs and maintenance on multiple models.
