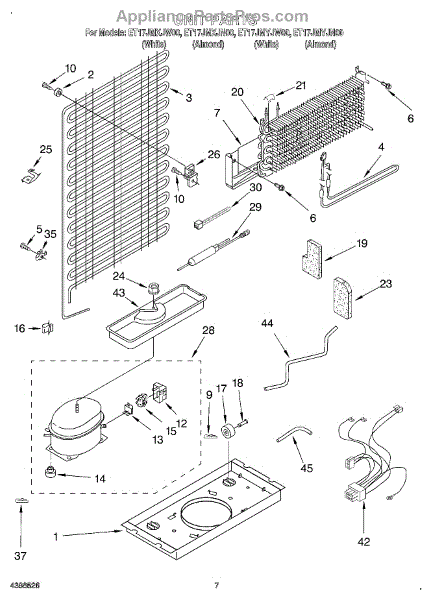

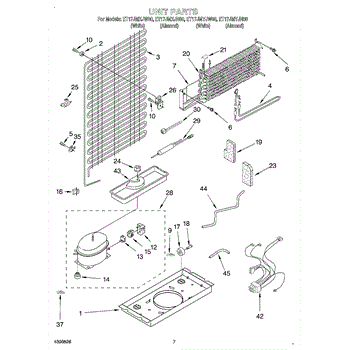

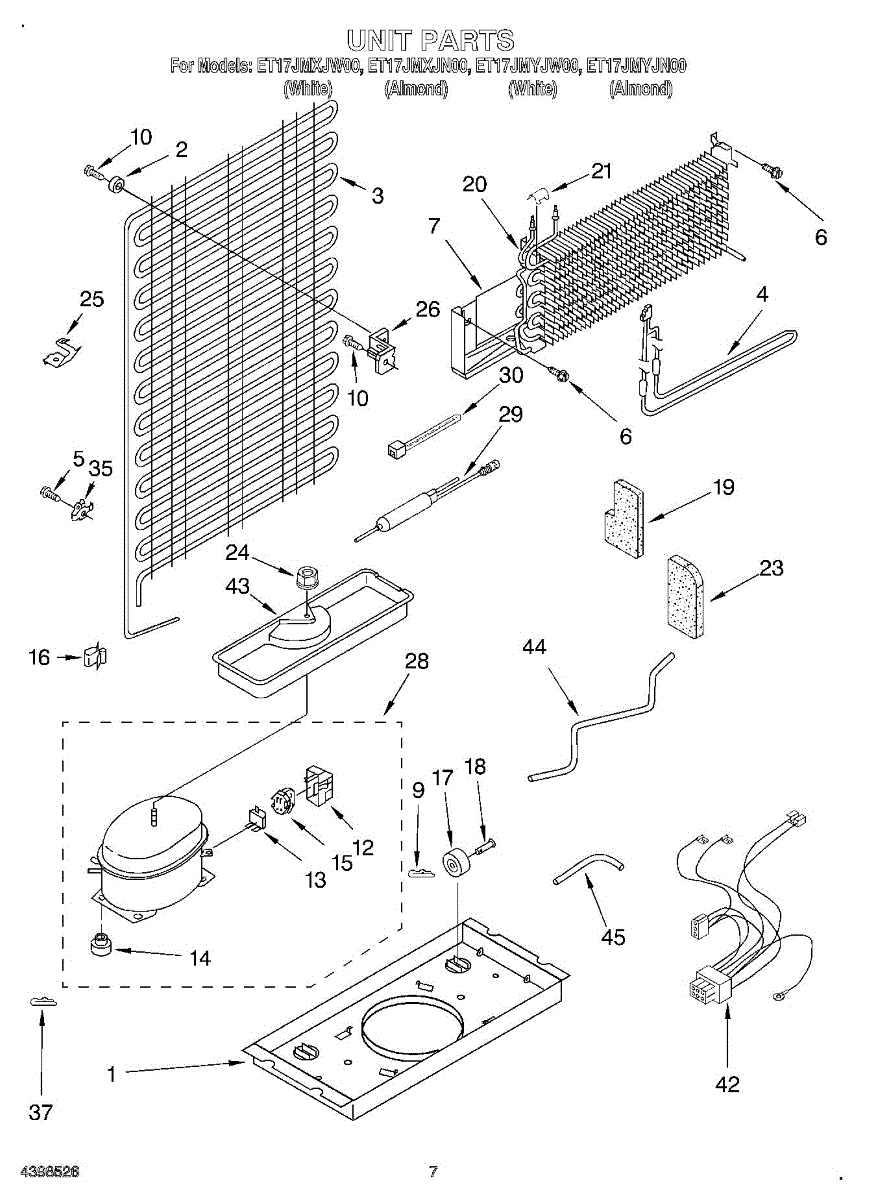

Parts for Whirlpool ET17JMYJN00: 04 - Unit Parts

This refrigerator support bracket provides structural stability for internal components. Replace if cracked, broken, or missing to restore proper support.

Refrigerator not cooling or running constantly? A faulty condenser prevents proper heat release. This repair requires basic tools and 1-2 hours to complete.

Fix freezer icing and blocked vents with this defrost heater. Melts frost buildup on evaporator coils during defrost cycle. 30-minute DIY repair.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

Size: 8-18 x 1/2 inch.

Secures the roller pin in refrigerator drawer and track assemblies. Replace if missing, bent, or broken to prevent bins from tilting, binding, or dropping.

Replacement screw that secures panels, brackets, and trim to appliance cabinets. Restores reliable hold when original hardware is stripped or missing.

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

Refrigerator clicking but not cooling? A failed overload protector can prevent the compressor from running. Simple plug-in replacement part.

Refrigerator not cooling or freezing? A faulty start relay prevents the compressor from running. This kit fixes humming compressors in about 20 minutes.

Excessive vibration or loud humming from your fridge? This rubber compressor mount grommet reduces noise and vibration. Simple DIY fix in minutes.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

The Compressor Start Relay is an OEM part for Whirlpool refrigerators. This part provides the necessary power boost to start the compressor.

Causes of a bad start relay can include electrical issues, wear and tear from regular use, or damage from power surges or overheating.

Symptoms of a bad compressor start relay include:

• The refrigerator not cooling properly
• The compressor not starting or frequently shutting off
• Clicking noises coming from the compressor area
• The refrigerator running but not reaching the desired temperature
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Cabinet roller axle supports refrigerator wheels for smooth movement. Replace if rollers wobble or fridge is hard to move. Verify fit with your model.

Fix water leaking on the floor or cooling issues with this refrigerator evaporator assembly. Located behind the freezer back panel. Moderate repair.

A small metal retaining clip that secures a bi-metal thermostat or temperature sensor in place, helping maintain proper contact and accurate temperature sensing for reliable appliance operation. Simple, durable replacement part. What it does

• Holds a bi-metal thermostat or temperature sensor firmly against its mounting point or probe.
• Maintains consistent contact to support accurate temperature sensing and control.
• Can help stop intermittent temperature-related issues caused by a loose or damaged clip.
• Designed for direct replacement where a spring-style or formed metal retainer is required.

• One bi-metal retaining clip (single clip).

• Disconnect power to the appliance before attempting any repair.
• Removal/installation typically requires small pliers or a flat screwdriver; avoid excessive force to prevent damage.
• Verify clip orientation and that the sensor/thermostat is seated fully before securing.

Secures trim, panels, and assemblies to prevent rattling and keep parts aligned. Replace when original clip breaks or goes missing. Verify fit with your model.

This kit is used to mount evaporator trays on compressors.

Refrigerator not cooling or making unusual noises? This compressor tubing kit repairs sealed system issues. Advanced repair requiring proper tools.

Refrigerator won't cool or compressor rattles? This sealed system compressor restores cooling. Professional installation required for refrigerant work.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
