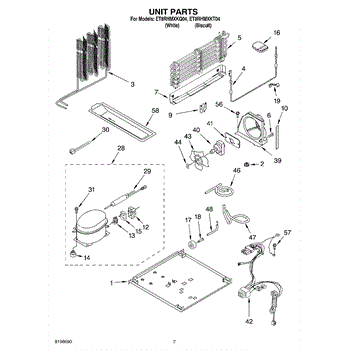

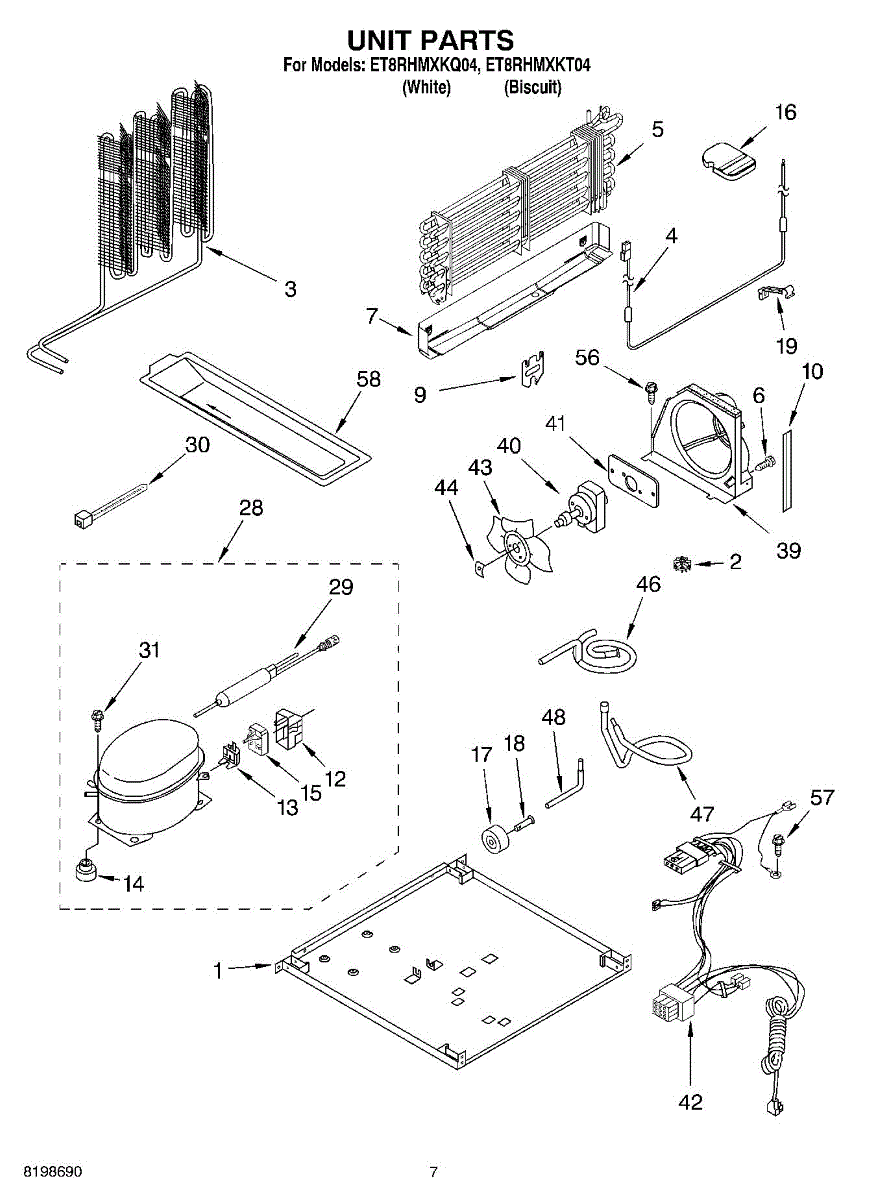

Parts for Whirlpool ET8RHMXKT04: 04 - Unit Parts

The Defrost Heater is an OEM part for Whirlpool refrigerators. It is responsible for melting frost and ice that can accumulate on the evaporator coils, ensuring the refrigerator operates efficiently.

Causes of a bad defrost heater can include electrical issues such as short circuits or open circuits, physical damage to the heater element, or wear and tear from repeated heating cycles over time.

Symptoms of a bad defrost heater include:

• Frost buildup on the evaporator coils
• The refrigerator not cooling properly
• Frequent or continuous running of the compressor
• Water leakage inside the refrigerator due to melting ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

A thermal overload protector that helps prevent motor damage by cutting power if the dryer motor overheats. Fits the motor assembly and restores normal operation once the motor cools. What it does:

• Detects excessive motor temperature and interrupts power to prevent motor burnout
• Helps stop the motor from running when overheating occurs
• Commonly replaced when the dryer won't start or the motor hums but does not turn
• Can prevent further electrical damage by opening the circuit during thermal faults

• One thermal overload protector

• Disconnect power to the appliance before servicing to avoid shock or injury
• Located on or near the dryer motor; note wire locations or take a photo before removal
• Replace with the correct PN and secure terminals firmly; do not force connections
• Check motor bearings, start components, and wiring if symptoms continue after replacement

This compressor overload is a thermal protector that opens the circuit if the compressor overheats or draws excessive current. Replacing a failed overload restores reliable starts and helps prevent compressor damage when your refrigerator won't cool.

• Protects the compressor by interrupting power during overheat/overcurrent conditions
• Common symptoms: refrigerator not cooling, compressor won't start, repeated clicking or brief hum then shutoff
• Mounts on the compressor terminal and works alongside the start relay on applicable models
• Built for proper fit and dependable operation in the start circuit

• Unplug the refrigerator and remove the rear access panel to reach the compressor
• Note wire positions; pull the old overload straight off the compressor pin
• Push the new overload fully onto the correct terminal and reconnect wiring/terminal cover
• Restore power and verify the compressor starts without repeated clicking

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This small rubber grommet cushions and supports a fan motor, helping reduce vibration and noise while the appliance is running. It fits into the motor bracket to provide a snug, insulated mounting point.

• Isolates fan motor vibration to cut rattling or buzzing
• Helps keep the motor aligned in its bracket
• Can wear, crack, or compress over time, causing vibration or noise
• Replacing a deteriorated grommet restores smooth, quieter operation

• Disconnect power before servicing
• Access the fan assembly and support the motor to relieve strain
• Note grommet orientation; transfer any sleeves or hardware as found
• Seat the new grommet fully in the bracket before remounting the motor

This start relay mounts on the side of the refrigerator's compressor and momentarily powers the start winding so the compressor can start reliably—helping restore consistent cooling and eliminating repeated click-and-no-start issues.

• Provides the initial boost to start the compressor, then disengages automatically
• Supports proper refrigerator and freezer temperatures by ensuring reliable compressor starts
• Common symptoms of a failing relay: warm temps, compressor won't start, rapid clicking or humming from the rear, or repeated overload trips
• Intermittent cooling after power cycling can also point to a weak start relay

• Unplug the refrigerator before servicing; pull the unit forward to access the rear
• The start device is under a small cover on the compressor side; remove the cover to access
• If a run capacitor is present, discharge it before handling any wiring
• Note wire positions and relay orientation; push the new relay straight onto the compressor pins without bending terminals, reinstall the cover, and restore power

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This air baffle bracket assembly helps route airflow inside the appliance to maintain proper cooling and protect the fan area. It restores correct air channeling for more consistent temperatures and quieter operation. What it does:

• Directs and channels airflow through the evaporator/fan area to support efficient cooling
• Holds or positions the fan assembly and related ducting for correct air pathway
• Prevents air recirculation and reduces hotspots or uneven cooling
• Can help address abnormal fan noise or rattling when damaged or loose

• Disconnect power to the appliance before beginning any work
• Remove exterior or interior access panels to reach the fan area; keep fasteners organized
• Handle plastic tabs and clips gently to avoid breakage; replace damaged clips as needed
• After installation, verify the fan spins freely and that all panels are reattached securely

The Condenser Motor Kit is an OEM part for Whirlpool refrigerators. It includes a motor, fan blade, wire harness, and hardware, designed to replace the existing condenser motor in your refrigerator. This kit is crucial for maintaining the appliance's cooling efficiency by circulating air through the condenser coils and over the compressor, helping to dissipate heat and prevent overheating.

Over time, the condenser motor can fail due to mechanical wear, electrical issues, or blockages that restrict airflow and cause the motor to overheat.

Symptoms of a bad Condenser Motor Kit include:

• The refrigerator does not cool adequately
• Unusual noises from the back of the refrigerator where the motor is located
• The refrigerator compressor runs hotter than normal
• Increased electrical consumption as the refrigerator tries to maintain cooling efficiency

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This genuine replacement screw secures appliance panels and components, restoring proper fit and stopping movement. Use it when a missing or damaged fastener causes loose trim or rattling. What it does

• Secures panels, brackets, and small assemblies to restore proper fit
• Helps eliminate rattling, vibration, or misaligned trim caused by a missing or stripped screw
• Replaces lost or damaged fasteners during maintenance or part replacement
• Matches OEM fit for reliable fastening where specified in diagrams

• Use the matching screw location shown in the appliance diagram; do not force or overtighten
• Use the correct screwdriver or bit to avoid stripping the head
• Disconnect power and follow appliance safety procedures before accessing internal components
• If threads are damaged, replace with the correct OEM fastener rather than reusing a compromised hole

Screw: 8-16 x 3/8 inch.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

This evaporator tray collects defrost/condensate water and holds it where warm air can evaporate it, helping prevent leaks and odors. Replace a cracked or warped tray to restore proper drainage and protect surrounding floors and cabinetry.

• Collects water from the evaporator/defrost system and contains it safely
• Promotes evaporation using airflow and heat near the condenser area
• Helps prevent puddles beneath the appliance and mildew odors
• Common signs of failure: water on the floor, recurring leaks after defrost, visible cracks/warping, or standing water in the pan

• Disconnect power and allow components to cool before servicing
• Access the tray from the base or rear (panel removal varies by model)
• Transfer any brackets, clips, or grommets from the old tray as needed
• Ensure the drain tube seats fully into the tray and that the tray is level; restore power and check for leaks
