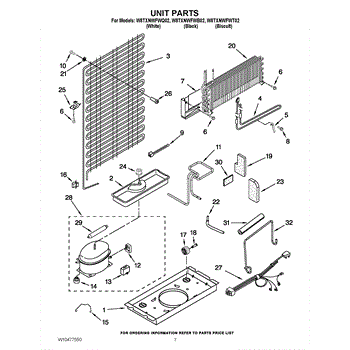

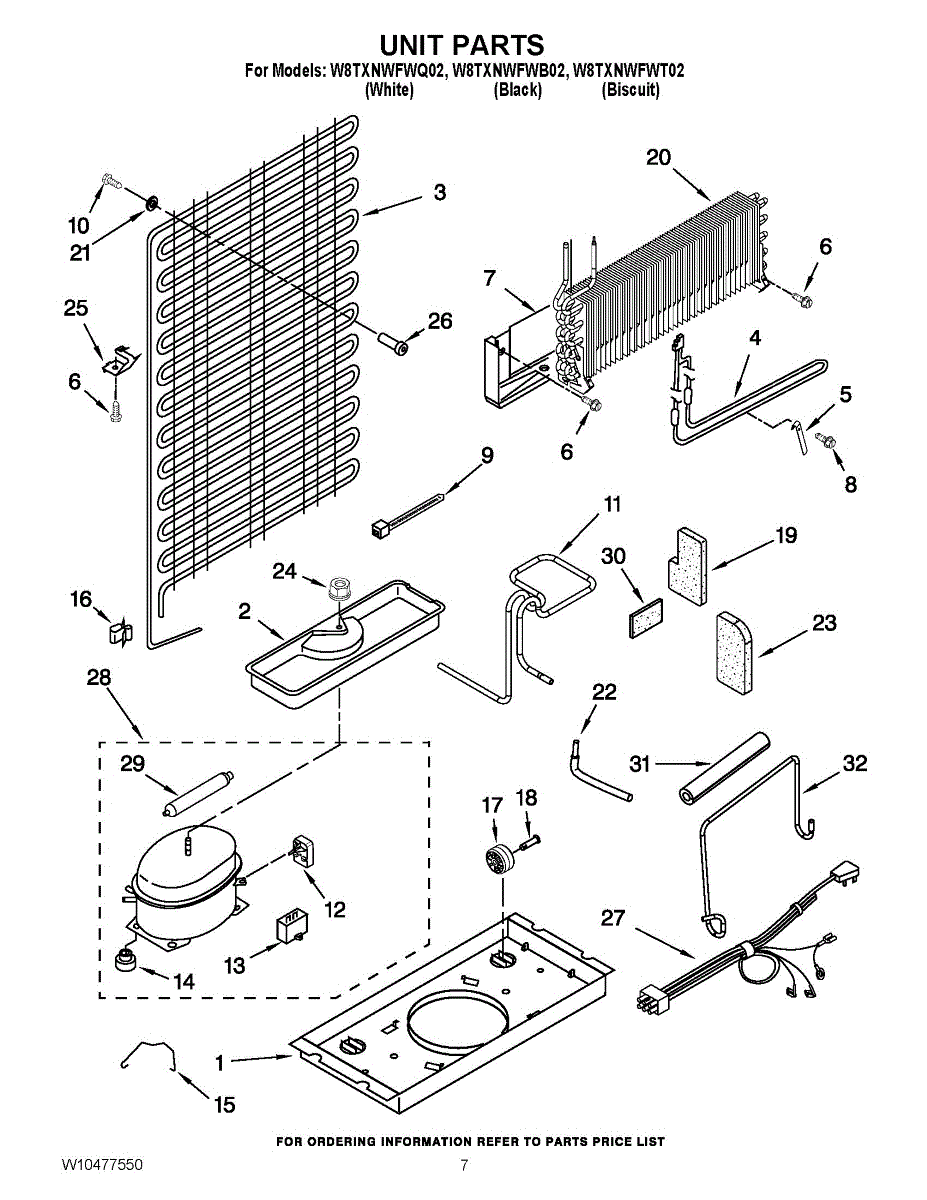

Parts for Whirlpool W8TXNWFWQ02: 04 - Unit Parts

This refrigerator support bracket provides structural stability for internal components. Replace if cracked, broken, or missing to restore proper support.

Collects defrost and condensation water from the evaporator coil. Replace if cracked, warped, or leaking to prevent water damage and ice buildup issues.

Refrigerator not cooling properly? This condenser assembly transfers heat from the refrigeration system. Direct replacement for bent or corroded condensers.

Fix freezer icing and blocked vents with this defrost heater. Melts frost buildup on evaporator coils during defrost cycle. 30-minute DIY repair.

Size: 8-18 x 1/2 inch.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

This precooler sleeve is the replacement tube that guides and protects the refrigerator precooler assembly, helping maintain proper airflow and component alignment for reliable cooling performance. What it does:

• Channels refrigerant/airflow around the precooler area to support efficient heat exchange
• Protects the precooler assembly from rubbing, kinking, or contact with adjacent components
• Helps prevent airflow leaks that can cause uneven cooling or frost buildup
• Commonly replaced when cracked, split, punctured, or otherwise damaged

• One precooler sleeve/tube

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels or the evaporator cover; handle evaporator fins and tubing carefully
• Inspect adjoining seals and clips; replace any damaged fasteners to ensure proper fit

Fix a fridge compressor that clicks off after a minute or won't start. This start device restores reliable compressor operation. Simple plug-in install.

The Run Capacitor is an OEM part for Whirlpool refrigerators. It is responsible for helping the compressor motor start and run efficiently by providing an extra electrical boost. This component ensures that the refrigerator operates smoothly and maintains the correct temperature by stabilizing the compressor's performance.

Causes of a bad run capacitor can include electrical surges, age-related wear, or overheating. When the capacitor fails, the compressor may struggle to start or run continuously, leading to inefficient cooling or a non-functional refrigerator.

Symptoms of a bad run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual clicking noises from the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

Secures the compressor to the refrigerator frame. Replace if strap is cracked, broken, or missing to properly mount and stabilize the compressor unit.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Rivet for refrigerators. Secures components and panels inside the cabinet. Replace if rivet is loose, missing, or broken during repair work.

Fix water leaking on the floor or cooling issues with this refrigerator evaporator assembly. Located behind the freezer back panel. Moderate repair.

Mounting washer for securing components in washers and appliances. Replace if worn, missing, or damaged to ensure proper fastening and stability.

Secures trim, panels, and assemblies to prevent rattling and keep parts aligned. Replace when original clip breaks or goes missing. Verify fit with your model.

Wire harness that connects electrical components inside your refrigerator. Replace if wires are frayed, connectors are damaged, or harness is missing.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
